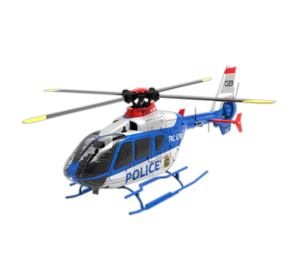

C123 EC135 from RC ERA

Details

Features:

  • Utilizes a 6-channel single-rotor without auxiliary wing design, incorporating 3D flips and one-key reverse flight capabilities. The rotor design employs aerodynamic principles to provide powerful thrust and inherent stability, ensuring ultra-stable flight.
  • Scaled-down appearance mimicking real aircraft proportions, suitable for both flight control and decorative purposes.
  • Equipped with dual brushless direct-drive motors for ample power and excellent wind resistance.
  • Tail ducted propeller design enhances realism and delicacy while reducing the risk of tail rotor damage.
  • Enhanced by a 6-axis electronic gyroscope for stability, and integrated with barometric pressure altitude hold and optical flow positioning for improved stability during flight.
  • Supports 3D flips and one-key reverse flight, adding excitement to flying experiences.
  • Features a precision-controlled transmitter for refined control.
  • Offers various flight actions including ascent, descent, forward, backward, left/right side flight, left/right rotation, and waypoint flight.
  • Incorporates a 6G mode utilizing a 6-axis gyroscope, ideal for beginner pilots for stable flight.
  • Includes low voltage alarm, stall protection, loss of control protection, and dual-rate switch for enhanced safety and ease of use.
  • Provides functions such as dual-rate switch, one-key takeoff, and one-key landing for convenient operation.
  • Comes with a dedicated USB charger for fast, safe, and stable charging.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the C123 EC135 in particular but at least we know they do distribute RC ERA.

Wingspan: 251mm (9.9 in)
Length: 281mm (11.1 in)

Weight: 165 g (5.8 oz)
  • Materials: PAPC
  • Dimension: Blade Diameter: 251mm, Body length: 281mm, Height: 92mm
  • Flying Time: about 8-10mins
  • Charging Time: about 60mins
  • Control Distance: 120-150 m
  • Motors: The main motor and tail motor are both brushless and direct-driven
  • Battery: Body: 11.1V Intelligent modular LiPo battery; Transmitter: 4*1.5AA (not included)
  • Flying weight:165g

Other Variant(s)
