E-Typhoon plus XTail from rcrcm

Details

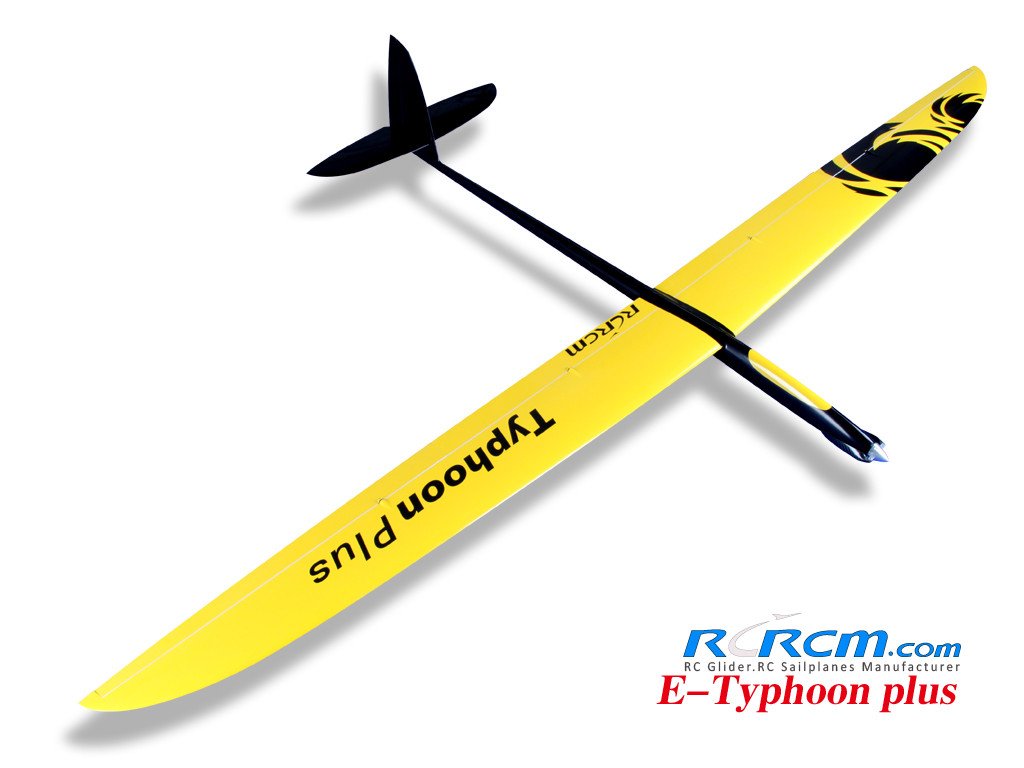

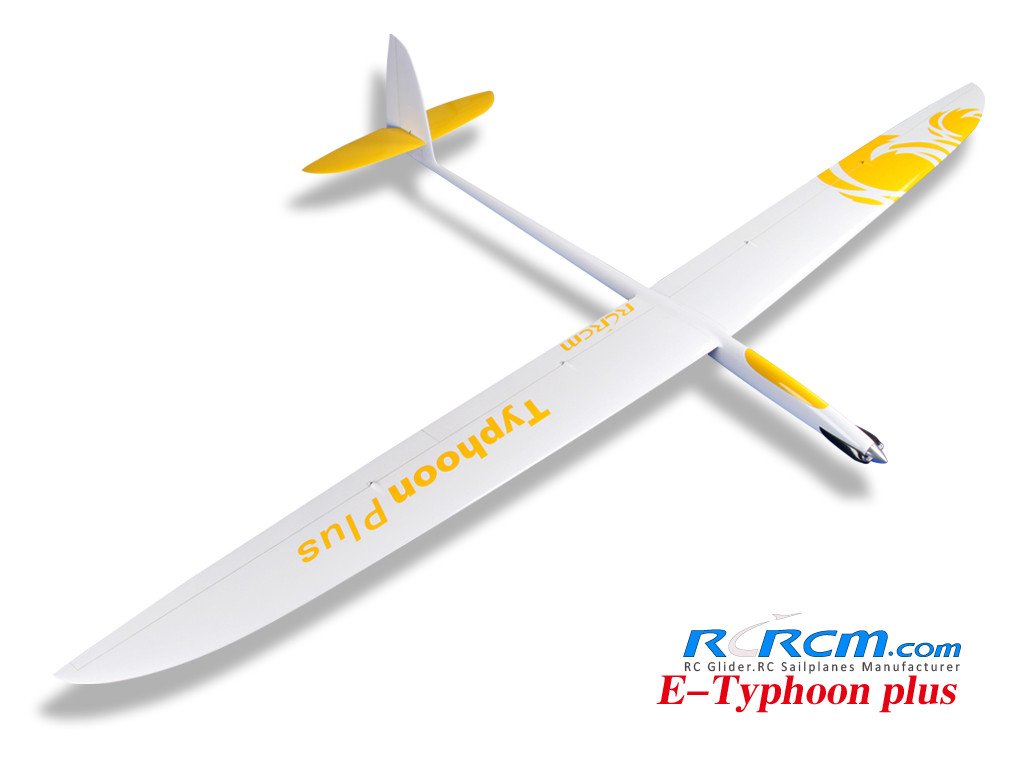

Typhoon plus is a big brother of the Typhoon, with a wingspan of 2900mm, it is a great F3F glider. The quality of construction allows it to fly ballast and go fast without any problem, you will have much fun to fly this version of Typhoon.

Glider for intermediate to experienced pilots. Aimed at the flyer who has made his bones on smaller ships and now wants something with higher potential, the Typhoon Plus offers sparkling slope performance, but turns into a pussycat when thermal. For experienced flyers, the plane handles like a dream, has no vices and yet is capable of amazing performance in the right hands.

Available in 4 Versions:

Fiberglass+Carbon Standard Version: Standard hollow molded fiberglass construction reinforced with carbon fiber which gives good stiffness and torsion stability with lower weight and cost. Highly recommended for sport flying.

Carbon Version: Wings built using carbon cloth as well as fuselage reinforced with carbon from leading edge of the wing to the tail. This configuration gives the model enormous stiffness and torsion stability.

The first two versions are available in stock. We also can produce two custom versions; Light Carbon Version (less weight) and Double Carbon Version (with two layers of carbon).

Features:

  • Control Surfaces: Rudder, Elevator, Ailerons and Flaps
  • Two-piece hollow molded composite Carbon Fiber or Glass wing design
  • Carbon Fiber reinforced wing with square wing joiner
  • Live hinges on the wing and rudder with pre-installed wipers
  • Smooth, gel-coated finish with pre-painted graphics
  • Full flying stabilizer with pre-installed bellcrank

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the E-Typhoon plus XTail in particular but at least we know they do distribute rcrcm.

Wingspan: 2940mm (115.7 in)
Length: 1560mm (61.4 in)

Weight: 1740 g (3.8 lbs)
  • Wingspan: 2940 mm
  • Length: 1560mm
  • Wing area: 57dm2
  • Empty Weight:
    • Fiberglass+Carbon Standard Version:1640g
    •  Carbon Version: 1740g

Recommended equipment

  • Servos for wings: KST DS125MG*4
  • Servos for fuselage: KST DS215MG*2
  • Required Battery: 4S 14.8V 2600mah 25c
  • Power System: LC3542-7T KV780
  • Motor Mount Dia.: 38mm
  • Electronic Speed Control: 60A
  • Fairing size: 40mm
  • Propeller/EDF :13*7
