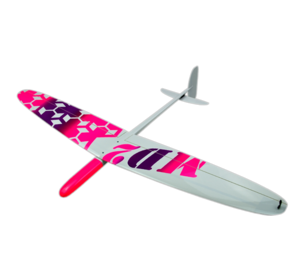

Mini Dart 2 from Soaring Models

Details

The Mini Dart 2 is a lovely very competitively priced all molded 1m DLG. The quality of the construction, attention to detail and surface finish are all very good, and the flying performance is excellent.

The wing is all molded from spread carbon or glass, depending upon the layup chosen, over a solid XPS foam core. The fuselage (also made from carbon or glass, to match the wing) is a one piece design with a very good sized nose and a slip-on nosecone. Removing this reveals a very large space (approx 120 x 30 x 22mm) for installing the RC, which makes for a very easy installation - probably the easiest of any DLG we sell. The front portion of the fuselage and nosecone are made of glass (in both versions) so are 2.4GHz friendly. The rear of the fuselage sports a carbon pylon for mounting the tailplane, and the rear of the boom is ready-slotted to take the fin. Both the tail surfaces are lightweight fully molded items, either carbon or glass, to match the wing. The carbon fuselage and tails are all back, and the glass ones are all white.

The beautifully molded wing has quite a wide chord, giving a low wing loading and benign handling. The wing has large ailerons and a high gloss finish, as good as on models double the price.

The very complete accessory pack includes aileron pushrods, all control horns, a glass servo mounting tray, a contoured carbon fibre throwing blade, and torque springs and pull cables for actuating the tail surfaces.

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1000mm (39.4 in)
Length: 720mm (28.3 in)

Weight: 125 g (4.4 oz)
Wing span 1000 mm 39 in
Wing area 11.6 dm2 180 sq in
Length 720 mm 28.2 in
Flying weight from 125 g 4.4 oz
Wing loading 10.8 g/dm 3.5 oz/sq ft
Aspect ratio 8.6
Wing airfoil AG45, AG455, AG46, AG47
Dihedral angle 6.0º
Centre of Gravity 58-62 mm from wing leading edge
Controls Ailerons, elevator, rudder
