Bungee Prop from 3D LabPrint

Details

Bungee Prop is another of a new LW Planes series designed for easy and cheap flying. The build is simple even for a beginner. It’s very low weight, easy assembly and fantastic flight characteristics makes this model an ideal plane for beginner RC pilots.

With its flight weight of 320g, this is a very capable glider. This plane has been designed for foaming LW-PLA filament to be printed in a continous vase/spiral mode (without retractions).

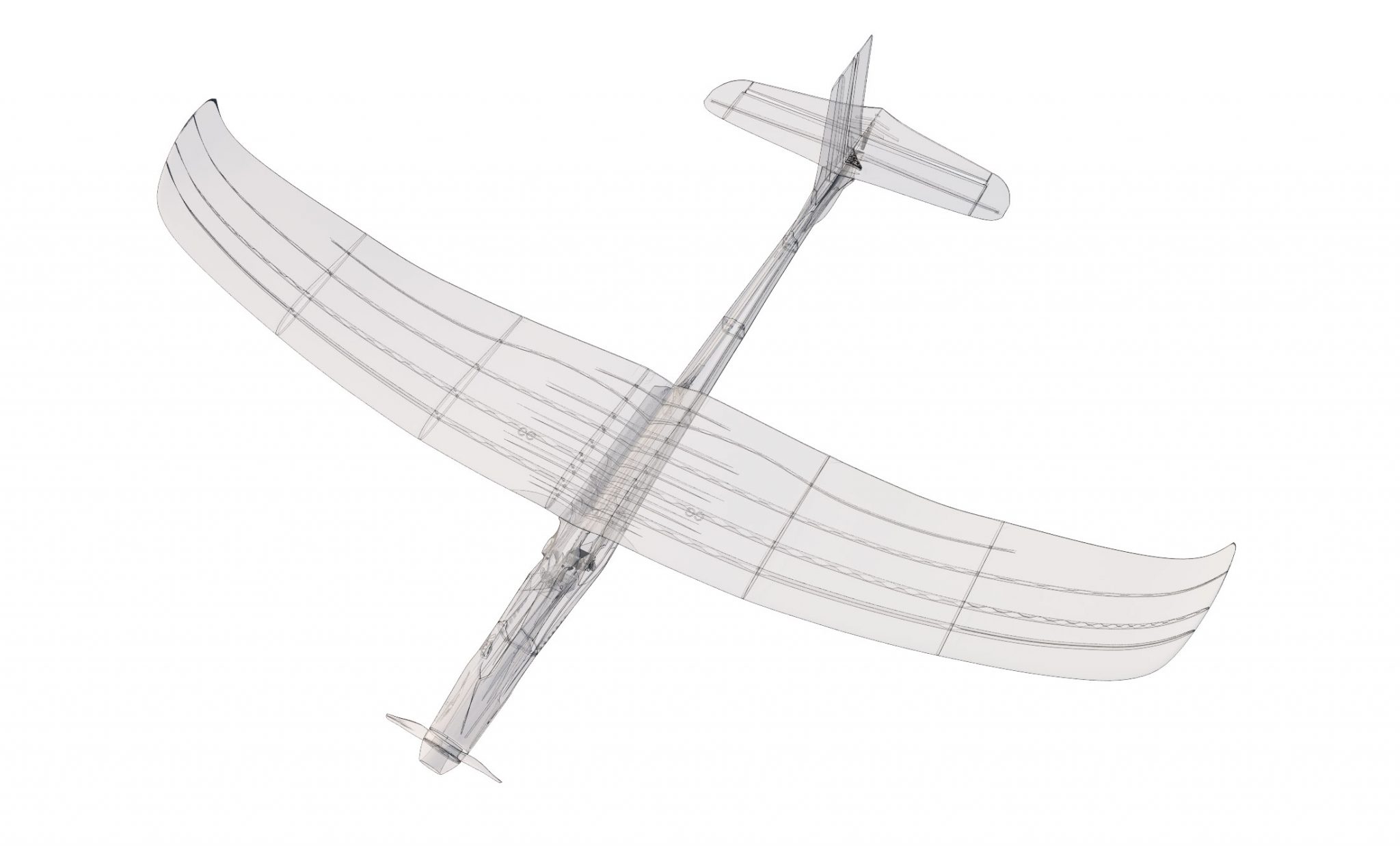

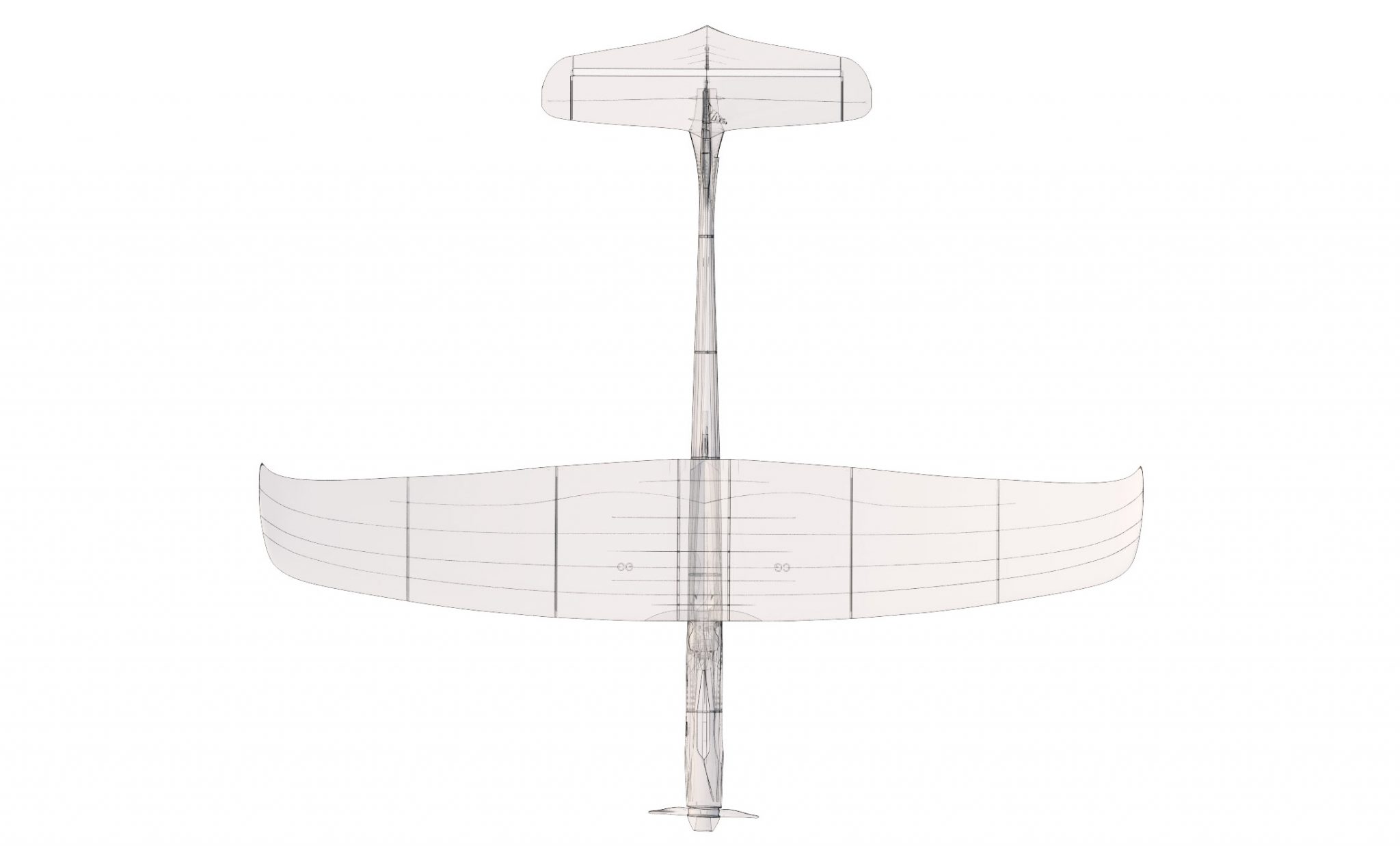

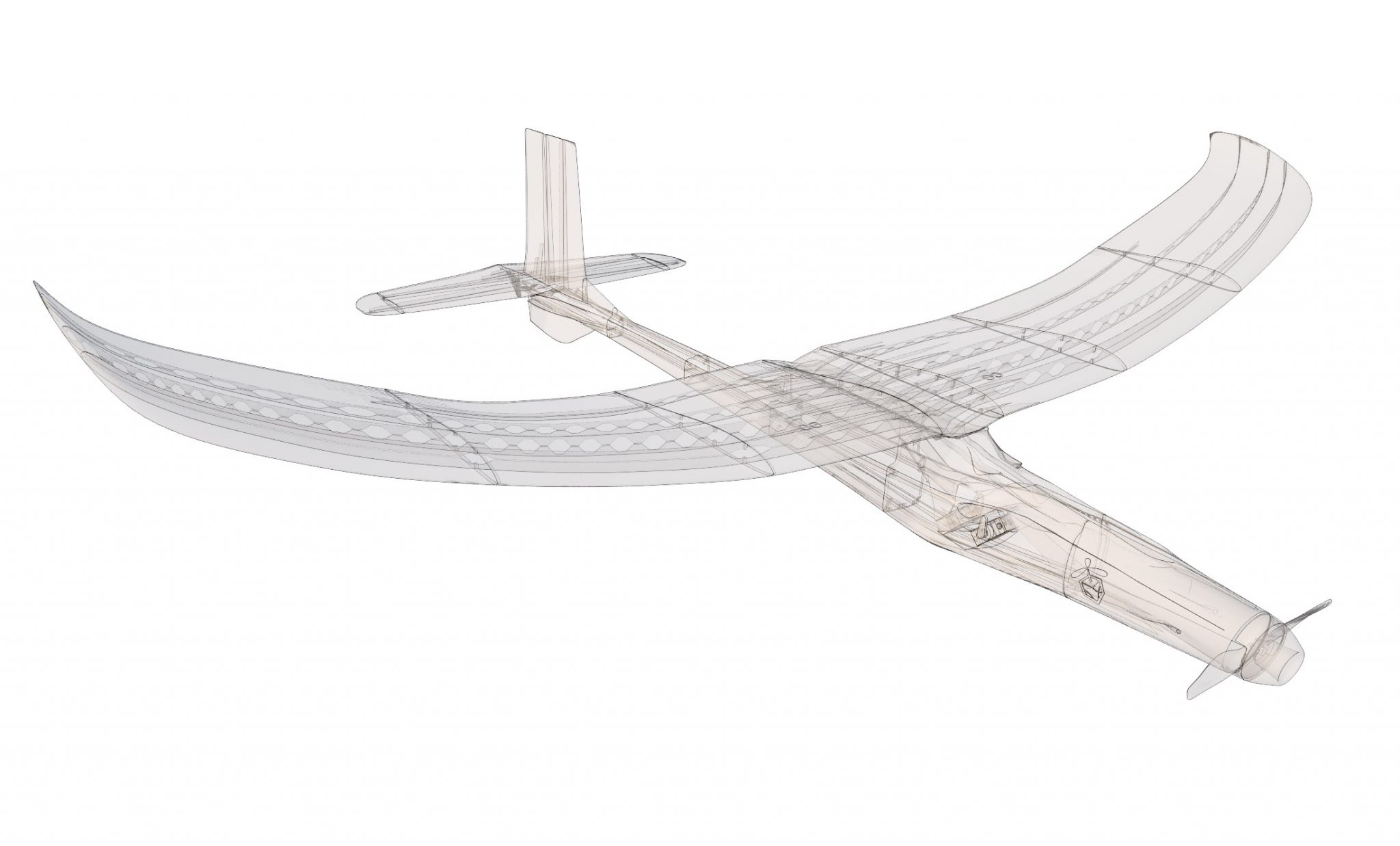

Extensive hi-tech 3d structural reinforcement making the model very rigid while maintaining a lightweight airframe and exact airfoil even it’s just a plastic. This perfect and exact 3d structure is possible only thanks to additive 3dprinting technology. So welcome to the 21st century of model flying and be the first at your airfield.

Easy to assembly, you don’t need any extra tools or hardware, just glue printed parts together and make pushrods for control surfaces. The rest of the assembly is very easy. Simply add brushless motor, ESC, servos and radio system. Don’t worry, detailed step by step PDF/VIDEO is included.

You’ll get an extra stable and lightweight airplane, able to fly and land on its own wihout any stick input such as free gliders do, so eventually you can use it as a free glider or to learn RC flying basics. Great as a first RC plane suitable for calm weather conditions.



Pictures

Manual

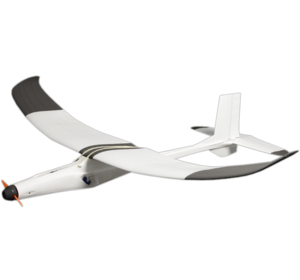

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Bungee Prop in particular but at least we know they do distribute 3D LabPrint.

Wingspan: 1180mm (46.5 in)
Length: 1070mm (42.1 in)

Weight: 320 g (11.3 oz)
  • Wingspan: 1180 mm / 46.5 inch
  • Lenght: 1070 mm / 42.1 inch
  • Height: 260 mm / 10.2 inch
  • Wing area: 21,2 dm2 / 2.3 square feet
  • Wing loading: 15,1 g/dm2 / 4.9 oz/square feet
  • Center of gravity: 84 mm / 3.35 in from leading edge CG tag on wing...
  • Airfoil: 3DLabPrint glide flight 03
  • Print weight (LW PLA): 216 g / 7.6 oz
  • Takeoff weight (2s 350 lipo): 320 g / 11.3 oz
  • Never exceed speed, VNE: 40 km/h / 25 mph
  • Design maneuvering speed, VA: 32 km/h / 20 mph
  • Stall speed, VS: 7 km/h / 4 mph
