J35 Saab Draken from 3D LabPrint

Details

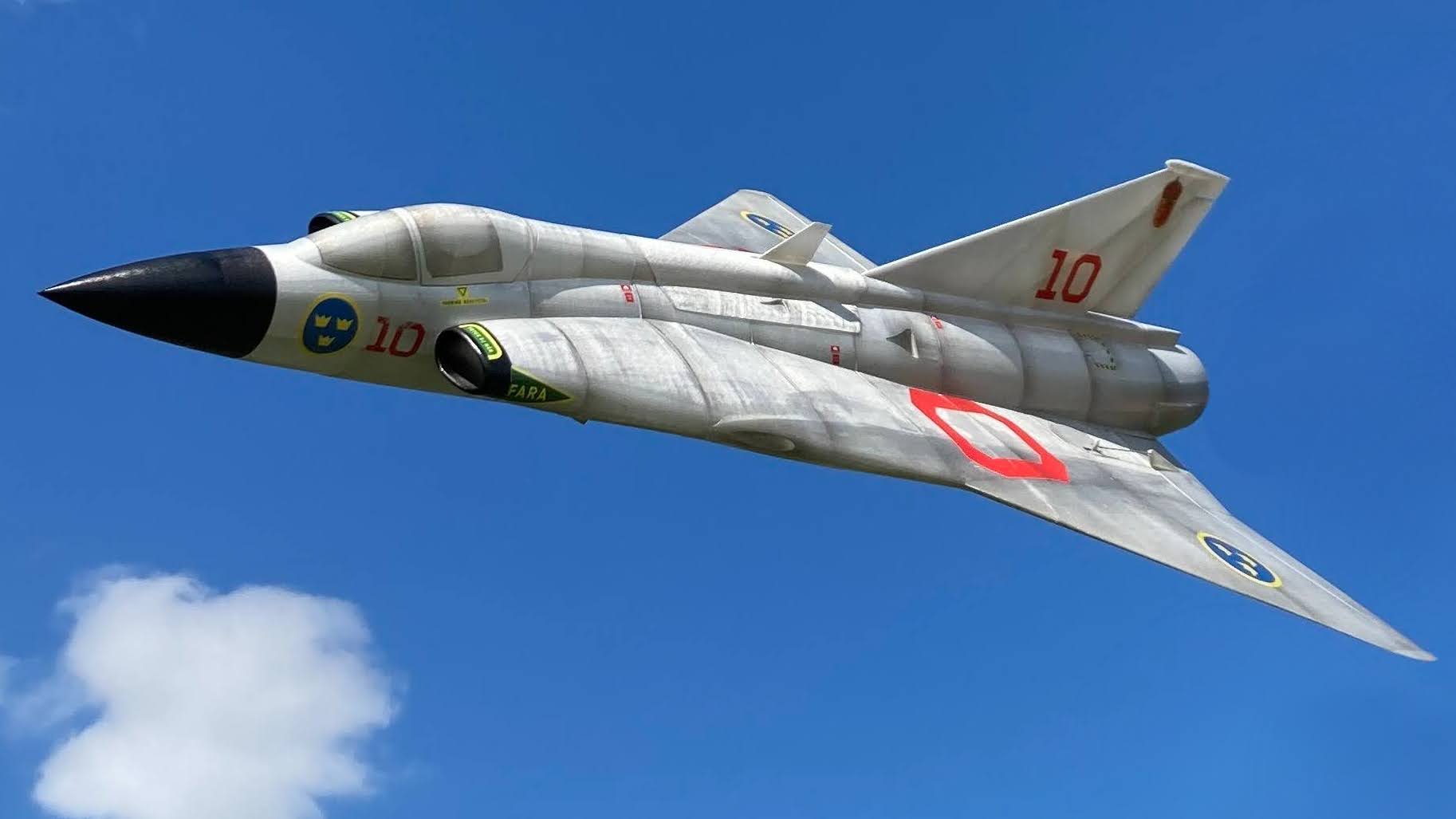

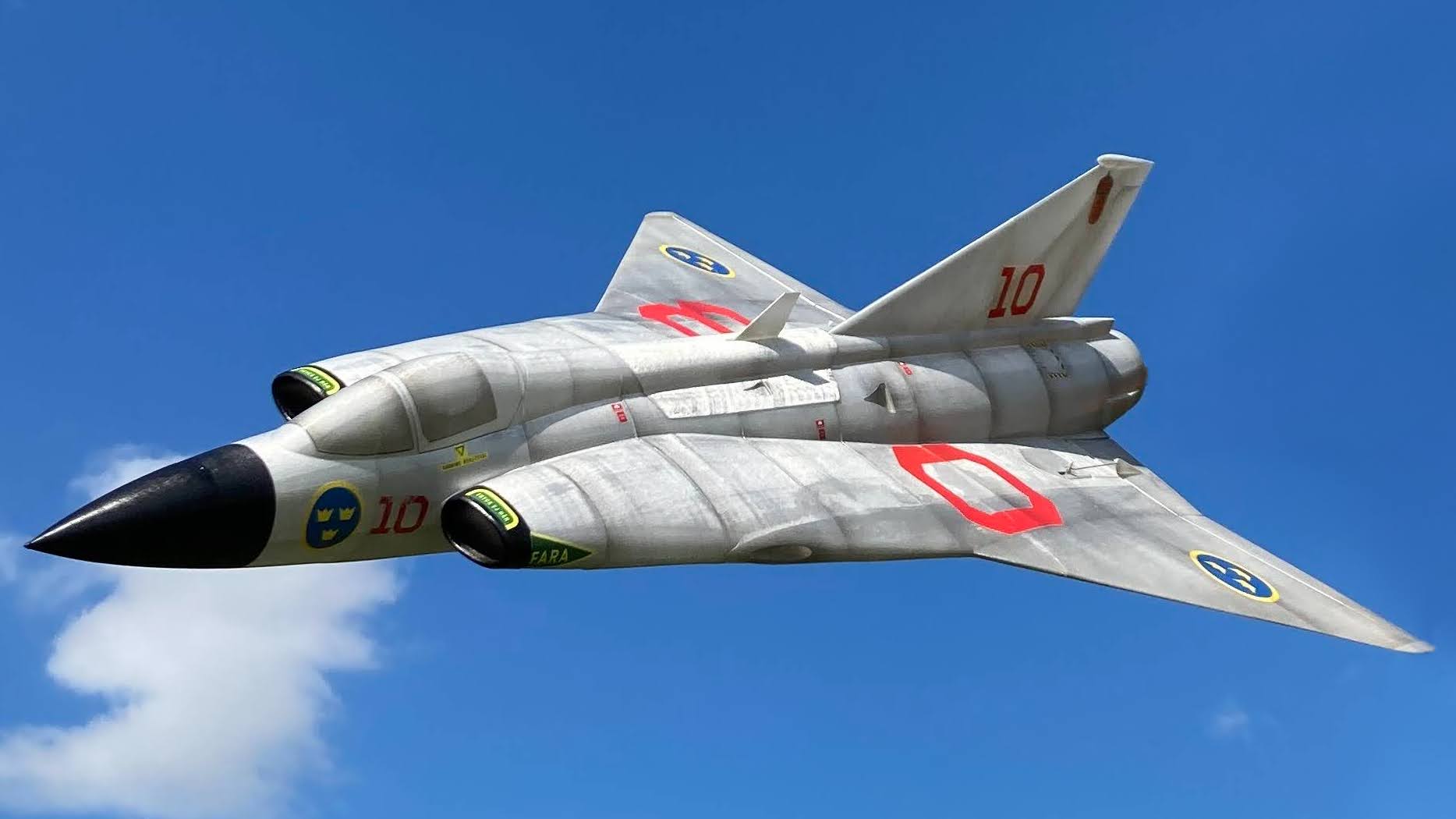

The Saab Draken is an iconic supersonic fighter-interceptor jet which was developed and manufactured by Saab between 1955 and 1974. More than 650 Drakens were produced and it served in the Swedish Air Force and several other nations air forces including Denmark, Finland and Austria.

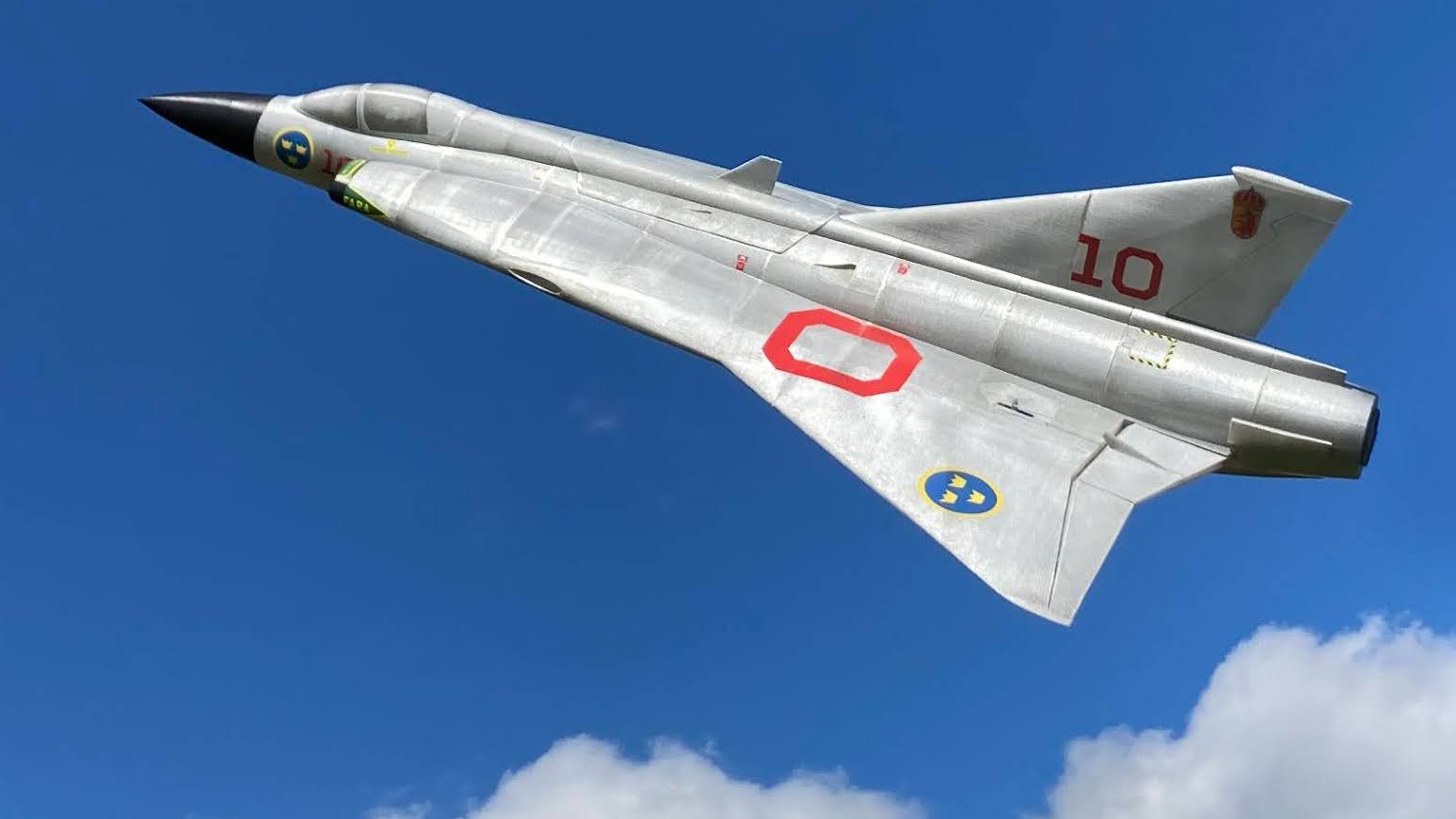

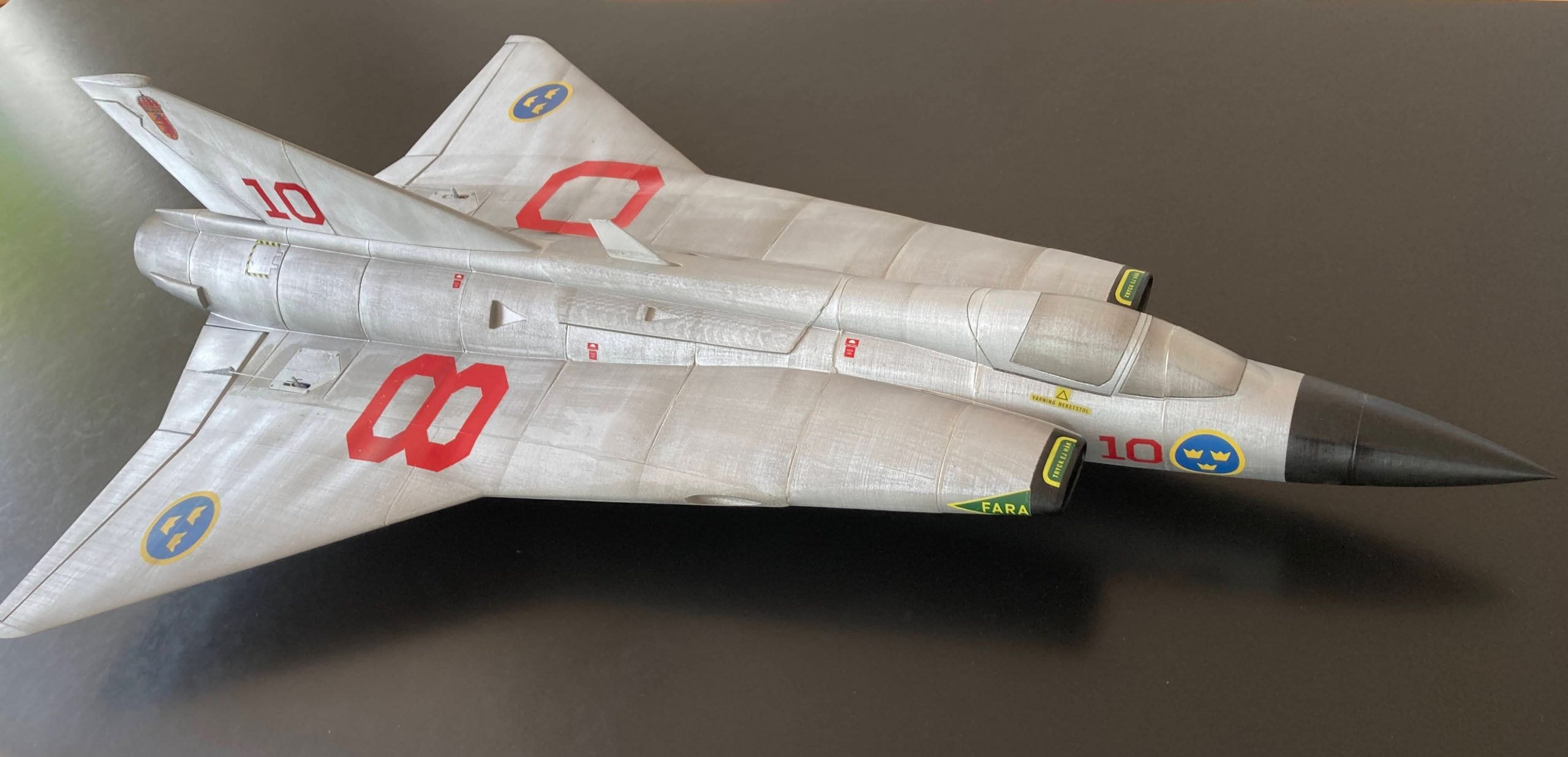

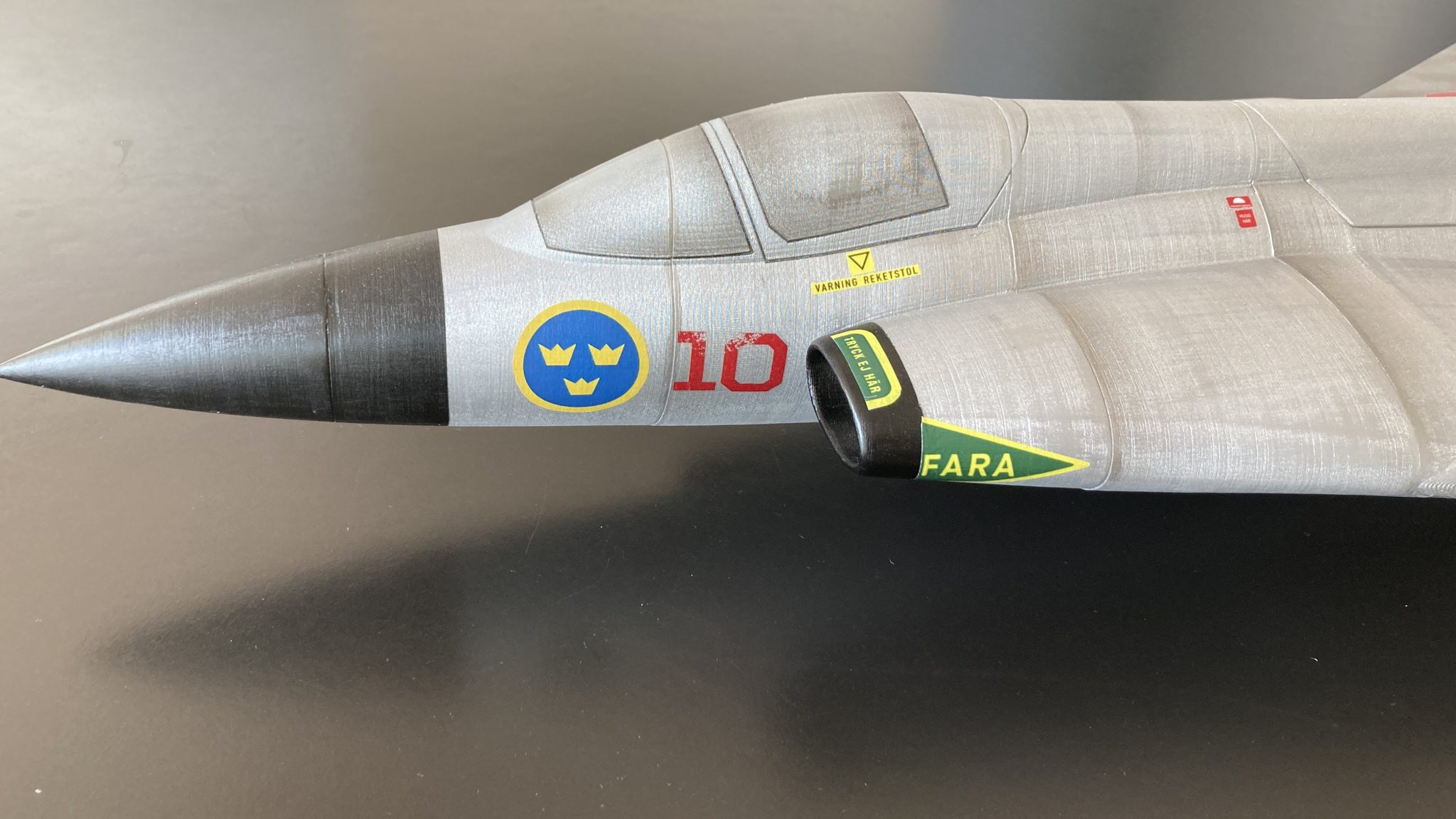

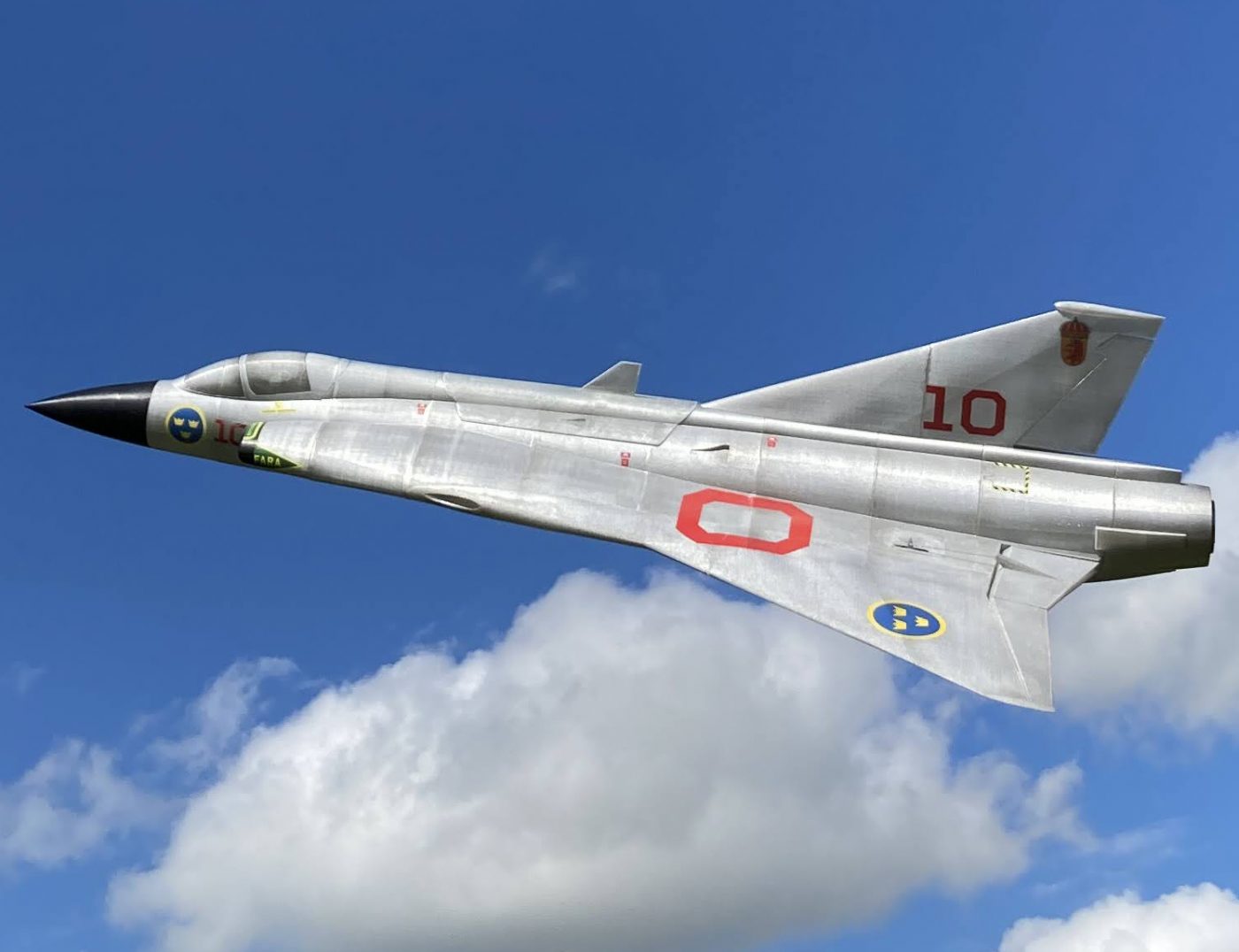

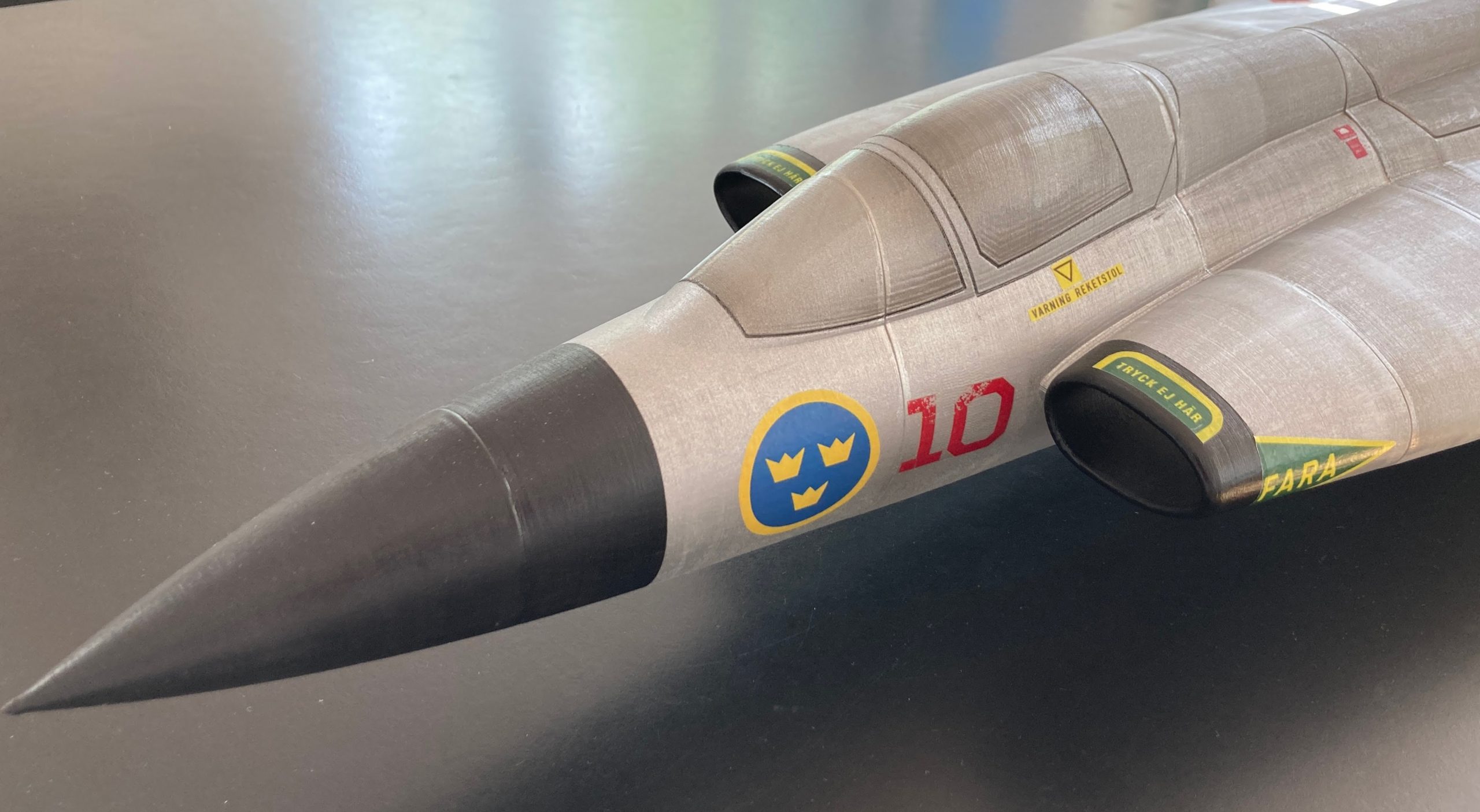

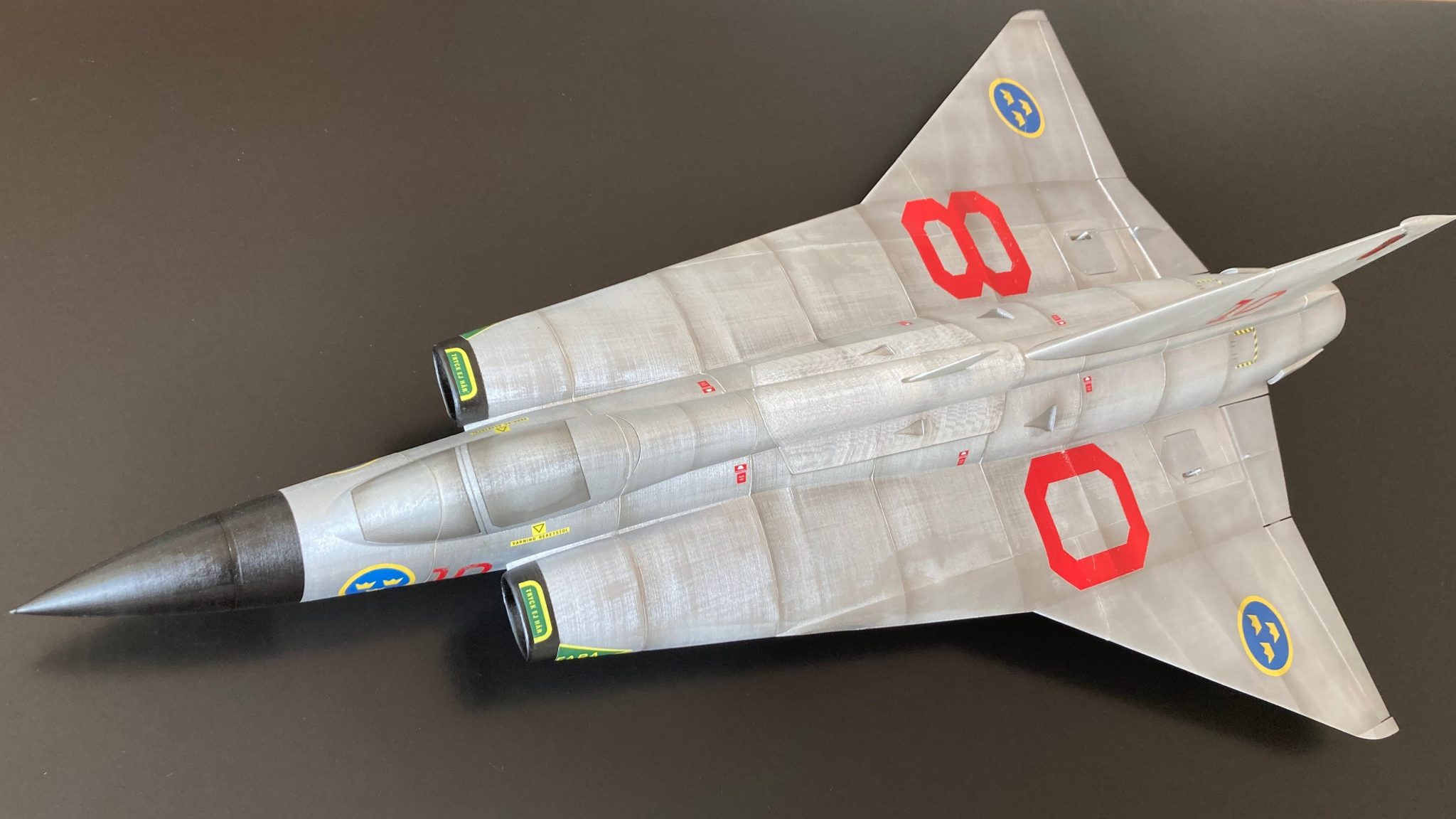

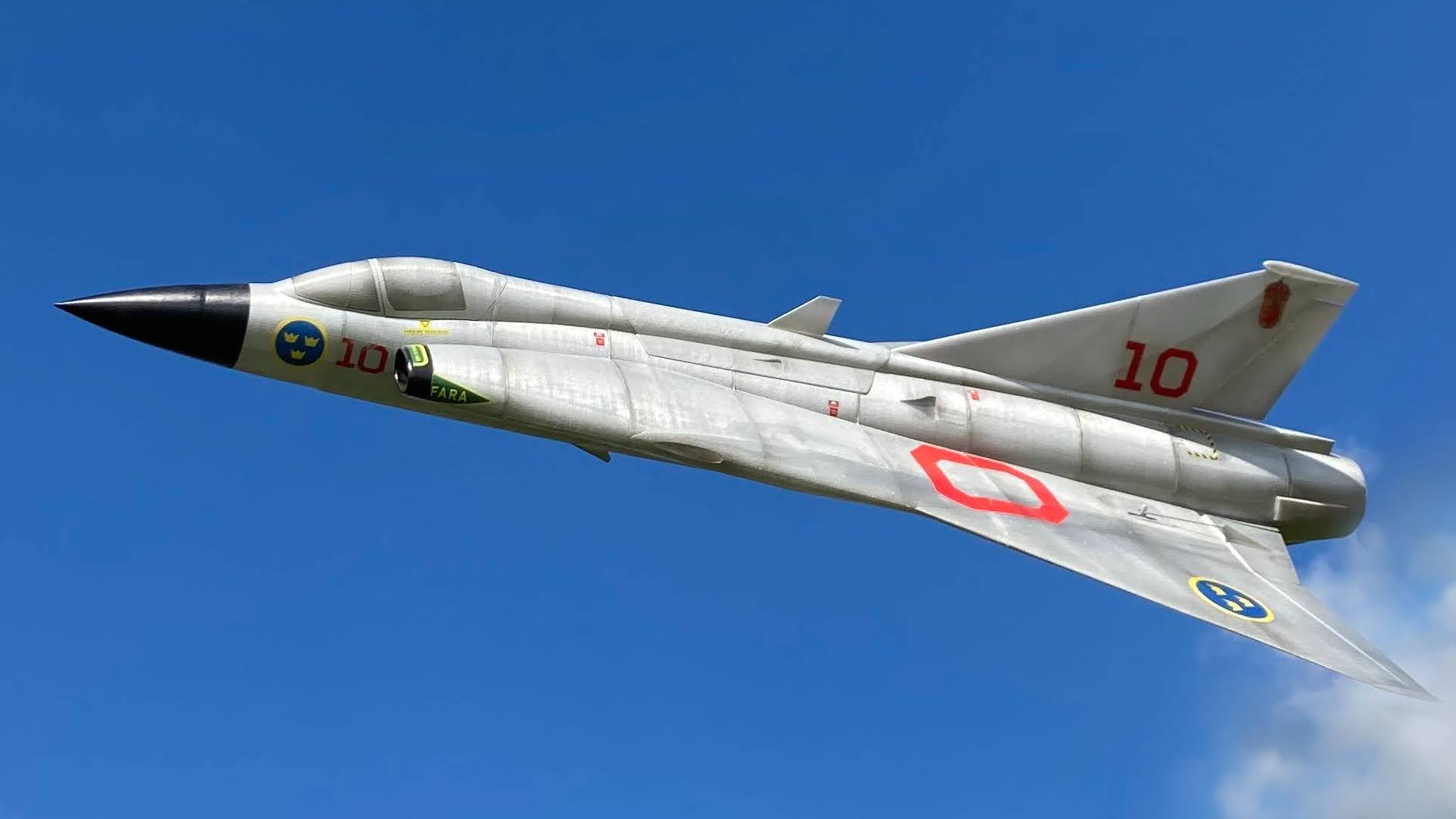

The Draken is one of those jets that is instantly recognizable because of its double delta wing and leading edge air intakes. The semi scale model replicates these distinctive features and the elegant lines of the Saab Draken in a very precise and truthful way. No Cheater holes or non scale sized air intakes on this Saab Draken. The model will fly much like the real Draken and will even perform the famous Cobra maneuver.

The model is very strong and resilient to damage, especially if printed with PolyAir 1.0 PLA by 3DLabPrint. The model requires no carbon tubes or similar for reinforcements. Just print the parts and glue them together with cyano glue. The Saab Draken model is designed to be powered by a FMS 50mm EDF and a 4S2200mAh quality battery. Only two servos are needed as the model is controlled by elevons – just like the real Draken.

The model also features a large hatch for easy access to the battery and EDF. The hatch has a hidden locking mechanism that is triggered by moving the dorsal antenna forward. The model comes with a control throw gauge for easy adjusting of the correct movement of the elevons. The battery tray is spring loaded and can be positioned in three different positions making it easy to balance the model correctly at the Center of Gravity.

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

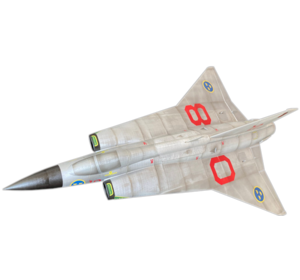

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the J35 Saab Draken in particular but at least we know they do distribute 3D LabPrint.

Wingspan: 730mm (28.7 in)
Length: 1092mm (43 in)

Weight: 1150 g (2.5 lbs)
  • Wingspan: 730mm
  • Length: 1092mm
  • Wing Area: 21,6dm2
  • Wing Loading: 53g/dm
  • Airfoil: Eppler E180 modified
  • Empty weight: 850g
  • Ready to fly weight (452200mAh): 1150g
  • FMS EDF max thrust: 650 g
  • Thrust to weight ratio: 0,57
