Edge 540 48 from 3d hobby shop

Details

The 48" Edge 540 developed by Scott Stoops delivers the ultimate 3d bang for your buck. A serious 48" 3D aircraft capable of using up to 700 watts of power, the 48" is also a perfect first balsa 3D plane. It offers extremely stable 3D flight, precise handling, excellent tumbling and spinning performance, and the durability you need to perfect your 3D skills.

The 48" Edge uses a carbon wing tube, giving you the convenince of removable wings for easy transport.
It uses spring-steel wire landing gear so that a poor landing will not send you home - even a true "splat" landing won't cause any damage.

Features:

  • Precision Laser cut wood construction & lightweight covering film
  • Magnetic canopy hatch w/ pre-installed spring loaded locking hatch latch
  • High strength Carbon Fiber wing-spar tube & sturdy metal control linkages
  • Durable wire landing gear for those "hard" landings & steerable tailwheel assembly
  • Molded Fiberglass wheel pants and cowling
  • Easy access thumb screw wing attachment for quick installation and removal

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos
(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.


Wingspan: 1220mm (48 in)
Length: 1194mm (47 in)

Weight: 1360 g (3 lbs)
  • Wingspan: 1220 mm (48")
  • Length: 1194 mm (47")
  • Wing Area: 32.9 dm² (510 sq. inches)
  • Weight: 1190-1360 (42-48 oz.)

Recommended equipments:

  • Motor
    • Omega 130g motor with 3S 2200-3200 mAh, 14x7 prop
    • Omega 130g motor with 4S 2200-2500 mAh, 12x6 prop
    • Torque 2814-820 with 3S 2200-3200 mAh, 13x6.5 prop
    • Torque 2814-820 with 4S 2200-2500 mAh, 12x6 prop
  • Electronic Speed Control: 45A
  • Servos: 4x Hitec HS-65MG
  • Servo Extensions:
    • 1x 12" for elevator
    • 2x 4-6" for ailerons
    • 1x 4-6" for ESC
  • Spinner: 40 mm electric

Variants

Ed540-48-BW

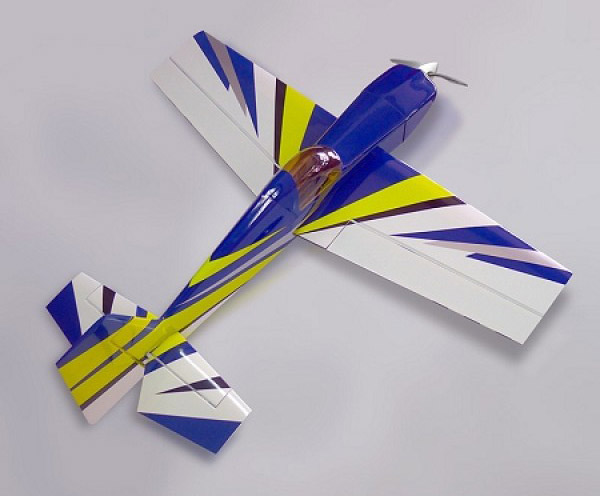

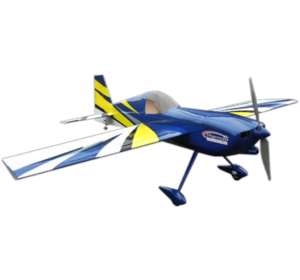

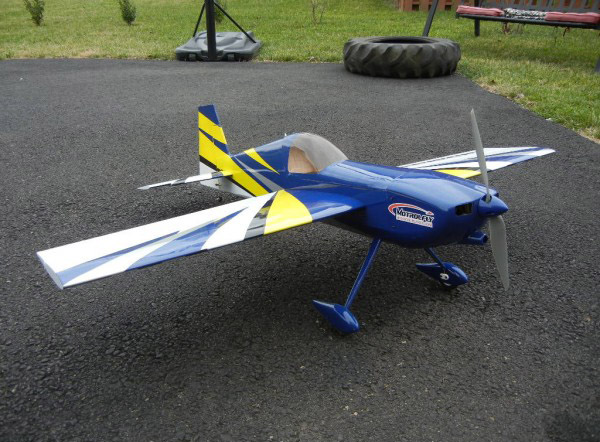

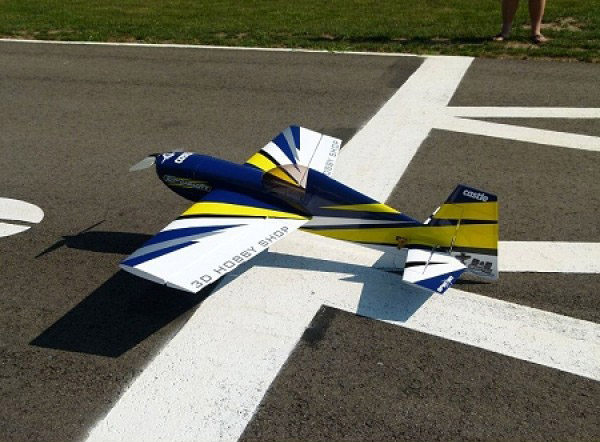

Edge 540 48 (Blue White Yellow)
Ed540-48-OW

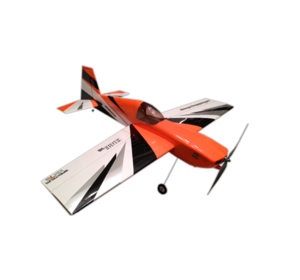

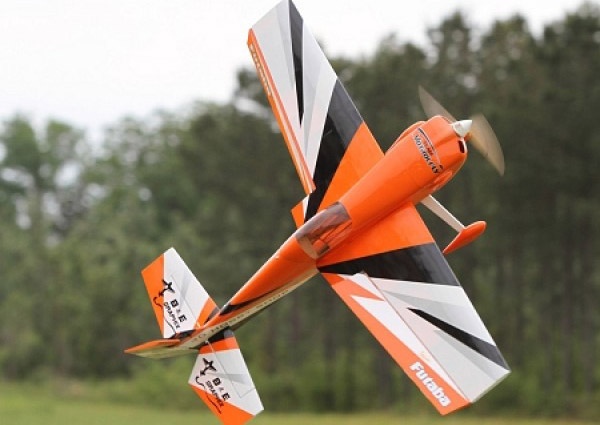

Edge 540 48 (Orange White Black)
