Eagle Twin 40mm from XFLY Model

Details

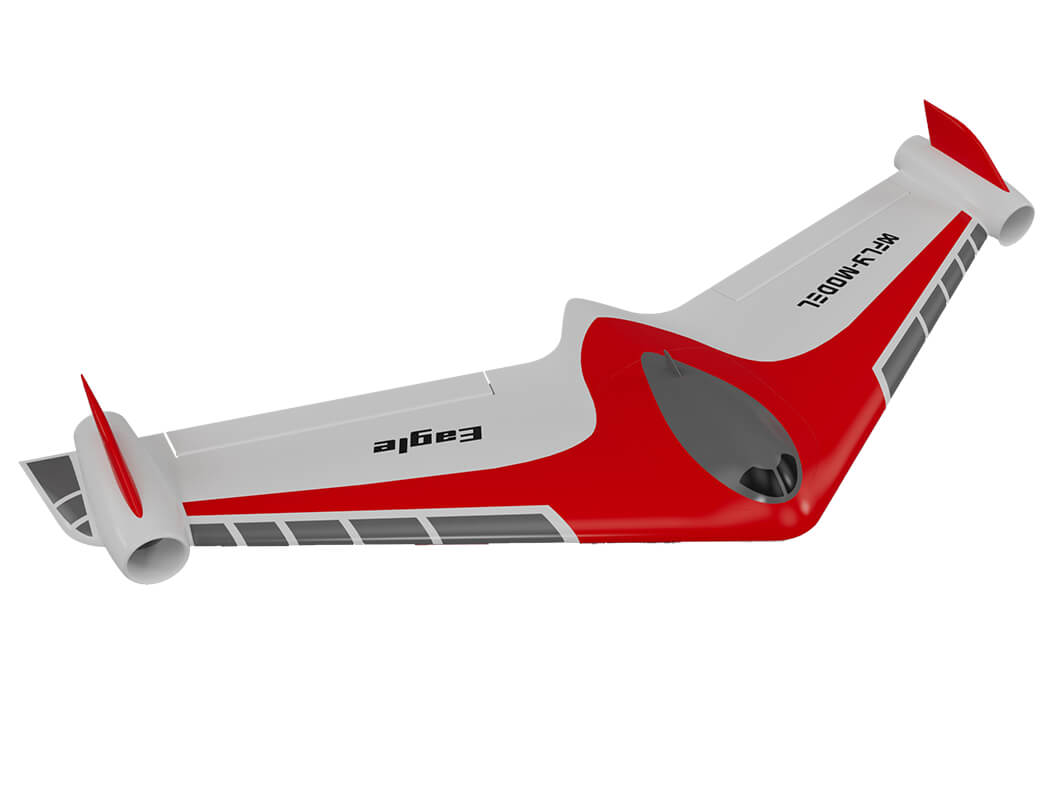

The Eagle twin 40mm EDF jet features special flying wing configuration, newly developed 40mm EDF power system on both wingtips and a large battery bay in the middle of the fuselage. Powered by a 4S Lipo battery, the factory-installed twin 40mm EDFs allow the plane to exceed 1:1.5 power-to-weight radio and take off with ease by hand launches.

The wear-resistant plastic components under the belly and the wingtips allow the plane to land on rough surfaces. With a streamlined, aerodynamic profile, a special EDF configuration and mixing setup assisted by the custom gyro (optional), the Eagle is capable of delivering differential speeds and performing rolls, flat spins, inverted flat spins and other challenging maneuvers, and the top speed can reach 110MPH+.

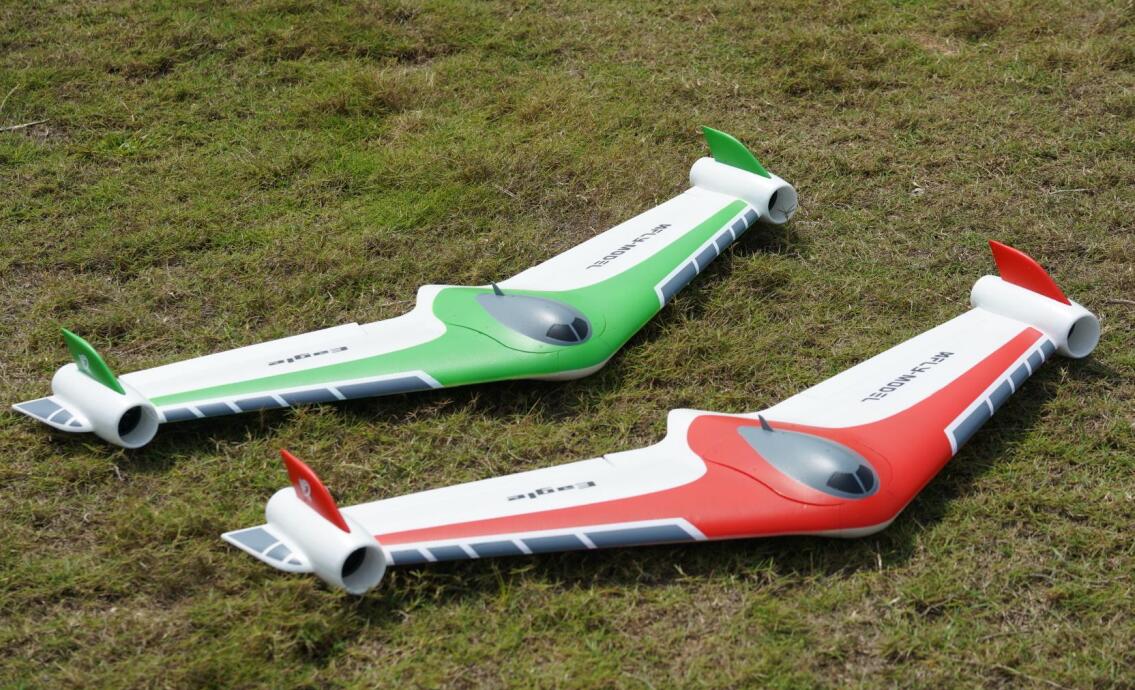

It is completely factory-assembled and ready to fly right out of the box. There are two eye-catching color schemes available that you won't be worried about losing sight of the plane in the sky. If you are seeking a hand launch racing aircraft with more fun, look no further than the XFly Eagle!

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1019mm (40.1 in)
Length: 383mm (15.1 in)

Weight: 650 g (1.4 lbs)
  • Material: Lightweight yet strong EPO, ABS engineering plastics
  • Wingspan: 1019mm
  • Overall Length: 383mm
  • Wing Load: 35g/dm²
  • Wing Area: 19.5dm²
  • Flying Weight: 650g
  • EDF Size: Twin 40mm EDF 12-blade
  • Motor: 1413-KV5000 *2
  • ESC: 20A *2
  • Servos: 9g digital*2
  • Other Electronics: Gyro(optional)
  • Channels: 5CH-aileron, elevator, throttle, rudder, gyro
  • Battery Dimension: 210X35X35mm (Length*Weight*Height)
  • Recommended Battery: 4S 2200-2600mAh
