Devil 450 Pro V2 from ALZ RC

Details

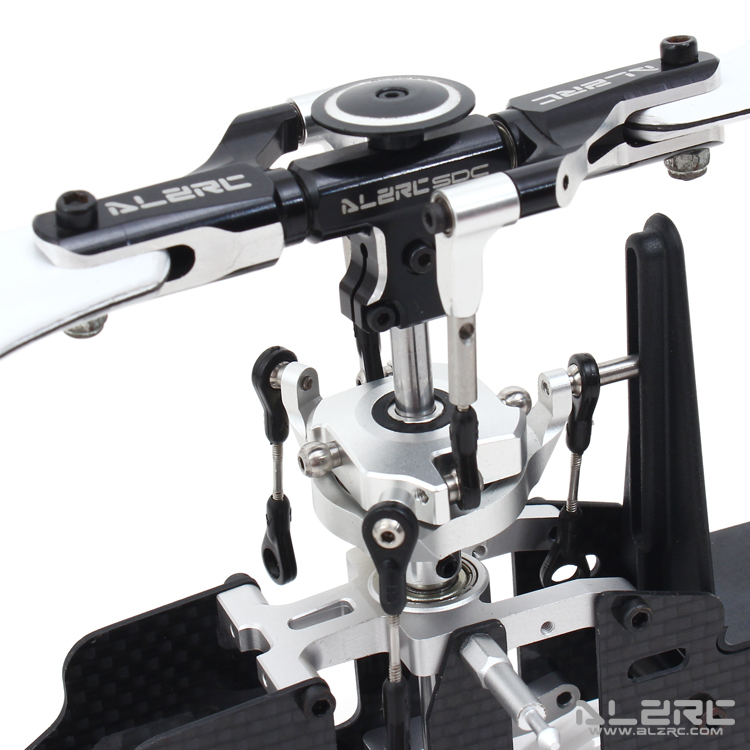

  • With SDC/DFC flybarless main rotor head group, low center of gravity design, can effectively reduce flight drag, giving a more direct and precise flight response and faster flight speed.
  • Improved side frame design, with dedicated Gyro mounting location. Gyro can be placed in between frames, or behind anti-rotation guide, resulting in clean wire management and improved aesthetics.

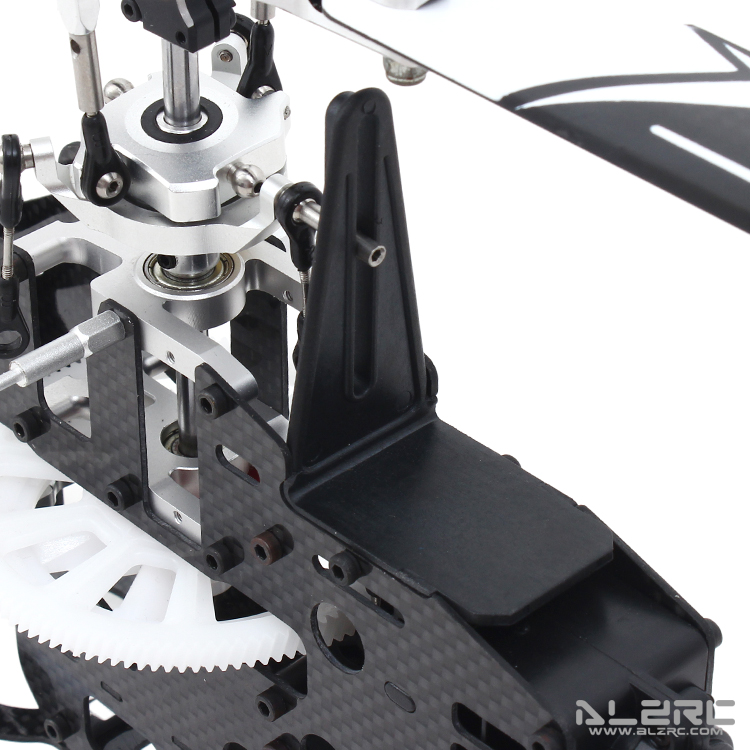

  • New lightweight Main Shaft Bearing Block, with Φ5xΦ13x4mm size bearings, more durable.
  • Longer battery mounting plate with integrated ESC mount. Not only is the battery mount more rigid, the battery can be shifted based on its dimension for better CG. In addition, the screw count has been reduced to minimize assembly and maintenance time.

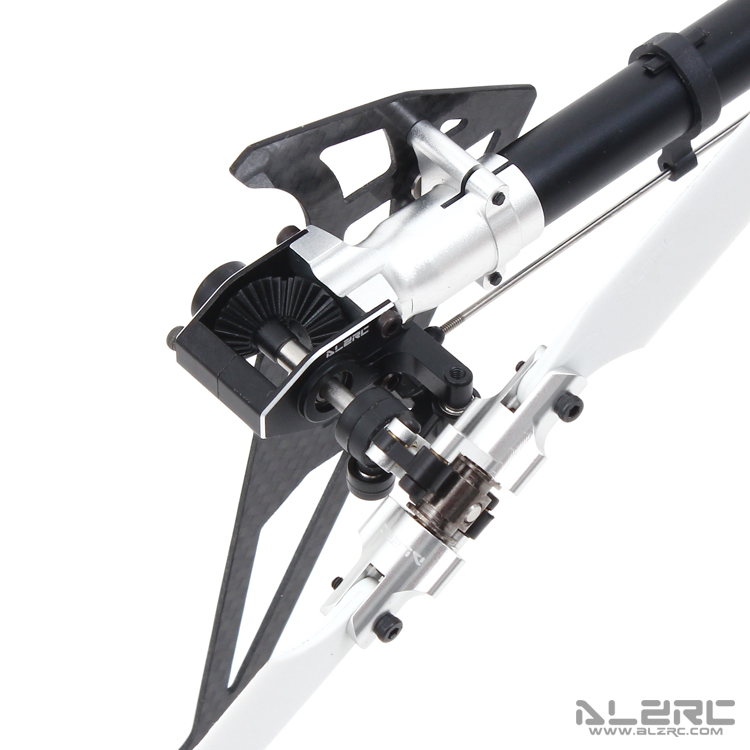

  • High efficiency tail shaft drive design, dramatically reduce power loss associated with belt driven system, and at the same time increase power output.
  • Vertical rudder servo mount design moving the CG closer to center, improving agility during 3D maneuvers.
  • Unique opposing weighted tail blade grips effectively increase rudder and gyro performance, for superior tail locking and higher precision.
  • The new shape and flow line style painting fugelage canopy.

Pictures

Radio icons

(Click on the icon you want to download)
Horus & T16 OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
Spektrum IX12
Futaba 18MZ
Jeti DS-24

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Devil 450 Pro V2 in particular but at least we know they do distribute ALZ RC.

Where to buy


Wingspan: 710mm (28 in)
Length: 635mm (25 in)

Weight: 600 g (1.3 lbs)
  • Length: 635mm
  • Height: 200mm
  • Main Rotor Diameter: 710mm
  • Tail Rotor Diameter: 158mm
  • Motor Pinion Gear: 11T
  • Main Drive Gear: 121T
  • Autorotation Tail Drive Gear: 106T
  • Tail Drive Gear: 25T
  • Drive Gear Ratio: 1:10.08:4.24
  • Weight: 480g
  • Weight(without electrical device): 600g

Variants

17H4PV2-SBK
Devil 450 Pro V2 (White Red)
