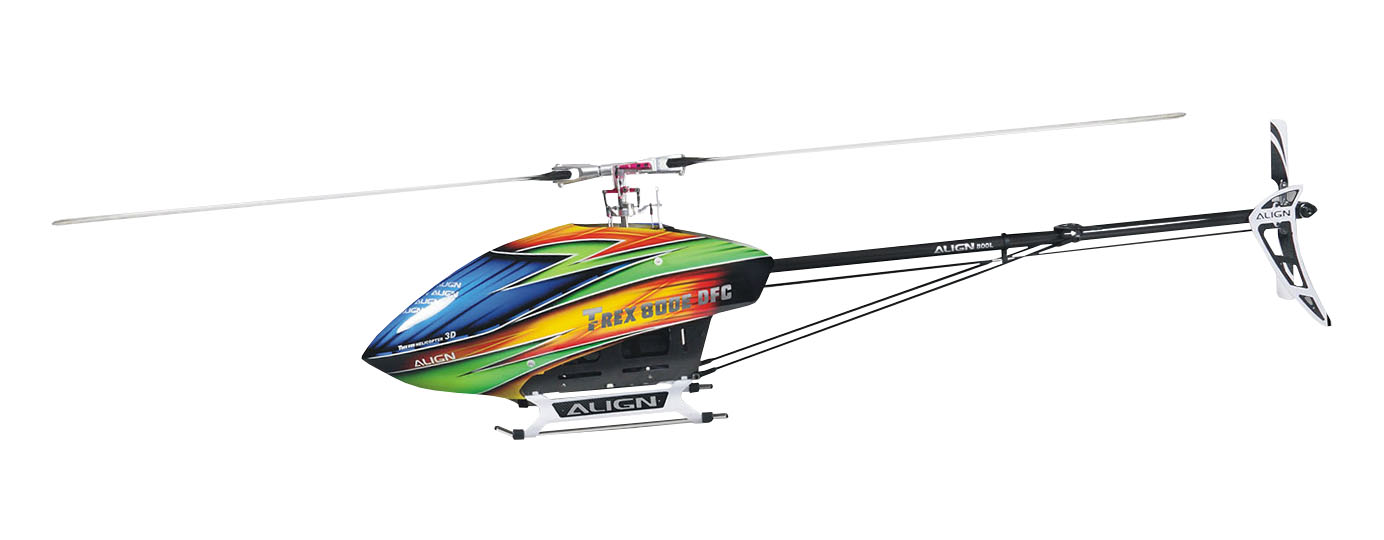

T-REX 800E PRO from Align

Details

The ALIGN T-REX 800E PRO Super Combo is an 800 class flagship designed specifically for 3D flights. The CCPM direct connect servo design, coupled with FL rotor head assembly, results in fast, precise, and more direct control reaction. The frame material integration technology is utilized on the landing gears and vertical tail fin, creating a unique look not only making the T-REX 800E PRO stand out, but also resulting in an innovative design that encompasses structure rigidity along with beautiful aesthetics.

Nothing was spared in the electronics components of the kit: The mighty power of the 850MX(490KV/4535) motor paired with RCE-BL200A Brushless ESC speed controller for unparalleled power output; The new CNC machined aluminum cased DS820M brushless high voltage cyclic metal gear servos paired with DS825M rudder metal gear servo not only exhibited top of the line servo aesthetics, but also combine heat sink function and best performance in the market segment.

The ALIGN TREX 800E PRO can be described as the current top of the line flagship representing ALIGN’s superior product line. Based on the pedigree of pure 3D flight, the newest design concept with absolute top of the line equipment, along with superior aesthetics and attractive lines, the ALIGN 800E PRO will definitely elevate the adrenaline in your blood!

Pictures

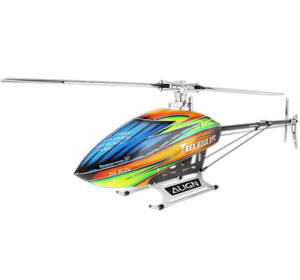

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1740mm (68.5 in)
Length: 1490mm (58.7 in)

Weight: 4100 g (9 lbs)
  • Length: 1490mm - 58.66In
  • Height: 402mm - 15.83In
  • Width: 204mm - 8.03In
  • Main Blade Length: 780mm - 30.71In
  • Main Rotor Diameter: 1740mm - 68.50In
  • Tail Rotor Diameter: 301mm - 11.85
  • Motor Drive Gear: 12T
  • Main Drive Gear: 112T
  • Autorotation Tail Drive Gear: 104T
  • Tail Drive Gear: 22T
  • Drive Gear Ratio: 9.33 : 1 : 4.73
  • Weight (with Motor): 4100g - 9.04Lbs
