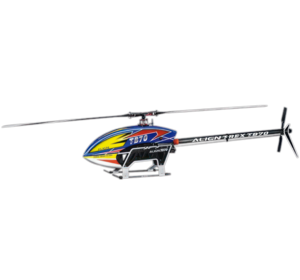

TB70 from Align

Details

Align TB70 with robust belt drive and brushless motor shows you a surprising performance.
The all-new TB70 is designed for any flying style, whether Sport 3D or Hard 3D, you will be amazed!

Features:

  • Efficient belt drive upgrade design
  • Lighter, quieter and more powerful than T-REX 700.
  • Brand new streamlined canopy design
  • New canopy holder


Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1542mm (60.7 in)
Length: 1536mm (60.5 in)

Weight: 5000 g (11 lbs)
Length 1356mm - 53.39in
Height 358mm - 14.09in
Width 187mm - 7.36in
Main Blade Length 650 - 730mm
Main Rotor Diameter 1542mm - 60.71in
Tail Blade Length 105 - 115mm
Tail Rotor Diameter 279mm - 10.98in
Motor Input Voltage 12S
Motor Belt Pulley 22T
Tail Drive System Belt
Drive Gear Ratio 9.38 : 1 : 4.83
Max RPM (approx.) 2400 RPM
Weight Flying (with battery) Approx 5kg - 11.02lbs (Battery Align 12 5200mAh)
Battery Size 12S 4000 - 5800mAh
Weight 5000 g
