US Coast Guard PBY Catalina from Avios

Details

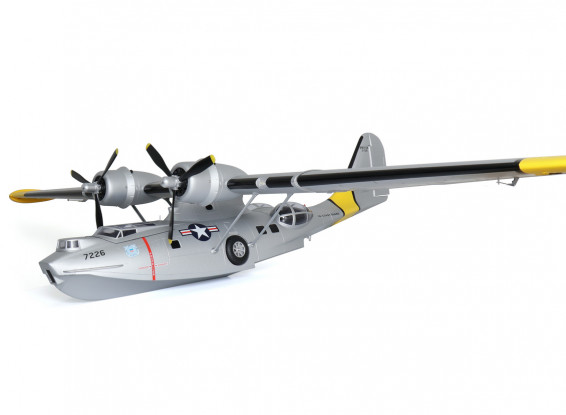

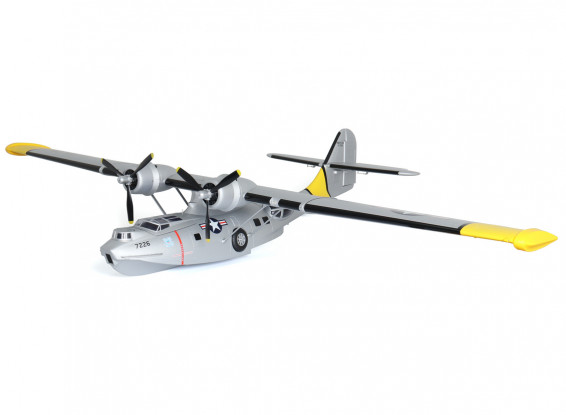

The Avios PBY Catalina Seaplane is a highly detailed RC model inspired by the iconic WWII flying boat, finished in a striking U.S. Coast Guard scheme. Known for their expertise in seaplanes, Avios delivers excellent performance and build quality in this Plug-N-Fly model.

Made from durable EPO foam, the Catalina features counter-rotating brushless motors, reverse ESCs for precise water handling, and scale retractable tip floats. A click-in wing system simplifies transport and setup, with built-in quick connectors for LEDs, servos, and float retracts. Optional upgrades include a servo-operated nose turret and water rudder for added realism.

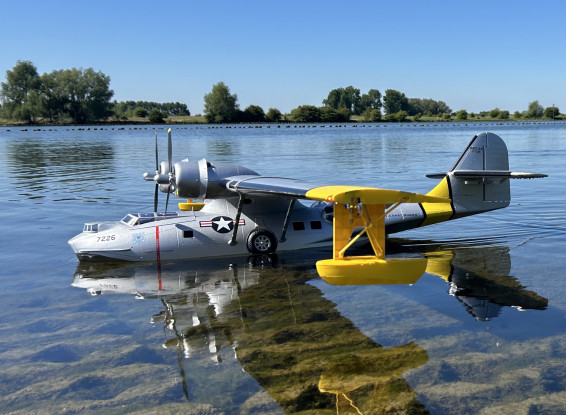

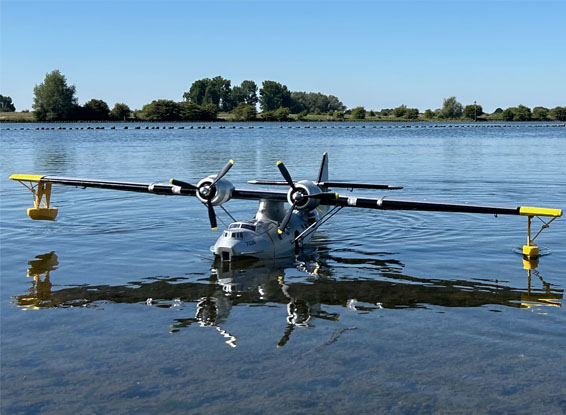

Easy to assemble and fly, this model excels on both water and grass runways. Whether cruising low over a lake or making smooth landings, the Avios Catalina combines heritage looks with modern features — making it a standout for any RC pilot who enjoys scale flying and amphibious adventures.

Features:

  • A PNF stand-off scale model of the legendary PBY Catalina seaplane

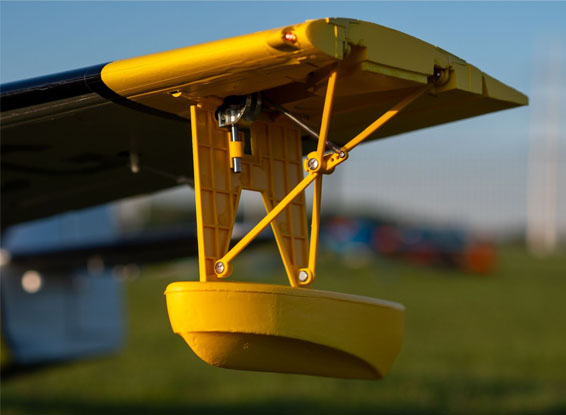

  • Scale, electronic retractable tip floats, optional servo-operated nose turret
  • Click on system for the wing tips with quick connections for the servos, and retractable wing floats (servos and float system are splash-proof)
  • Optional water rudder included
  • Stunning US Coast Guard scheme with day bright LED lights
  • Counter-rotating props for better handling and safety
  • Supplied with pre-installed 40A Aerostar G2 RVS ESCs w/reverse function

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the US Coast Guard PBY Catalina in particular but at least we know they do distribute Avios.

Wingspan: 1900mm (74.8 in)
Length: 1174mm (46.2 in)

Weight: 3100 g (6.8 lbs)
  • Wingspan: 1900mm (75")
  • Scheme: US Coast Guard 1940s
  • Length: 1174mm (46")
  • Build Format: Plug-N-Fly
  • Motors: 2 x Aerostar 3748-820kv brushless outrunner
  • ESC: 2 x Aerostar 40A RVS G2 w/BEC & instant reverse
  • Props: 10x6 3 blade (1 x CW & 1 x CCW)
  • Servos: 5 x 9g
  • Material: EPO
  • Flying weight: 3100g (6.8lb)
