Beta95X V3 from BETAFPV

Details

As the upgrade version of Beta95X V2, the Beta95X V3 has a brand new pusher design and more powerful configuration, bringing pilots a smoother flying experience! What's more, with the built-in mount for the SMO 4K and a low center of gravity "pusher-style" inverted frame, Beta95X V3 Whoop Quadcopter perfectly matches for SMO 4K camera, and gives the pilots an incredibly stable and clear 4K footage video while in the FPV flight!

Features

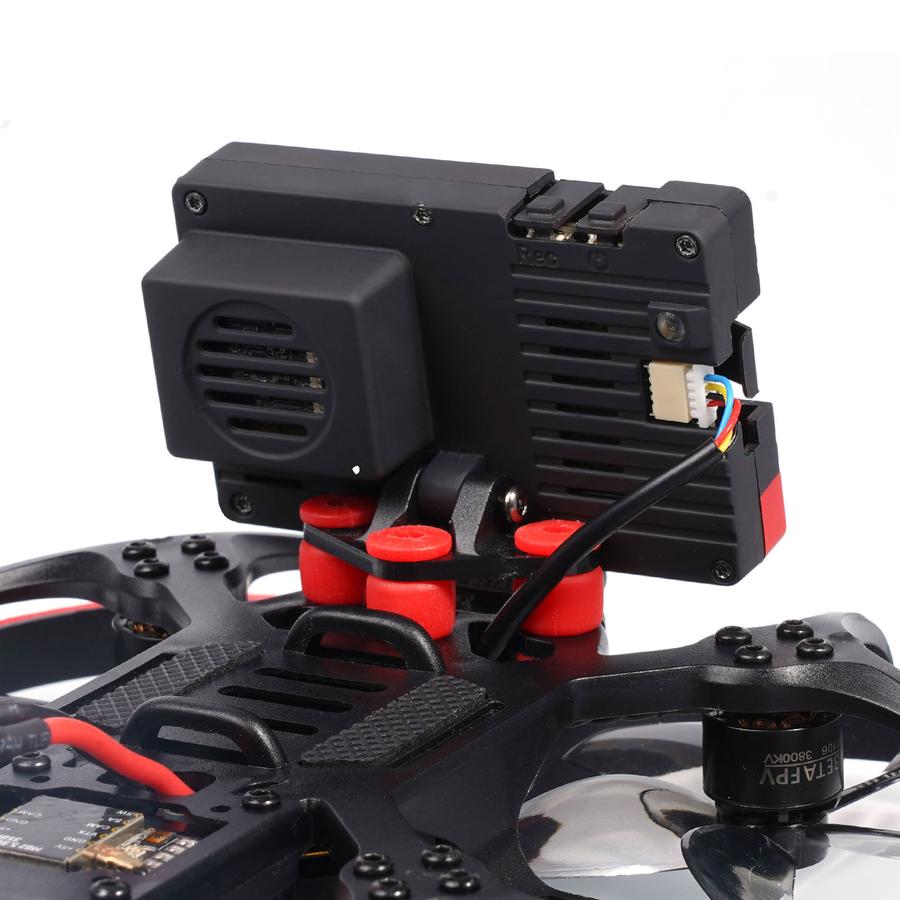

  • Beta95X V3 is perfectly suitable for the SMO 4K action camera. With a built-in camera mount and a power cable, it's very convenient for out-of-the-box installation and power input for the camera. Combining with SMO 4K, pilots can get a stable & high-quality video while in FPV flight.
  • Adopts a brand-new innovative pusher frame design, the frame is made of PA12 material, which has high abrasion resistance and can dampen noise & vibrations, bringing the drone a more durable flight and no fear of damage. The frame also comes with an EVA foam cushioning design to give you more safety flying.

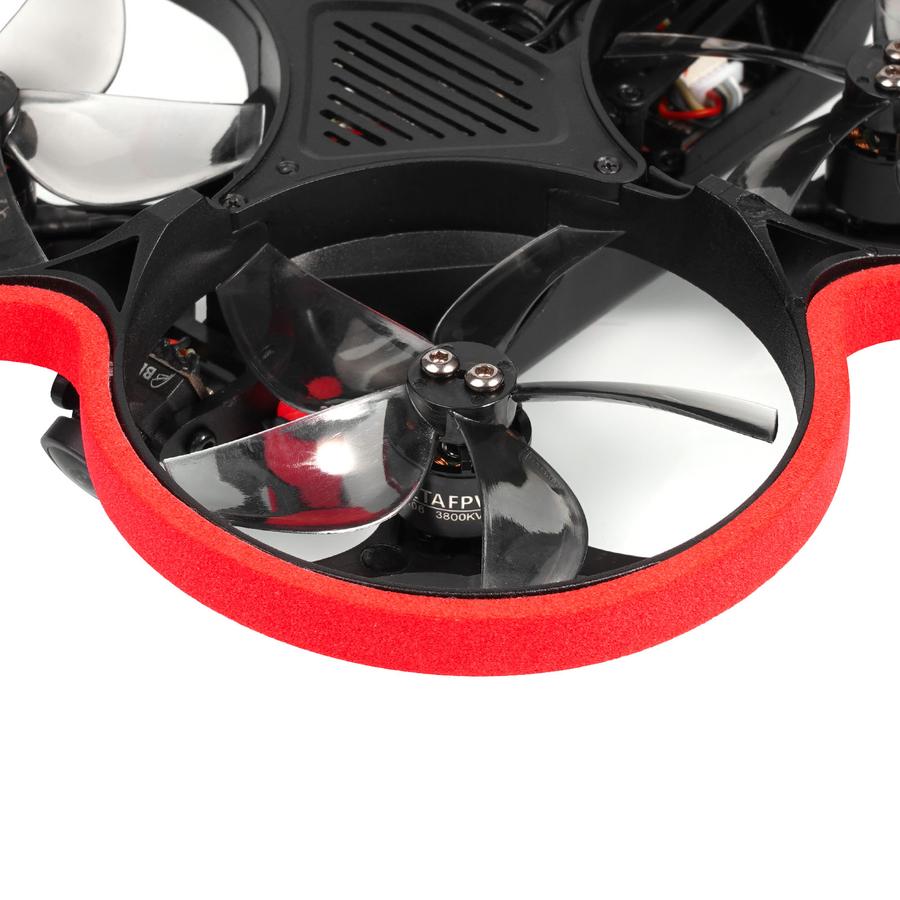

  • Equipped with F4 AIO 20A Toothpick FC V4, 1106 3800KV motor, and D63 5-blade props, this highly efficient power system keeps Beta95X V3 more powerful and less noise in flight. For the battery, we highly recommend you using BETAFPV 450mAh 4S battery to get the best flying experience.
  • Centering the drone's gravity by reversed-motor design and top battery place makes the drone more maneuverable to achieve all FPV freestyle tricks such as diving.
  • Further improves the shock mitigation system to eliminate the shake of the camera, Beta95X V3 will make the camera more stable on the flight, which ensures pilots can capture all the beautiful moments of flight with the stabilized and clear video.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 95mm (3.7 in)
Length: 95mm (3.7 in)

Weight: 99 g (3.5 oz)

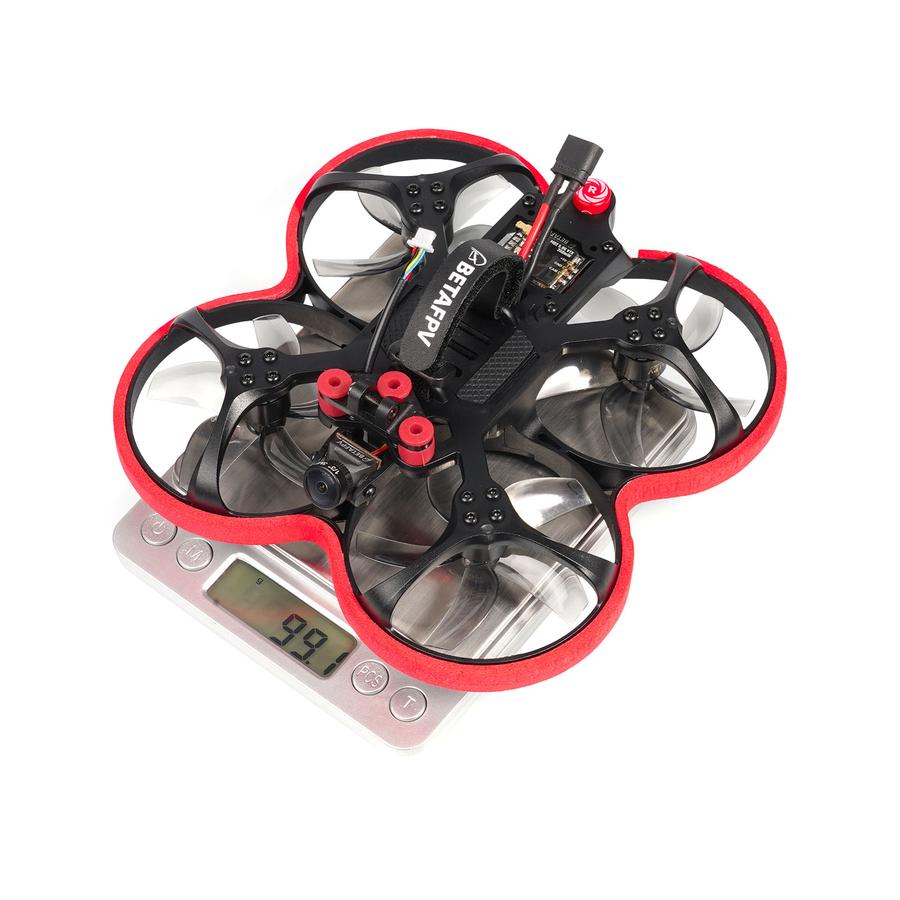

  • Weight: 99.1g (without battery)
  • Wheelbase: 95mm
  • FC: F4 AIO 20A Toothpick FC V4
  • Frame: Beta95X V3 Frame Kit
  • Motors: 1106 3800KV Brushless Motor
  • Props: Gemfan D63 5-Blades Props
  • Receiver Option: Frsky FCC/Frsky LBT/TBS/PNP
  • Camera: EOS Camera
  • FPV Camera Degree: 25°- 45°
  • VTX: M02 25-250mW 5.8G VTX
  • Camera Mount: SMO 4K camera Mount
  • HD Camera Mount Degree: 5°- 45°
  • Antenna: Air 5.8GHz Antenna (RHCP)
  • Battery: 450mAh 4S battery(Not including)
  • Charge Connector: XT30
  • Flight time: About 4.5 min flight with 450mAh 4S battery
