Pavo 20 from BETAFPV

Details

Pavo 20 is designed as a 2″ DJI O3 cinewhoop under 150g, also compatible with the Caddx Vista and RunCam Link. Innovative PA12 material thickened cross-section whoop duct, ingeniously employing the principles of aerodynamics and synergizing flawlessly with an enhanced 3S power system, will deliver unparalleled thrust. The camera mount has undergone a comprehensive redesign, ensuring precise protection. It accommodates COB LED stripes seamlessly. The marvel of engineering showcases unparalleled performance both indoors and outdoors as the epitome of excellence in the realm of DJI O3-compatible quadcopters.

Features:

  • Pavo20 is an ideal choice for small indoor and outdoor lightweight 2'' DJI O3 cinewhoop under 150g.
  • Integrated injection molding HD VTX mounting bracket, effortless installation. The camera side panel and 4-point fixation hole design precisely safeguard the lens, guaranteeing uncompromised lens protection.
  • Innovative PA12 material thickened cross-section whoop duct, ingeniously employing the principles of aerodynamics and synergizing flawlessly with an enhanced 3S power system, will deliver unparalleled thrust.
  • An open-ended battery strap slot that accommodates 2~3S batteries* while keeping side-limitation slots ensures stability.
  • The new F4 2-3S 20A AIO FC V1 weighs only 5.92 grams and is optimized for HD digital VTX. Its improved computing power, high response speed, and stable flight make it an ideal choice for HD whoops.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 90mm (3.5 in)
Length: 90mm (3.5 in)

Weight: 55 g (1.9 oz)
Wheelbase 90mm

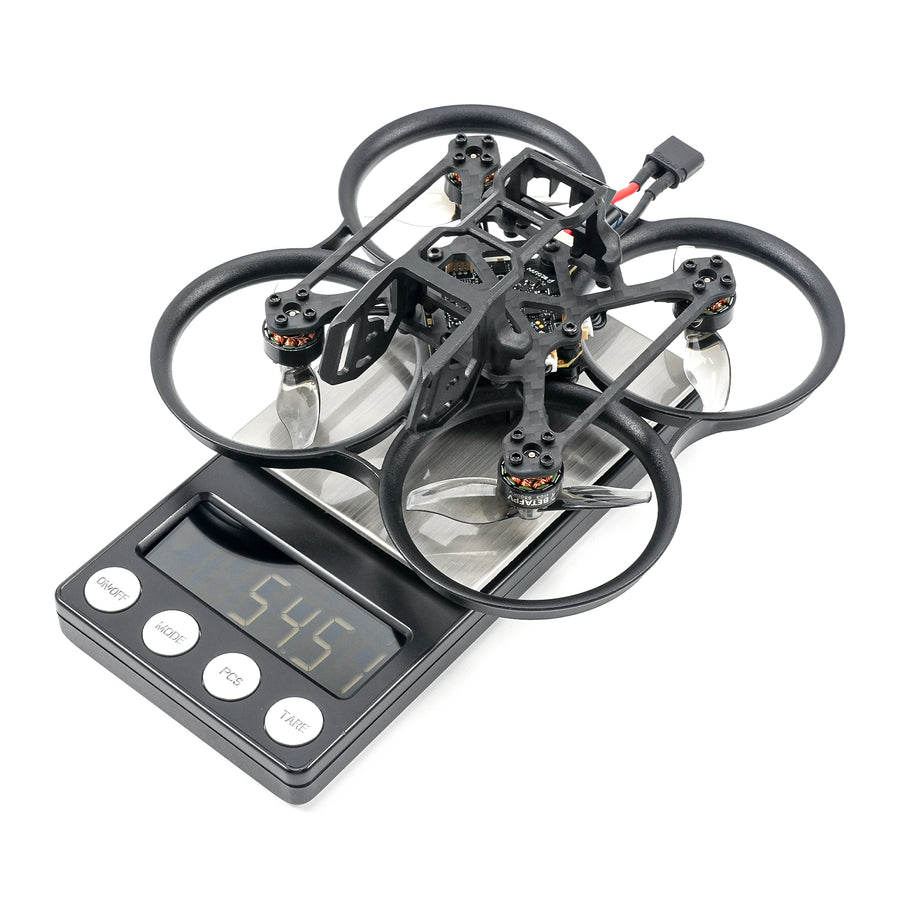

Empty Weight
(No Battery, Air Unit)
54.51g
Support VTX DJI O3 Air Unit
Caddx Vista Kit
RunCam Link

Support Camera DJI O3 Camera
Caddx Series
RunCam Series 19mm, 20mm

Camera Filter Installation Vertical
Battery Slot 20mm*Unlimited Height
Recommend Battery Only 3S 450mAh~650mAh
Motor 1103|8500KV Brushless Motor
Props GF 2015 2-Blade Props
Flight Time
(8.4V~6.8V)
5min(3S 450mAh)
FC F405 2-3S 20A ELRS V1.0 FC
RX Version ELRS, TBS
Battery Connector XT30
