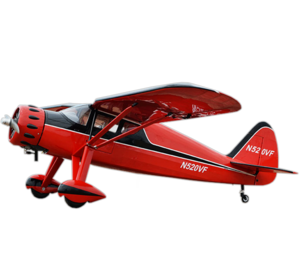

BH177-Fairchild 24W from Black Horse Model

Details

Designed for operations from relatively unimproved grass airfields, the sturdy undercarriage construction used a vertical oil dampened cylinder above the wheel with a pivoting strut attached to the lower fuselage. The result was a complex but robust undercarriage that could absorb the large loads imposed by rough field operations and could be adapted for the fitting of twin floats for water-based operations.

The model is scaled to approximately 1:4.7 and attention was paid to a true to original appearance and best flight characteristics. The model can be operated using an electric power system or with an internal combustion engine about 30-35cc displacement.

Features:

  • High level of prefabrication right out of the box
  • Lightweight, strong, and scale open structure laser cut balsa and plywood construction
  • Covered in high quality Oracover
  • Heavy-duty pin hinges on all control surfaces
  • Pre-drilled hinge mounting holes
  • Large easy access fuel tank/battery/servo access hatches with sprung loaded latches
  • Painted and detailed dummy radial engine, cockpit and interior included
  • Fiberglass control horns with ball link connector
  • comprehensive control and fitting accessories included
  • Two-piece, plug-in wings simplify transportation and assembly
  • Fiberglass cowl and glass reinforced landing gear covers/pants
  • Mounts for both electric and gas power options included
  • Fully illustrated instruction manual included and also available for download (see tab above)

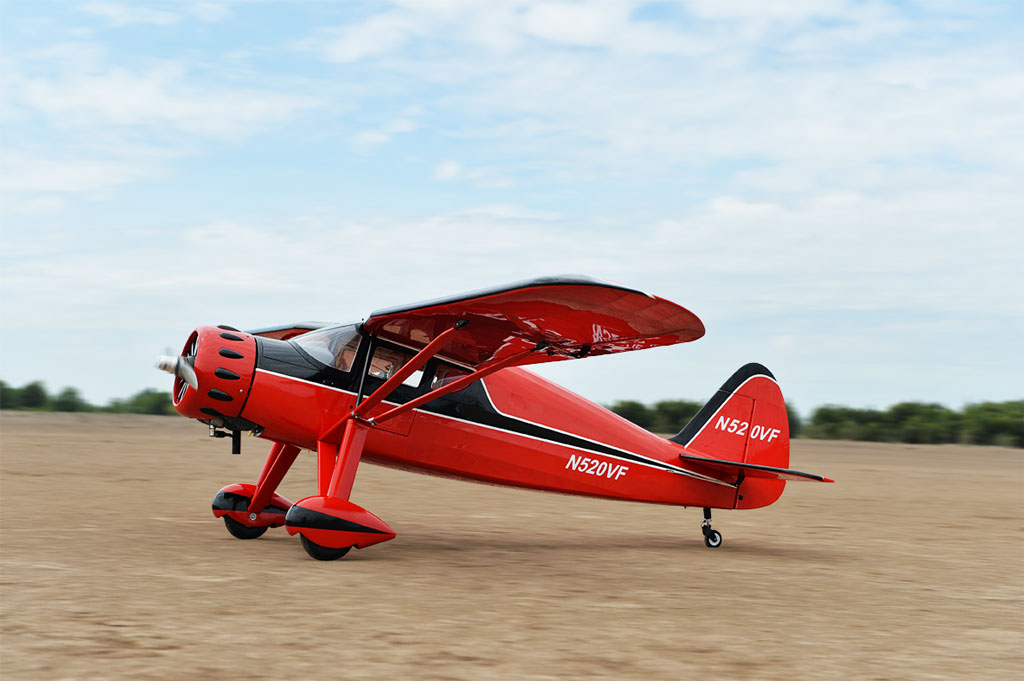

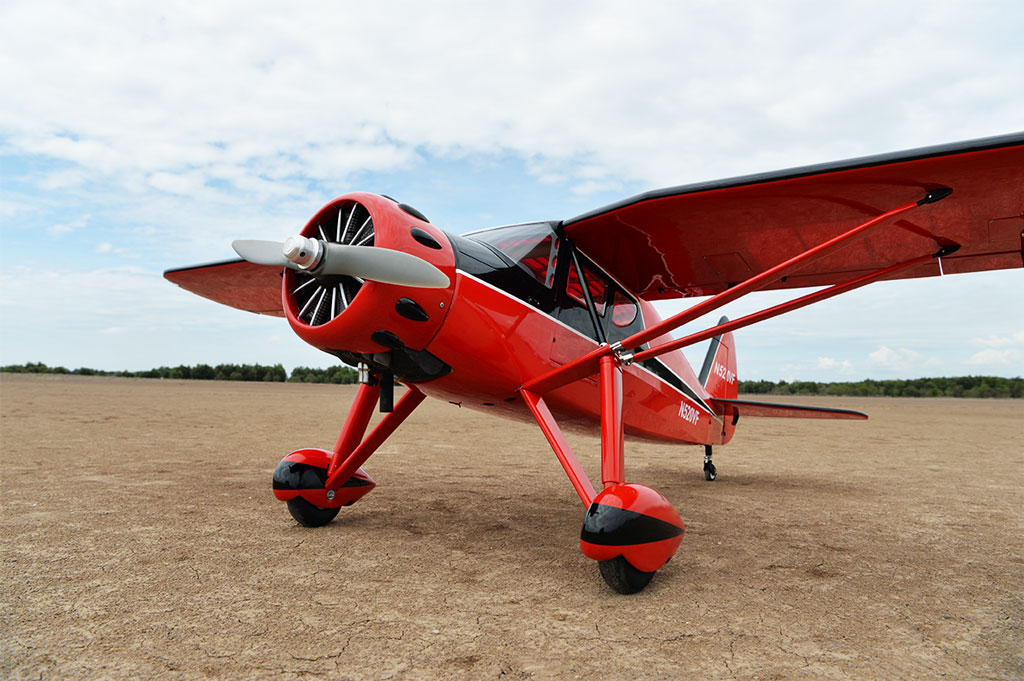

Pictures

Radio icons

(Click on the icon you want to download)
Horus & T16 OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
Spektrum IX12
Futaba 18MZ
Jeti DS-24

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the BH177-Fairchild 24W in particular but at least we know they do distribute Black Horse Model.

Where to buy

Ireland
Model Heli Service
check web site
Ship to: Ireland
France
Flash RC
check web site
Ship to: Europe
France
interModel
check web site
Ship to: France
USA
Motion RC LLC
check web site
Ship to: USA
Hungary
RC Hungary
check web site
Ship to: Hungary
Austria
Schweighofer AT
check web site
Ship to: International
Germany
Schweighofer GE
check web site
Ship to: Germany
Ireland
Radio Controlled Shop
check web site
Ship to: Ireland
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
France
Plane Expert
check web site
Ship to: Europe
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
France
Weymuller Modélisme
check web site
Ship to: France
United Kingdom
SRCM
check web site
Ship to: United Kingdom
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
Austria
DMT
check web site
Ship to: Europe

Wingspan: 2357mm (92.8 in)
Length: 1610mm (63.4 in)

Weight: 7000 g (15.4 lbs)

Wingspan: 2,357 mm (92.79 in).
Length: 1,610 mm (63.38 in).
Weight:  7 kg (15.4 lbs).
Wing area: 78.1 dm²
Wing loading:  89.62 g/dm²
Servo mount: 42mm x 21mm.
Wing type: Naca Airfoil.
Spinner: scale type (not included).
Main gear type: Oleo struts, for tail gear (included).

Variants

BH177
BH177-Fairchild 24W (Red Black)
