Eclipse 360 from Blade

Details

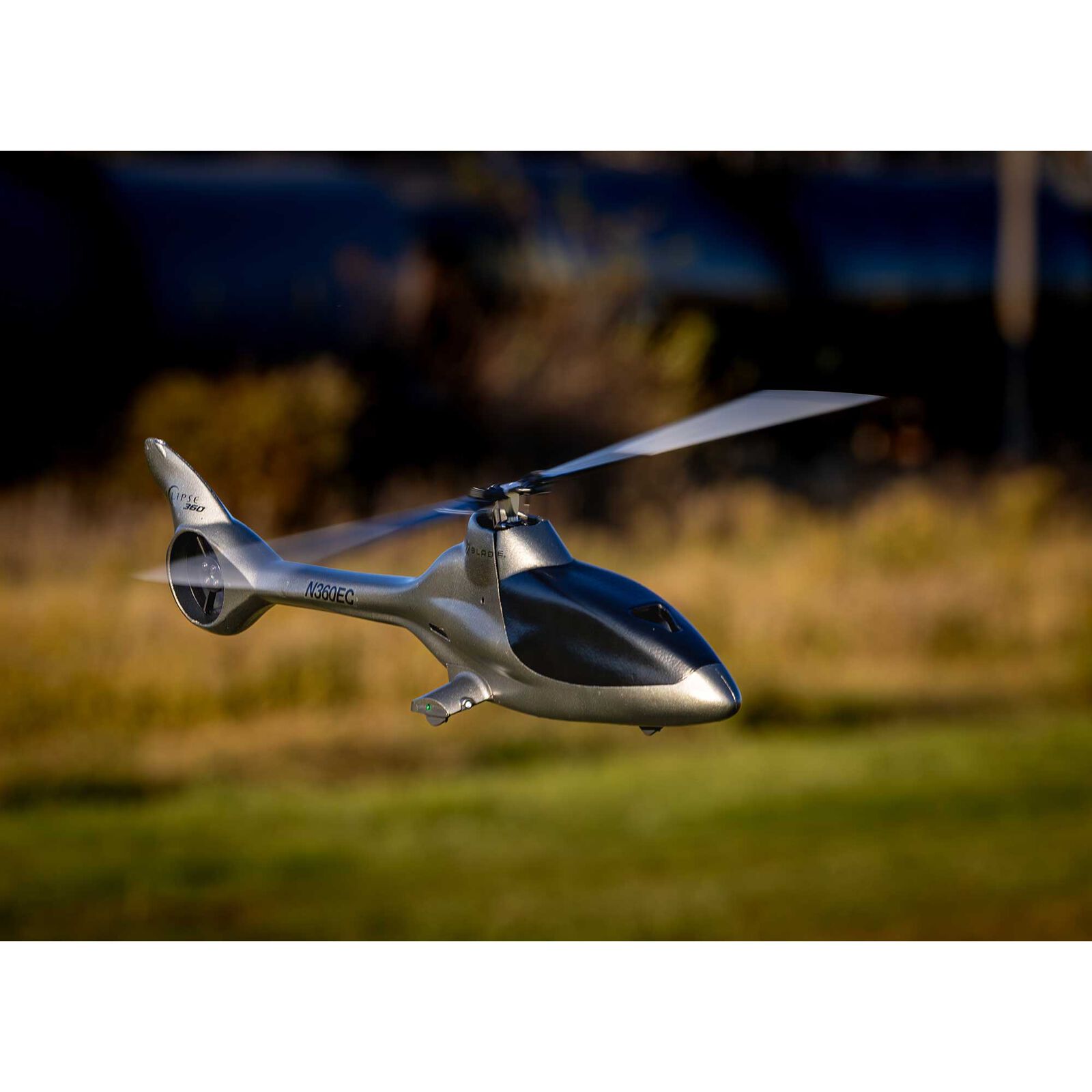

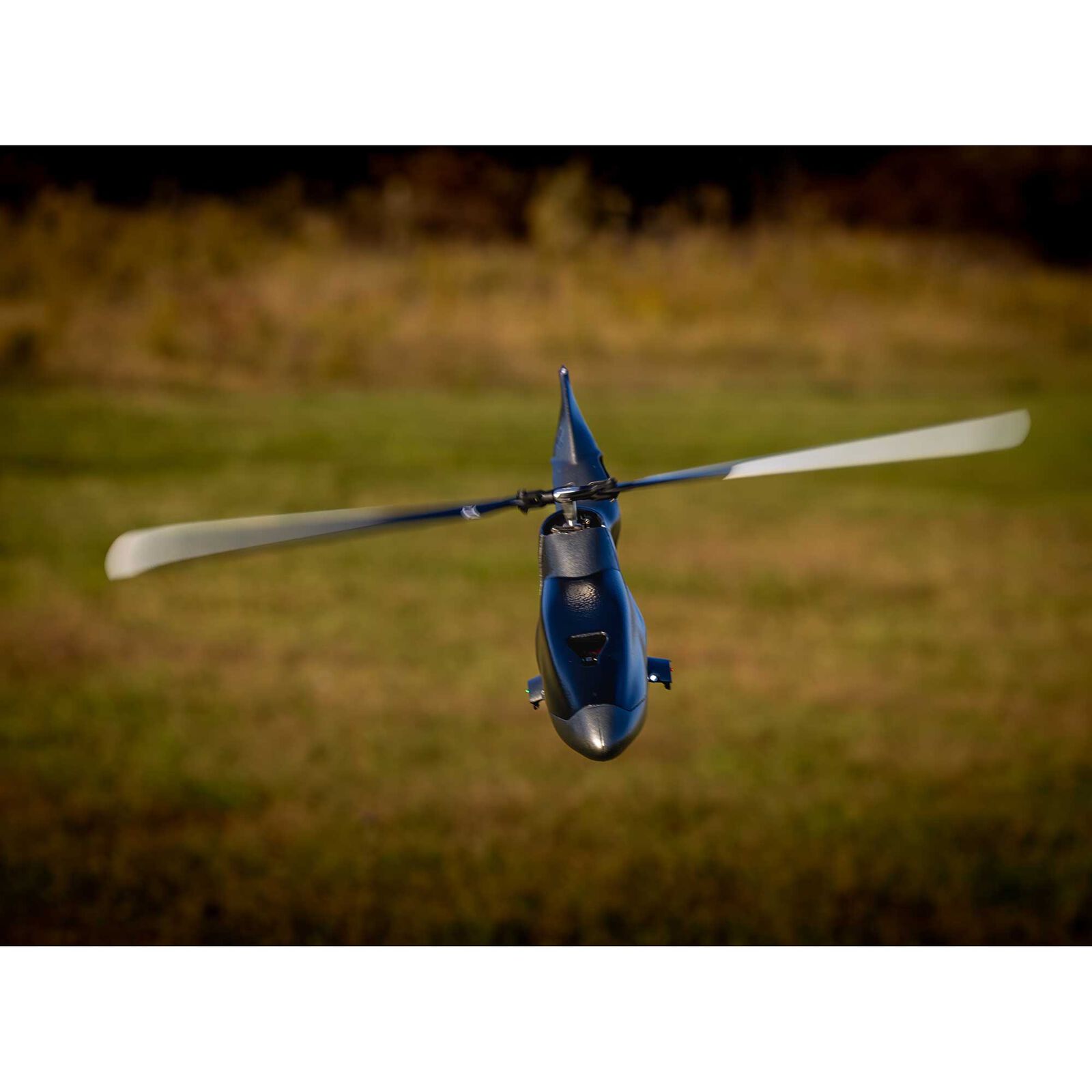

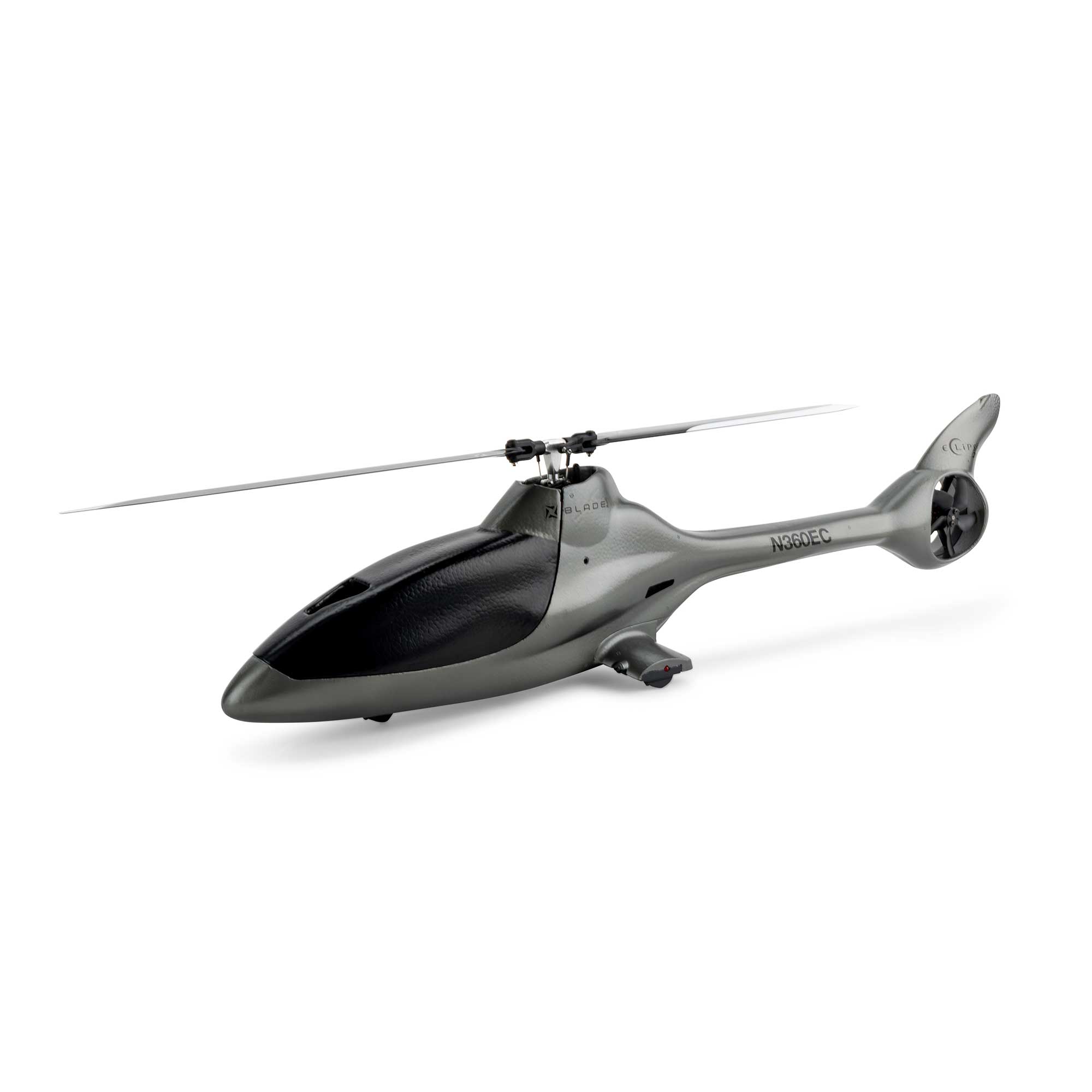

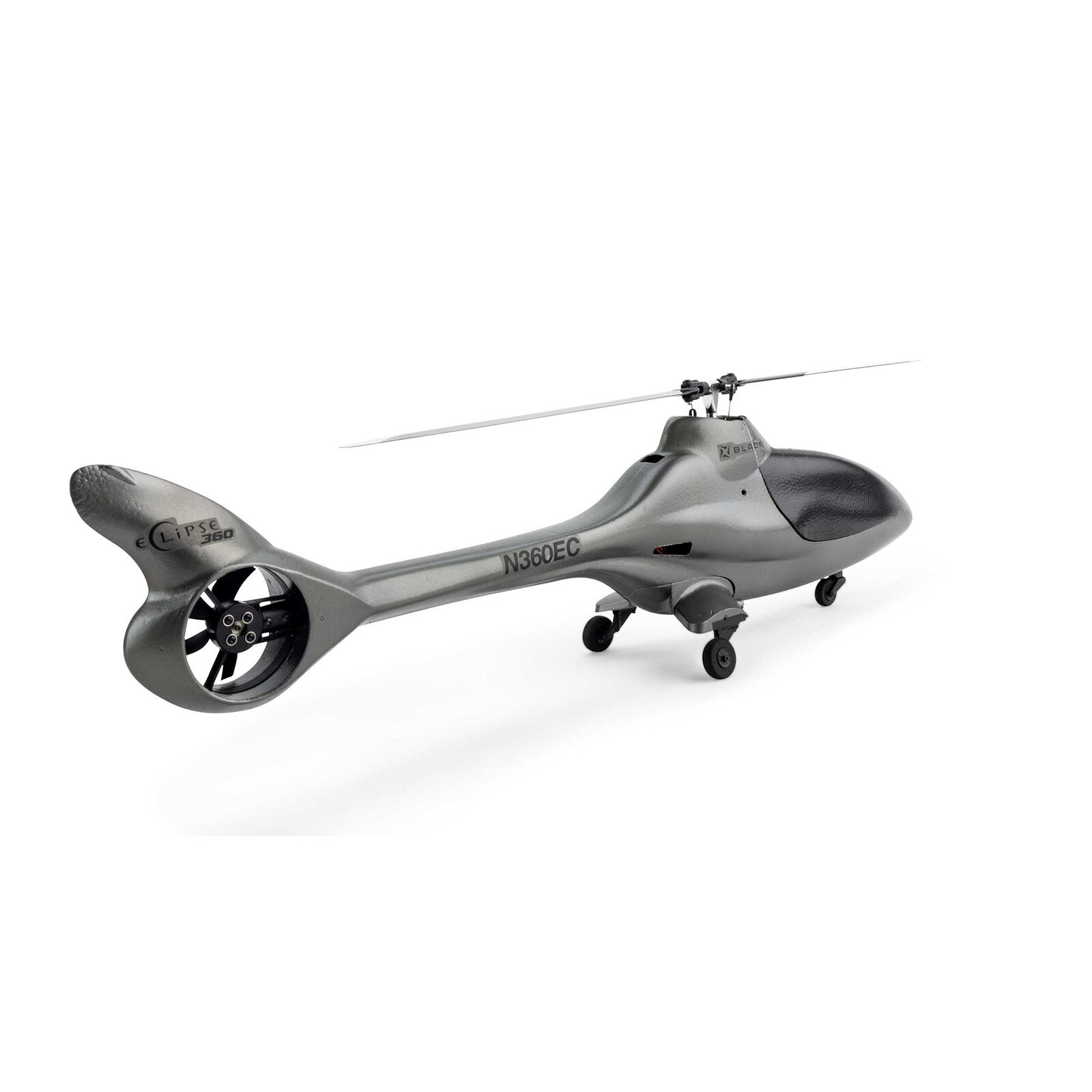

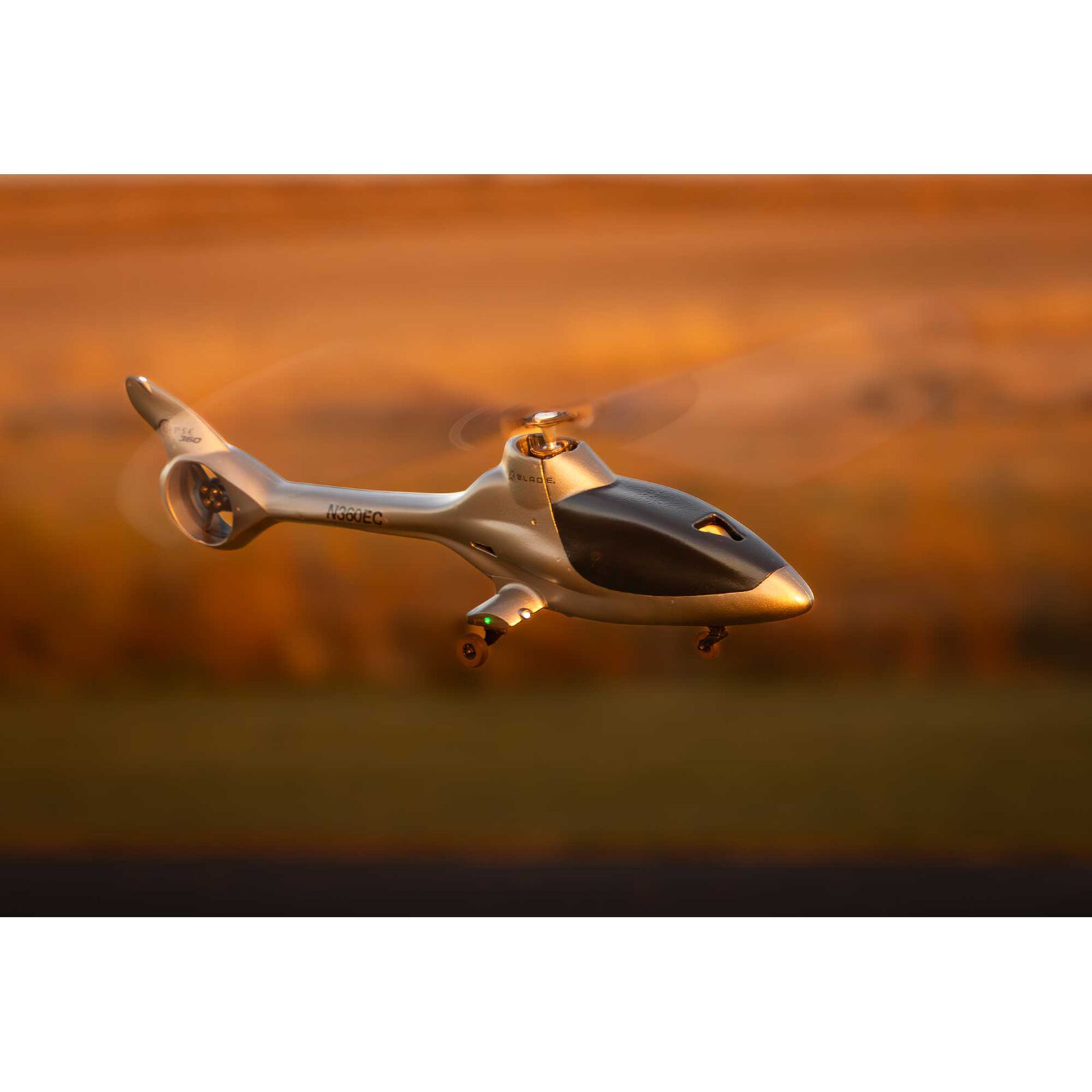

An innovative blend of futuristic looks including a fully molded and painted EPO body wrapped around a high-performance airframe makes the Blade® Eclipse 360 an eye-catching addition to any RC pilot’s collection. It’s designed to be capable of smooth hovering plus scale-like and sport flying for intermediate pilots, yet is also capable of aerobatics and even mild 3D in the hands of experienced pilots. The expertly-tuned FC6250HX flybarless control system includes optional-use SAFE technology for angle limits and automatic self-leveling to help prevent crashes in Normal mode, and no limits in all other flight modes – plus Panic Recovery to “bail out” at the push of a button if you ever need it! The powerful brushless main and tail motors are connected to a Spektrum Dual Smart ESC that delivers real-time telemetry data to AirWare™ equipped transmitters, and they’re compatible with common and popular 3S 2200–3200mAh batteries. Digital, metal-geared servos, an aluminum head block, and carbon fiber main rotor blades deliver reliable and precise control for the factory-assembled airframe. The lightweight yet durable body is equipped with LED navigation and landing lights along with hard mounting points for the low-profile skids that provide a streamlined “gear up” look, or you can install the included wheel set for a different look and ground handling experience. And it’s all delivered in a model that’s ready to bind to your favorite Spektrum transmitter to offer a unique helicopter flying experience you can’t get anywhere else!

Features:

  • An innovative blend of futuristic looks and high performance to deliver a unique helicopter flying experience

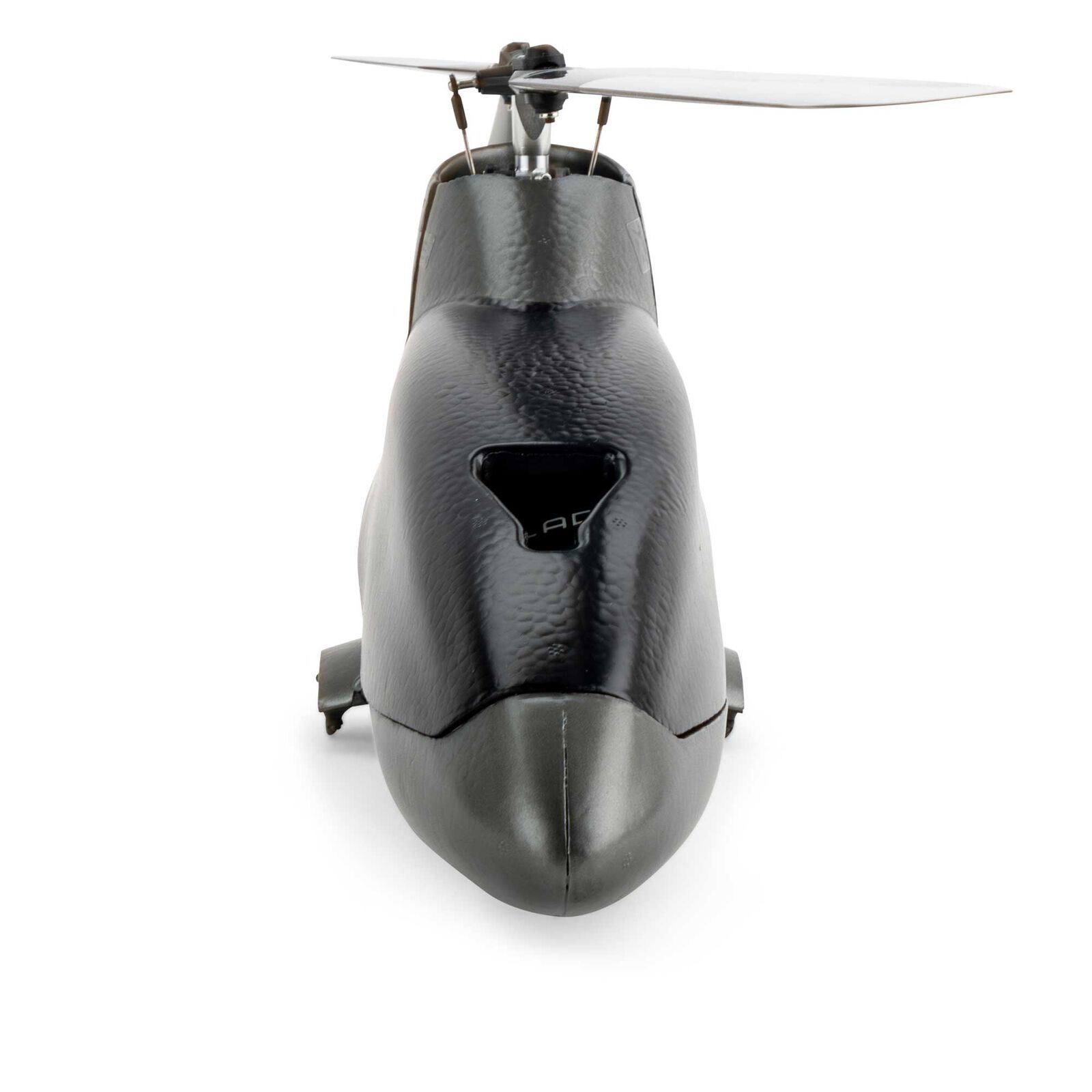

  • A lightweight yet durable, fully molded and painted EPO body featuring LED navigation and landing lights

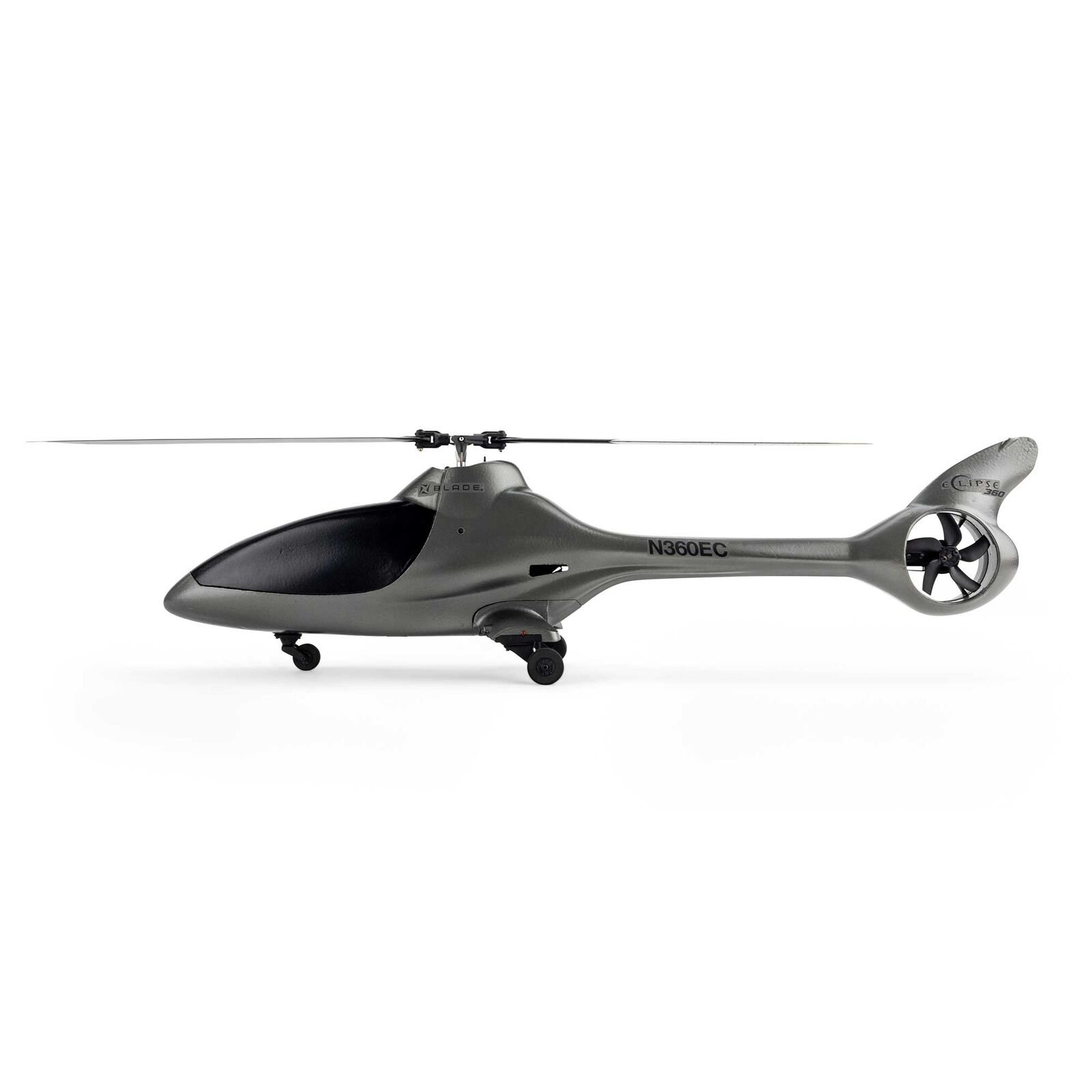

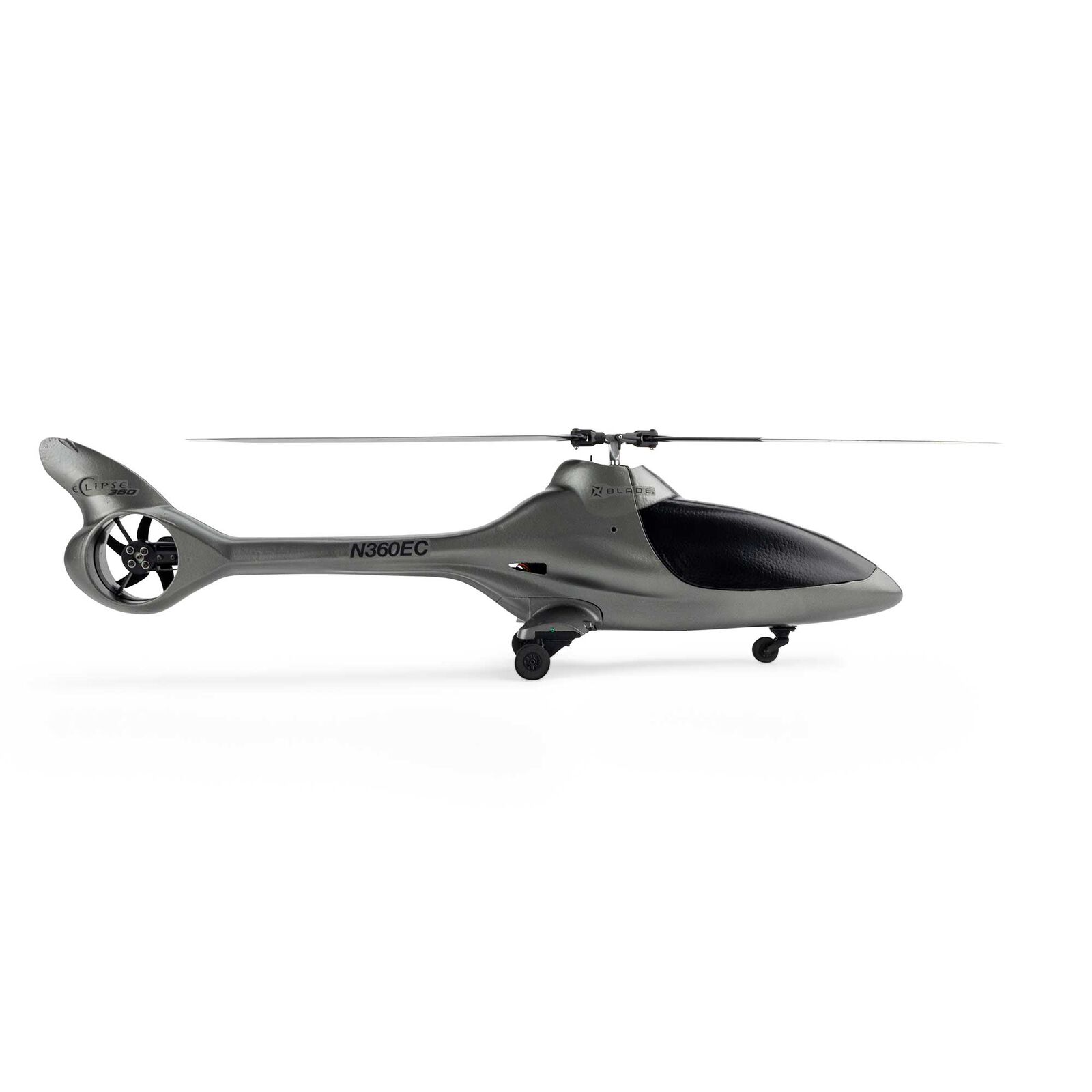

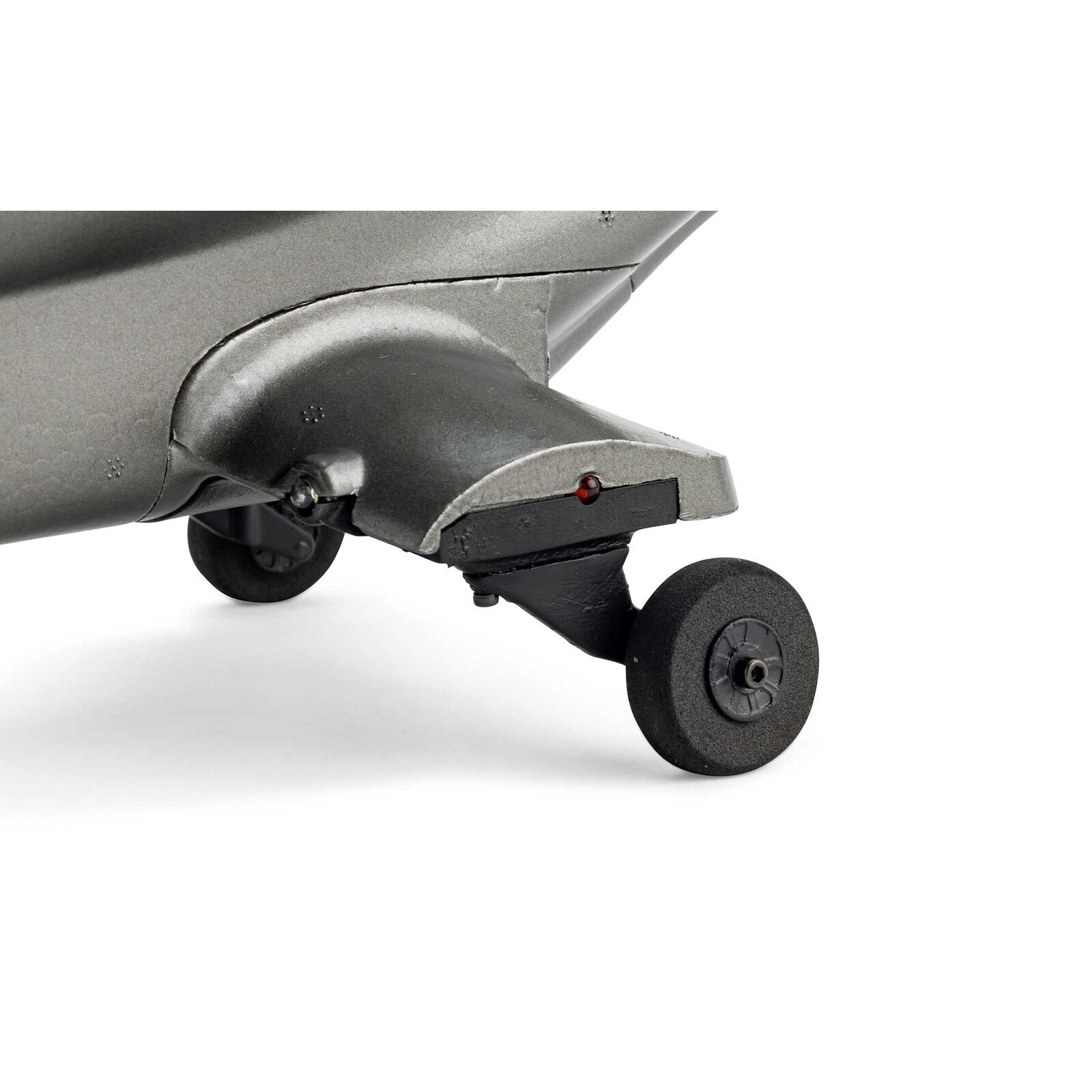

  • Low-profile skids plus an optional-use wheel set for a different look and ground handling experience
  • Spektrum Dual Smart ESC provides real-time battery voltage, motor RPM, and other data to compatible transmitters
  • Factory-installed Spektrum FC6250HX flybarless flight controller featuring exclusive AS3X and SAFE technologies
  • Easier to fly with innovative and optional-use SAFE flight envelope protection
  • The unmatched stability and locked-in feel of exclusive AS3X technology
  • Factory-installed digital, metal-geared cyclic servos with precise ball-link equipped linkages
  • Two Spektrum brushless outrunner motors deliver excellent performance and flight times
  • Convenient, magnetically-secured canopy/hatch with a large battery compartment
  • Compatible with popular and common 3S 2200–3200mAh LiPo batteries
  • Aluminum head block and carbon fiber main rotor blades
  • Fully factory-assembled and nearly ready to fly right out of the box

Pictures

Manual

Radio icons

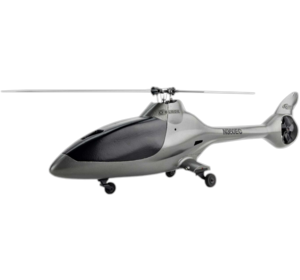

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 777mm (30.6 in)
Length: 782mm (30.8 in)

Weight: 935 g (2.1 lbs)
Power Type Electric
Swashplate Type 120 Degree CCPM
Tail Drive Direct Drive
Main Motor Type Brushless
Channels 6
Main Rotor Blade Length 350 mm (13.78")
Product Length 782 mm (30.8")
Completion Level Bind-N-Fly Basic
Main Blade Material Carbon Fiber
Main Rotor Diameter 777 mm (30.6")
Product Height 193 mm (7.6")
Recommended Motor Battery 3S 11.1V 2200–3200mAh LiPo with EC3 or IC3 Connector
Tail Blade Material Plastic
Flying Weight 935 g (33 oz)
Main Rotor Head Type Collective Pitch Flybarless
Product Width 119 mm (4.7")
Tail Rotor Diameter 76 mm (3")
Tail Motor Type Brushless Outrunner
