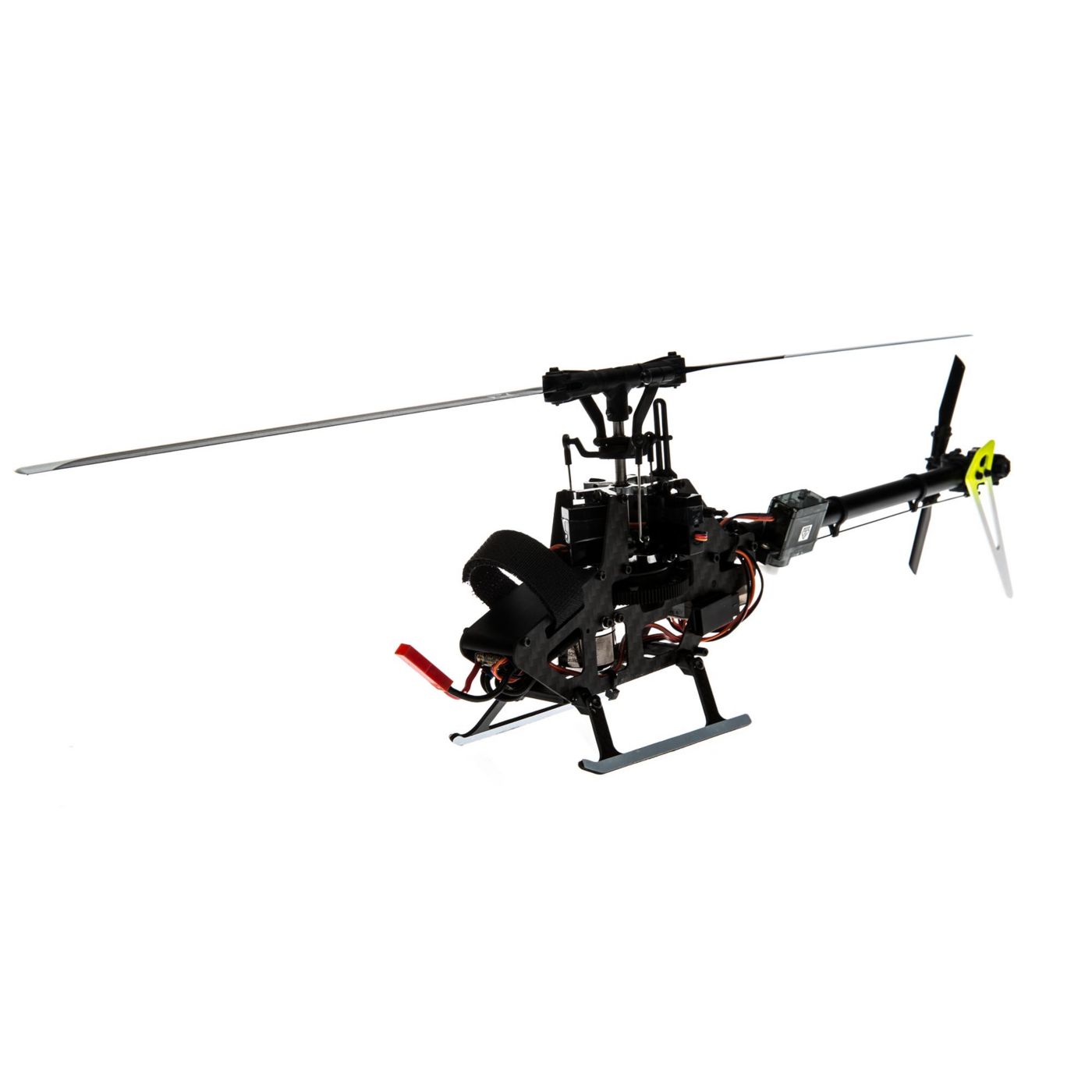

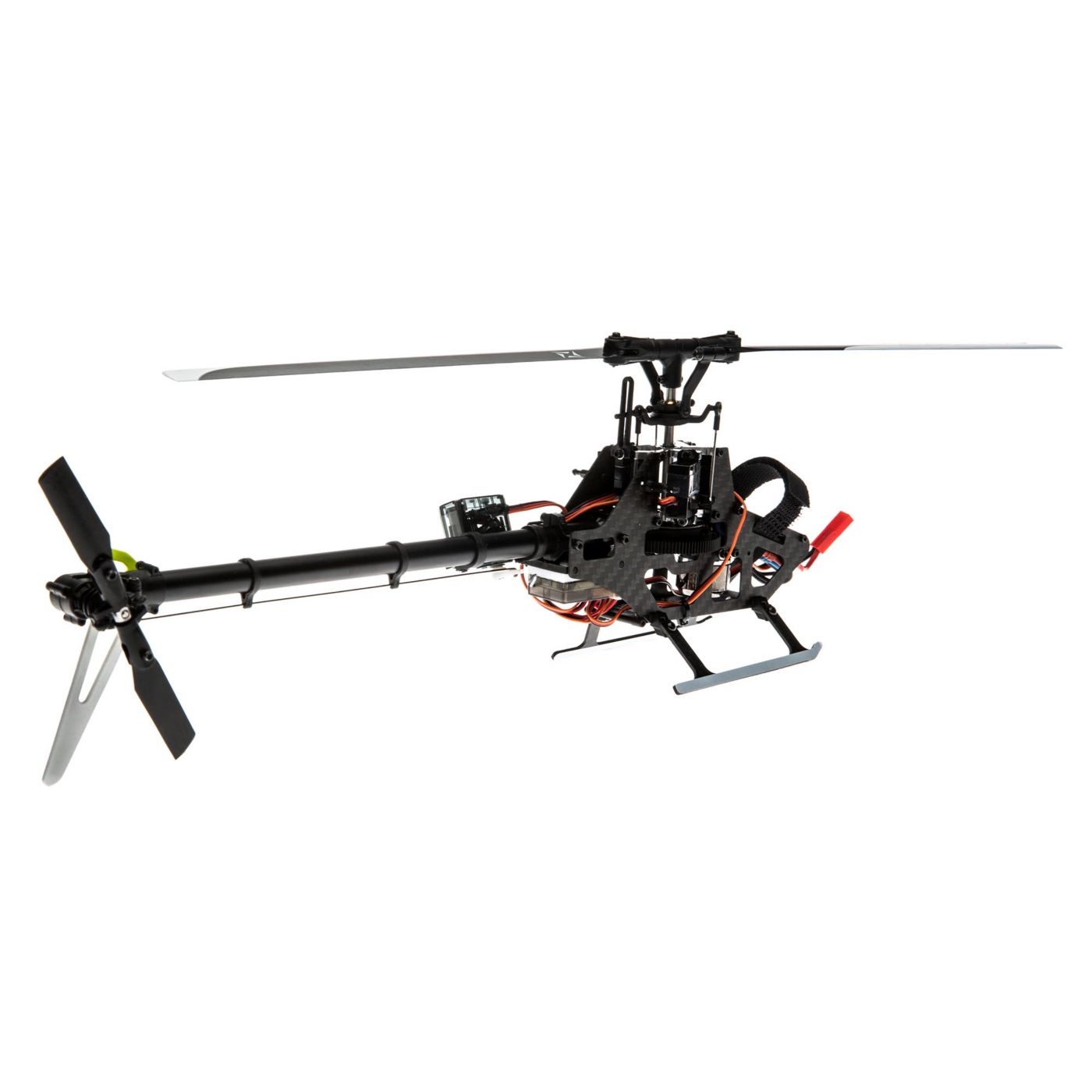

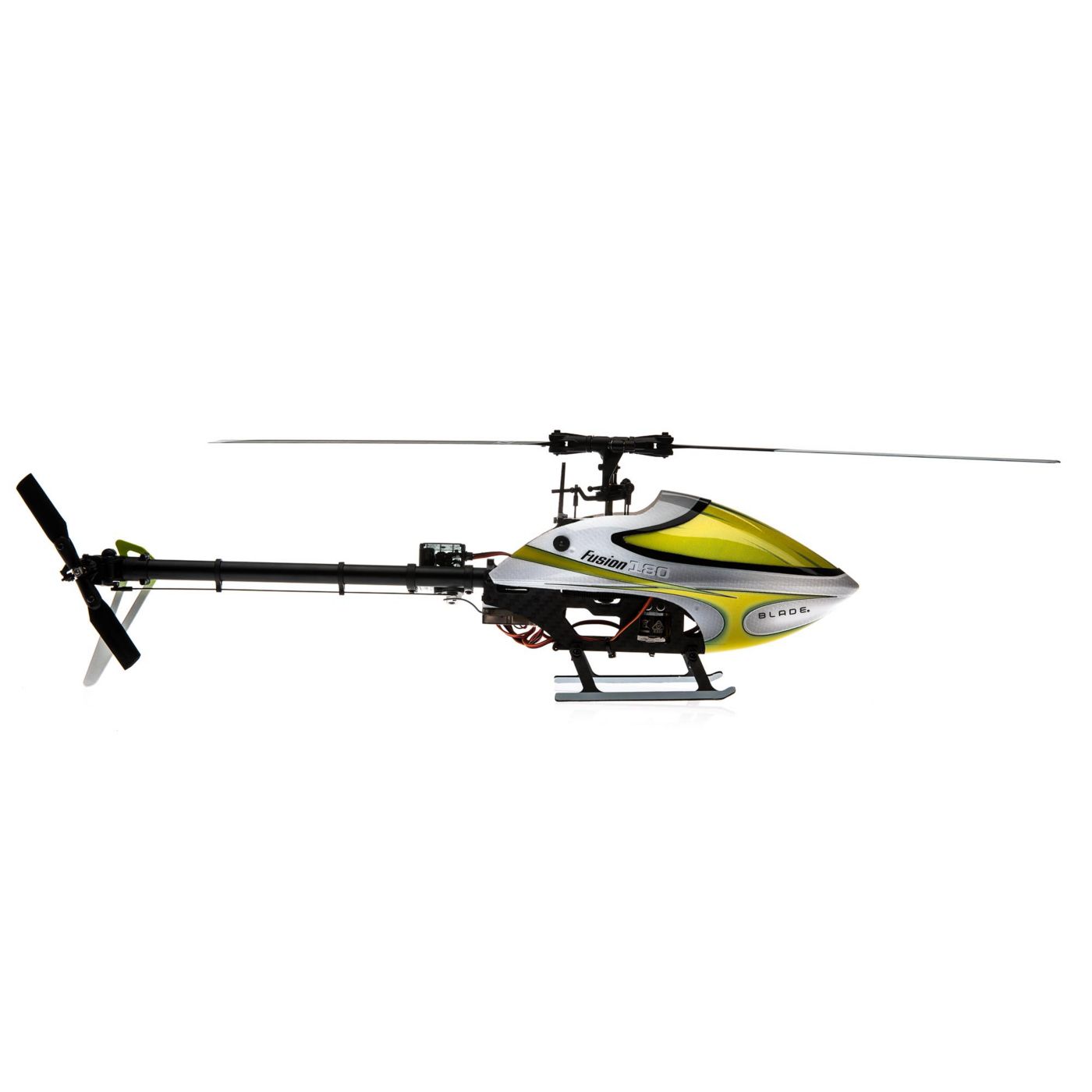

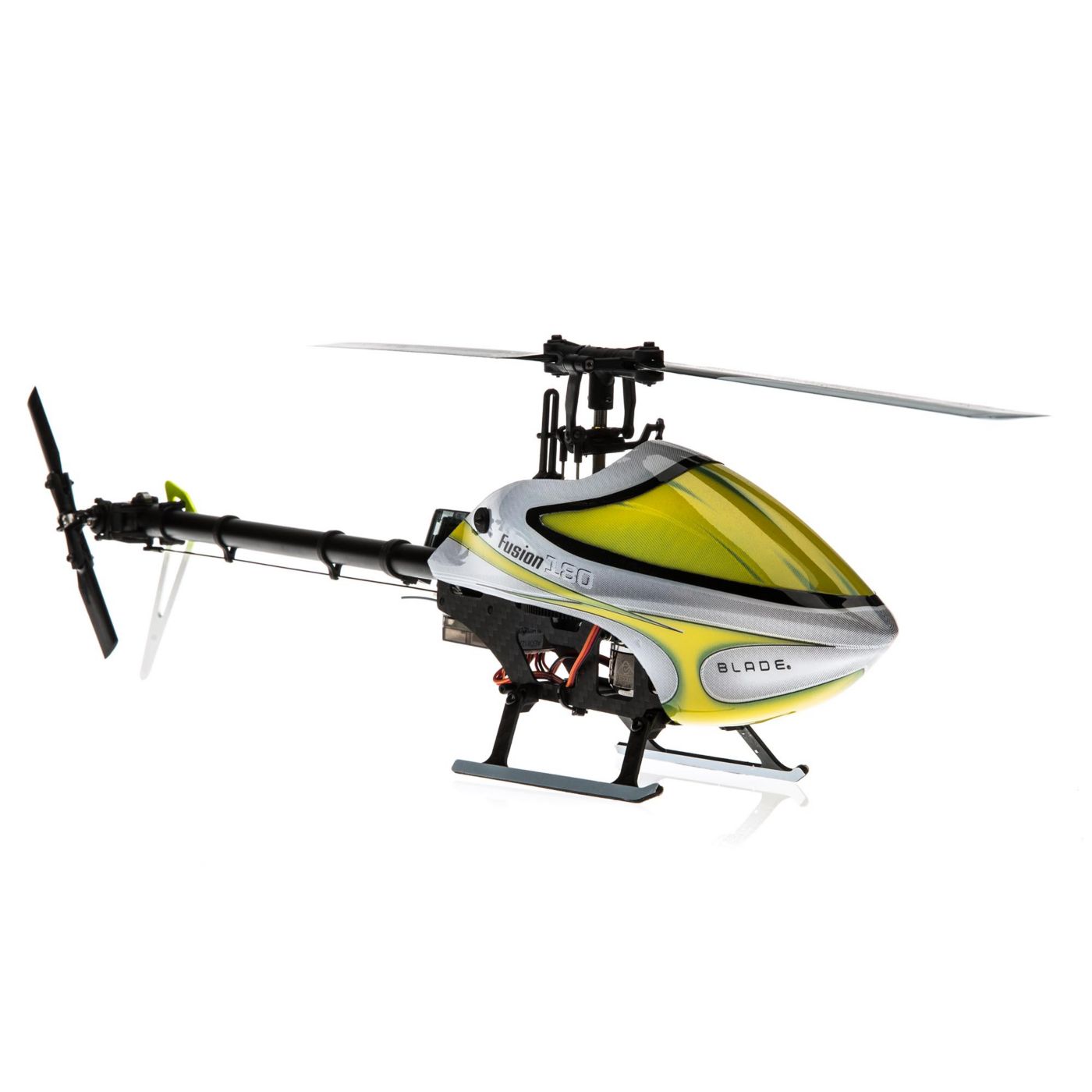

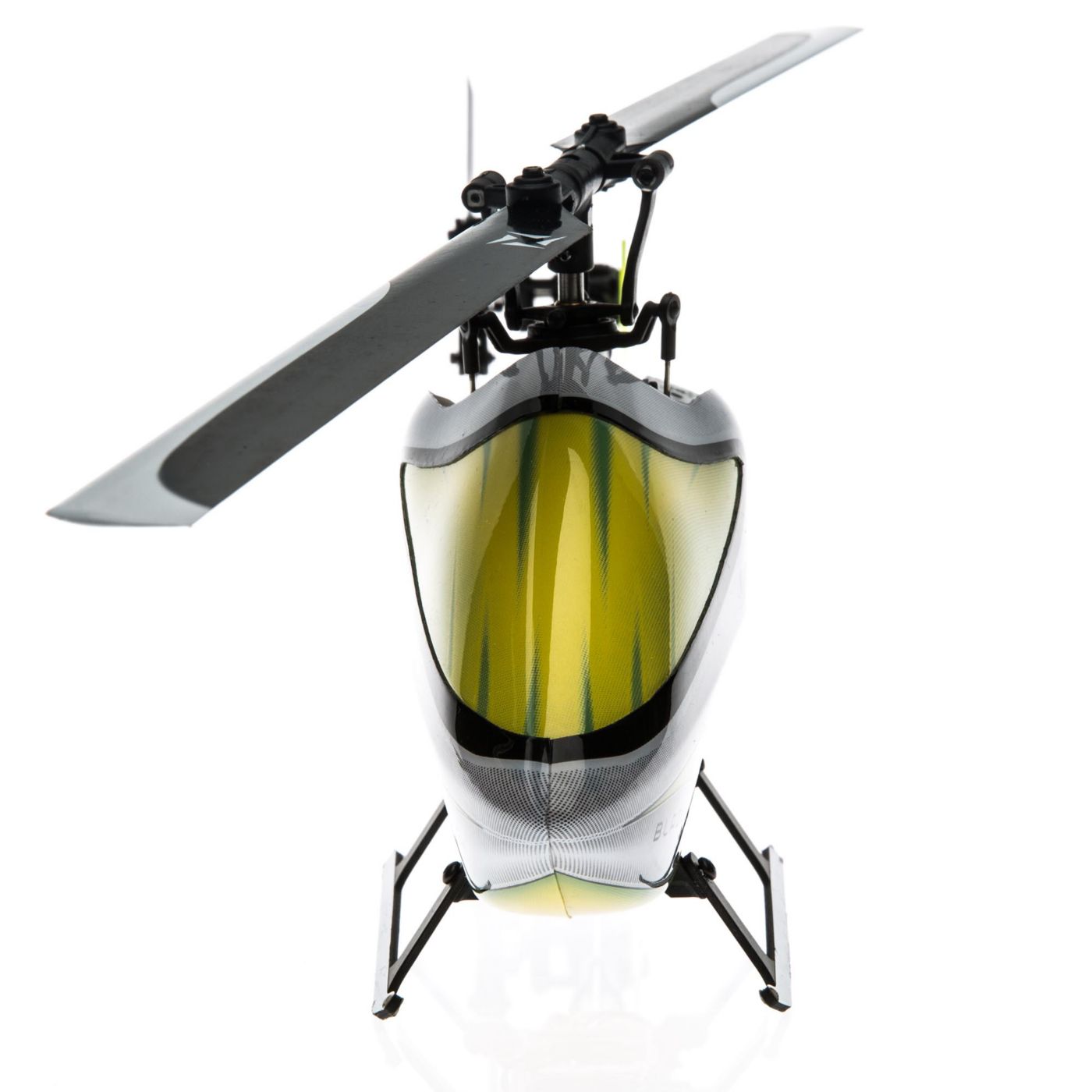

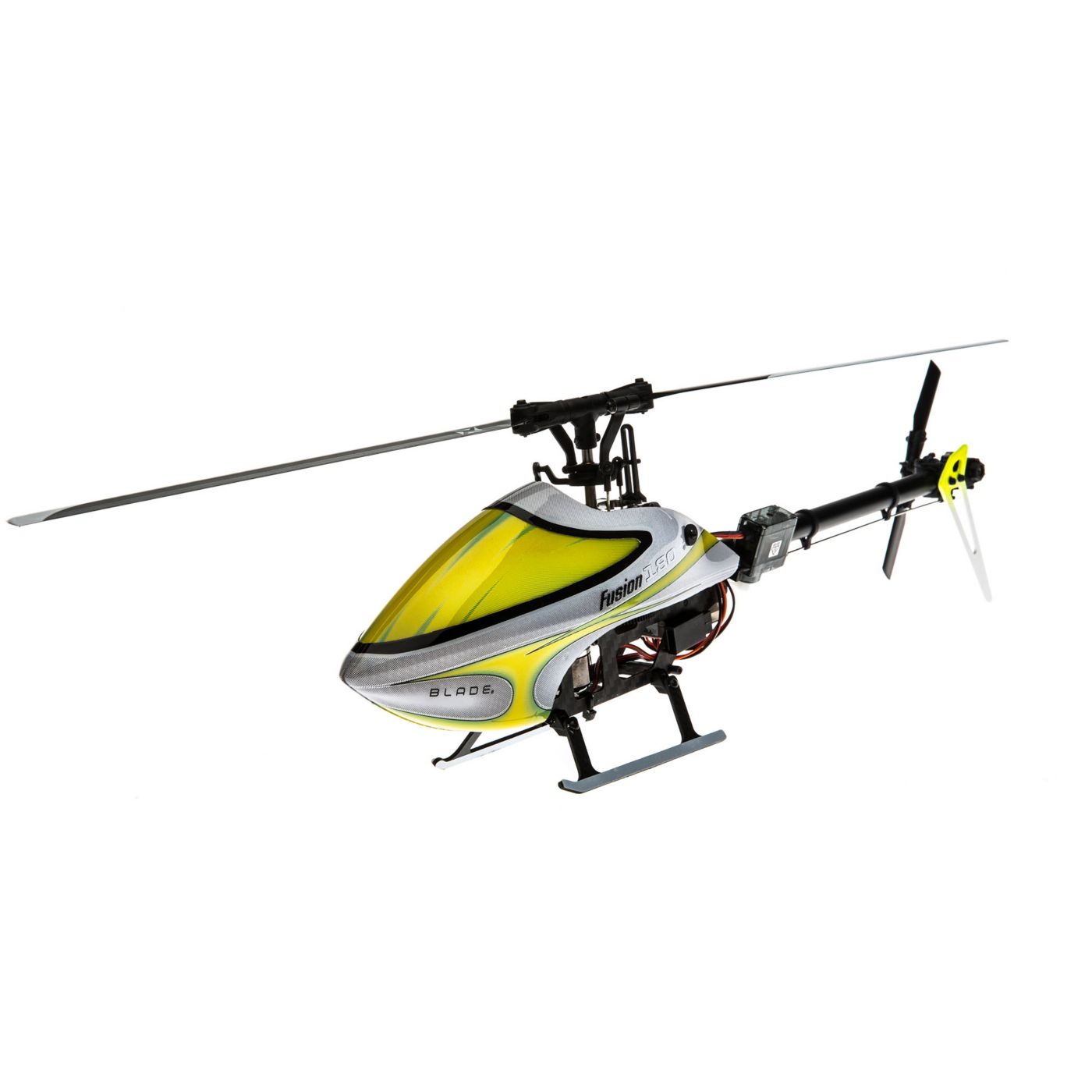

Fusion 180 from Blade

Details

The Blade® Fusion™ 180 is the high performance 3D machine that's ready to tear up the backyard. The Fusion styling revision adds a redeveloped lightweight and extremely rigid carbon fiber main frame. Plus, the new belt-driven tail and newly developed tail case improve tail performance and overall durability. Hosting this new belt is an over-sized tail boom large enough to eliminate the need for boom supports. With this new tail design, the tail servo has moved to a more discrete location mounted to the tail.

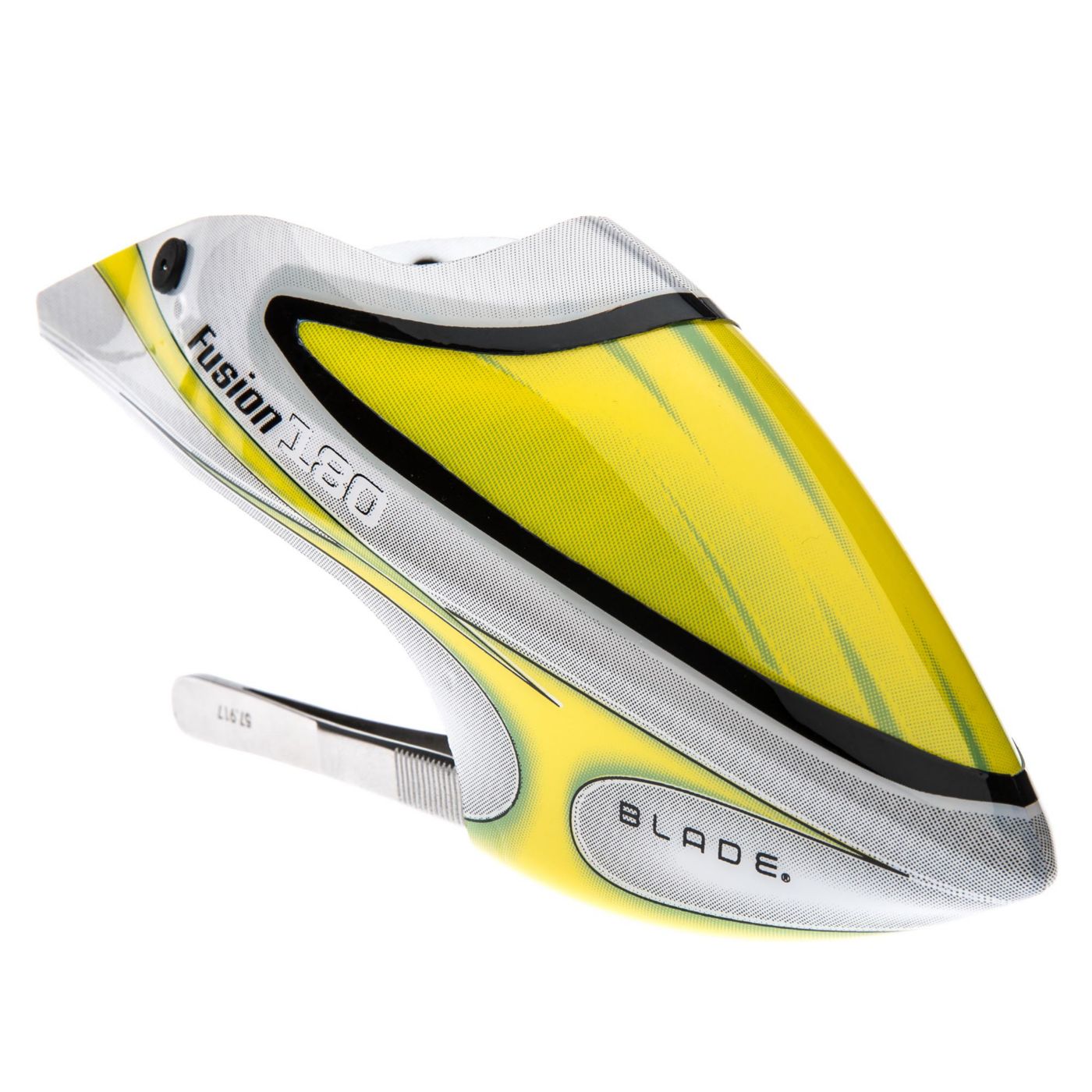

Optimized servo geometry greatly reduces mechanical loss and improves control efficiency to the swashplate. Driven by Spektrum™ metal gear servos, pilots are sure to appreciate the precise control. Painted carbon fiber tail fin finishes off the sleek styling of the Fusion redesigned canopy. A new 20 Amp ESC offers improved, precise head speed control for that high performance flight that doesn't lag behind. With BNF® Basic convenience, all you have to do is add a 4S 450mAh battery, bind your 6+ channel Spektrum DSMX® transmitter, and you're off to hit all the hurricanes, tic-tocs, and detonators in your arsenal.

Features:

  • BNF Basic Convenience
  • Spektrum™ High-Speed Metal Geared Servos
  • Carbon Fiber Construction
  • Redefined Brushless Power System
  • Optimized Servo Geometry
  • 20A 4S ESC
  • Belt Driven Tail
  • High Visibility Canopy

Pictures

Manual

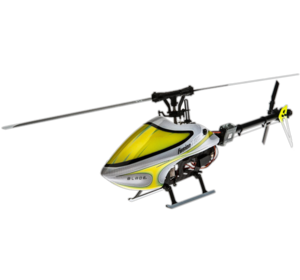

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 412mm (16.2 in)
Length: 370mm (14.6 in)

Weight: 240 g (8.5 oz)
Approximate Flight Time: 3-4 minutes
Battery: 4S LiPo 400 - 500mAh (sold separately)
Canopy/Body Material: Plastic
Channels: 6-channel radio (sold separately)
Completion Level: Bind-N-Fly Basic
Flying Weight: 8.46oz (240g)
Height: 4.9" (125mm)
Length: 14.6" (370mm)
Main Blade Material: Plastic
Main Frame Material: Carbon
Main Motor Type: Brushless
Main Rotor Blade Length: 7.1" (180mm)
Main Rotor Diameter: 16.2" (412mm)
Main Rotor Head Type: Collective pitch (CCPM) flybarless
Servos: Two
Skill Level: Level 3
Swashplate Type: 120 degree CCPM
Tail Blade Material: Plastic
Tail Drive: Belt
Tail Motor Type: None, tail is belt driven
Tail Rotor Blade Length: 1.4" (36mm)
Tail Rotor Diameter: 3.9" (100mm)
Width: 2.4" (60mm)
