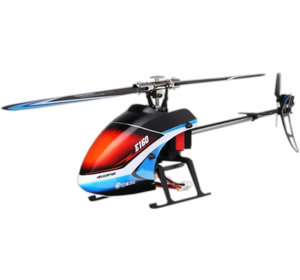

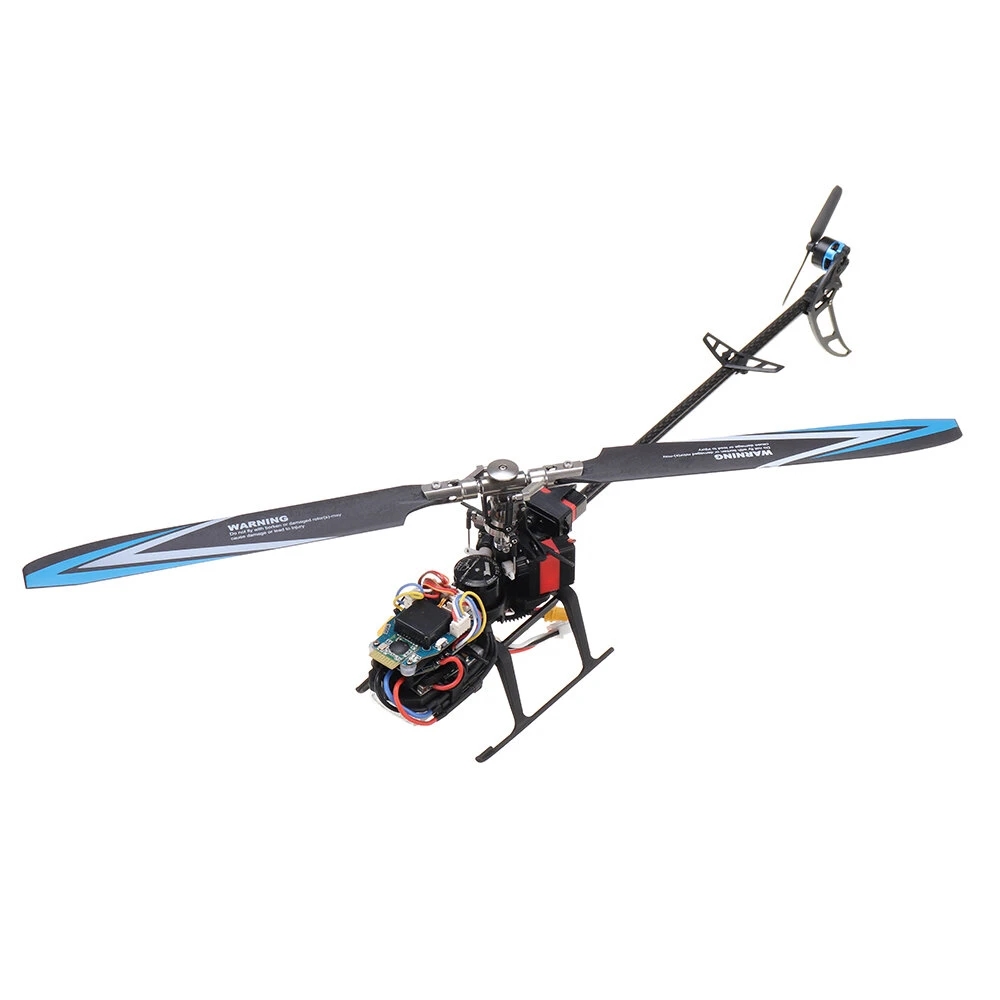

E160 V2 from Eachine

Details

  • Communication protocol compatible with FUTABA S-FHSS, expandable satellite receiver, support DSMX DSM2 PPM S-BUS format

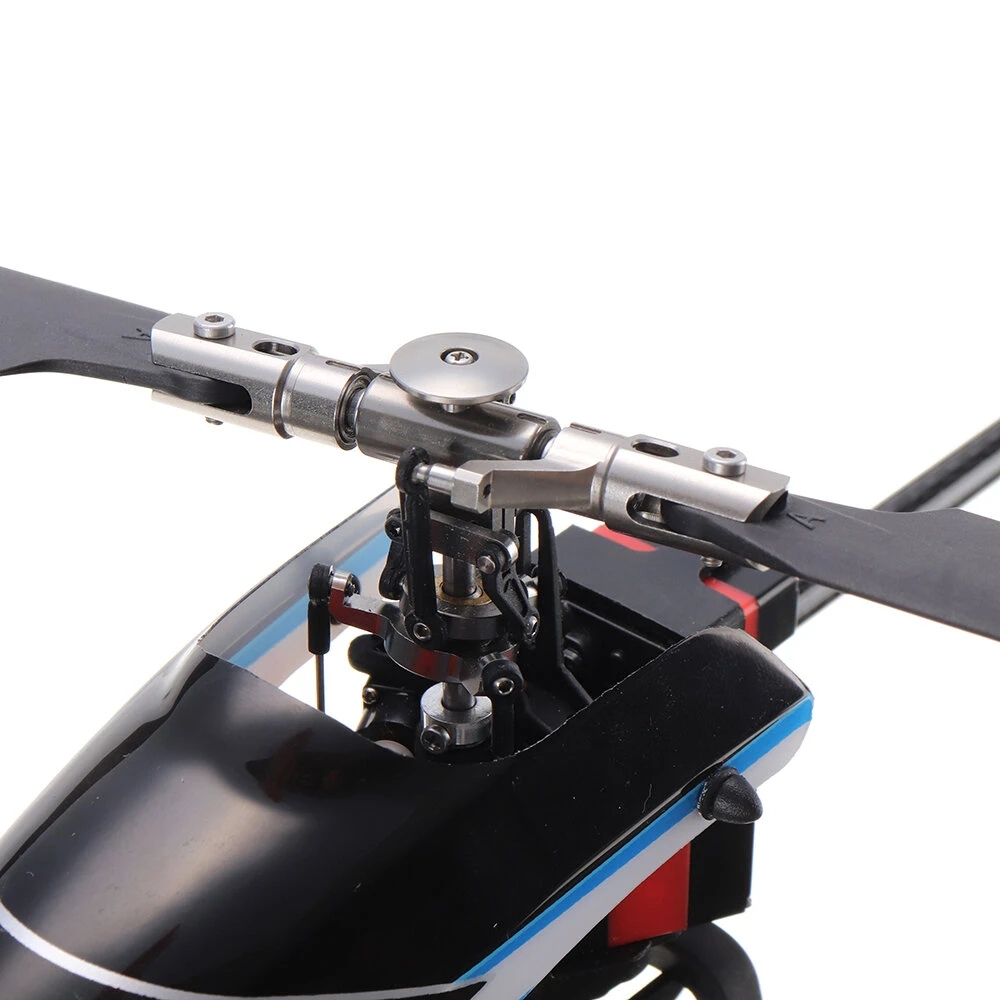

  • Adopt all-metal CNC rotor head without aileron design, using aerodynamic principles to design blades to provide strong power and airframe self-stability
  • The new rotor clip linkage structure, the transmission efficiency is more accurate, with small clearance and flexible rotation, which is more conducive to the accuracy of flying feel.

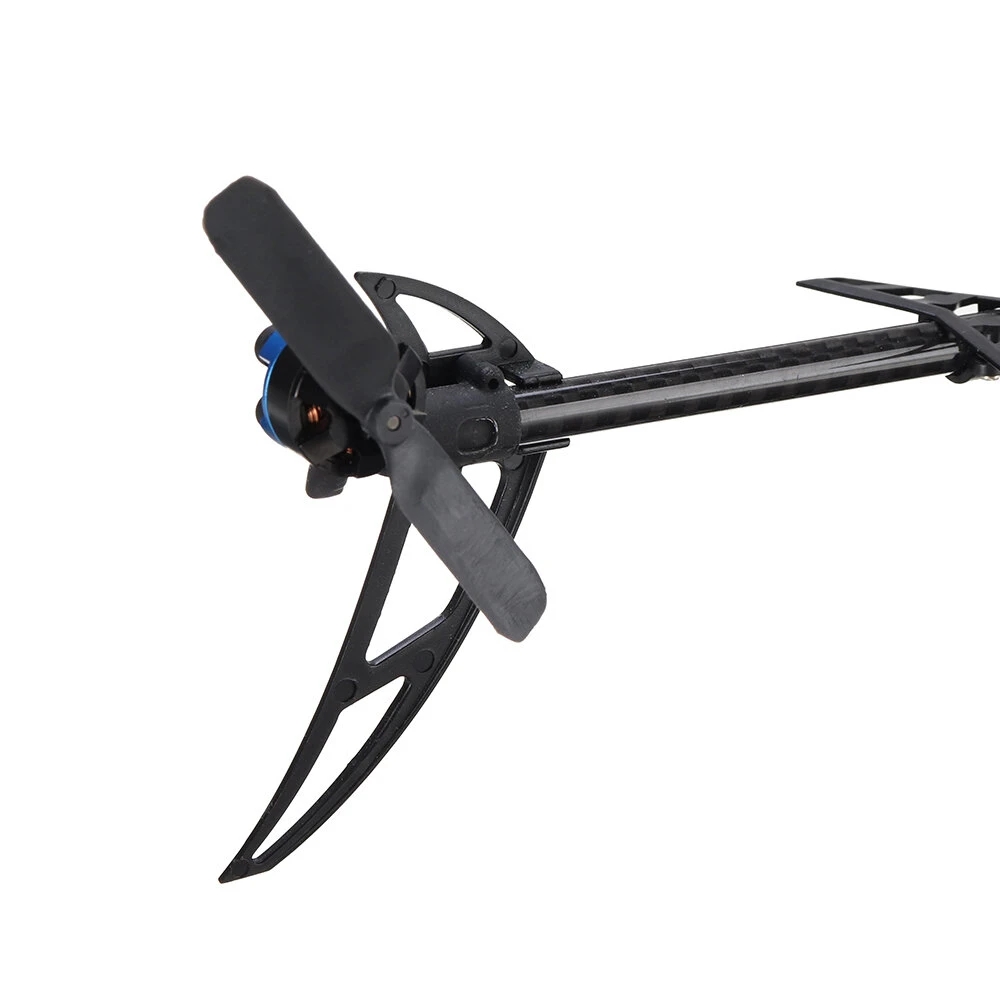

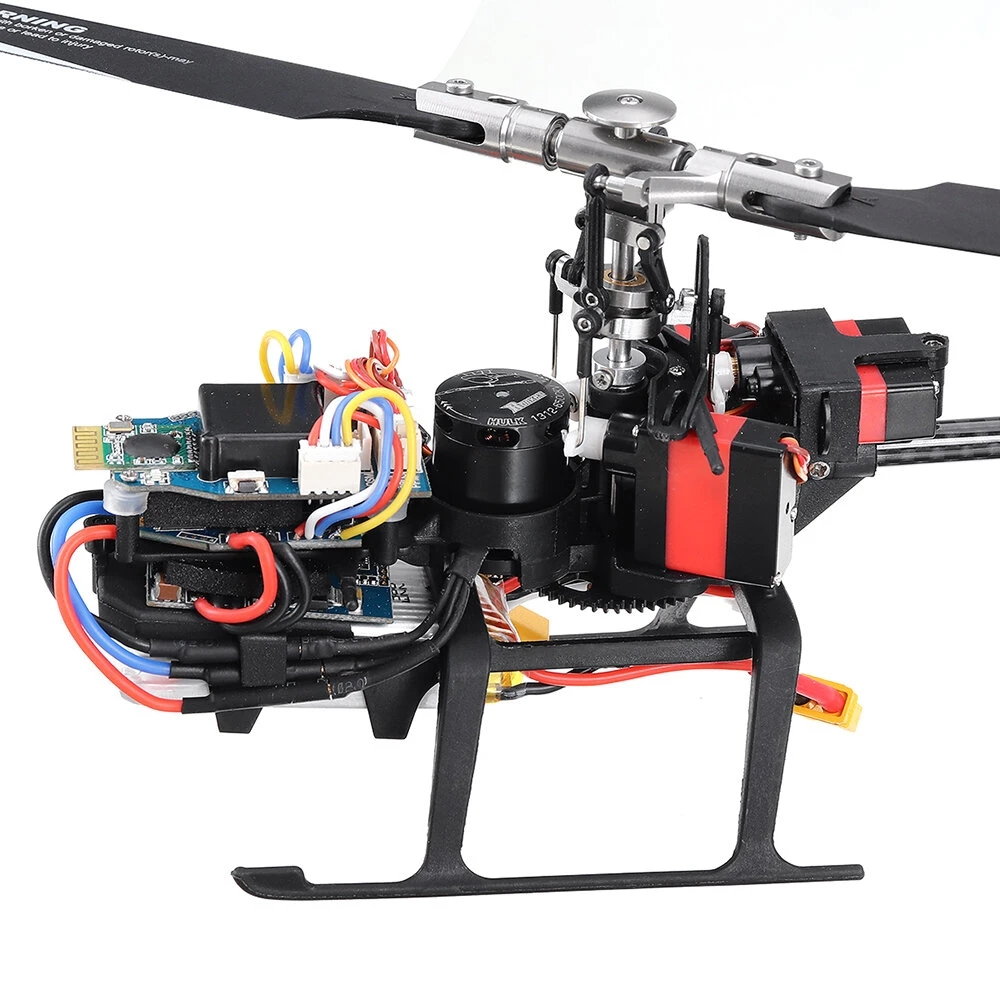

  • Use 1308 external rotation brushless motor for more powerful power, 1104 tail brushless motor tail lock, 7.4v 600mah 25c large rate battery
  • 4.3g metal tooth high precision digital steering gear. Response speed 90 ° / 0.06ms
  • Set 3D6G system, one-button switch of remote control
  • The 3D mode uses a 3-axis gyroscope, which is responsive and can easily make a pan, roll, fly, hurricane, pendulum, etc
  • 6G mode uses 6-axis gyroscope, flight stability, especially suitable for beginners to fly

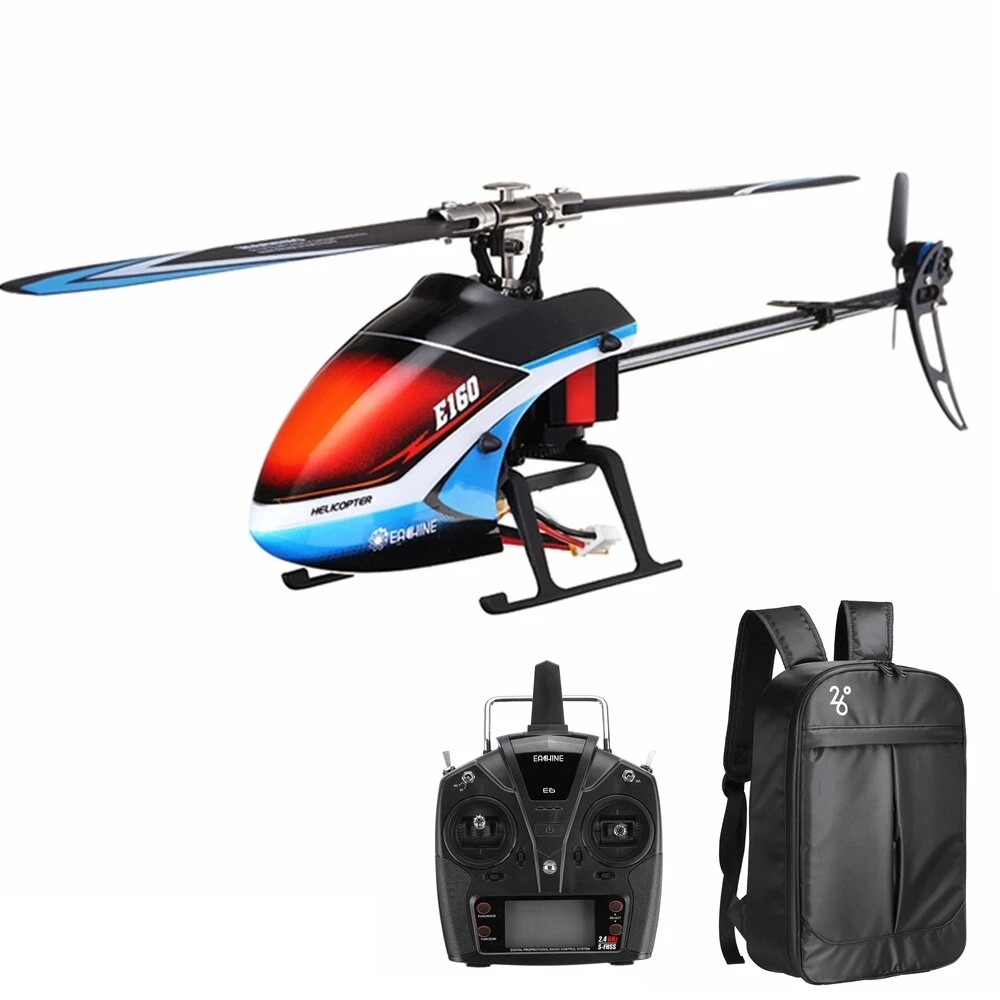

  • Standard 6-channel remote control
  • Equipped with special balancing charger

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the E160 V2 in particular but at least we know they do distribute Eachine.

Where to buy

Hungary
SG RC Modell
check web site
Ship to: Hungary
Ireland
Radio Controlled Shop
check web site
Ship to: Ireland
Hong-Kong
Banggood
check web site
Ship to: International

Wingspan: 305mm (12 in)
Length: 305mm (12 in)

Weight: 156 g (5.5 oz)
  • Rotor diameter: 305mm
  • Body length: 305mm
  • Height: 98mm
  • Flying weight: 156g (with battery)
  • Flight time: about 5 minutes
  • Main motor (brushless): 1312
  • Tail motor (brushless): 1103
  • Battery details: 7.4V 600mAh 25C

Variants

E160V2
E160 V2 (Red Blue)
