Swift S-1 from Composite RC Gliders

Details

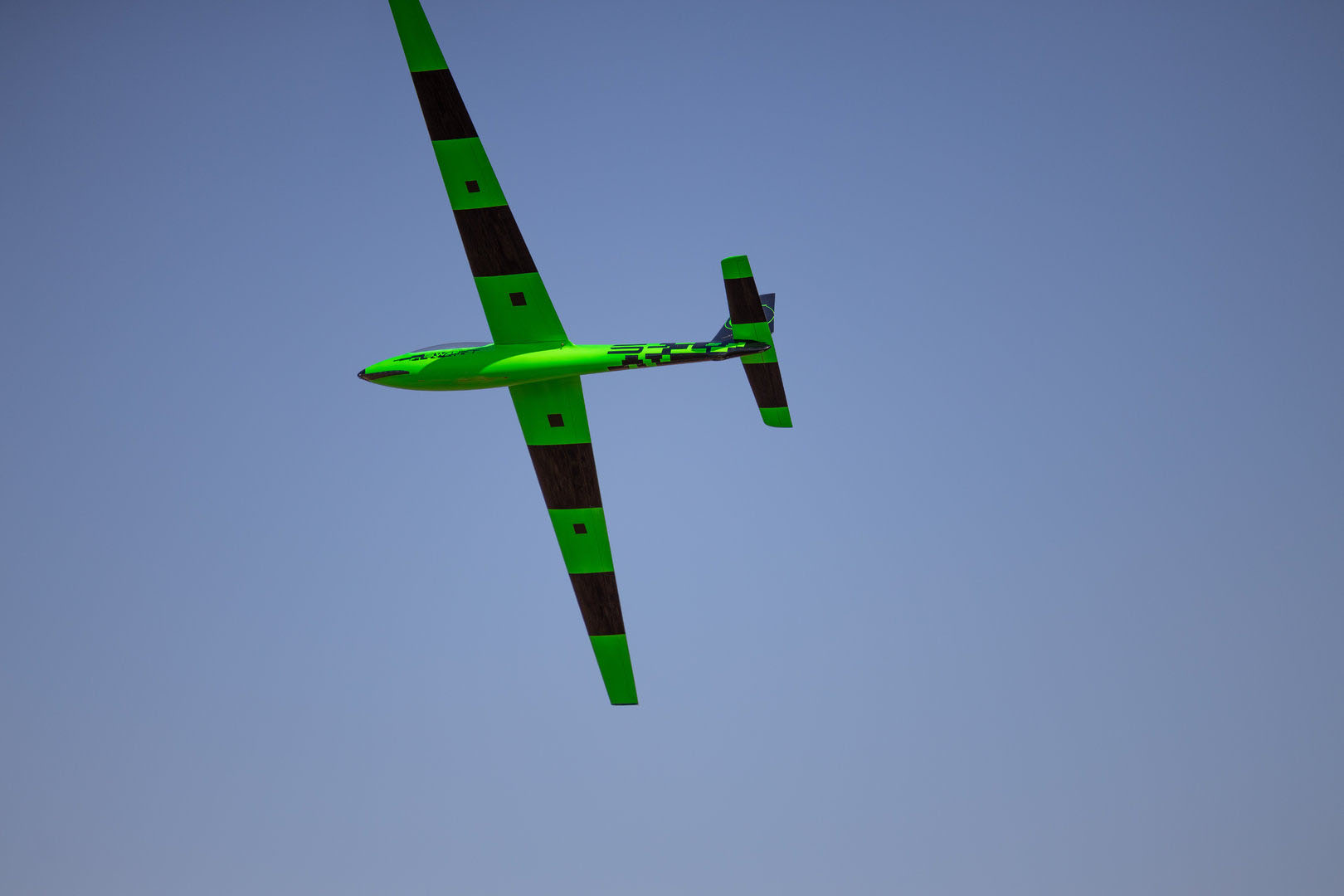

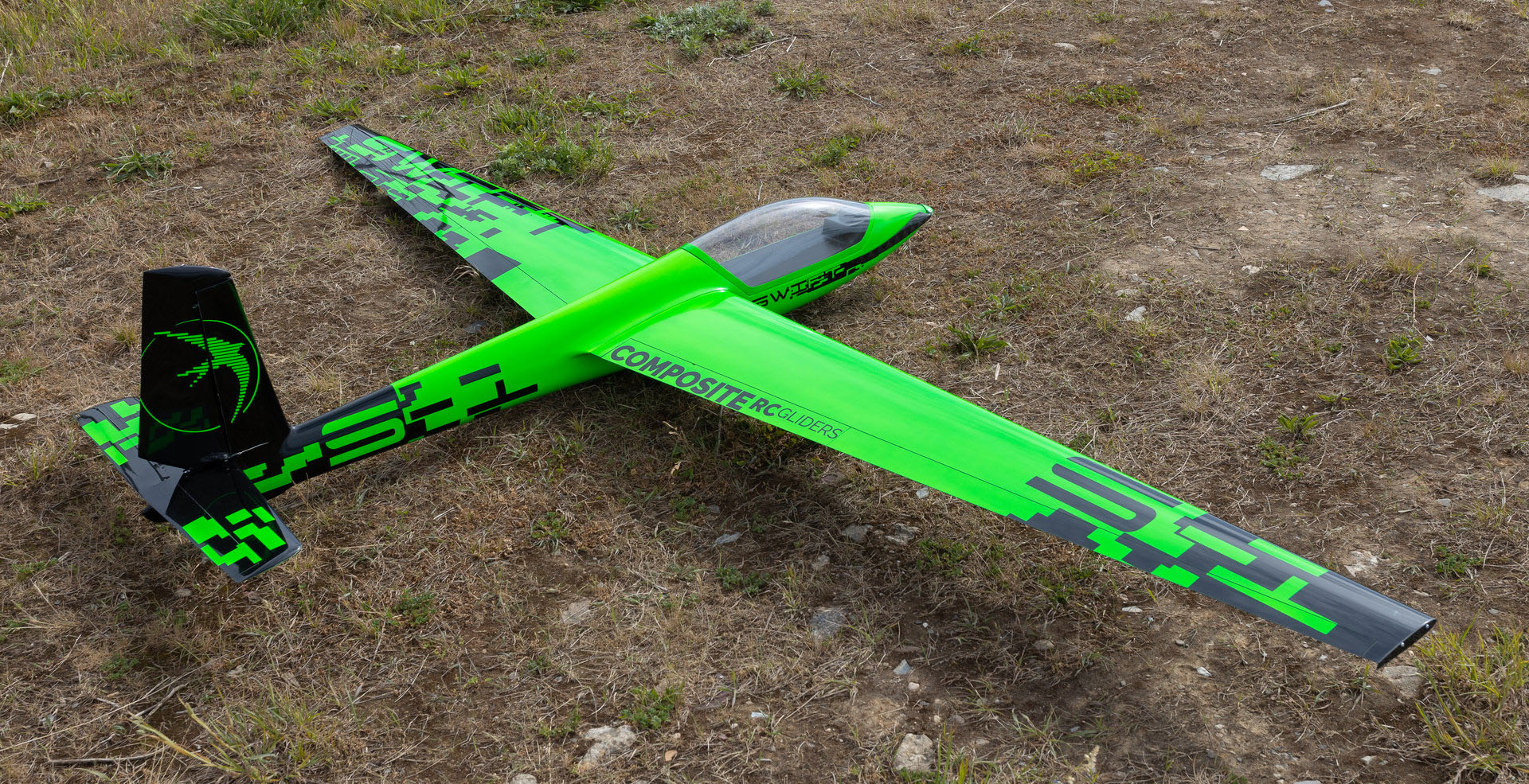

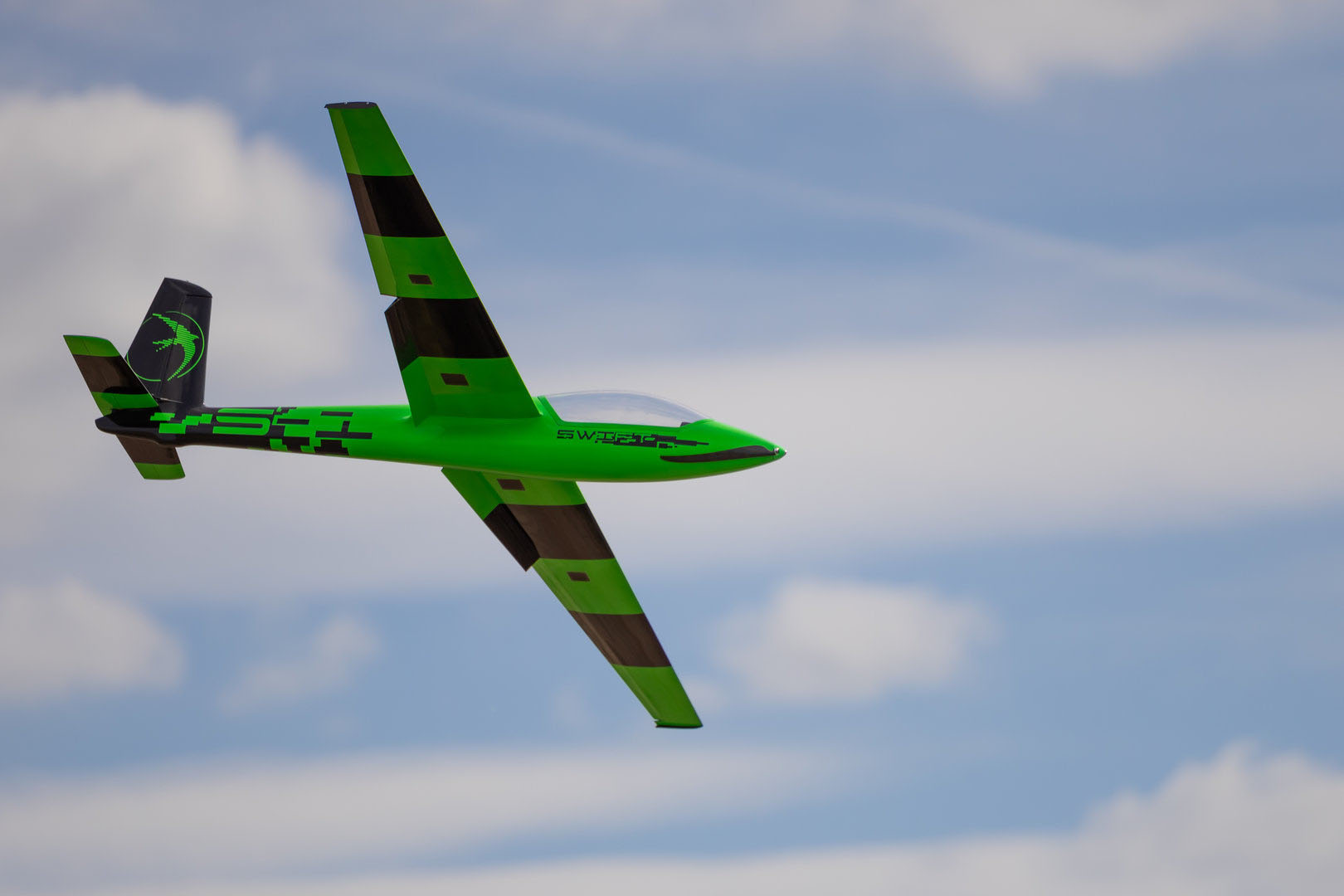

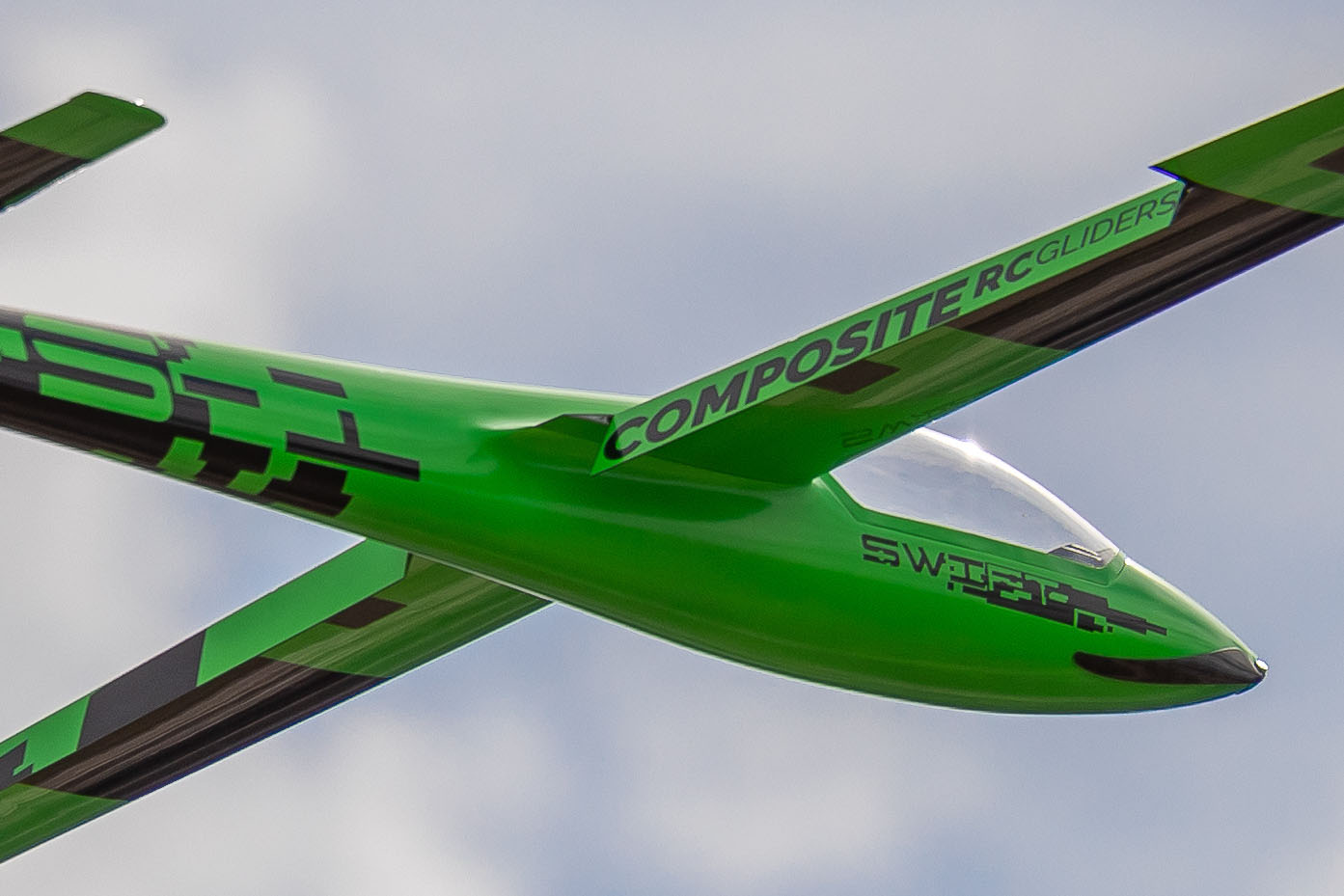

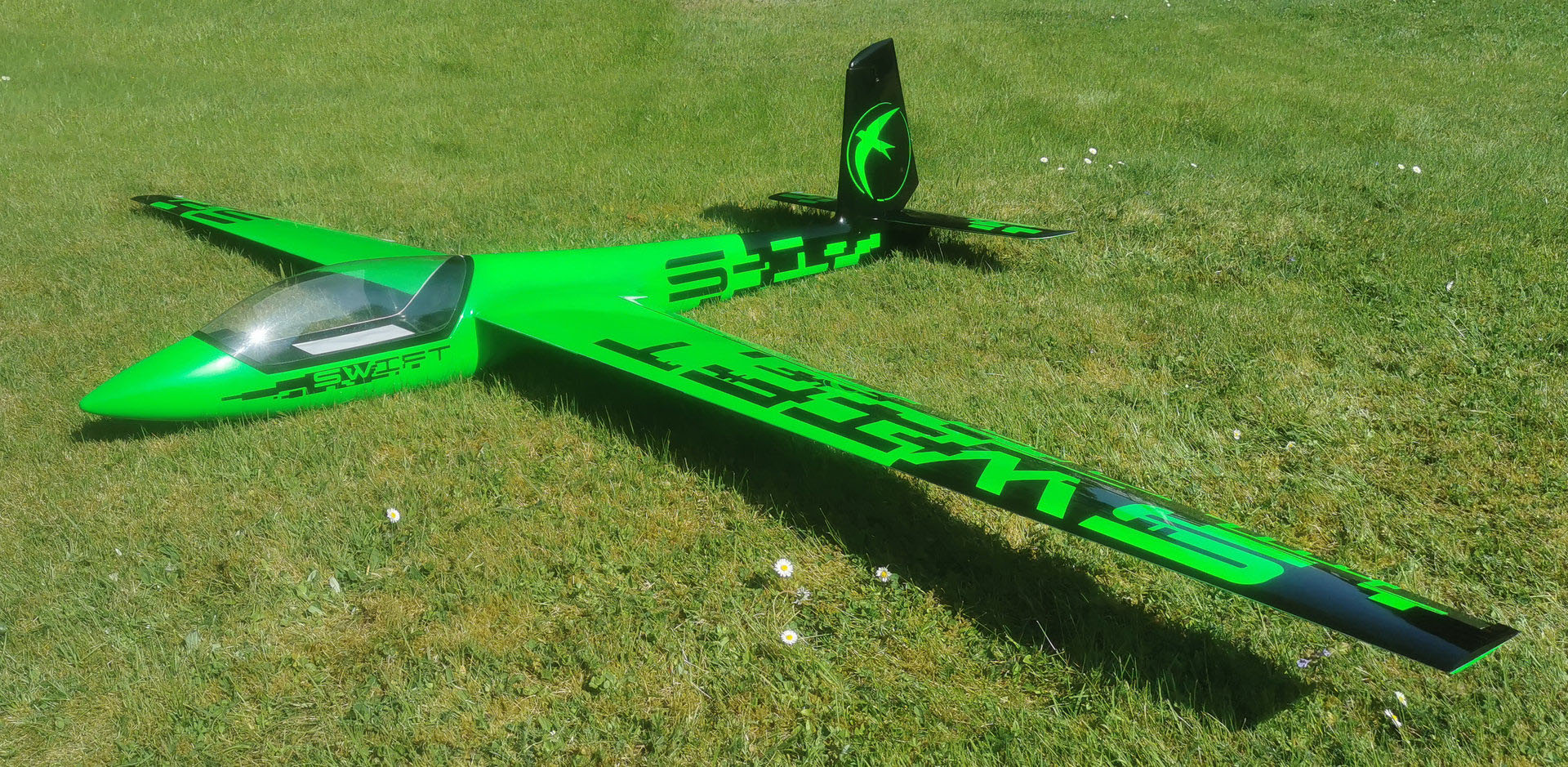

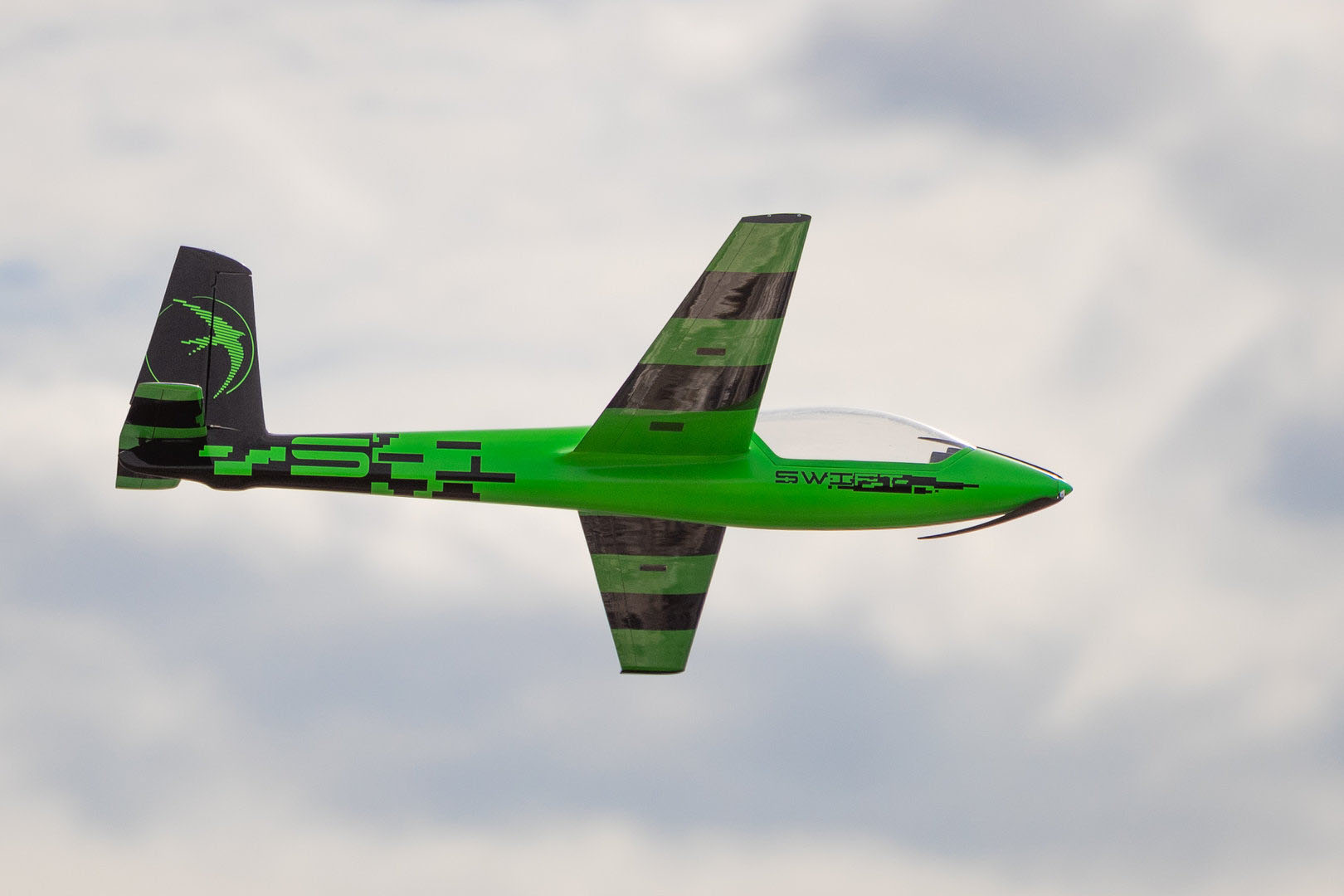

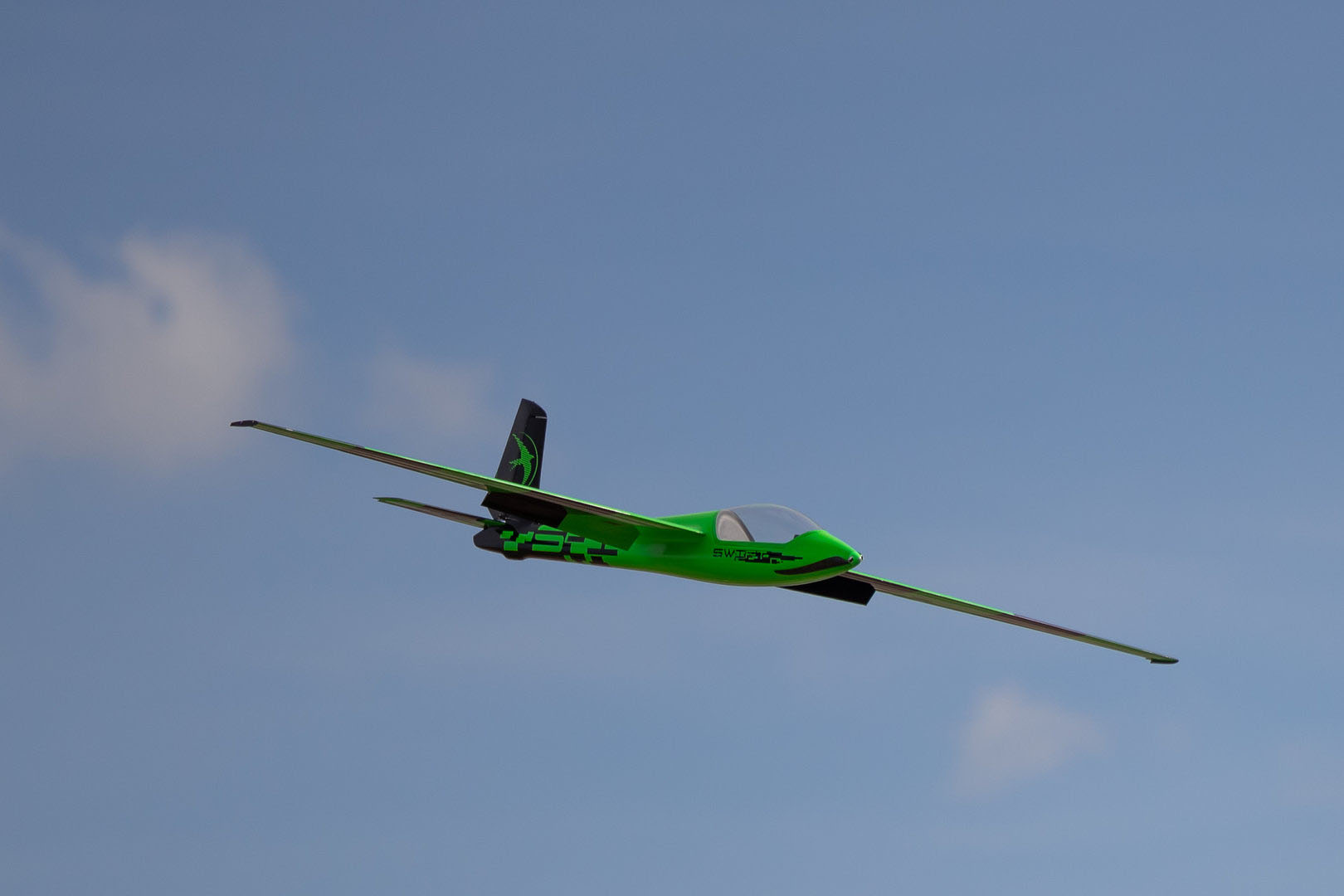

The Swift S-1, on a scale of 1:4.6, is absolutely directional and accepts all control commands excellently. Perfectly stiffened rudders ensure a fine feeling of flight and top control even with crisp manoeuvres.

Even if the Swift S-1 is primarily designed for aerobatics and high speeds, it also performs very well in thermals in its speed range.

When landing, the Swift S-1 can be braked excellently with the butterfly position and is always easy to control.

The model is manufactured in CNC milled molds. This guarantees a high level of quality in every detail. The layup and spar construction is based on our Stingray and is absolutely final in its execution and ensures that the Swift S-1 will not be broken in the air.

Since we want to give you every opportunity to "enjoy" the model as much as possible, the standard kit contains not only the wiring harness but also all the materials for massive linkages for all rudders.

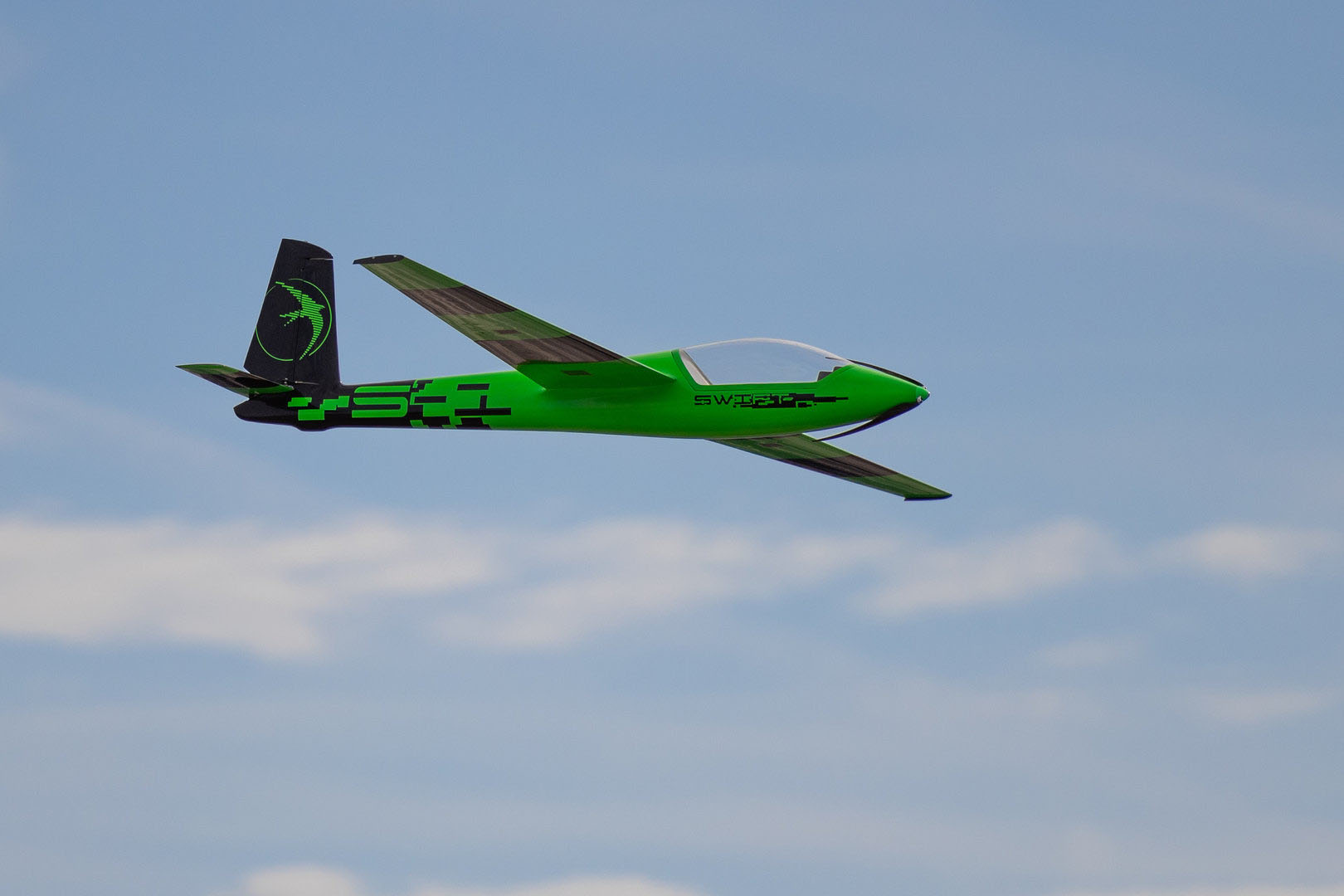

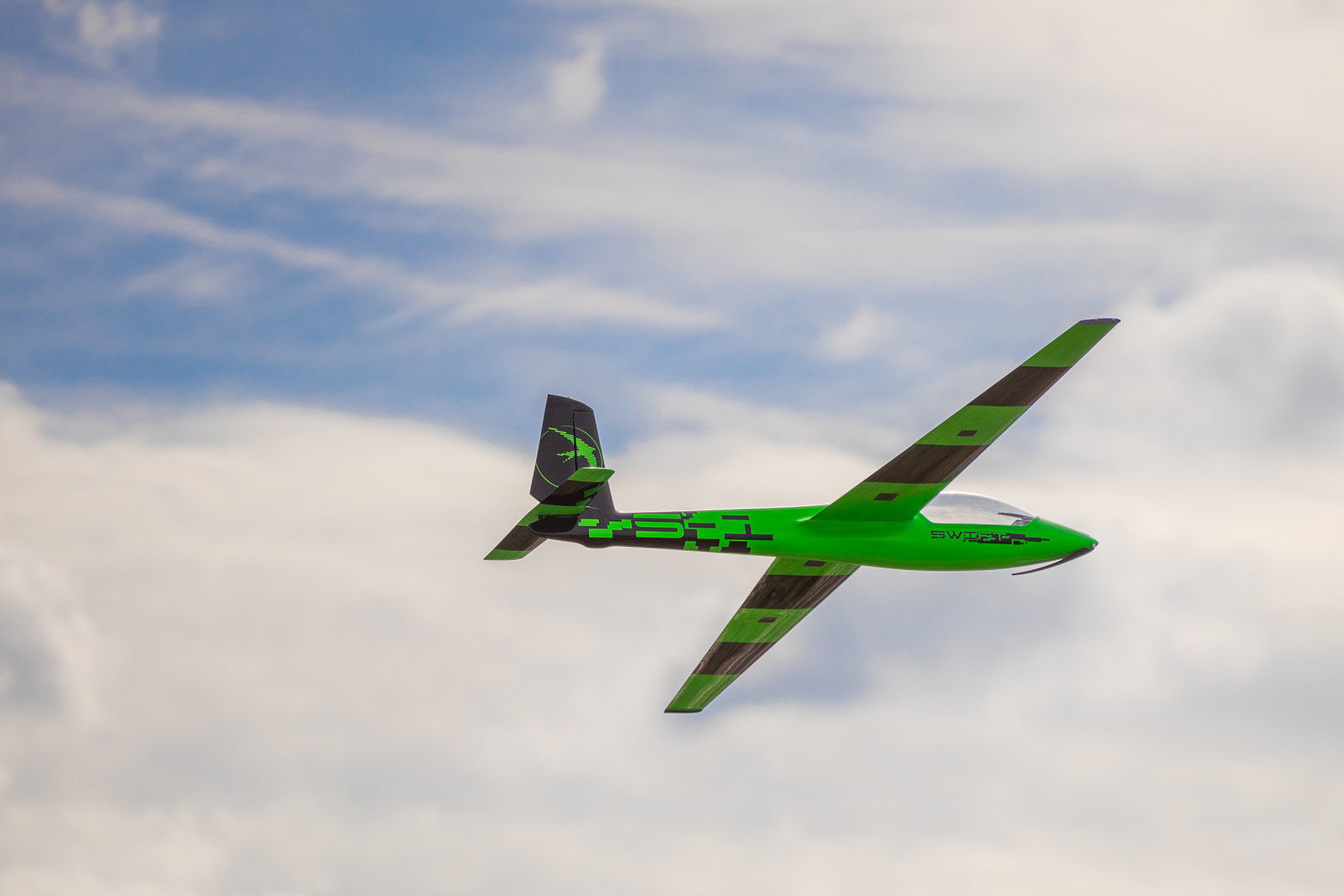

Pictures

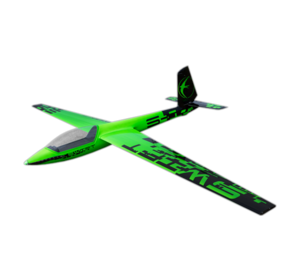

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Swift S-1 in particular but at least we know they do distribute Composite RC Gliders.

Where to buy

Germany
Composite RC Gliders
check web site
Ship to: Europe

Wingspan: 3250mm (128 in)
Length: unknown

Weight: 6700 g (14.8 lbs)
  • Wingspan: 3250 mm (126)″
  • Wing area: 71 dm²
  • Center of gravity: 85 mm
  • Curb weight: 4.900 gr
  • Flight weight: from 6.700 gr
  • Scale: 1:4
  • Airfoil: HN-1054 (mod.), 9% - 8,5%
  • Controls: Elevator, Rudder, Ailerons, Flaps, Tow release

Wings and tailplane:

  • High strength gel-coat carbon wings in sandwich build
  • Clean, high quality processing
  • White/red/blue painted in the mould

Fuselage:

  • High strength gelcoat carbon/aramid fuselage
  • Clean, high quality processing
  • Painted in the mould

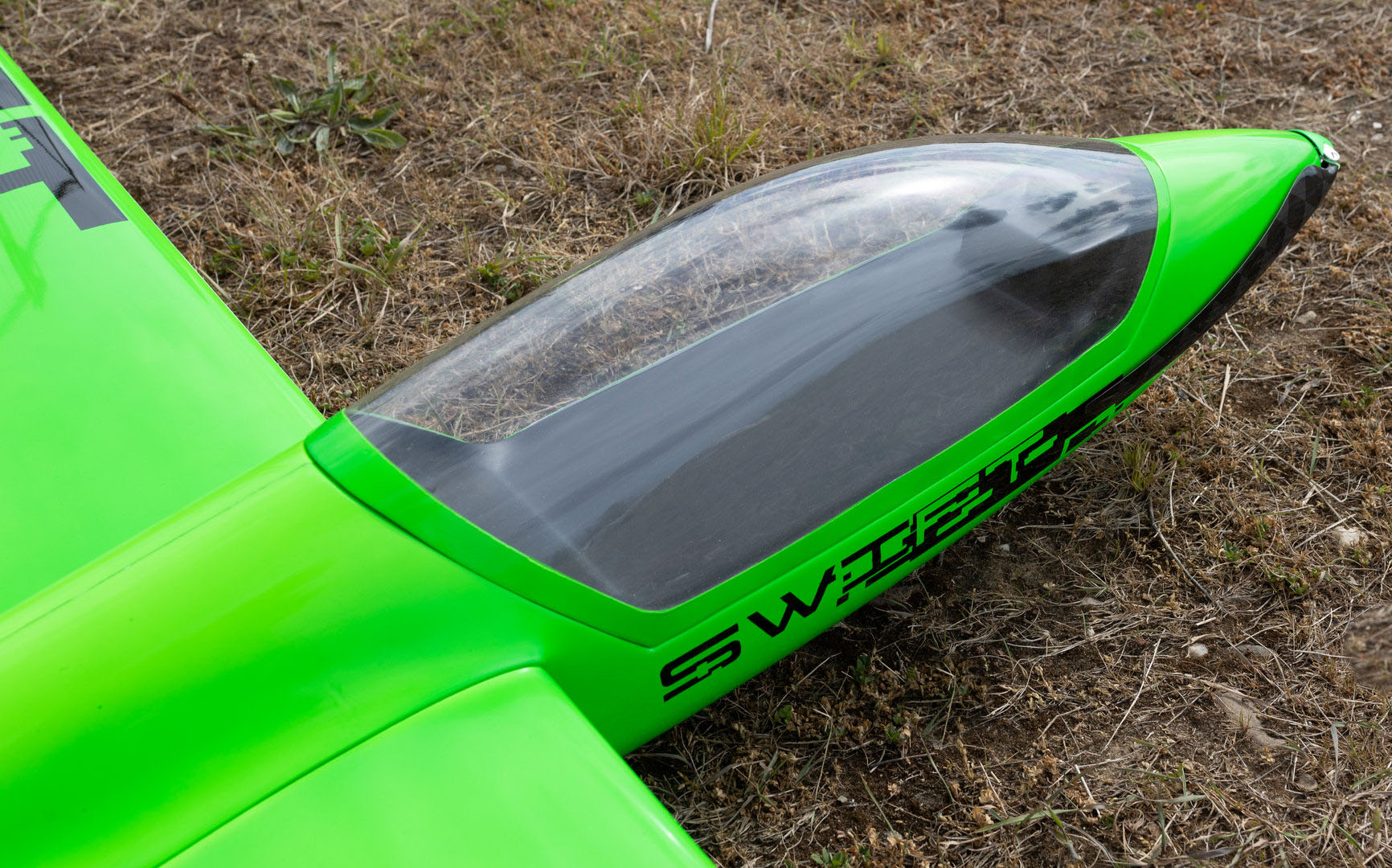

  • Clean Canopy, glued and painted

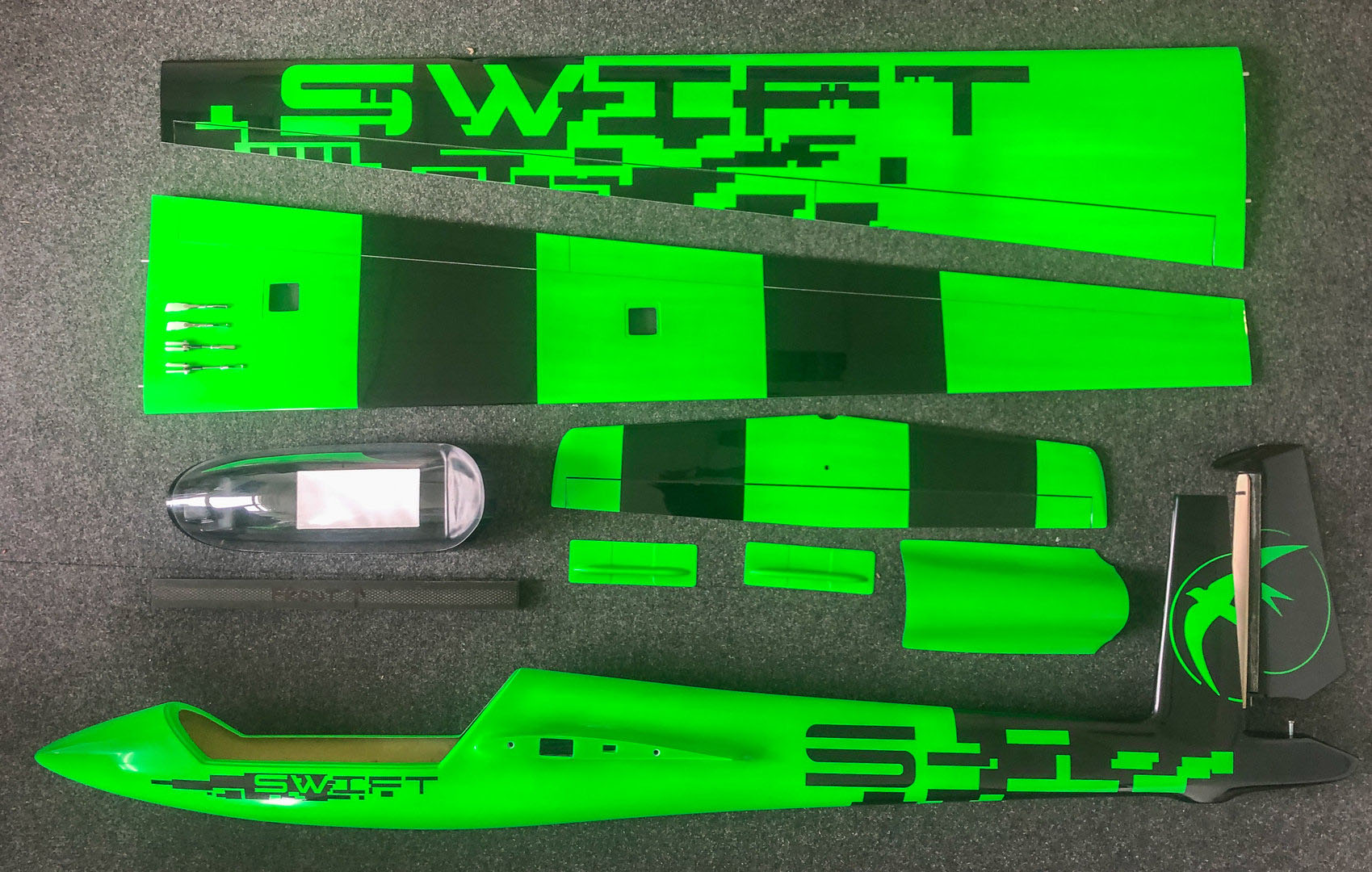

Accessories included:

  • Glass canopy
  • Glass servo covers Servo support plate (fuselage)
  • High quality clevis made of spring steel
  • Pre-assembled and encapsulated wiring harness

Servo recommendation:

  • Elevator: 1x KST DS725MG
  • Rudder: 1x KST DS725MG
  • Aileron: 2x KST A12-S
  • Flaps: 2x KST A12-T

Rudder Setup:

  • Elevator: 20 mm up / down
  • Rudder: 40 mm left / right
  • Aileron: 16 mm up, 12 mm down
  • Flaps: 8 mm down, 6 mm up

Butterfly/Landing:

  • Inner Flaps: full down
  • Outer flaps: half way down
  • Airbrakes: full brake

(All mm data measured at the position of the largest deflection of the rudder)

Information about motorization:

  • Motor: Hacker C54-1,5Y XL Glider 6,7:1 Competition Kv 1450
  • Controller: Hacker MasterMezon 135 opto
  • Battery: 2x Hacker TopFuel LiPo 35C Power-X 5000mAh 5S MTAG
  • Propeller: GM Scale CFK white Folding Propeller 22x14
  • Spinner: GM Scale CFK white 40mm

Impeller:

  • Impeller: MigFlight JETEC E-80 Impeller 10-12S
  • Motor: Leomotion 1300kv
  • Controller: Hacker MasterSPIN 170 Opto
  • Battery: 2x Hacker TF Power-X 5000-6S MTAG

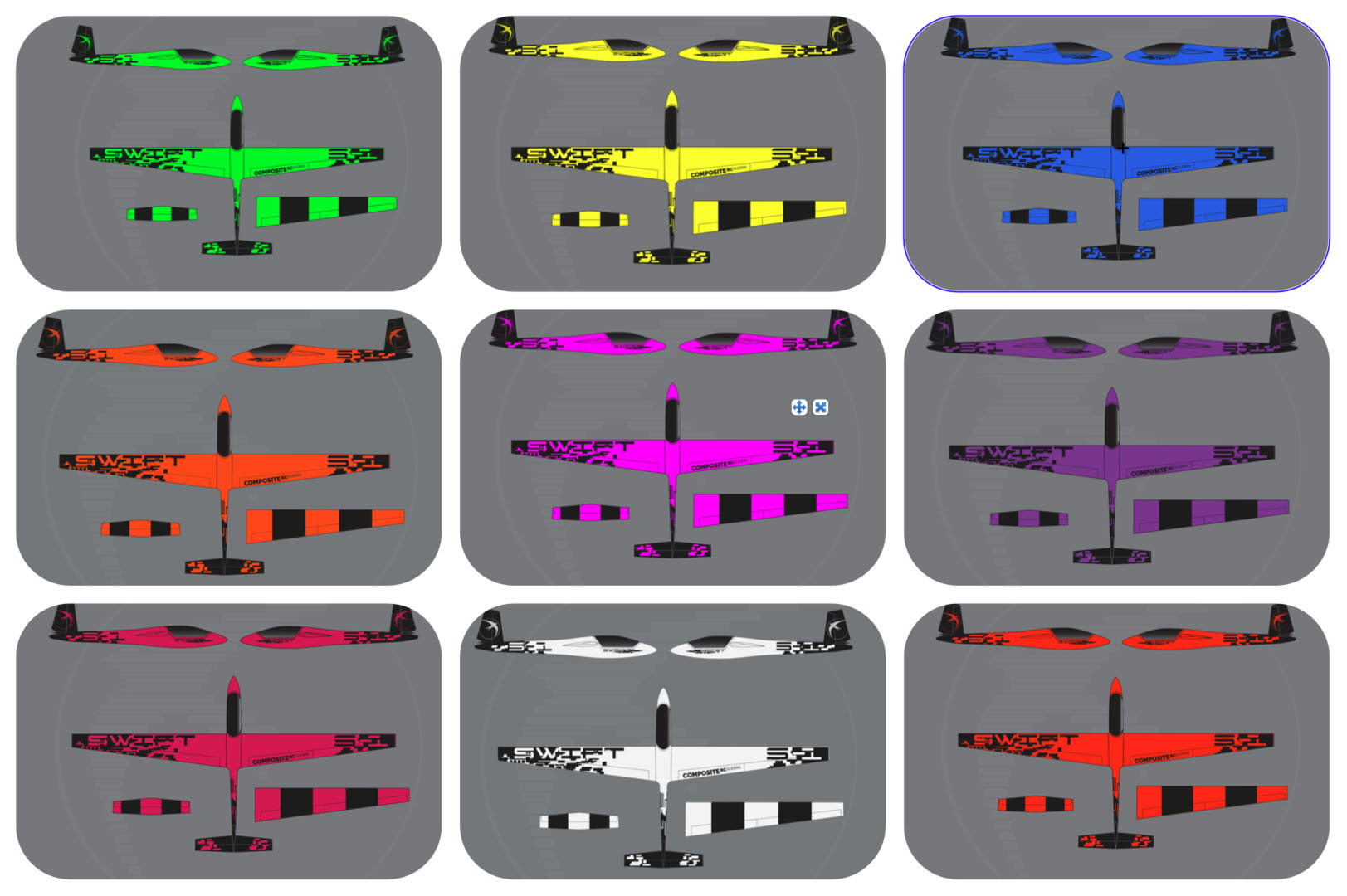

Variants

swifts1-G
Swift S-1 (Green)
