GTB 339 Cube from DIATONE INNOVATIONS

Details

In collaboration with KababFPV, the Diatone GTB 339 Cube Racing Drone is sure to impress you! Packed with high-end components, like the RunCam Nano 2 Camera, Mamba F411 Nano FC, TBS Unify Pro32 Nano VTX and more! This toothpick quad is sure to give you that boost and performance you are looking for!

Features:

  • Mamba F411 16×16mm Nano Flight Controller Stack
  • Runcam Nano 2 FPV Camera
  • TBS Unify Pro32 Nano 400mW VTX

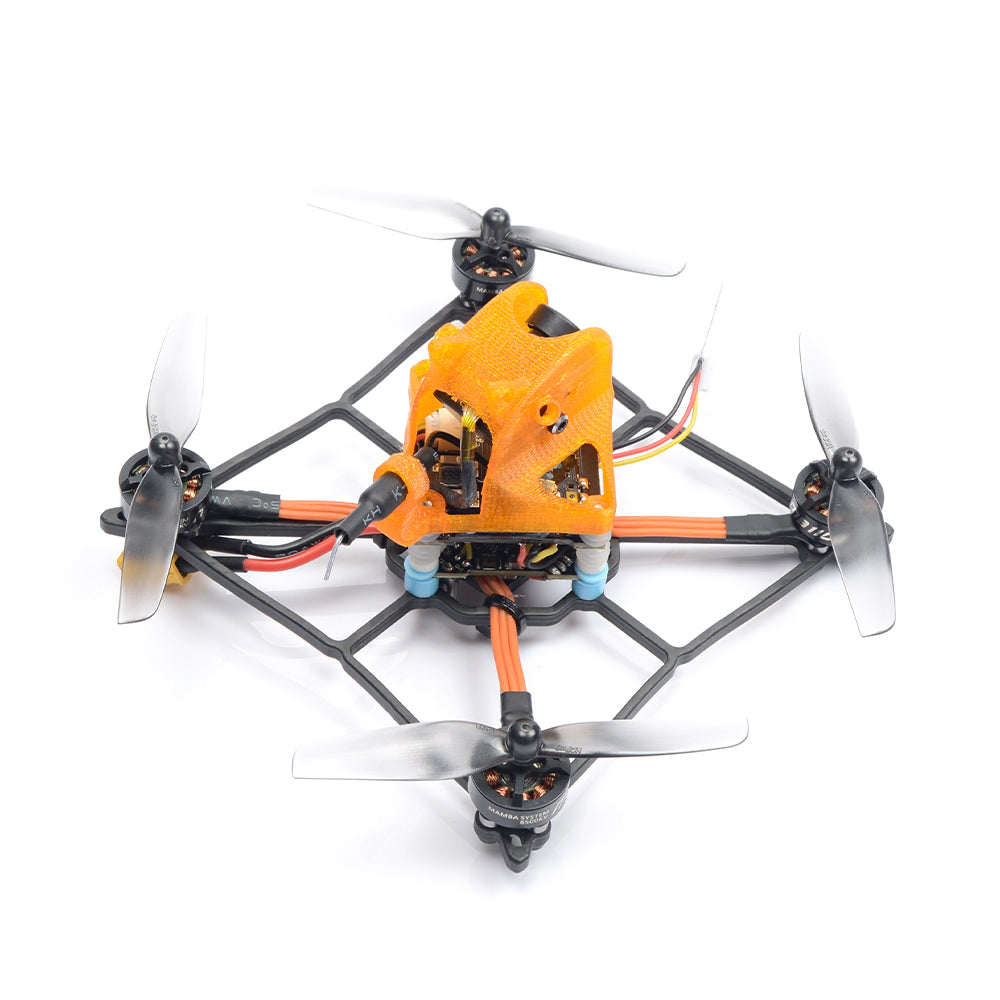

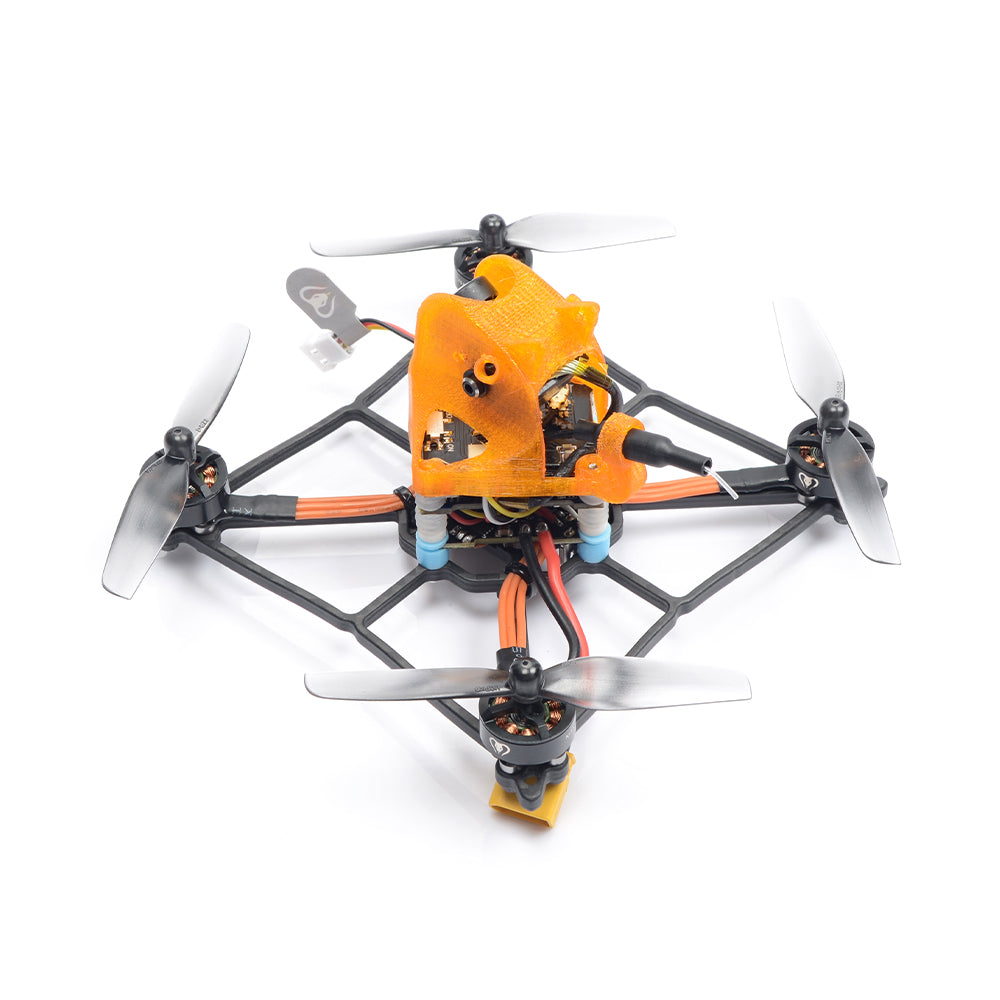

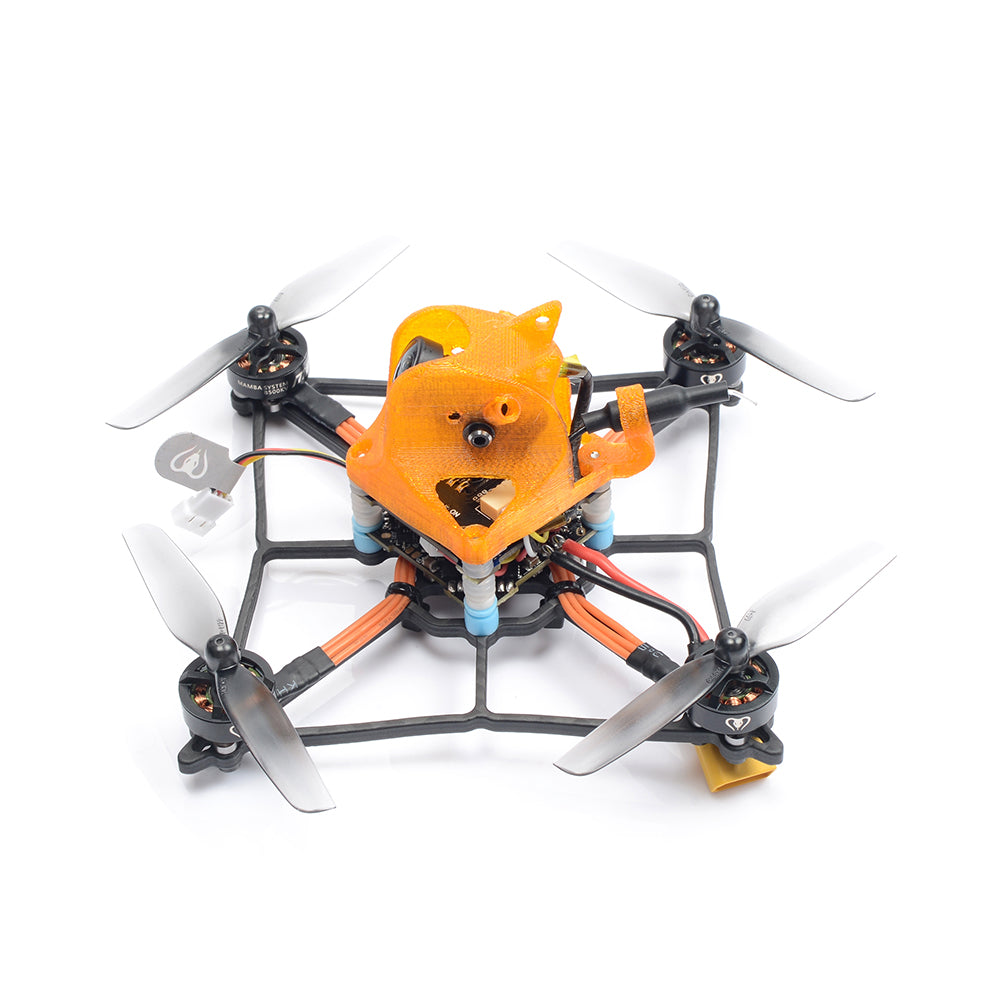

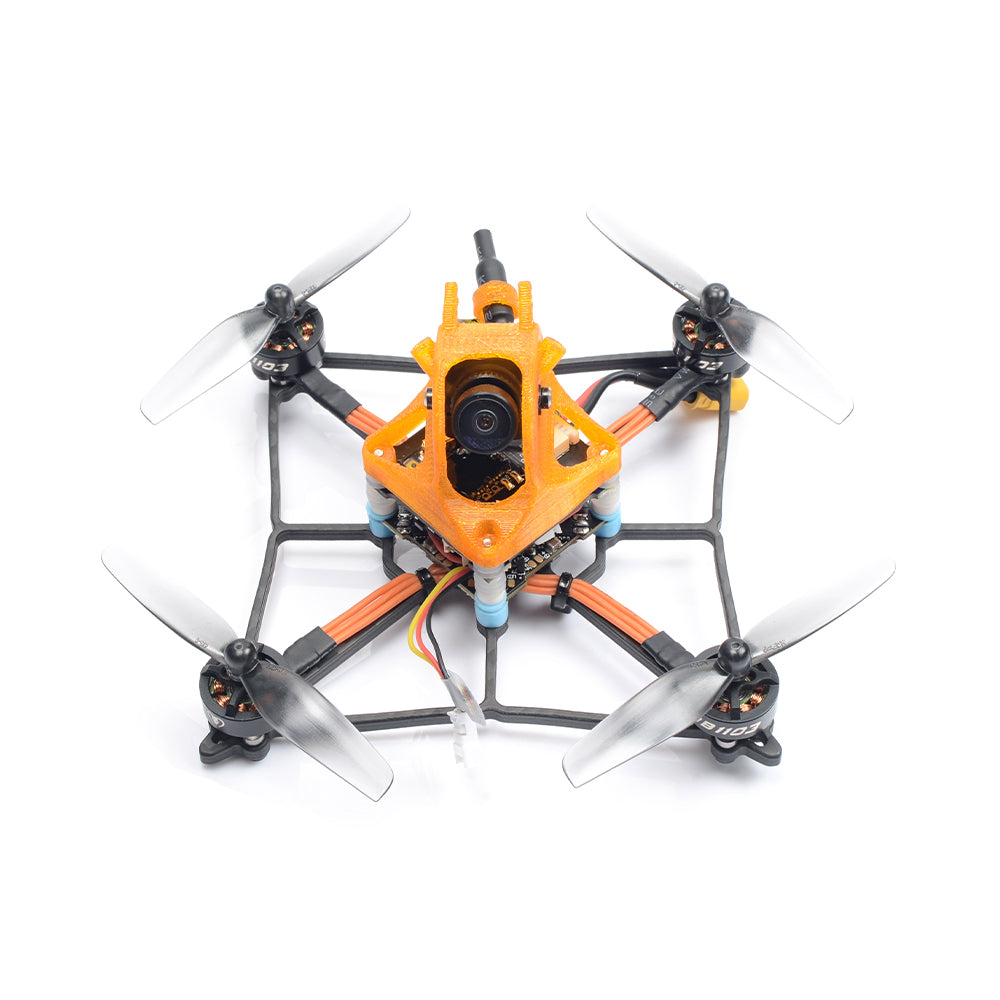

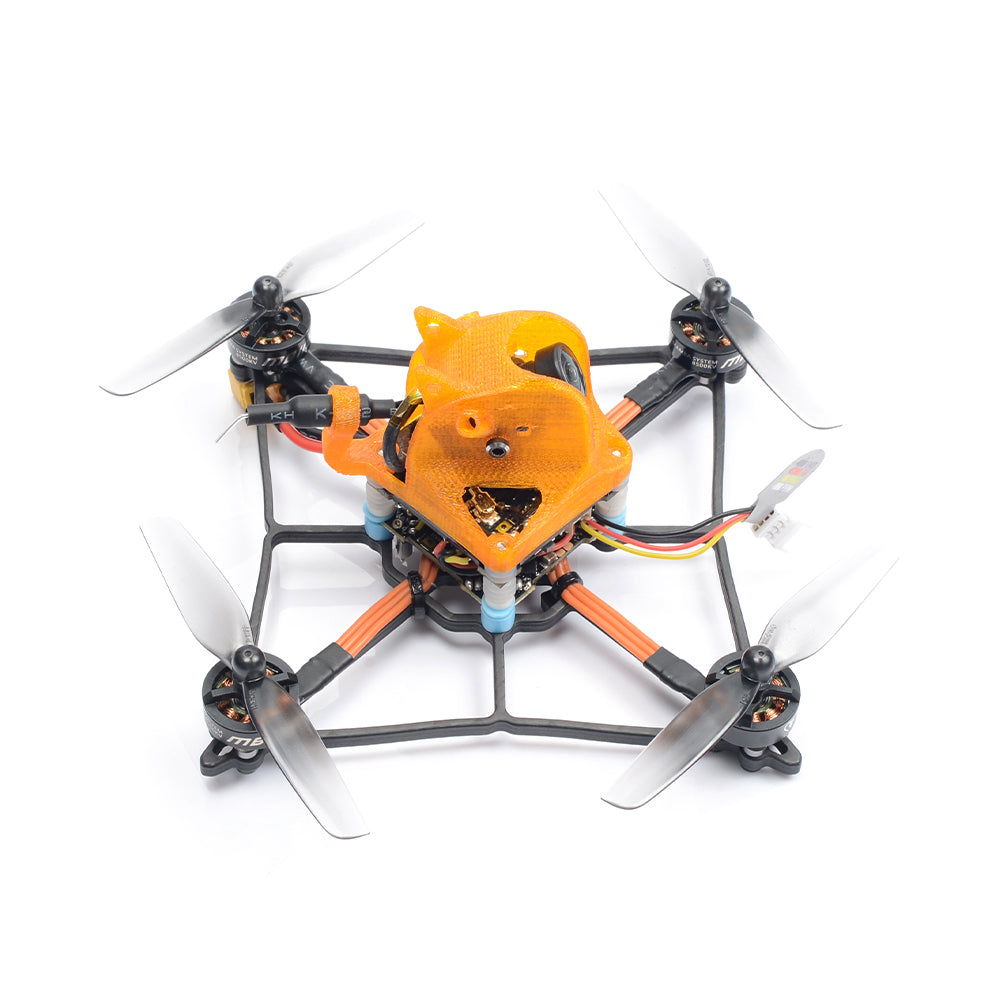

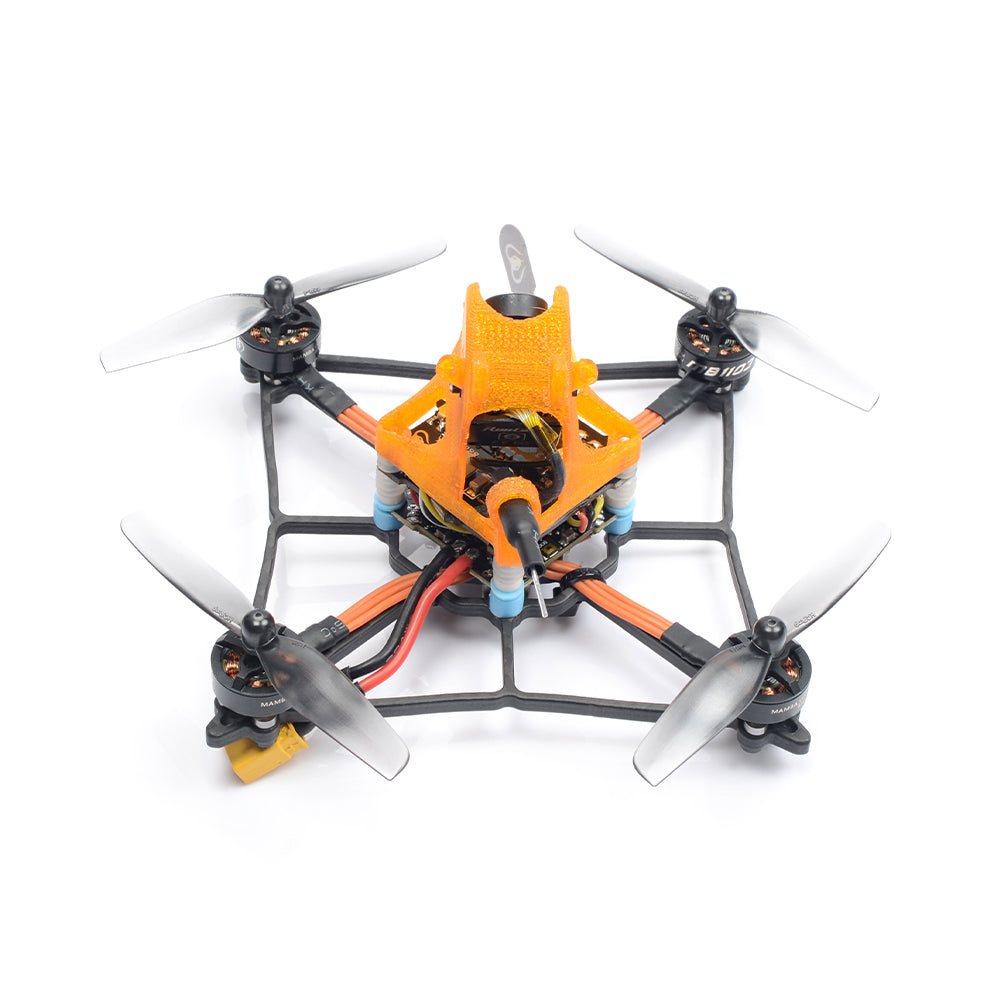

Pictures

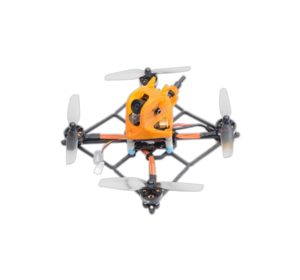

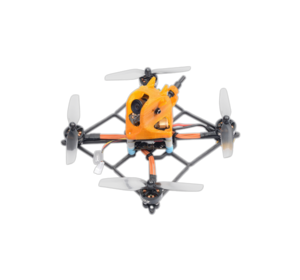

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the GTB 339 Cube in particular but at least we know they do distribute DIATONE INNOVATIONS.

Wingspan: unknown
Length: unknown

Weight: 58 g (2 oz)

General

  • FC: Mamba F411 Nano
  • ESC: Mamba 134 Nano
  • Camera: RunCam Nano2
  • Antenna: Copper Dipole
  • VTX: TBS Unify Pro32 Nano
  • Motor: MAMBA 1105 5500KV
  • Props: 3inch
  • Recommended Battery: 3S 300mAH
  • Bottom Plate Thickness: 4mm
  • Weight: ~58g

Flight Controller

  • MCU: STM32F411
  • IMU: MPU6000
  • Baro: No
  • OSD: BF OSD
  • Blackbox: NO
  • Firmware: Betaflight
  • Target: MambaF411
  • ESC Soft: Dshot300/600/1200
  • Input: 2~4S Lipo (8.4~16.7V)
  • BEC: 5V 1.5A

ESC

  • Input Voltage: 2-4S (8.4~16.7V)
  • Max Continuous Current: 12A x4
  • BEC: NO
  • Protocol: DSHOT600
  • Mounting: 20x20mm, M2
