EV350 from Mugin UAV

Details

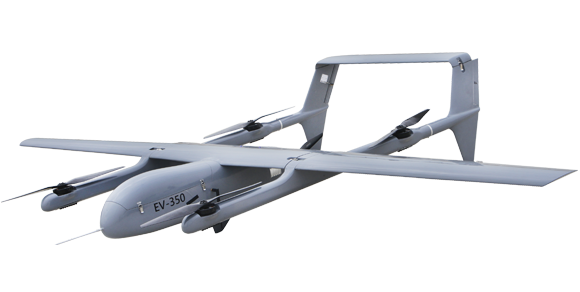

Mugin EV350 is a new full electric VTOL with a wingspan of 3500mm. The airframe is made of full carbon fiber which is lighter and more durable than other airframes that made of fiberglass or composite materials.

The new VTOL features the quick-detach design which is easy to assemble and disasemble. It also features in the aerodynamic design of landing gear. The airframe comes with only 3 landing feet, save the space and weight, but still very stable while taking off or landing.

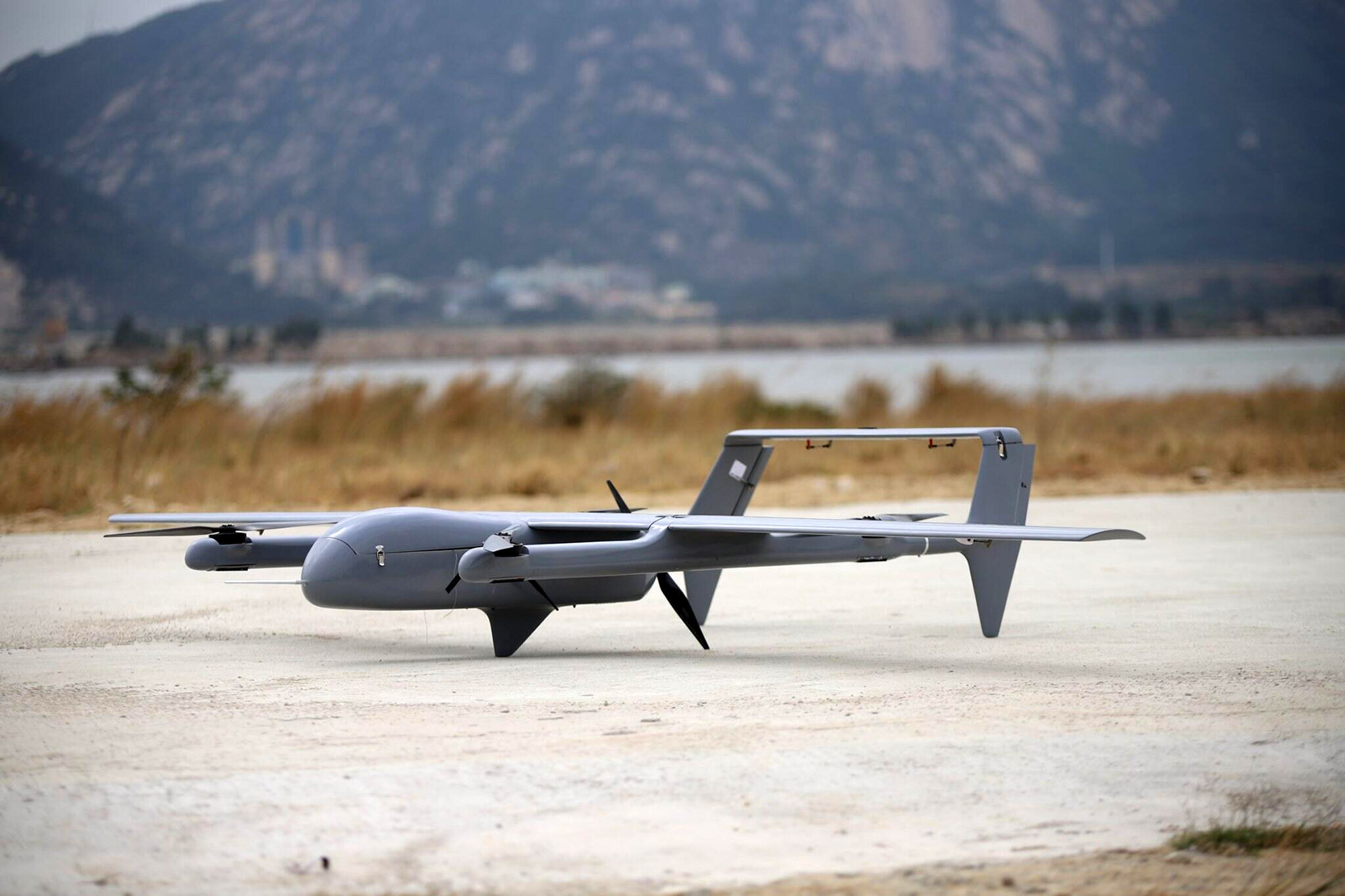

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the EV350 in particular but at least we know they do distribute Mugin UAV.

Where to buy

Wingspan: 3500mm (137.8 in)
	Length: 1860mm (73.2 in)
Weight: 22000 g (48.5 lbs)

See more Details

Wingspan: 3500mm
Length: 1860mm
Height: 590mm
Fuselage Dimensions: 1120mm x 225mm x 206mm
Wing Area: 100d²
Empty Weight: 6.2kg
Maximum Take-off Weight: 22kg
Cruise Speed: 21m/s
Maximum Speed: 30m/s
Stall Speed: 15m/s
Flight Time: 2 to 3 Hours, depending on the payload
Flight Range: 180km
Maximum Payload: 3kg
Packing dimensions: 1500mm x 545mm x 610mm
Wind Resistance: grade 6

Recommended setup:

Pixhawk Cube Orange Autopilot x 1
Here 3 GPS x 1
Mauch PL200 Sensor x 1
Mauch BEC x 1
T-motor MS8014 KV180 VTOL Motors x 4
T-motor Flame 80A ESC x 4
T-motor 24″ VTOL Propeller x 4
T-motor AT7215x 1
T-motor Flame 100A HV ESC x 1
Falcon C2E 21″ Pusher Propeller x 1
Savox SV-1250MG Servo x 2
Savox SC-1256TG Servo x 2
Savox SH-0263MG Servo x 2
AT23D Long UAV Pitot Tube x 1
CUAV Airspeed Sensor x 1
UAV Navigation Lights x 1 set
Build Kit x 1
Tattu HV 32000mAh 6S 10C x 2
