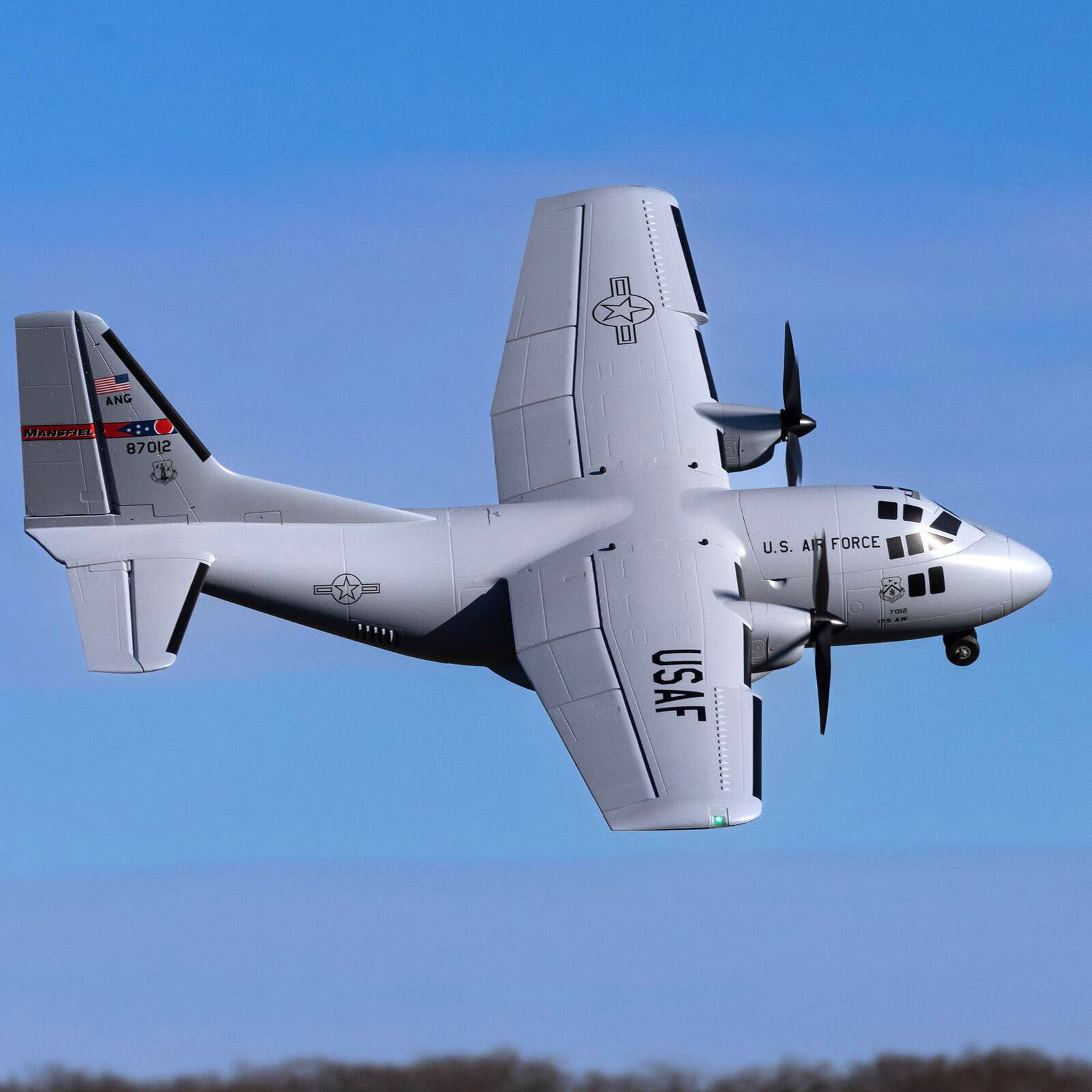

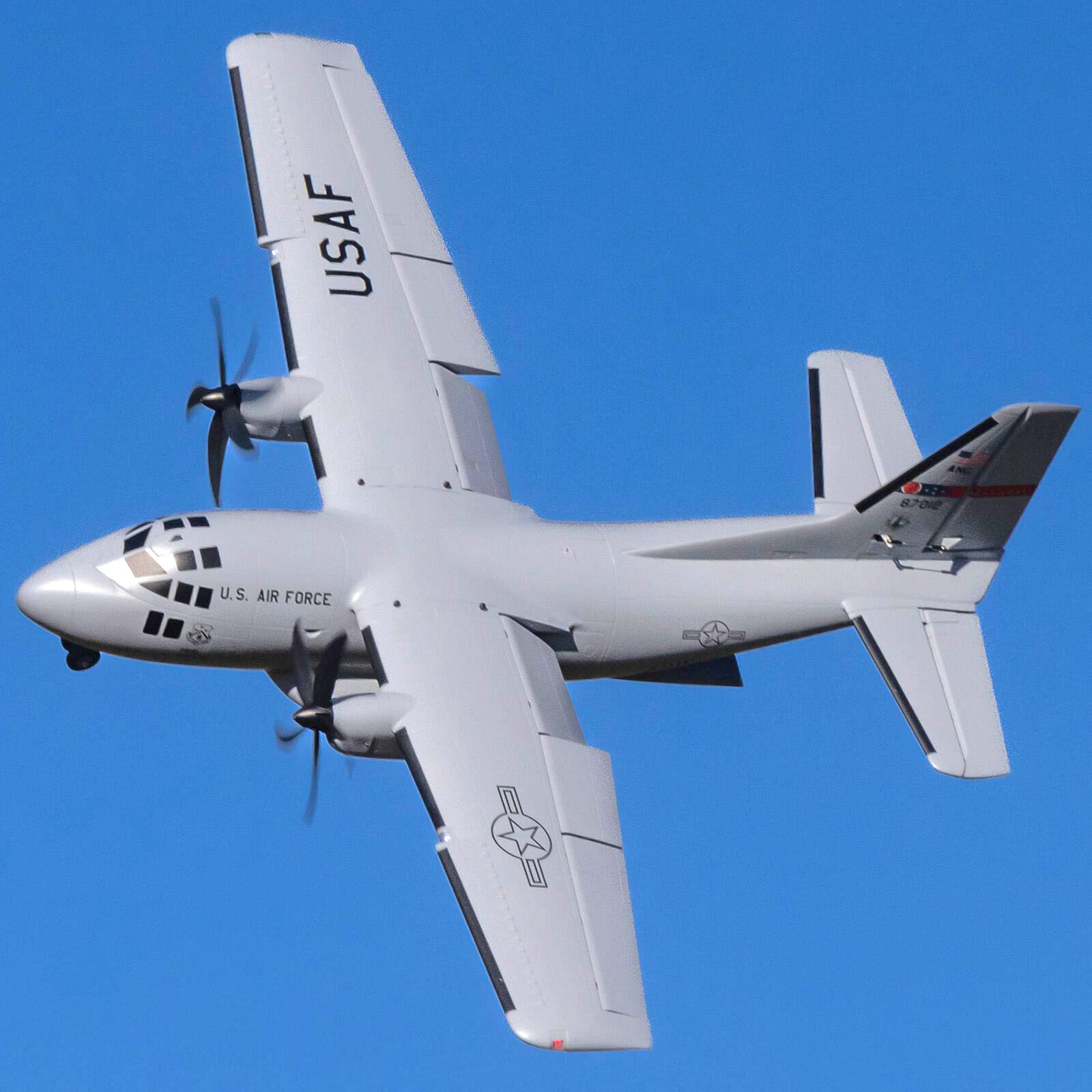

EC-1500 TWIN from E-flite

Details

This updated and upgraded E-flite® EC-1500 Twin 1.5m features a ground-up design optimized for capability, versatility, and FUN to deliver a flying experience you simply can't get with any other airplane! It's effectively many airplanes in one, with a wide flight envelope that includes slow and scale-like to sport flying and even aggressive 3D aerobatic capability. The twin power systems feature brushless outrunner motors with custom five-blade counter-rotating propellers – including updated design bolt-to-the-motor prop adapters for easier and much more secure prop installation. This setup delivers excellent performance with a 3S 3200–6400mAh LiPo battery, or you can install a 4S battery for the power to hover and unlimited vertical capability — without modifications or upgrades! Plus, the motors are matched to an exclusive 40-amp Spektrum™ Avian™ Dual Smart ESC that can provide a variety of real-time power system-related telemetry data with Smart and non-Smart batteries via compatible receivers (including the AR8360T installed in the BNF® Basic version) and Spektrum AirWare™ equipped transmitters. The BNF® Basic version is equipped with an AR8360T receiver to provide full-range, real-time telemetry data, including battery voltage, ESC temp, and more — plus differential thrust and motor reversing for special ground handling and other capabilities — along with the benefits of AS3X® and optional-use SAFE® Select technologies. This 8-channel receiver, plus selectable-size ailerons and functional flaps that can travel both ways, also makes multiple wing configuration options possible – including "crow" and/or full-span aileron/flaperon/spoileron setups.

Features:



  • Unique and ground-breaking design capable of slow and scale-like flying, sport flying AND aggressive 3D aerobatics
  • Can be flown from paved, grass and dirt surfaces or from snow with the included optional-use skis
  • Fly from water including large ponds and lakes using the optional float and hardware set
  • High-power 3S and 4S compatible power systems with custom 5-blade counter-rotating props
  • Updated design bolt-to-the-motor prop adapters for easier and more secure propeller installation
  • The power to hover and for unlimited vertical performance when using 4S batteries
  • Convenient top hatch with large battery compartment to fit 3S 3200mAh to 4S 6400mAh batteries
  • 40-amp Spektrum™ Avian™ Dual Smart Lite ESC provides real-time battery voltage, ESC temp, and other data via compatible receivers and transmitters
  • Differential thrust and reversing for special ground handling and aerobatic capabilities
  • Oversized control surfaces with double-beveled hinge lines for added control and aerobatic capabilities
  • Selectable size ailerons plus functional flaps that can travel both ways for optional use with crow and full-span aileron/flaperon/spoileron setups
  • Operational, servo-controlled cargo door with 2.5 x 4.2 inch (65 x 107 mm) opening and almost 140 cubic inches of cargo bay volume (cargo bay is 2.5 x 4.2 x 12.7 inches / 65 x 107 x 323 mm)
  • Eight factory-installed servos, including metal-geared servos on all surfaces and the functional cargo door
  • Precise ball-link equipped linkages plus pocket or CA hinges on all control surfaces
  • Spektrum™ AR8360T receiver with full-range telemetry and industry-leading DSMX® technology
  • Easier to fly with innovative and optional-use SAFE® Select flight envelope protection
  • The unmatched stability and locked-in feel of exclusive AS3X® technology
  • Functional and factory-installed LED landing, navigation, and simulated strobe lights
  • Magnetically secured nose cone can be removed for easy installation of GoPro® Hero and similar HD action cameras (cameras sold separately)
  • Separate FPV camera mounting position on top of the extremely large, magnetically secured top hatch (FPV camera/gear sold separately)
  • Surface details, including panel lines, hatches, and more, plus a fully-painted and scale-inspired finish
  • Included decal sheets with Ohio Air National Guard, Air Force, Army, Coast Guard, Marines, Navy, and other markings
  • No tools are required for field assembly – hands-free connections and thumbscrews to secure the two-piece wing
  • Almost fully factory-assembled for extremely fast and easy final assembly without glue
  • Very large yet lightweight and extremely durable composite-reinforced EPO airframe

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the EC-1500 TWIN in particular but at least we know they do distribute E-flite.

Where to buy

France
Flash RC
check web site
Ship to: Europe
Germany
Modellbau Berlinski
check web site
Ship to: International
Switzerland
ModellMarkt24
check web site
Ship to: Europe
Ireland
Model Heli Service
check web site
Ship to: Ireland
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
South Africa
Plane Crazy RC
check web site
Ship to: South Africa
Usa
Horizon Hobby USA
check web site
Ship to: USA
USA
AMain Hobbies
check web site
Ship to: USA
Australia
Daves Toys for Big Boys
check web site
Ship to: Australia
Belgium
Aerobertics
check web site
Ship to: Europe
Germany
Voltmaster
check web site
Ship to: Europe
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
Switzerland
Grischa Modellbau
check web site
Ship to: Switzerland
France
Turbines RC
check web site
Ship to: Worldwide
Austria
DMT
check web site
Ship to: Europe
France
Breizh Modelisme
check web site
Ship to: Europe
Austria
Lindinger ModellBau
check web site
Ship to: Europe
USA
Hobby Zone
check web site
Ship to: USA
USA
Grayson Hobby
check web site
Ship to: USA
France
Weymuller Modélisme
check web site
Ship to: France
France
Absolu Modélisme
check web site
Ship to: France
Spain
ACRO RC
check web site
Ship to: Europe
Ireland
Radio Controlled Shop
check web site
Ship to: Ireland
USA
Gator RC
check web site
Ship to: USA
USA
TOWER HOBBIES
check web site
Ship to: International
USA
Flite Test Store
check web site
Ship to: Worldwire
Germany
Horizon Hobby Europe
check web site
Ship to: Europe
Netherlands
RC webshop
check web site
Ship to: Europe
Austria
Slow Flyer
check web site
Ship to: Europe
USA
Atlanta Hobby
check web site
Ship to: USA
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
France
miniplanes
check web site
Ship to: France
United Kingdom
tjd Models
check web site
Ship to: United Kingdom
Switzerland
Scamora
check web site
Ship to: Switzerland

Wingspan: 1527mm (60.1 in)
Length: 1190mm (46.9 in)

Weight: 2755 g (6.1 lbs)
Product Weight 2755 g (97.2oz) with Recommended Battery
Connector Type IC3
Motor Size 3720-650Kv 14-Pole (x2)
Product Length 1190 mm (46.85")
Material EPO
LiPo Compatibility 3S, 4S
Propeller Size 10 x 9, 5-Blade
Recommended Motor Battery 14.8V 4000mAh 4S 30C Smart LiPo Battery with IC3 Connector
Motor Type Brushless
Wingspan 1527 mm (60.12")
