UMX FPV Vapor from E-flite

Details

If you’ve ever imagined yourself in the pilot seat of a great flying RC airplane, the E-flite® FPV Vapor® model can make your dream a reality. Poised at the optimal point on the aircraft, a tiny video camera sends full-color, real-time action back to you on the ground. The view is so immersive that you’ll feel as though you’re actually sitting in the pilot’s seat of the model airplane. Plus, the FPV Vapor ultra micro aircraft is small enough to enjoy in many large indoor spaces, such as a gymnasium or even outdoors in your own backyard. The ultra-lightweight design, combined with its efficient motor system, allows the airplane to have outstanding handling even when it’s flown at slow speed. Which means you can experience First-Person View Flight virtually anytime and anyplace.

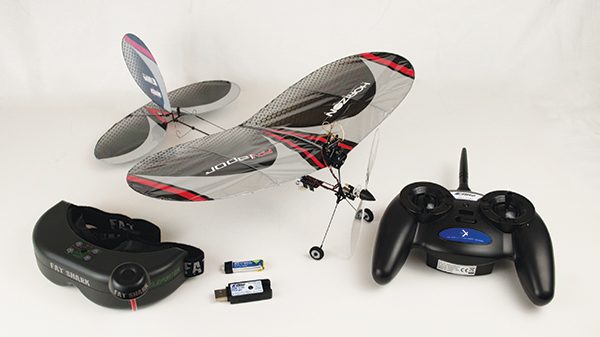

You can have the Ready-To-Fly version up in the time it takes to charge the batteries. The Spektrum™ VS1100 ultra micro FPV system is fully installed on the airframe and a Fat Shark Teleporter V4 headset is included. The only thing you have to do to experience FPV flight is charge the batteries.

FPV System

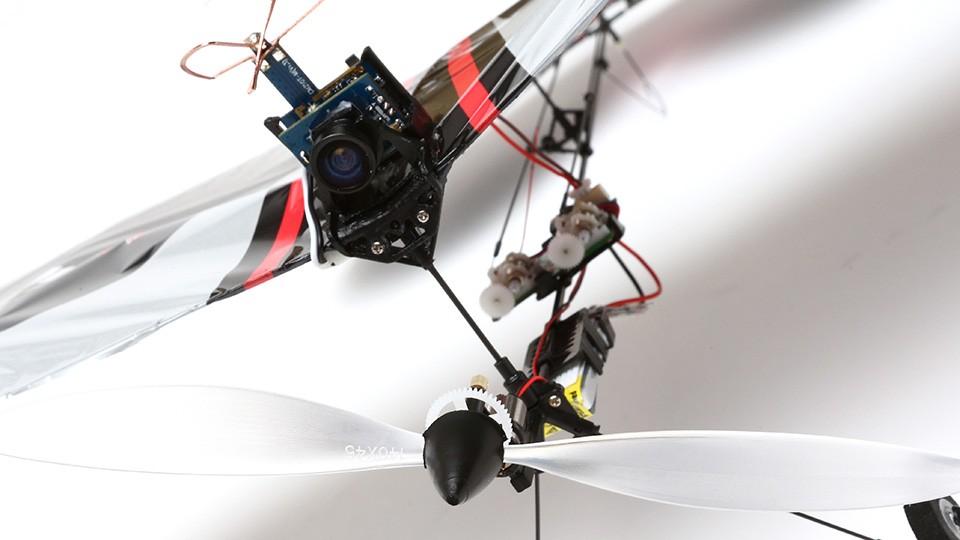

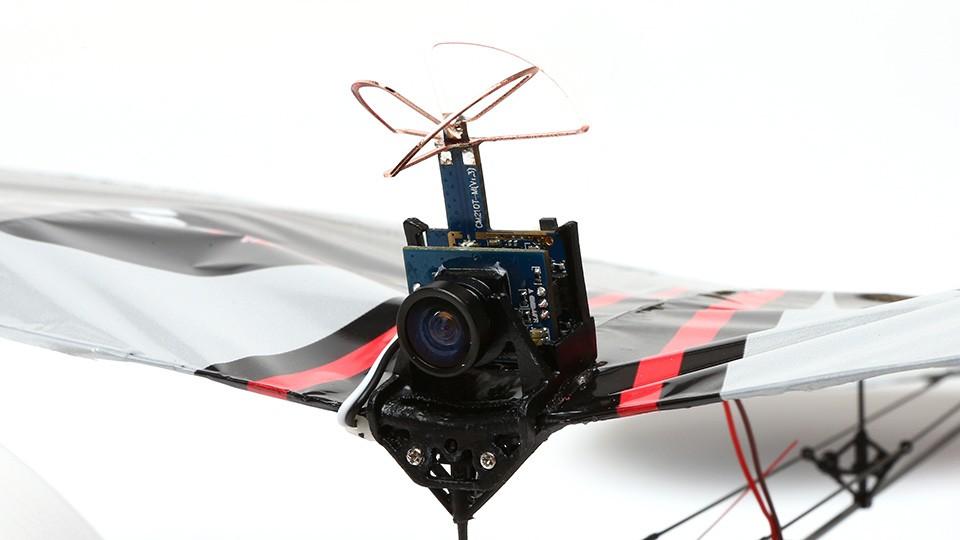

The UMX FPV Vapor has the Spektrum™ ultra micro FPV camera already installed. It’s a 2-in-1 camera/transmitter unit that features a circular polarized antenna for superior range performance and is powered off the E-flite ultra micro 150mAh 1S 3.7V 25C Li-Po flight battery included.

FPV Headset
The RTF version of the UMX FPV Vapor includes the feature rich Fat Shark Teleporter V4 FPV headset. Worn like a set of goggles, inside the headset is a pair of full-color QVGA 320 x 240 LCD displays that receive a wide field of view from the camera onboard the Vapor FPV. The included 5.8GHz SpiroNET circular polarized antenna system has amazing reception. Best of all, the Teleporter V4 FPV headset includes 2-axis digital head tracking that senses your head movement to deliver an even more immersive view point.

Features:

  • Completely built, flight ready airframe
  • Spektrum™ VS1100 ultra micro FPV system
  • Fat Shark Teleporter V4 headset with digital head tracking
  • Full-color QVGA 320 x 240 LCD headset displays
  • SpiroNET circular polarized antenna system
  • 150mAh 1S 3.7V Li-Po battery and USB 1S Li-Po charger
  • 760mAh 2S 7.4V Li-Po headset battery and AC charger
  • Ultra-lightweight, film-covered carbon fiber airframe with modular construction
  • Spektrum 3-channel DSMX® receiver/ESC/Servo unit
  • Fully proportional throttle, elevator and rudder control
  • 4-channel 2.4GHz DSMX transmitter
  • No FCC license required

Pictures

Manual

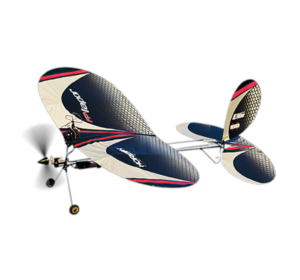

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 376mm (14.8 in)
Length: 389mm (15.3 in)

Weight: 24 g (0.8 oz)
  • Wingspan: 376 mm (14.8 in)
  • Overall Length: 389 mm (15.3 in)
  • Wing Area: 5.10 dm² (79.0 sq. in.)
  • Flying Weight: 24.0 grams (0.84 oz)
  • Motor Size: Micro Electric
  • Radio: MLP4DSM 4-channel DSMX transmitter (included)
  • Prop Size: 140mm x 45mm
  • Speed Control : Brushed ESC (included)
  • Recommended Battery: 3.7V 1s 150mAh LiPo Battery
