F86 from HSDjets

Details

The HSD F-86 model is a faithful and quality reproduction of the full-size model equipped with an EDF120mm 10-blades turbine with a Hobbywing 5268 motor, a Hobbywing 160A HV ECS and metal servos.

Features:

  • Solid EPO foam Carbon fiber reinforced airframe
  • Powerfull propulsion system EDF120mm equipped with a Hobbywing 5268 motor
  • Equipped with a Hobbywing 160A HV ECS
  • Equipped with all metal digital servos
  • Exclusive MFC-2085 control system which reduces complex wiring
  • Very easy and secured assembly with integrated wing connections
  • Bright LEDs entire system for landing, navigation
  • 3D foam packaging design for the best protection of the model

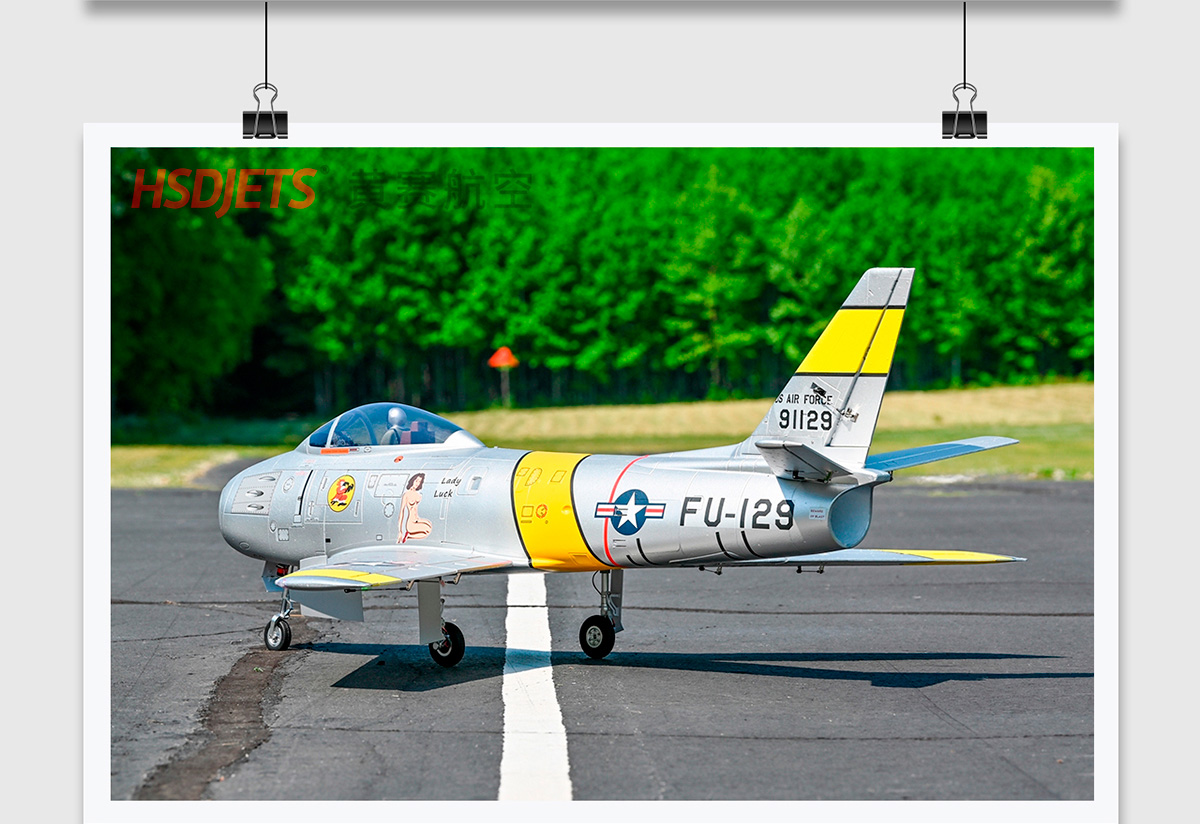

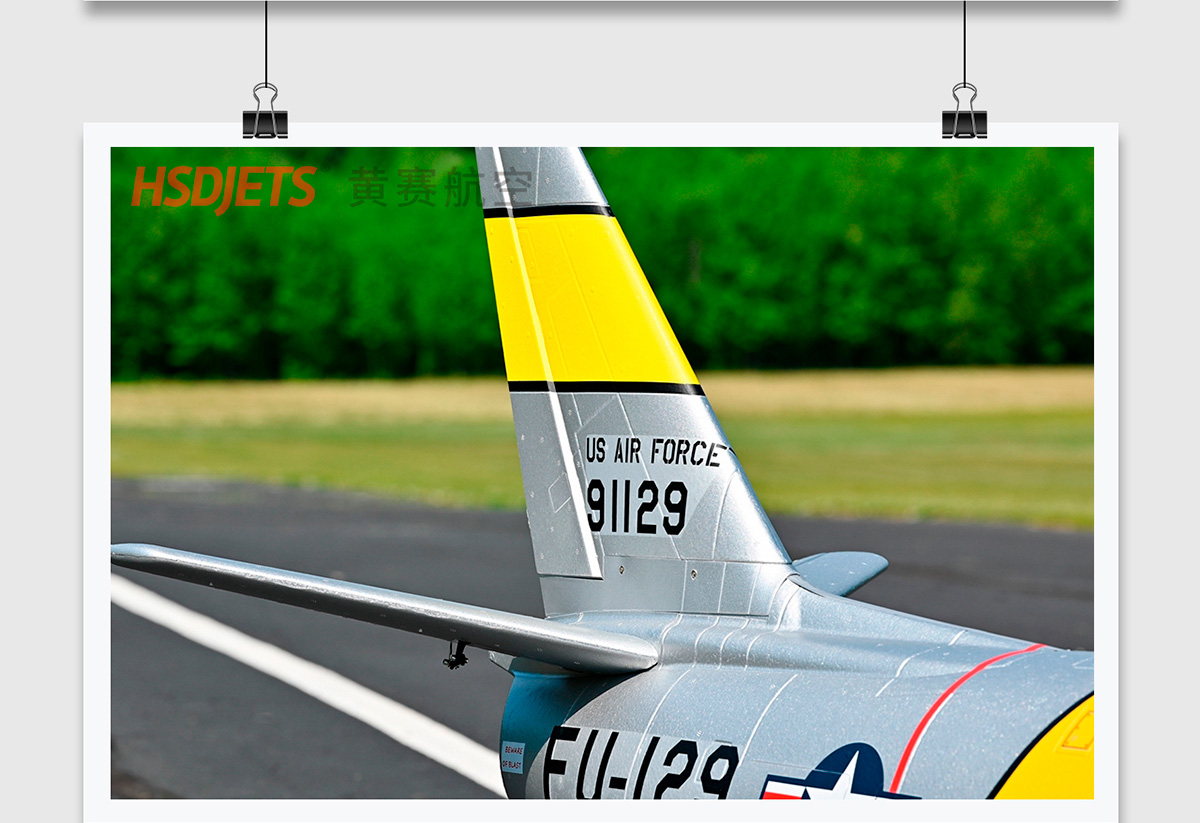

Pictures

Manual

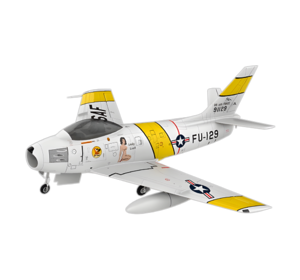

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the F86 in particular but at least we know they do distribute HSDjets.

Where to buy

USA
RC Jet Werx
check web site
Ship to: USA
USA
Banana Hobby
check web site
Ship to: Worldwide
France
miniplanes
check web site
Ship to: France
Germany
FINAL-Modellbau
check web site
Ship to: Worldwide
France
Turbines RC
check web site
Ship to: Worldwide
United Kingdom
tjd Models
check web site
Ship to: United Kingdom

Wingspan: 1720mm (67.7 in)
Length: 1715mm (67.5 in)

Weight: 80000 g (176.4 lbs)
Wingspan 1720 mm (67.7 in)
Length 1715 mm (67.5 in)
Flying Weight 8 kg (15.4 lb) with 12S / 22.2V / 5200mAh / 45C Li-Po×2 PCS
Flying time 3~5 minutes
Wing area 64.34 dm2
Wing load 124.3 g/dm2
Main material 35 times EPO
Painting surface Matte environmental water-borne paint + decal
Suitable experience level □Zero basis □Beginner ■Intermediate □Advanced
PNP Assembly difficulty □☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature 0℃~40℃
Radio System 8 channel (required & not included)
Control System MFC-2085
Motor 5268-KV640(Inner rotor)
EDF S-EDF 120mm-10 blade
ESC Hobbywing 160A brushless
Servos

25g×2 Metal gear with 560mm lead (Left & Right ailerons forward)
25g×2 Metal gear with 410mm lead (Left & Right flap forward)
25g×3 Metal gear with 190mm lead (Left & Right Elevator / Vertical tail forward)
25g×1 Metal gear with 230mm lead (Front wheel cover plate forward)
7.4V 12g×3 Metal gear with 380mm lead with protection function (Nose wheel steering / Rear wheel cover plate forward)
7.4V 12g×2 Metal gear with 80mm lead with protection function (Retarder plate forward)

Recommended Power Battery 6S,22.2V,5200mAh,45C×2,LiPo with AS150 type plug(required & not included)
Recommended Receiver Battery 2S,7.4V,2200~5200mAh×2,LiPo with XT60 type plug(required & not included)

Variants

HSDA50020204J
F86 (Silver Yellow)
