Bonanza V35 from ESM

Details

A little history... Designed by a team led by Ralph Harmon, the original model 35 Bonanza was the first truly modern high-performance personal aircraft: a very fast, all-metal, low-wing monoplane at a time when most light aircraftwere still made of wood and fabric. The model 35 featured retractable landing gear and its signature V Tail (equipped with a combination elevator-rudder called a ruddervator), which made it both highly efficient and the most distinctive private aircraft in the sky. The prototype 35 Bonanza made its first flight on December 22, 1945, with the first production aircraft debuting as 1947 models.
In 1982 the V-tail Bonanza was ped from production, though more than 6,000 V-tail models are still flying today, and they command a premium price on the used aircraft market.
All Bonanzas share an unusual feature: the yoke and rudder pedals are interconnected by a system of flexible bungees which assist in keeping the airplane in co-ordinated flight during turns. The bungee system allows the pilot to make coordinated turns using the yoke alone, or with minimal rudder input, during cruise flight. On takeoff increased right-rudder pressure is still required to overcometorque and P factor. In the landing phase the bungee system must be over-ridden by the pilot when making cross wind landings and cross controlled inputs are required to keep the nose of the airplane aligned with the runway centerline without drifting left or right.
This feature started with the V-tail and persists on the current production model.

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette

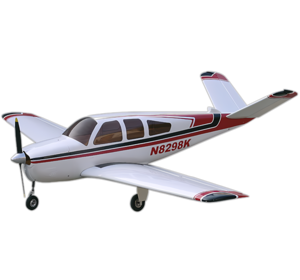

X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Bonanza V35 in particular but at least we know they do distribute ESM.

Where to buy

Netherlands
BigPlanes
check web site
Ship to: Europe
United Kingdom
YT International
check web site
Ship to: Europe

Wingspan: 2045mm (80.5 in)
Length: 1632mm (64.3 in)

Weight: 6400 g (14.1 lbs)

Length: 1632 mm(64.3”)
Wingspan: 2045 mm (80.5”)
Wing area: 60.00dm² (6.46sq.ft)
Wing loading: 103.4g/dm² (34.9oz/sq.ft)
Flying weight: 6400 g (14.1lbs)
Radio: 6ch & 8servos
Engine: 108 2-cycle(120 4-cy)

Variants

W011
Bonanza V35 (White)
