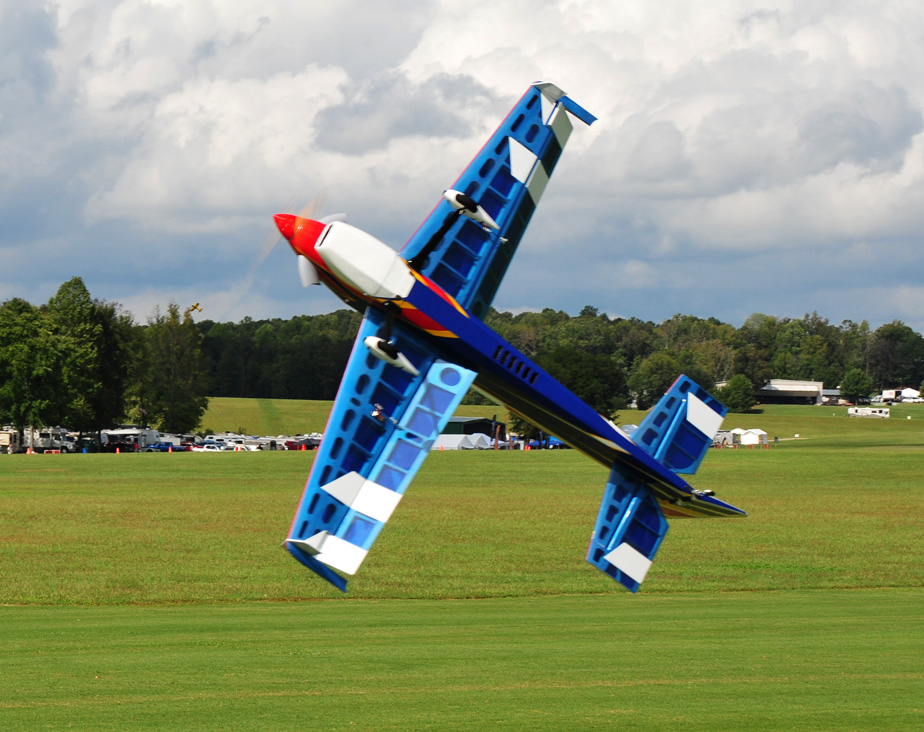

Turbo Raven from EXTREME FLIGHT

Details

This revolutionary new super light airplane designed by our good friend Cody Wojcik is insanely capable, precise, and pure feeling on just a 60” 6S power system. This aircraft is based on the short-lived full scale Turbo Raven piloted by Wayne Handley, which was initially based on the Giles G-202 with extensive use of composites, and was one of the only full scale aerobatic planes with a greater than one to one thrust to weight ratio. It was capable of full 3D flight including flying straight out of flat spins, torque rolls and stop and start vertical uplines.

With carefully analyzed moments and areas and a CFD analyzed airfoil, the Turbo Raven EXP was designed from the outset to perform best at an extremely low wing loading that would make more traditional designs feel sloppy, floaty, and imprecise. Its narrow fuselage reduces drag and keeps the ailerons in the prop blast for maximum control at near zero airspeed. Knife-edge requires no mixing and pitch response is as smooth as a pattern plane and as powerful as an Edge when you yank on the stick. Huge, counterbalanced ailerons mean the roll rate is fast but extremely predictable and consistent, and it makes rifle rolls easier than any other airplane on the market. The clean design also makes the Turbo Raven shockingly comfortable in the wind!

Paired with modern super torque mini servos such as the MKS HV9767 or Savox SV-1260, DualSky G1500.5 and 17x6 prop (the Torque 4016T-500 and 16x7 will also work well), and a 6S 3700-4500 battery, the Turbo Raven offers unprecedented performance in an extremely affordable and convenient package.



Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus & T16 OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
Spektrum IX12
Futaba 18MZ
Jeti DS-24

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Turbo Raven in particular but at least we know they do distribute EXTREME FLIGHT.

Where to buy

France
Flash RC
check web site
Ship to: Europe
France
interModel
check web site
Ship to: France
Hungary
RC Hungary
check web site
Ship to: Hungary
Germany
Modellbau Berlinski
check web site
Ship to: International
Germany
Schweighofer GE
check web site
Ship to: Germany
Austria
Schweighofer AT
check web site
Ship to: International
Switzerland
Grischa Modellbau
check web site
Ship to: Switzerland
Belgium
Aerobertics
check web site
Ship to: Europe

Wingspan: 1753mm (69 in)
Length: 1829mm (72 in)

Weight: 3357 g (7.4 lbs)
  • Wingspan: 69" (1753 mm)  with tips
  • Length: 72.5" (1829 mm)
  • Wing area: 891 square inches including wing tips (57.5 dm²)
  • Weight: 7.4 lbs. (3357 g) with 6S 3300 mAh battery

Requirements

  • Dualsky GA1500.5 500Kv with Dualsky Summit 120 ESC using a 17x6 prop
  • Torque 4016T/500 and Airboss 80 ESC or Talon 90 ESC using a 16x7 prop
  • Battery: 6S 3700-4500 mAh
  • Spinner : 82mm Included in kit!
  • Servos: 4x mini servos such as the MKS HV9767 or Savox SV-1260

Variants

388RB
Turbo Raven (Red Blue Yellow)
