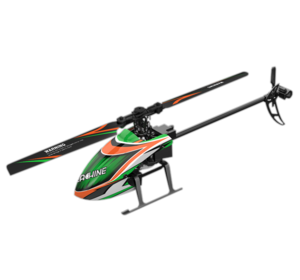

E130 from Eachine

Details

  • Adopting flybarless design, canceling the traditional balance bar structure, electronic stabilization system, more accurate hand feeling, more stable flight, optimized structure to reduce the probability of damage.
  • The propeller is designed with aerodynamic principles to provide strong power and body self-stability. It has high efficiency, power saving and long flight time. The blade is made of ABS+PC composite material, which has high strength, good toughness, impact resistance, no deformation, and durability.

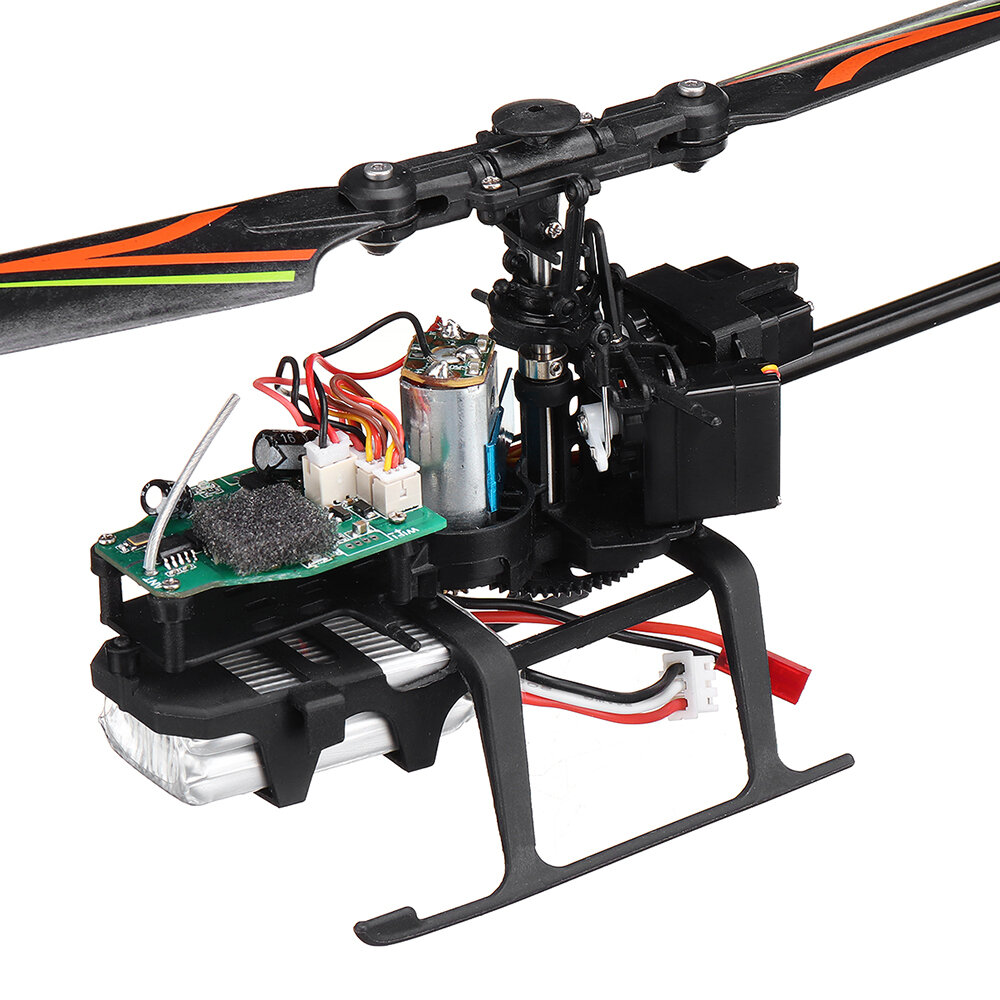

  • Use 050 strong magnetic core motor, with large torque, sufficient power and high efficiency. The special high-temperature resistant magnetic steel can withstand high temperature of 150 degrees without damage, and the 6061 hard aluminum radiator is installed to further improve the service life.

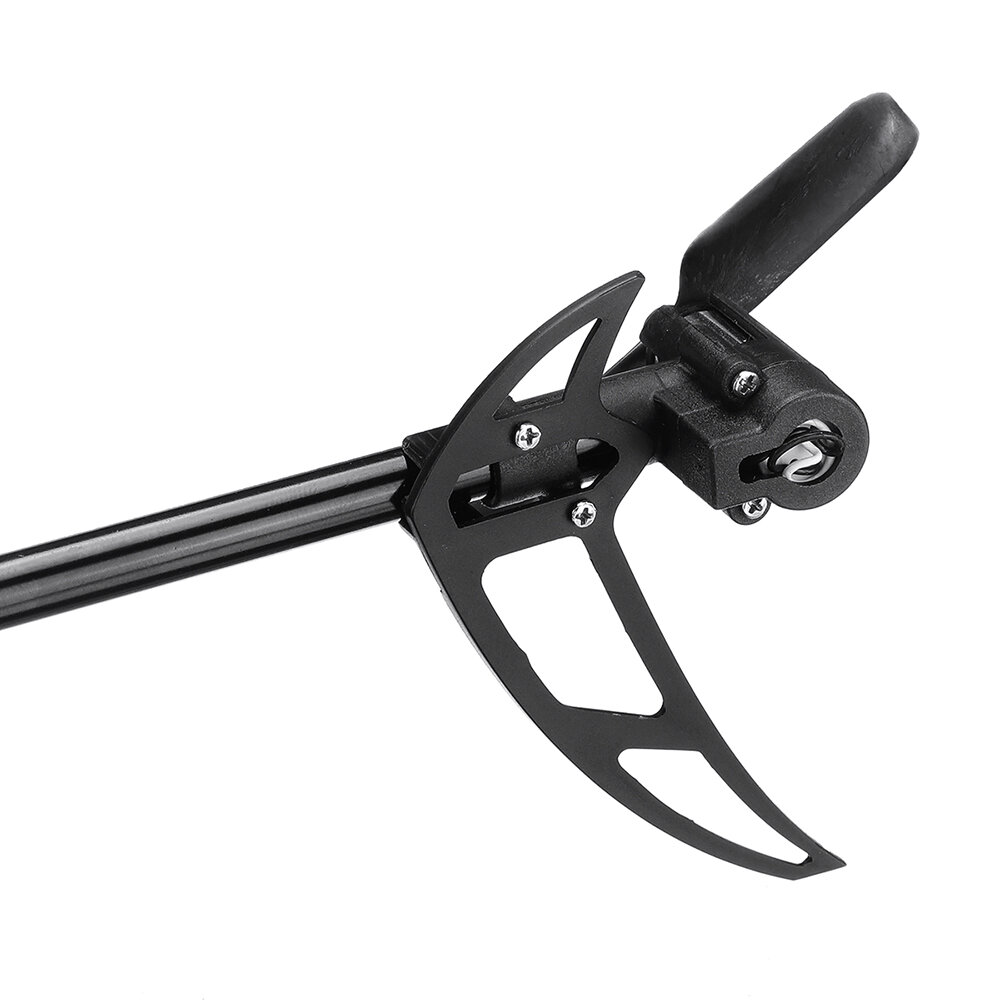

  • The tail-locking motor uses a special 8520 coreless motor, which has the characteristics of high temperature resistance,stable tail-locking, and it is not easy to be damaged after long-term work.
  • Use high-efficiency 4.3g digital steering gear, high torque, high precision. With the characteristics of accurate centering and response speed of 60°/0.05ms, the aircraft can fly accurately, with good hand feeling and longer life.
  • Adopt 6-axis gyroscope. It has a stable, fast and accurate flight attitude, especially suitable for beginners to fly.
  • Adopt the air pressure height-fixing module, integrated algorithm, limit the climb and descent speed, make it easier for beginners to grasp, greatly reduce the probability of aircraft damage.
  • Landing gear The main frame is made of PA66+GF (nylon + glass fiber) composite material, which has high strength, high toughness, non-deformation and impact resistance, ensuring the accuracy and durability of the whole machine.
  • The case is made of PET blister material with increased thickness and toughness, which has good elasticity and toughness and is not easy to crash.
  • Standard 4-channel remote control, with LCD display, power prompt, large and small operation rudder amount, and optimized joystick output, making the operation more precise.
  • Professional customized high-rate lithium polymer 3.7V 700mah 20C battery with high discharge rate and long service life. The flight time is about 20 minutes, and the normal use can reach 500+ cycles.
  • Dedicated USB 7.4V lithium battery dedicated charger, with charge balance and charge stability function.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the E130 in particular but at least we know they do distribute Eachine.

Wingspan: 320mm (12.6 in)
Length: 345mm (13.6 in)

Weight: 131 g (4.6 oz)
  • Main Rotor Diameter: 320mm
  • Length: 345mm
  • Weight: 131g
  • Flying time: 15 to 20 min.
  • Battery: Lipo 1S 700 mAh 20C
