These files are large, so be patient during the download. Please read the readme.txt included in the ZIP

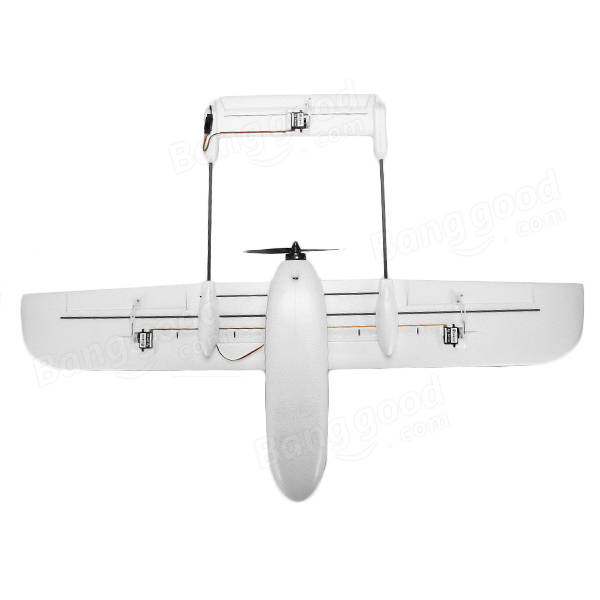

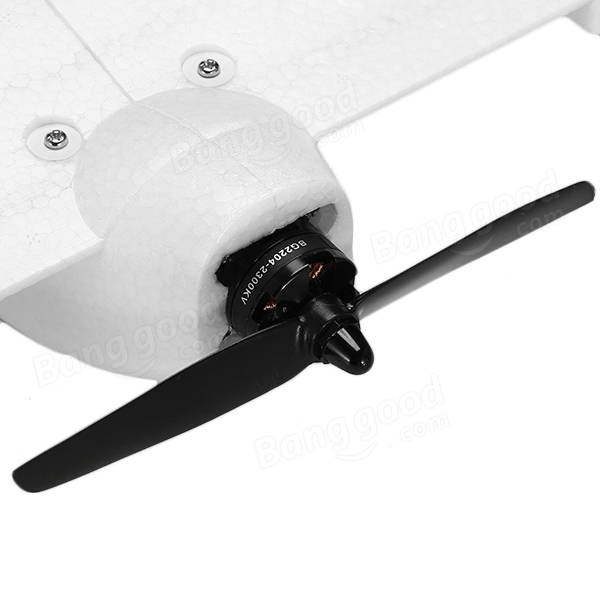

The device made of EPO measures 78 cm in wingspan for 54 cm in length, and a weight of 230 grams without the battery. It is equipped with a brushless motor 2204 of 2300KV driven by a 20A ESC for a 6 inches propeller, and 3 servos of 9 grams to manage the stabilizer and the two ailerons. No drift, the piloting is done with the ailerons. On board, in the cockpit, is a FPV camera, a model EF-01 of Eachine in 5.8 GHz, 40 channels and a power of 25 mW. What you need to take off? A radio control and a receiver, and a battery type Lipo 3S of 1300 mAh.
Features:
FrSky X20
FrSky XE
PNG (300x280)
BMP Recommended (300x280)
FrSky X18
FrSky Twin
PNG (180x166)
BMP Recommended (180x166)
FrSky X10
FrSky X12s
PNG (180x160)
BMP Recommended (180x160)
PNG (192x114)
FrSky X9D
FrSky X9E
BMP (64x32)
JPG (155x100)
Some content in menu 2.
Although I do my best to complete this library, you may not find the model you are looking for.
In this case, do not hesitate to ask me to add it : You're not bothering me. Please be patient, depending on my workload, I may take a few days to work on your model and gather information.
I'm sometime asked to add a non flying model to this library but unfortunately, it's not the focus of this website
Ask for a new model
