Tyro119 from Eachine

Details

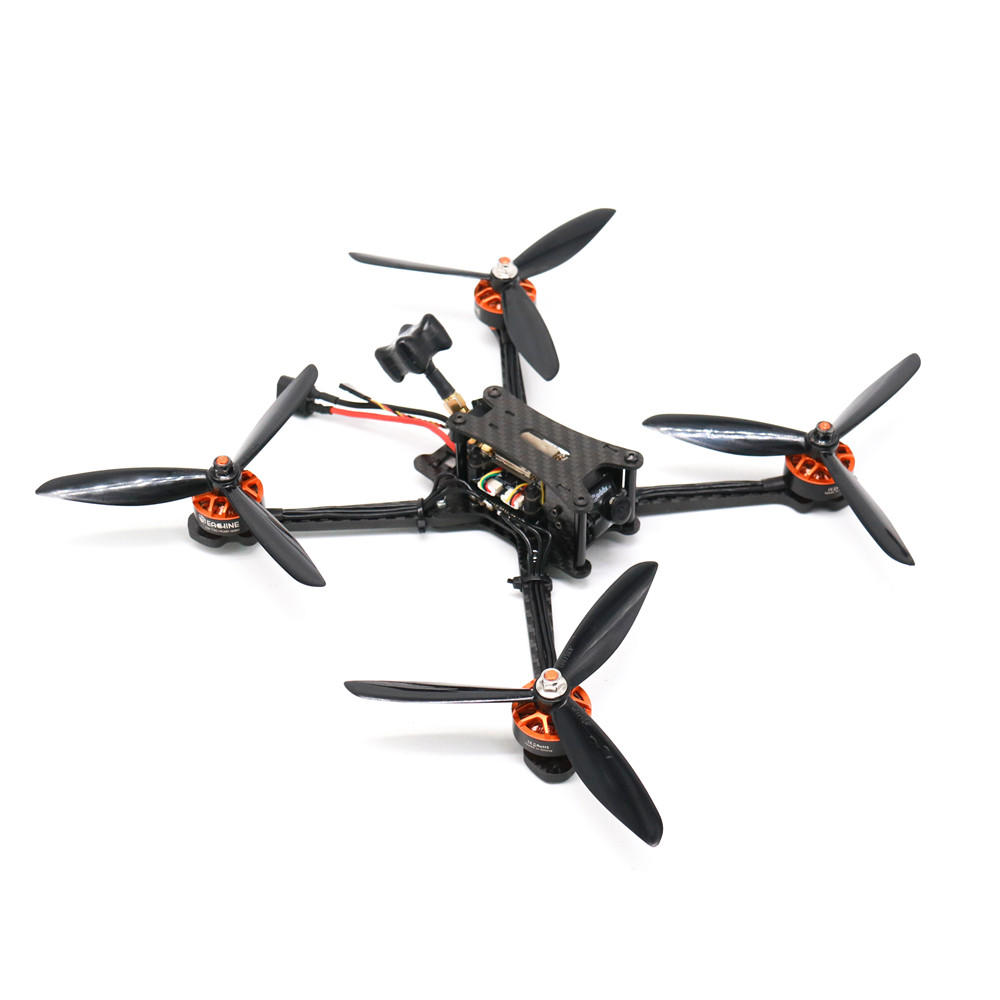

The Tyro 119 is very similar to the Tyro 129 but on a slightly smaller scale. It also happens to be less expensive. You get a full build kit for a 6″ FPV GPS drone. The frame features 5mm carbon fiber arms, a Caddx turbo camera and beefy 2407, 1850 KV motors.

The flight controller is an F4 and it features a BL Heli S 40 amp all-in-one ESC. There is no receiver included so you’ll have to add your own. The VTX is switchable from pit/25/200/600 MW.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Tyro119 in particular but at least we know they do distribute Eachine.

Wingspan: 250mm (9.8 in)
Length: 250mm (9.8 in)

Weight: unknown
250mm Racing Frame Kit
  • Wheelbase: 250mm
  • Frame arm thickness: 5mm
  • Frame kit material: 3K carbon fiber
Eachine 2407 1800KV Motor
  • KV: 1800KV
  • Lipo: 3-6S
Eachine GPS F4 Flight Controller
  • Main control chip: STM32F405
  • Gyroscope: MPU6000
  • Barometer: BMP280
  • Firmware: Support betaflight / INAV firmware
  • Integrated OSD, support betaflight configuration & DMA Mode ( F4 MCU controls OSD)Support PPM /DSM2/X / IBUS/ SBUS/ XBUS receiver
  • with 10V @ 1.2A BEC Output, for VTX or Camera
Eachine 40A 4In1 BLHeli_S ESC
  • Continuous Current: 40A
  • Burst current: 45A (10S)
  • BEC output: 5V @ 2A
  • Input voltage: 2-6S
  • Main control chip: 48mhz EFM8BB2
  • Firmware upgrade: Supports Dshot150-600/Multishot/Oneshot/PWM
  • MOS: 5X6
  • Current Sensor: NO
  • Size: 37.5x37.5mm
  • Mounting Hole: 30.5x30.5mm
  • Weight: 15g
