Manta from Fimi

Details

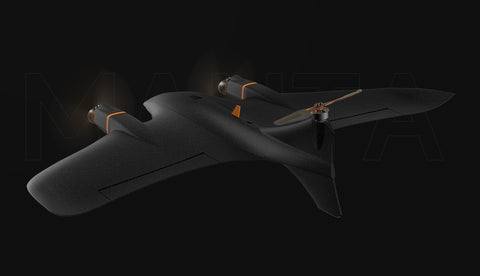

FIMI Manta VTOL Fixed wing Tiltrotor vertical takeoff and landing design 500g Compact and portable with modular quick-detach design.

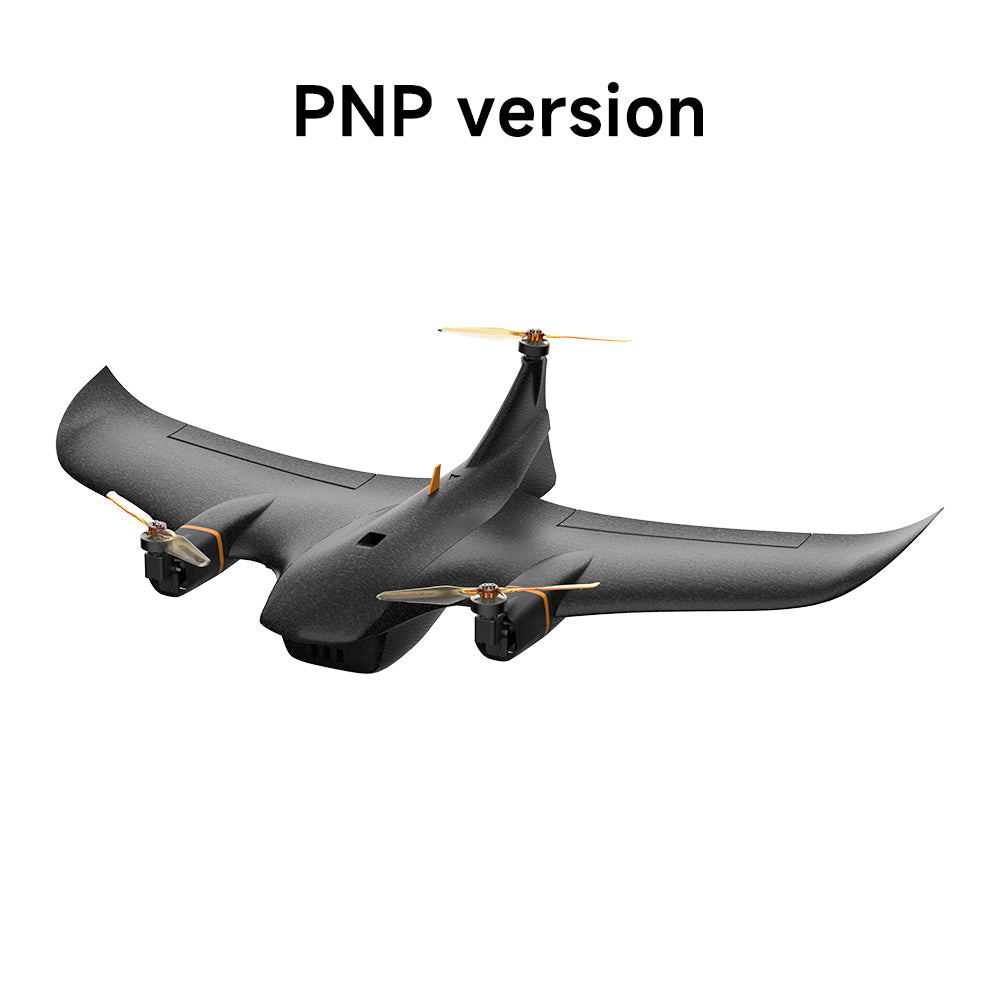

Manta is available in two packages, the PNP version and the PNP-FC version. Both packages do not include batteries and remote controls and need to be configured by the user. If you opt for the PNP-FC version, you will only need to match the battery and remote control after receiving it, making it ready to fly. Please note that the PNP-FC version will be available later.

Features:

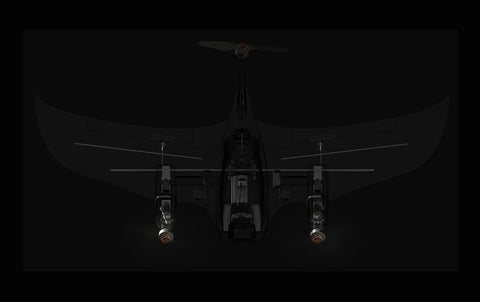

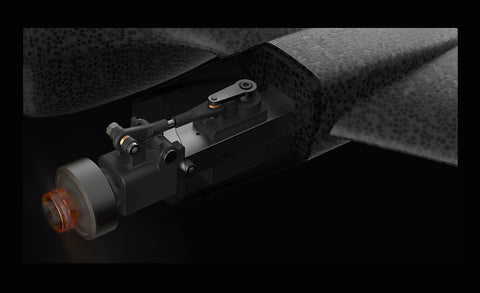

  • Tiltrotor vertical takeoff and landing design. ​
  • Flying wing biomimetic design with high endurance.

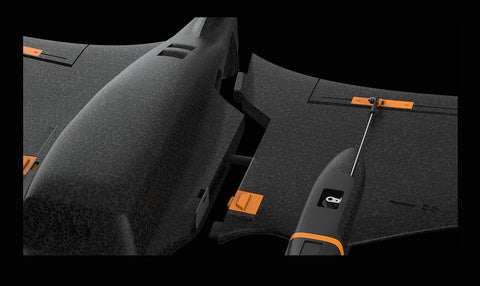

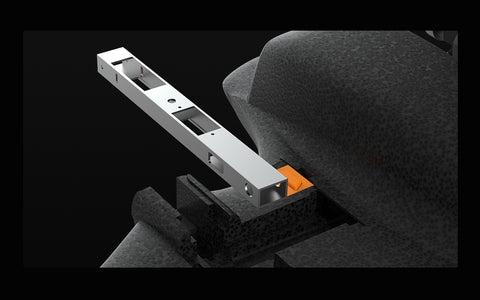

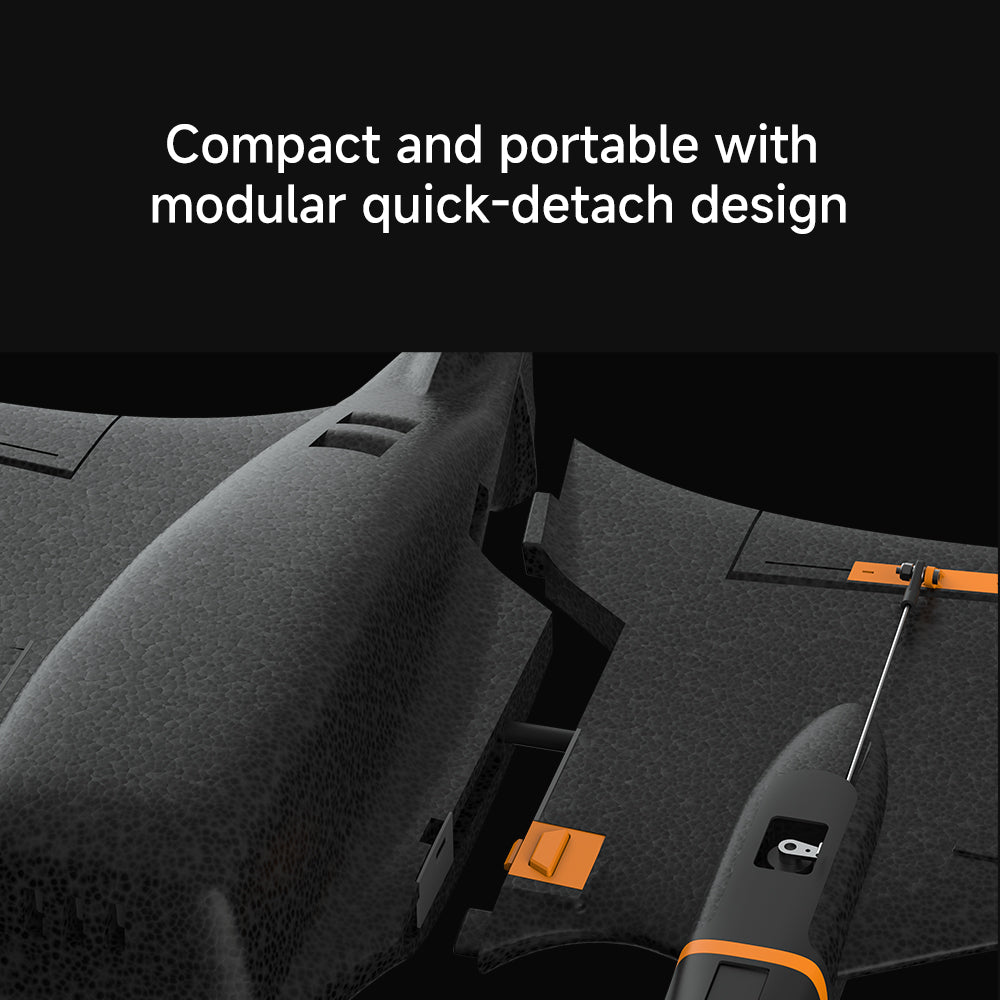

  • Compact and portable with modular quick-detach design.
  • Perfectly compatible with mainstream open-source flight control hardware ecosystems available on the market.

Pictures

Manual

Radio icons

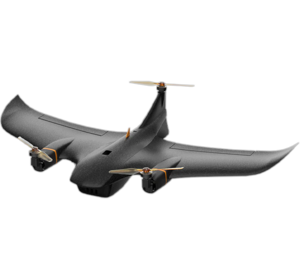

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Manta in particular but at least we know they do distribute Fimi.

Wingspan: 700mm (27.6 in)
Length: 445mm (17.5 in)

Weight: 500 g (1.1 lbs)
  • Wingspan: 700mm
  • Length: 445mm ​
  • Takeoff Weight: 500g
  • Endurance: 60min(3s 1p 18650 3000mah) ​
  • Cruising Speed: 12m/s
  • Stall Speed: 8m/s ​
  • Wing Area: 11.8dm²
  • Motor: 2004 2700kv ​
  • ESC: 20A three-in-one ESC
  • Propeller: 6026 two-blade propeller ​
  • Battery: Recommended 3S 1P 18650 or 3S 1P 21700 5000mAh (maximum endurance of 85 minutes)
