Charlie from Flite Test

Details

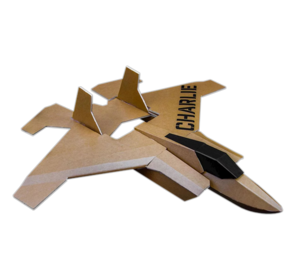

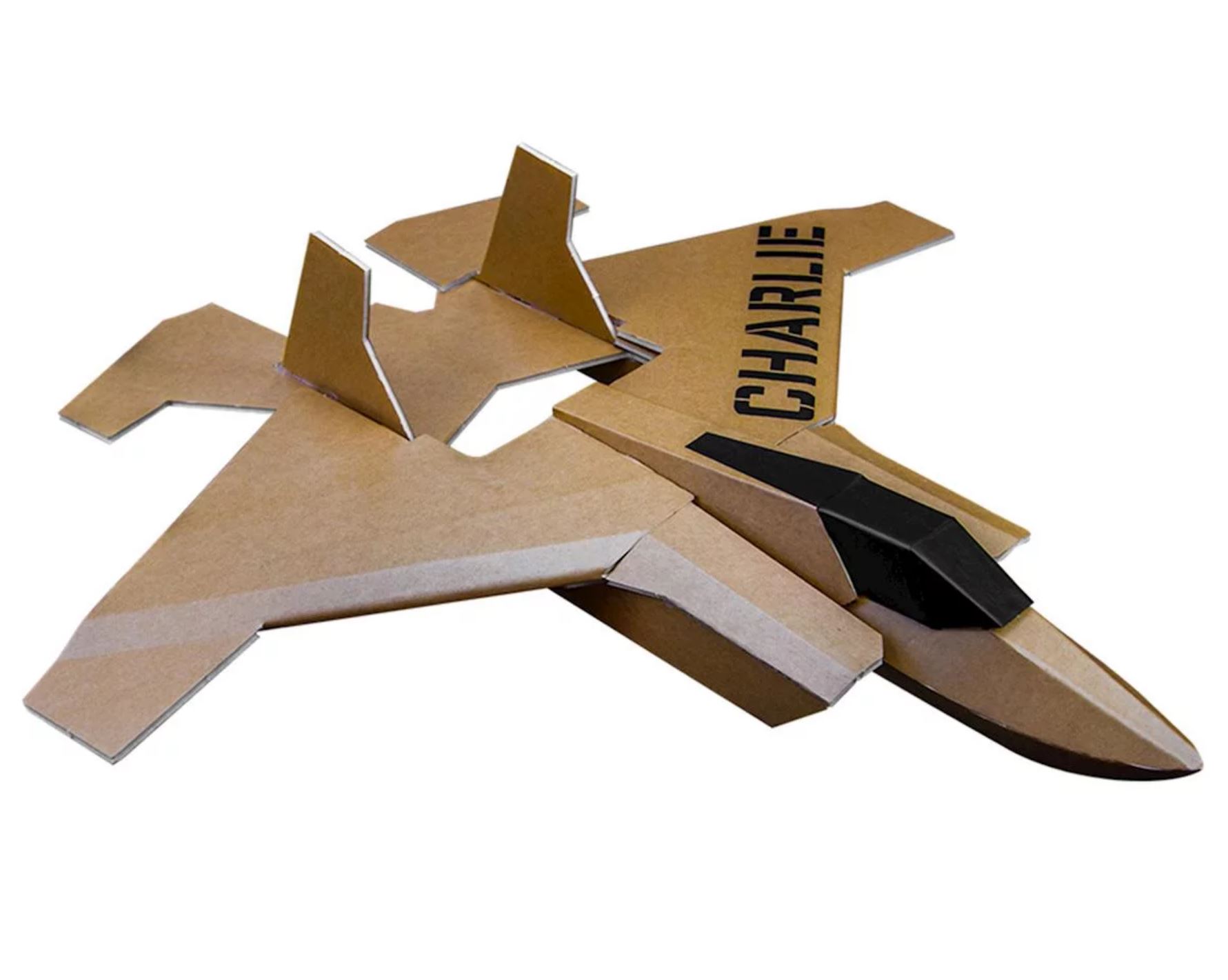

The Flite Test Charlie was designed to be a quick and easy to fly build, the slowest and least agile of the Triad series.

The FT Charlie is compatible with the FT Alpha and FT Bravo kits. Each airplanes’ wings are built to be removable from the fuselage, and can be swapped with any of the other Triad planes, giving the builder essentially 9 planes to choose from.

The Swapping Of Wings Takes Less Than A Minute And Is Supported By Rubber Bands!

There is no need to re-calibrate the center of gravity on the aircraft after swapping, the CG remains the same no matter what combination you configure. This is great for the flight line and swapping with others, making it an enjoyable experience for all.

We want you to have an amazing experience both in building and flying. This kit comes with everything you need to complete the FT Bravo Aircraft. Push-rods, control horns, firewalls and all other items needed to make this airframe electronics ready are included in the kit. If you choose to purchase our power pack F and battery, balance, flight performance and assembly will be quick and easy.

Kit Includes:

  • Laser-cut Foam Airframe
  • Firewall
  • Push Rods
  • Control Horns
  • BarBQ Skewers
  • Velcro
  • Throw Gauge
  • Rubber Bands
  • Zip Ties
  • Specification Sheet

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus & T16 OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
Spektrum IX12
Futaba 18MZ
Jeti DS-24

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Charlie in particular but at least we know they do distribute Flite Test.

Where to buy

Germany
Modellbau Berlinski
check web site
Ship to: International
Austria
Schweighofer AT
check web site
Ship to: International
Germany
Schweighofer GE
check web site
Ship to: Germany
Switzerland
Scamora
check web site
Ship to: Switzerland
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
Belgium
Aerobertics
check web site
Ship to: Europe
USA
AMain Hobbies
check web site
Ship to: USA

Wingspan: 736mm (29 in)
Length: 705mm (27.8 in)

Weight: 295 g (10.4 oz)

Weight: 230g - Fully assembled; without battery
Fly Weight: 295g
Wingspan: 736mm
Lengh: 705mm
Center of Gravity: 14 Inches from the Nose
Control Surface Throws: 16 Degrees
Expo Suggestions: 30%
Wing Area: 10.1 dm²
Wing Loading: 29.2 g/dm²

Needed to Complete:

  • (1) Brushless Motor: Flite Test F Radial or 2204-2205 Size; 2400kV Minimum
  • (1+) Propellers: 6x4.5
  • (1) ESC: 20-30 Amp
  • (1+) Battery: 3S 11.1V LiPo 800mAh
  • (2) Servos: ~5 Gram Micro Servos
  • (1) 2.4GHZ Radio System (Radio & Receiver)

Variants

FLT-1048
Charlie (Beige)
