RangeX Epic V2 from FpvFrame

Details

The RangeX is a complete BNF with everything you need to start your own FPV journey. This setup is made and optimized for shooting long range cinematic footage. Mountain diving, endurance flying and similar scenarios where speed and flight time is important are what the RangeX is best at! Its efficient propulsion setup allows longer flight times and fast cruising speed to cover several kilometers with a single LiPo. The Build is made to carry a GoPro camera mounted upside down below the front pod. This makes sure the GoPro Lens is the lowest point in forward flight to create the little extra sauce in low pass long range footage!

The components used for this build are some of the best available products on the market. They have been thoroughly tested making this the trusted Gear for any mission.

Each BNF Drone is hand built, tested and tuned here in Switzerland. Please be informed this takes time – we need roughly 2 weeks to prepare your BNF.

Features:

  • DJI Air Unit HD Videolink (DJI O3 or Air Unit V1)
  • Optimized for carrying GoPro 6-11
  • Conformal coating
  • Specific tune
  • Preconfigured PID profile
  • Preconfigured OSD
  • Preconfigured telemetry
  • Test flight performed on every drone

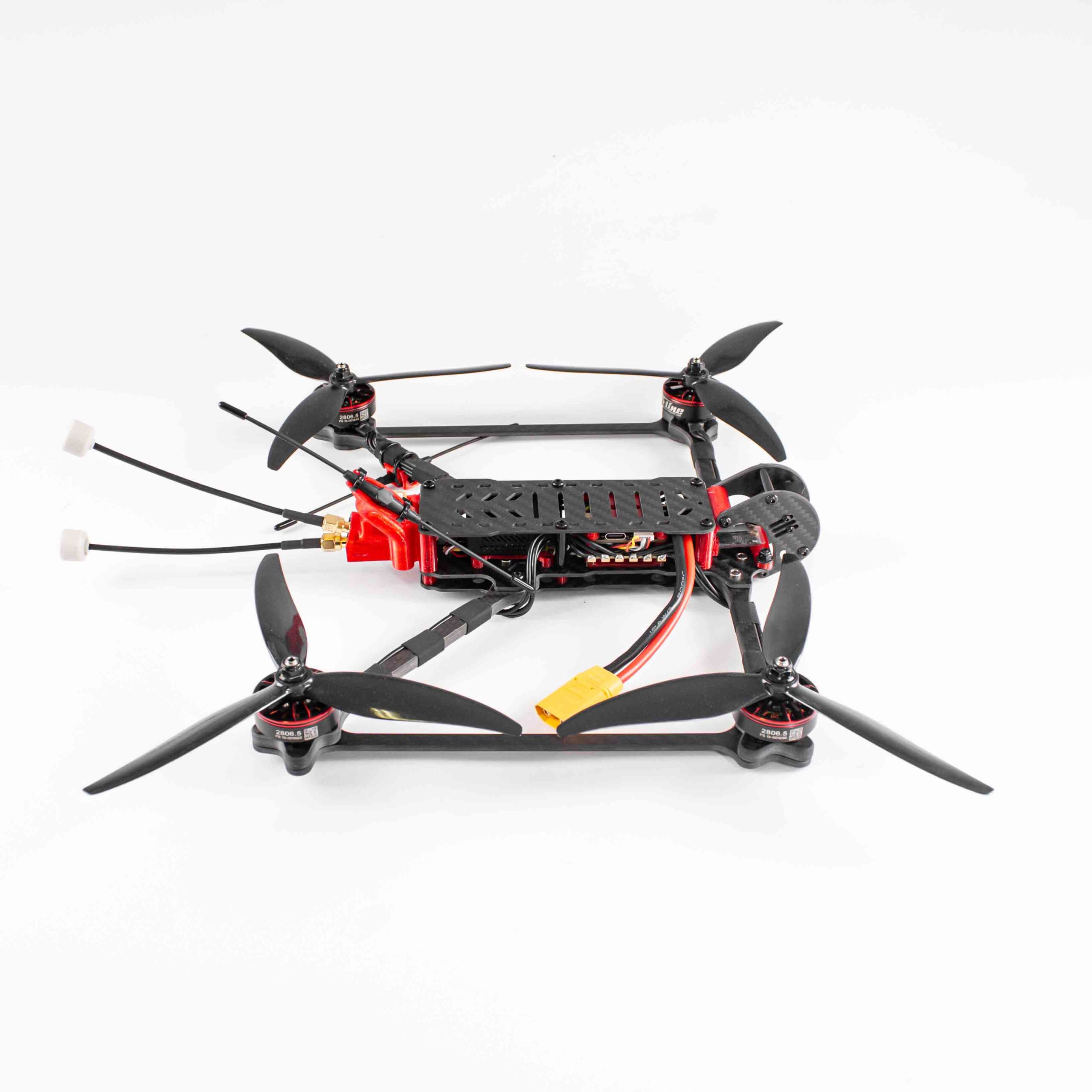

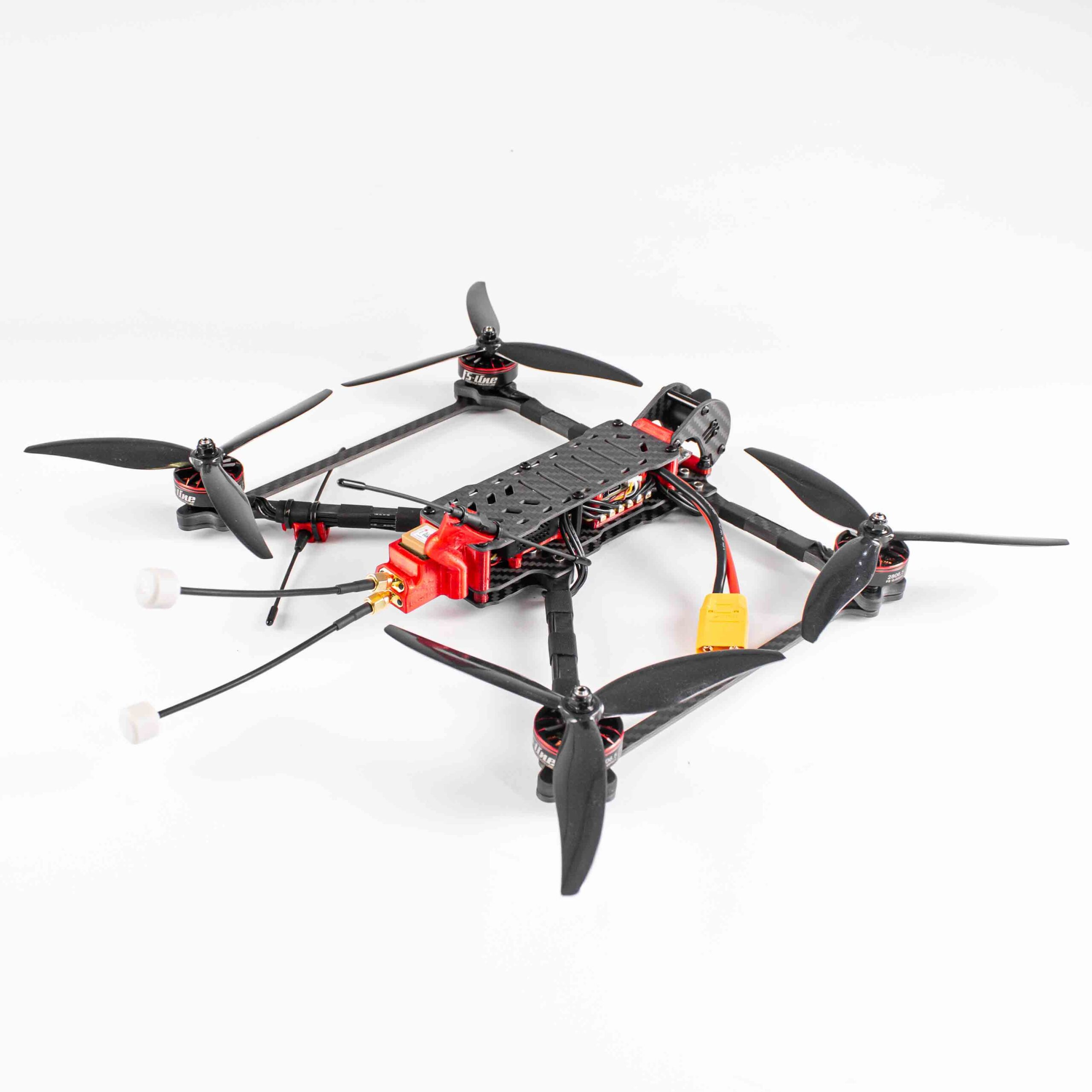

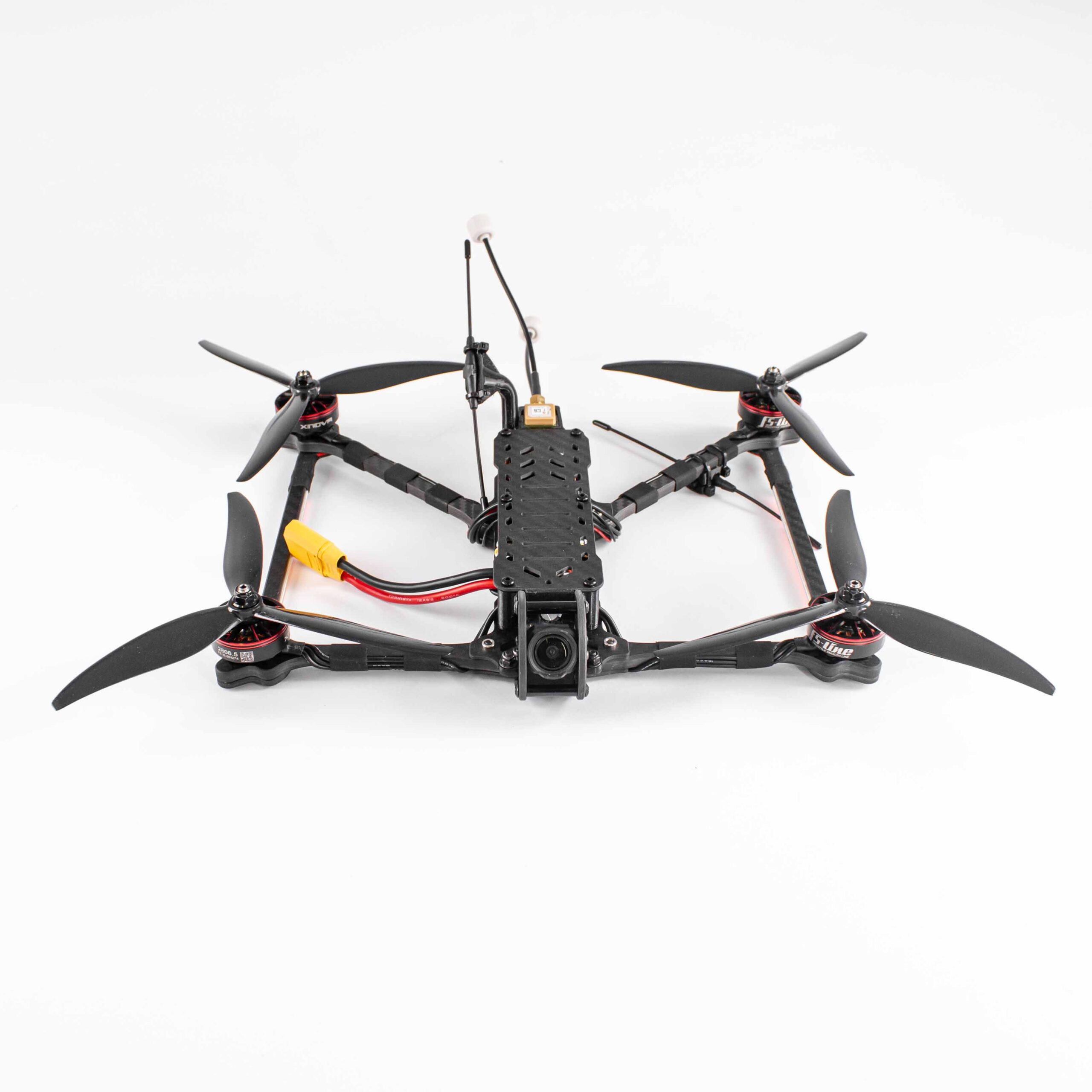

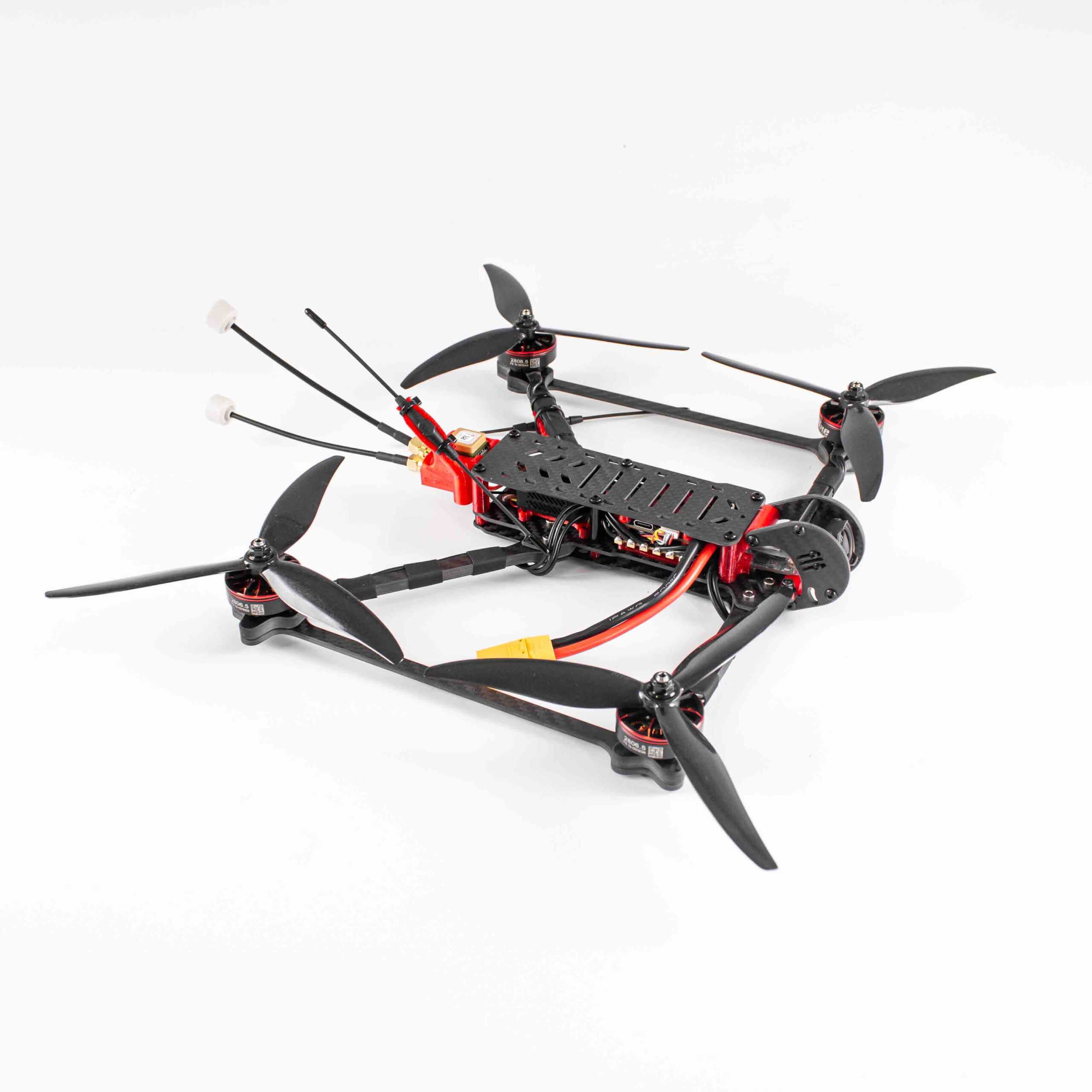

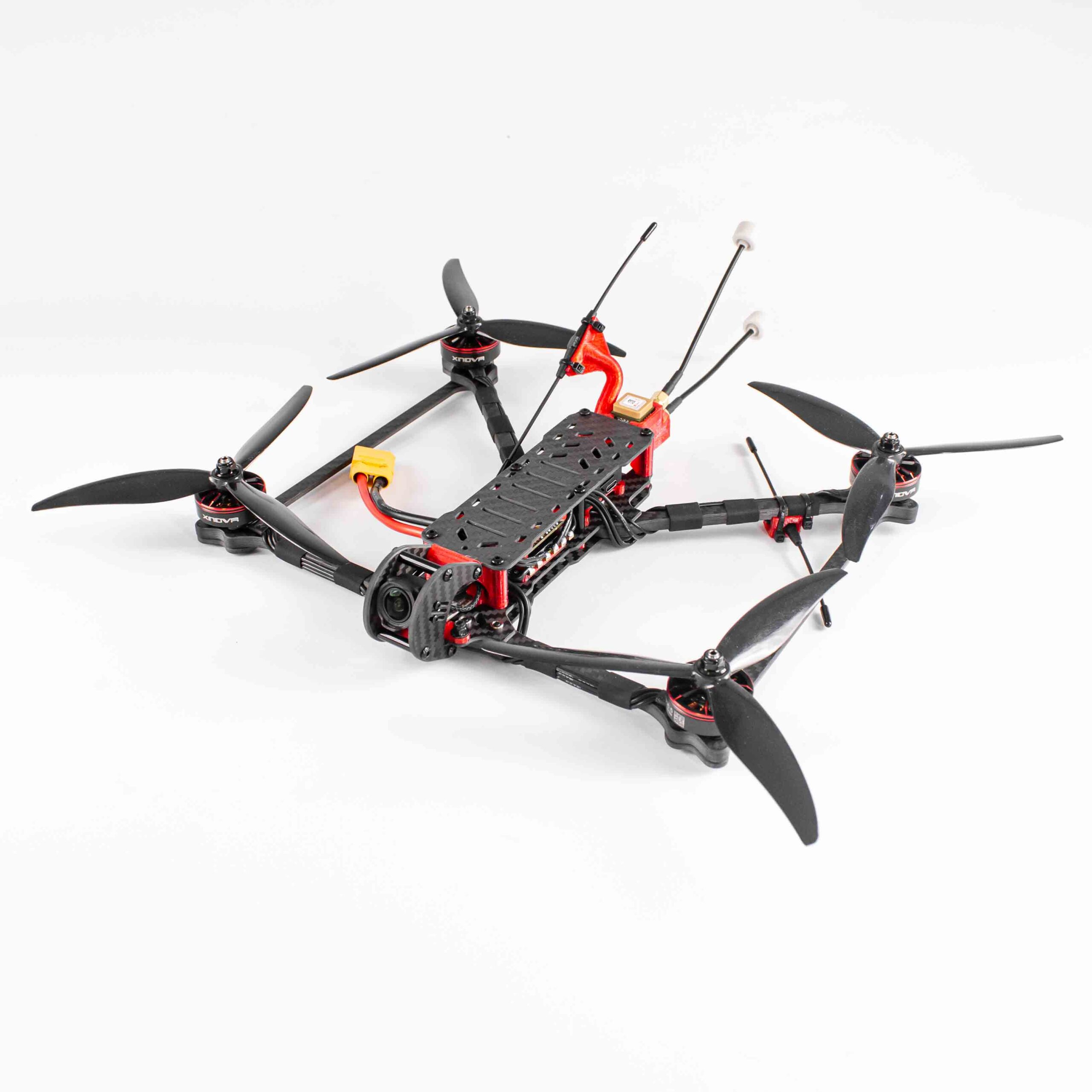

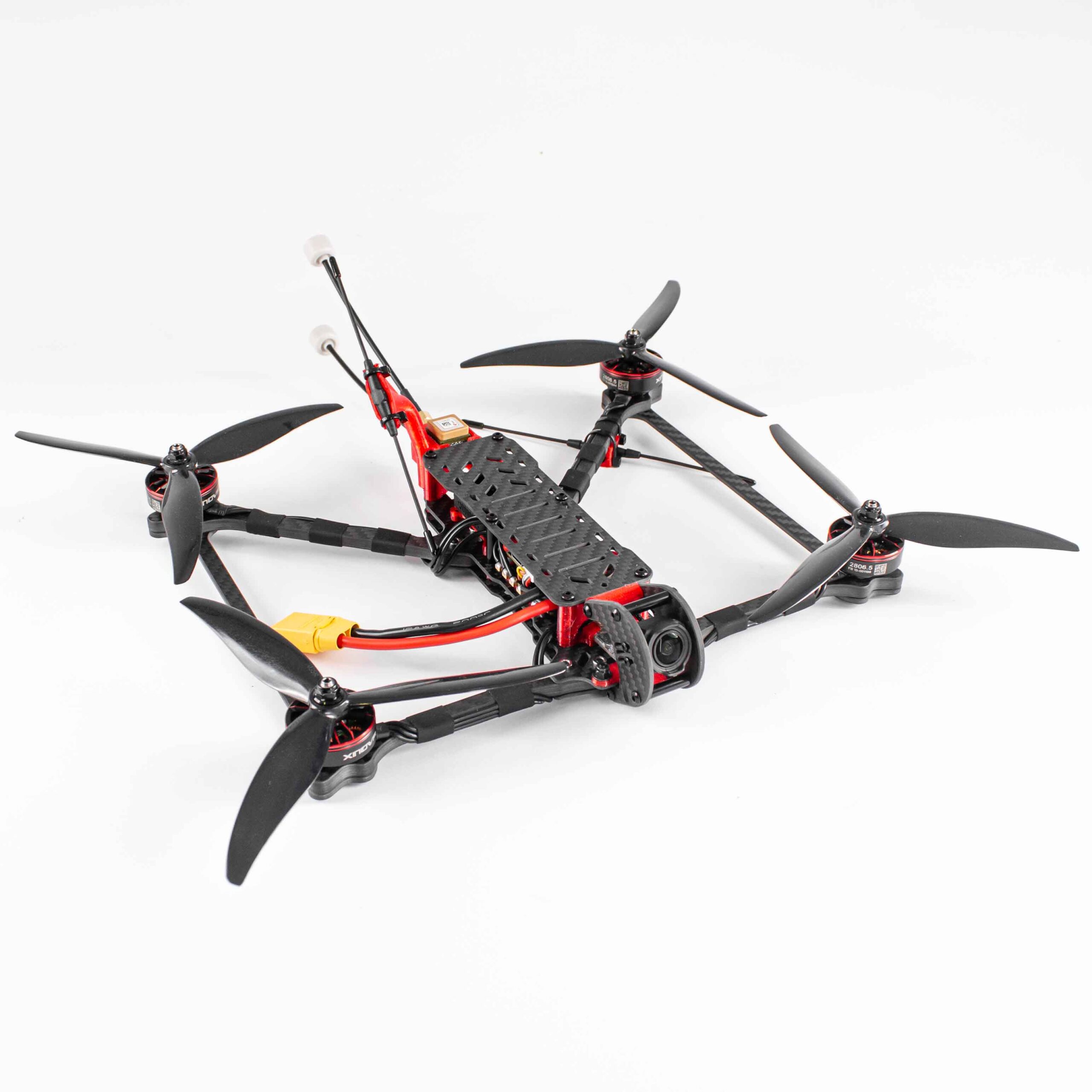

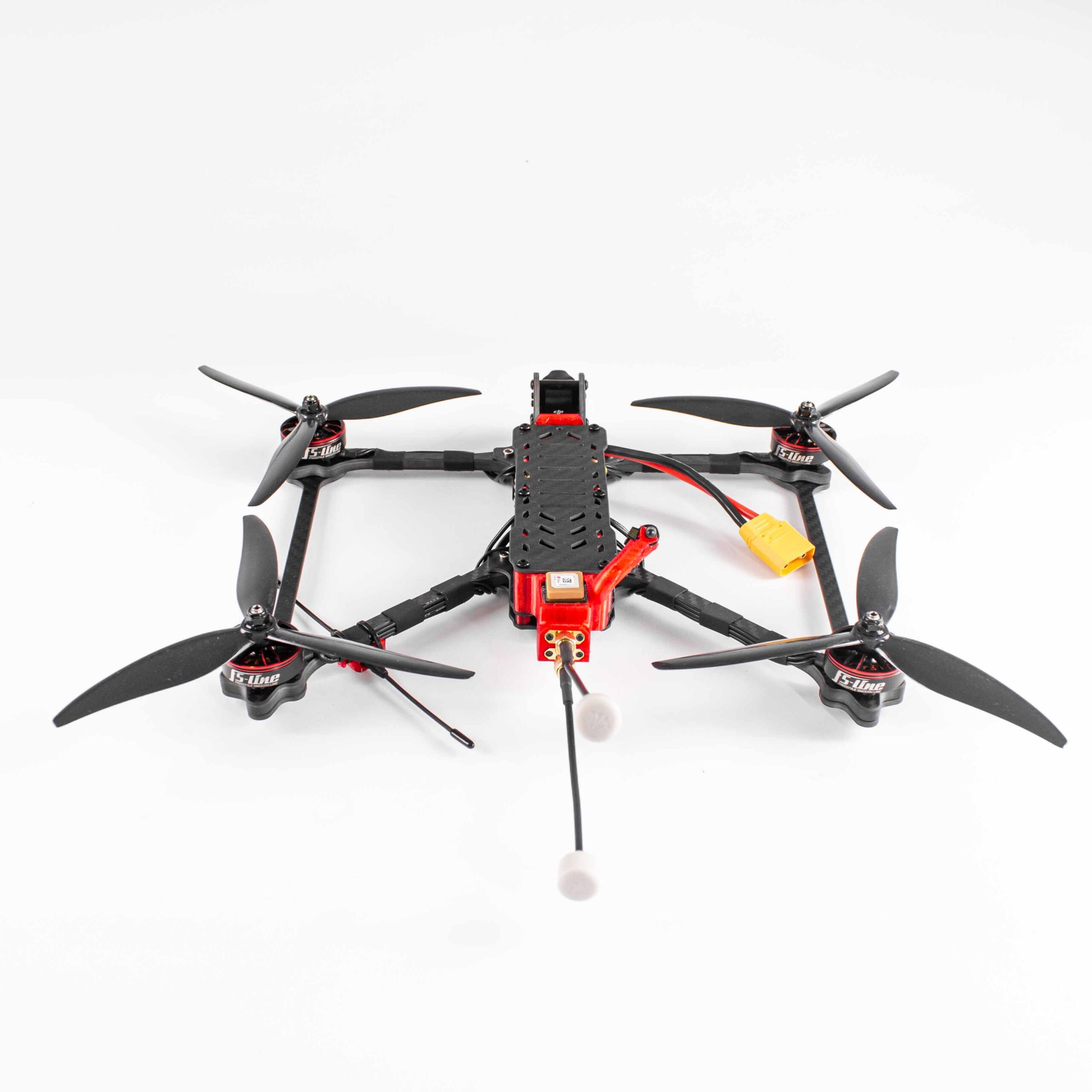

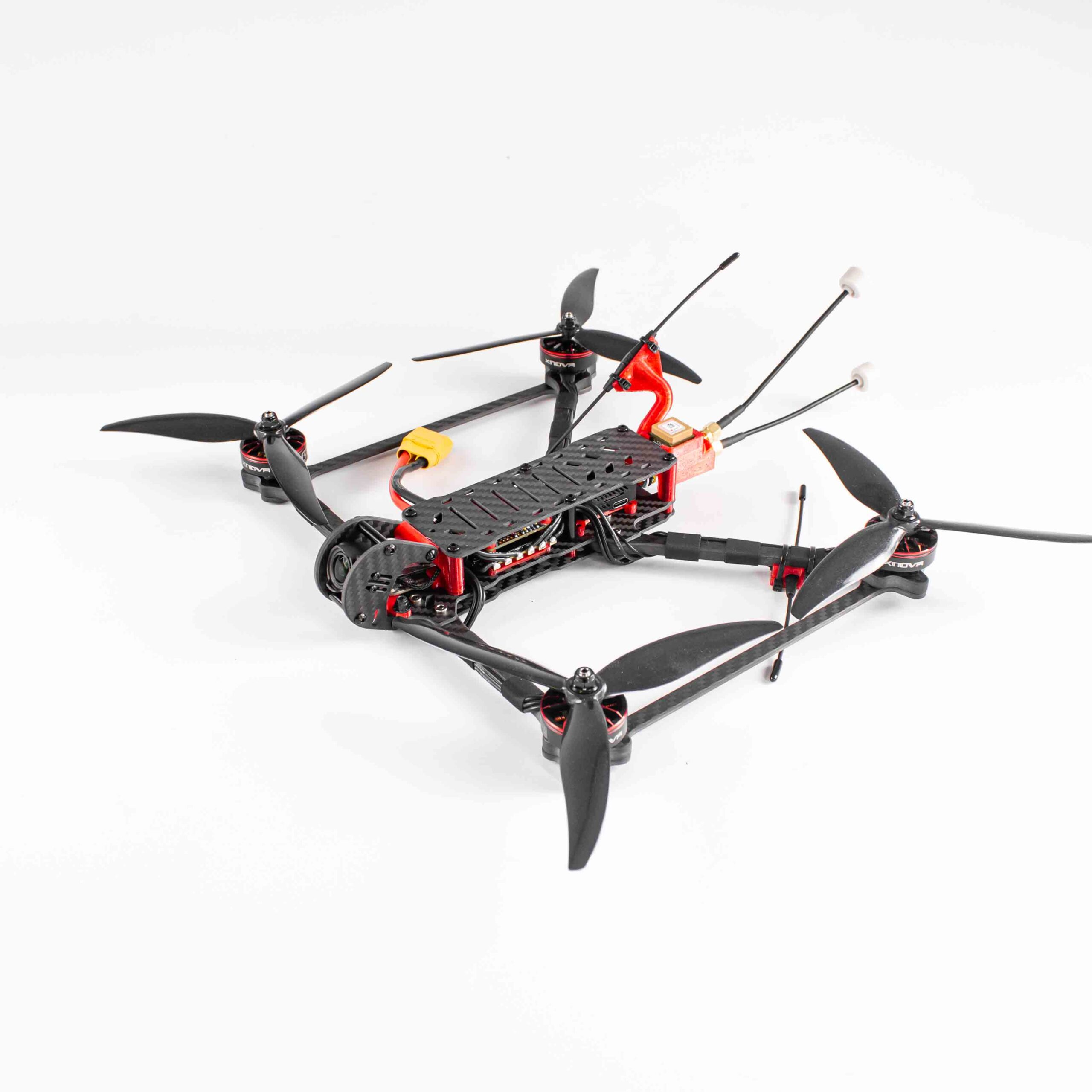

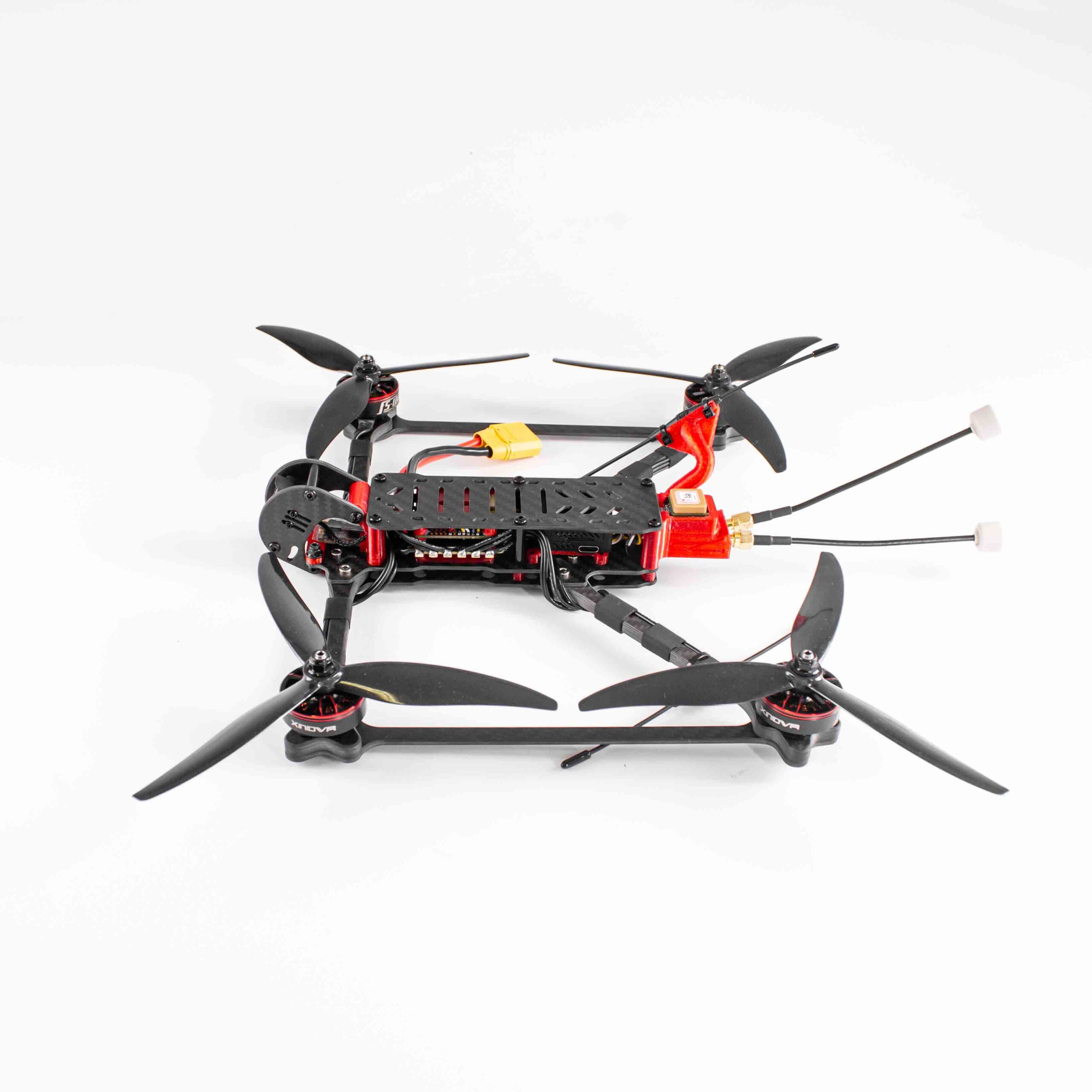

Pictures

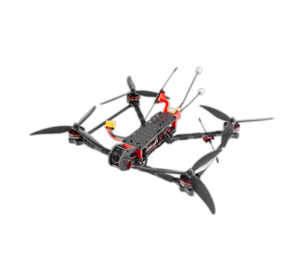

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the RangeX Epic V2 in particular but at least we know they do distribute FpvFrame.

Where to buy


Wingspan: unknown
Length: unknown

Weight: 1200 g (2.6 lbs)
  • Max Speed: 150 km/h +
  • Flight Distance: 3 km and more
  • Flight Time: 8-12 minutes
  • Weight: 700-1200g (incl. GoPro and LiPo)
  • Propellers: 7"
  • Arm Thickness: 6mm
  • Motors: XNOVA 2806.5 1300KV
  • ESC: 6S 30×30 ESC
  • Receiver: TBS Crossfire or ELRS
  • FC: Aikon F7
  • Optional Pololu 12V BEC & RC switch for 2x 10W COB LEDs
  • Recommended Battery Size: 6s 4000-4500mAh
  • GPS: M10
  • Antenna: TBS Triumph Pro Longrange antenna
