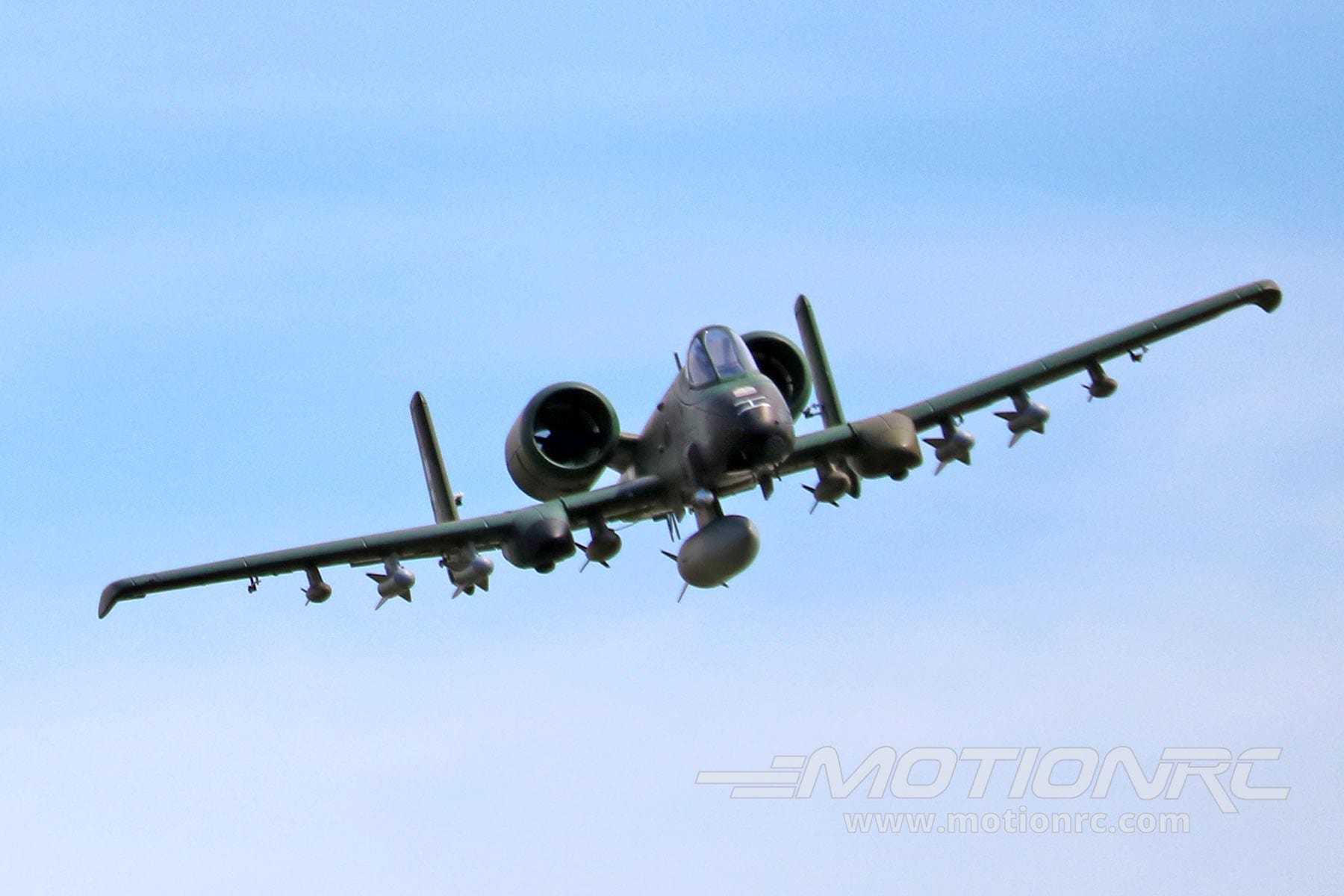

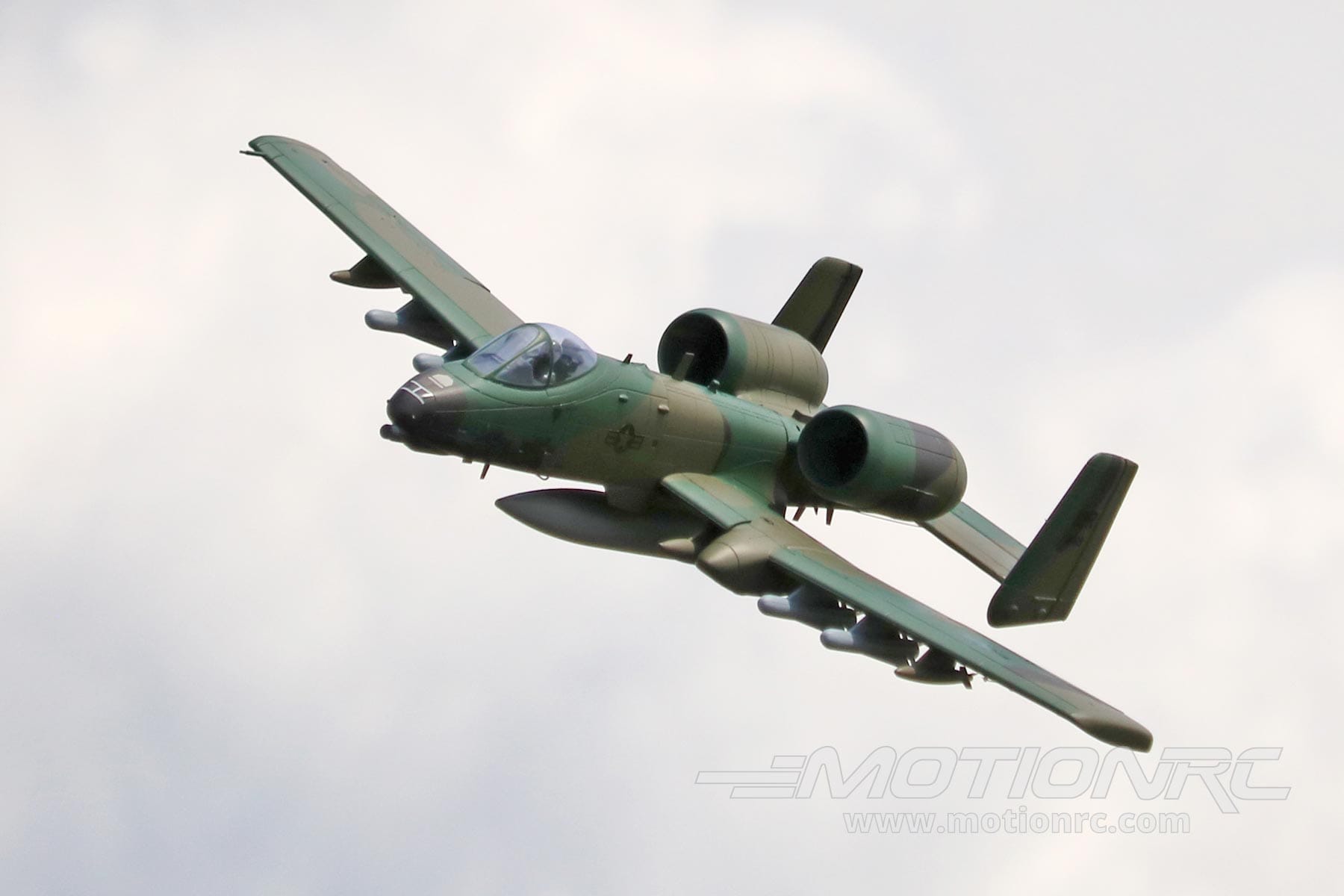

A-10 Thunderbolt II V2 from Freewing Model

Details

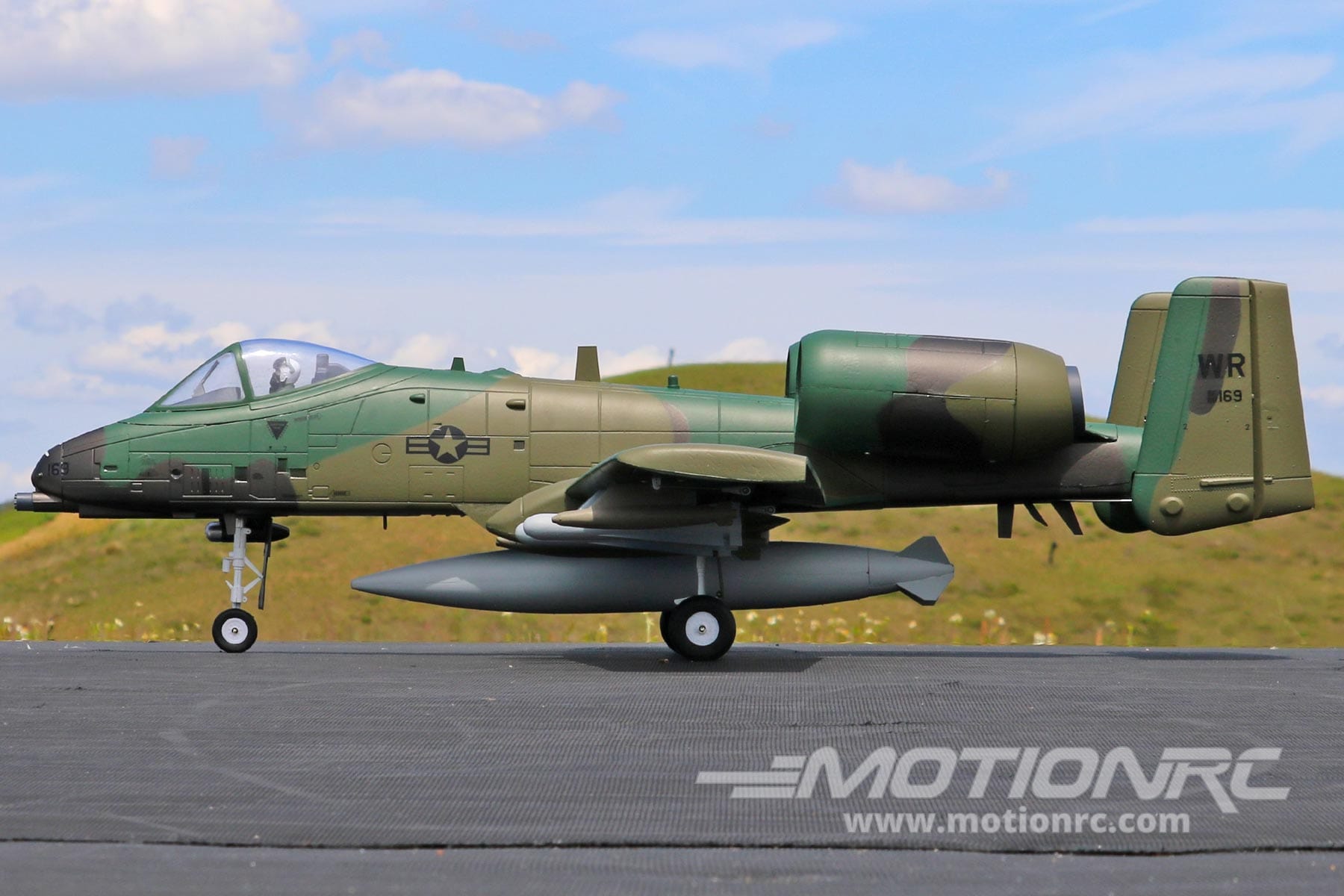

Based on the famous close air support A-10 Thunderbolt II, also known as the "Warthog" or "Tank Killer" this is the updated version of the Freewing twin 64mm A-10. Featuring a European theatre camouflage, full-house functionality including flaps and retracts, and updated power systems, this is sure to be a stunner. Typical to Freewing quality, this plane looks amazing and flies rock-steady and fast. The twin 12-blade EDFs produce an amazingly realistic jet engine sound, while giving it plenty of power for high speed maneuvers, and the wing planform allows stable flight at slow speeds.

Features:

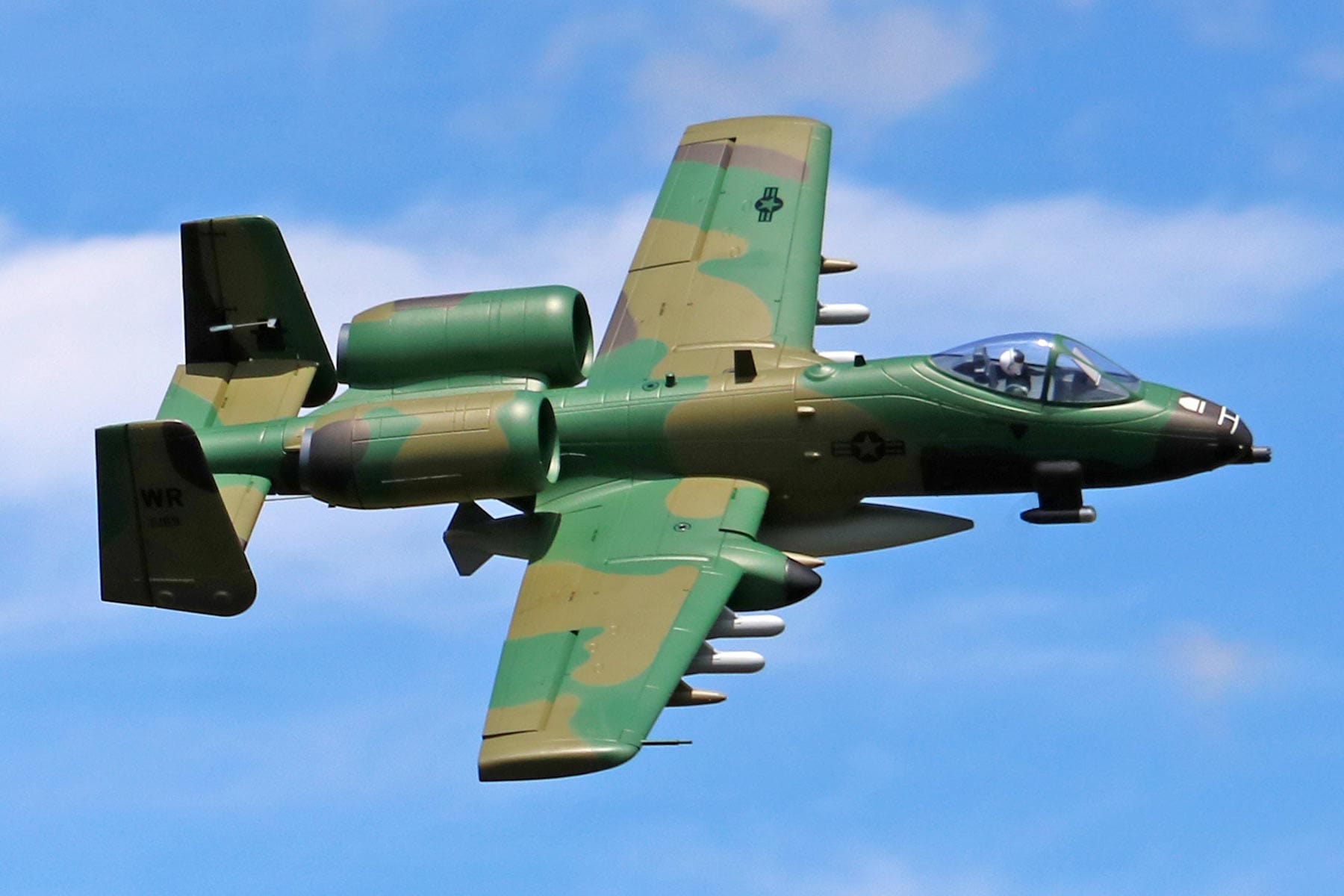

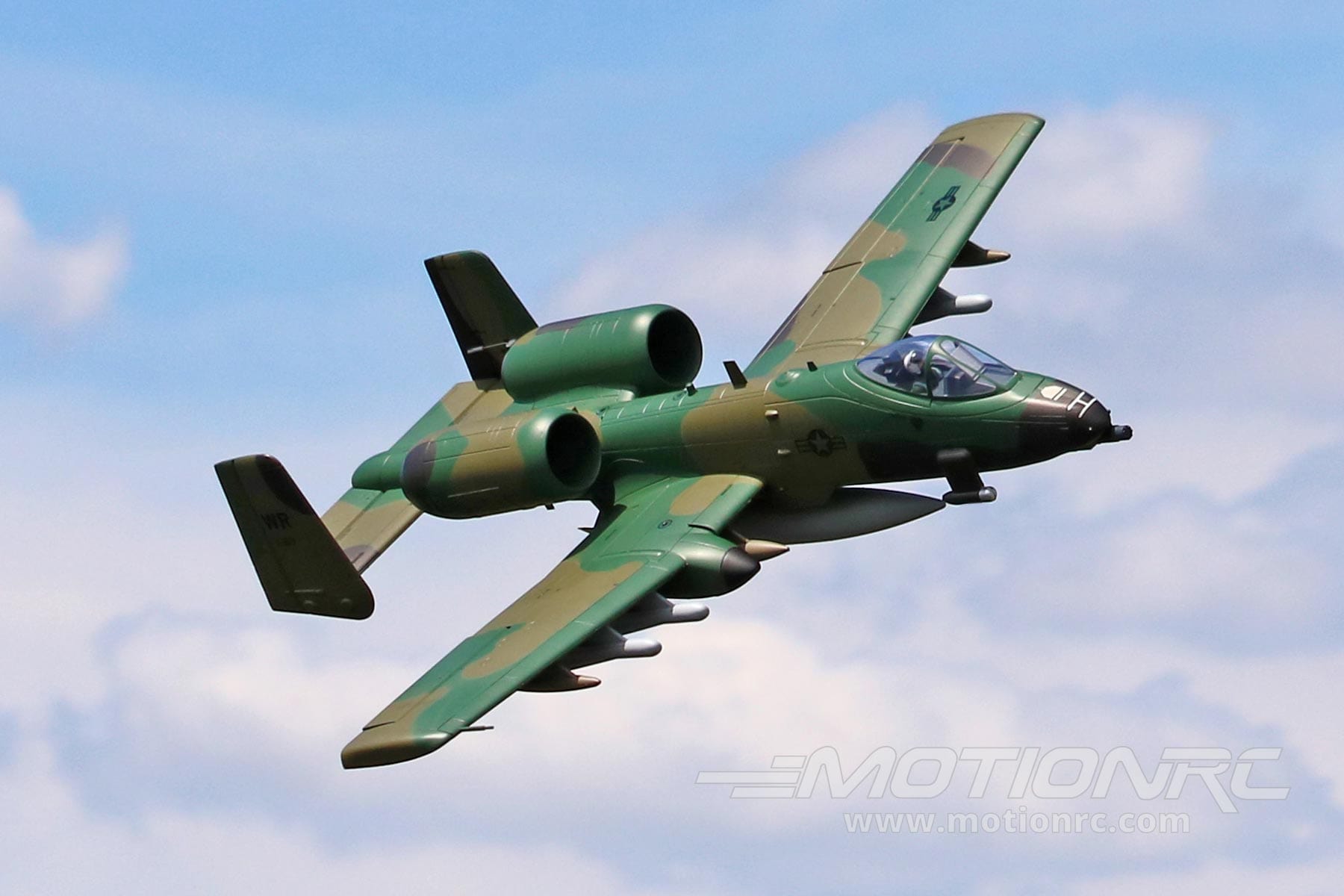

  • European theatre camouflage livery
  • Full functioning flaps are pre-installed for quick take-offs and slow, scale landings
  • Utilizes 2840-2850Kv Brushless Outrunner Motors
  • Utilizes 40A ESC’s with reverse thrust
  • New pilot figure that is more correctly sized to scale
  • EDF units are now screwed in place
  • Wing is now better secured with additional screws
  • Officially licensed by Northrop Grumman
  • Ultra-scale design including US Air Force graphics, hand-painted pilot, detailed cockpit, machine guns, bombs and drop tanks

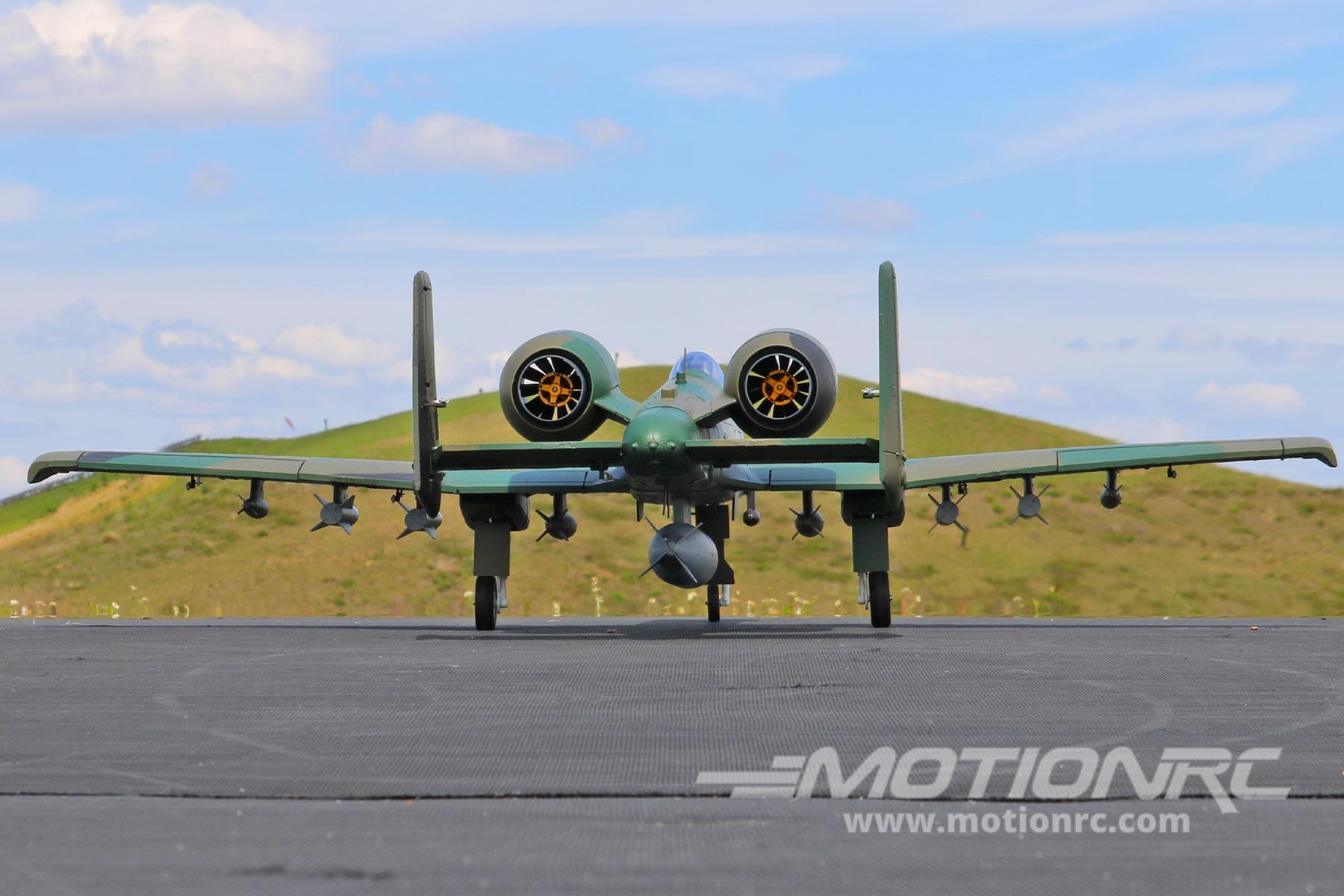

  • Twin 12-blade 64mm Electric Ducted Fans (EDFs) provide great power and realistic sound
  • Nylon hinges on all control surfaces

Pictures

Manual

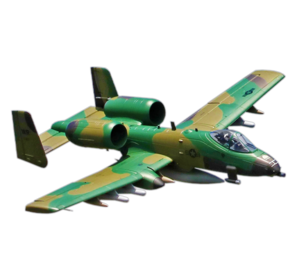

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1100mm (43.3 in)
Length: 1000mm (39.4 in)

Weight: 1390 g (3.1 lbs)
Wingspan 1100mm / 43.3in
Length 1000mm / 39.4in
Flying Weight 1390g / 49oz
CG 45-50mm aft of the leading edge of the wing at the root
Power System 2x 2840-2850Kv Brushless Outrunner Motors
Speed Control 2x 40A Brushless ESCs with Thrust Reversing
Propeller / EDF Twin 12-blade 64mm EDFs
Servos
  • 9g plastic standard with 300mm lead : left flap, elevator, rudder - MD31091-300
  • 9g plastic standard with 300mm lead : nose landing gear steering - MD31091-200
  • 9g plastic standard with 400mm lead : left aileron, right aileron - MD31091-400
  • 9g plastic reverse with 300mm lead : right flap - MD31091R-300

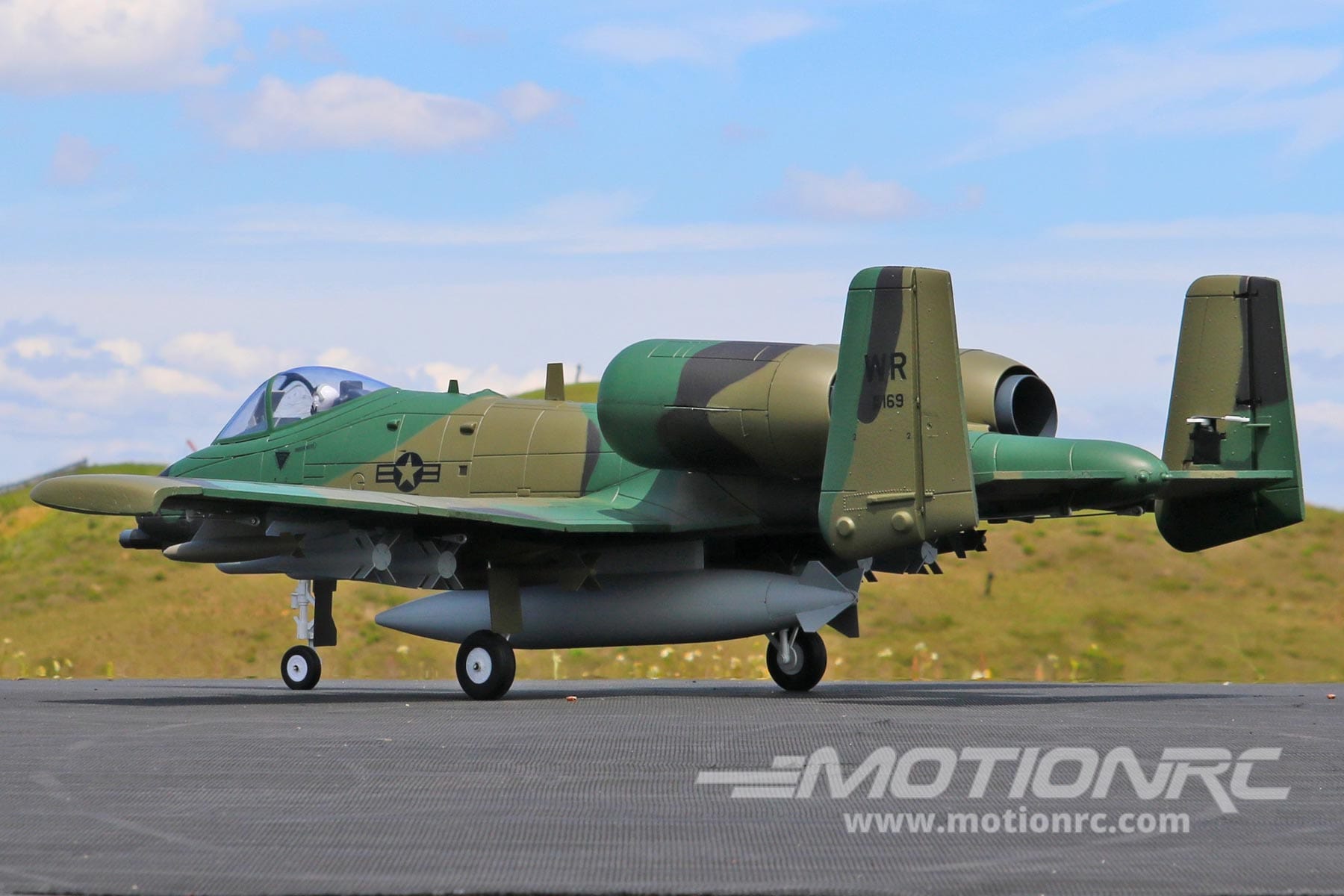

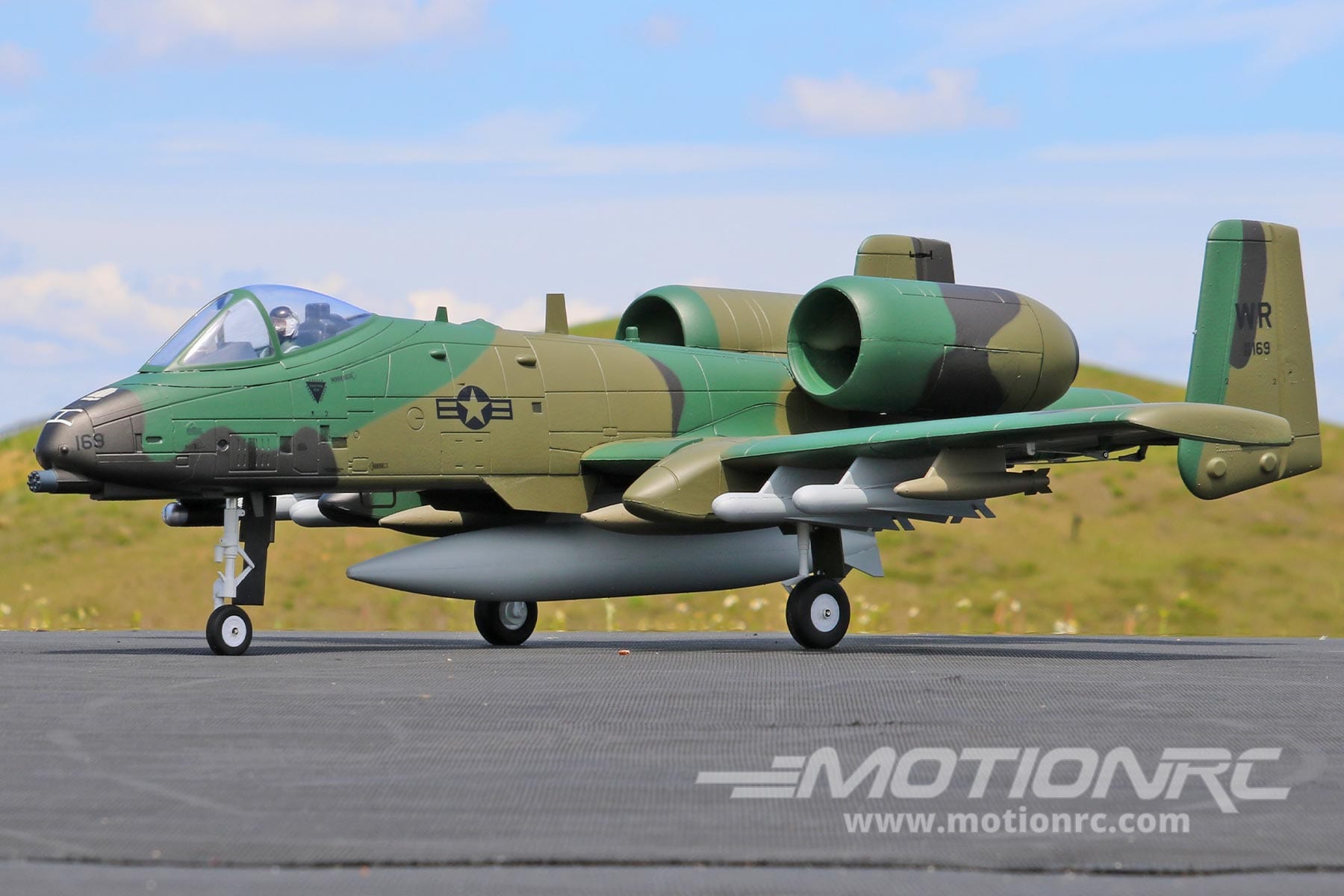

Landing Gear Retracts with plastic, over molded wire struts
Required Battery 4S 14.8V 3300-4000mAh LiPo with XT-60 Connector
Required Radio 6-7 Channel radio (7 channels for reverse thrust)
Rud/Flp/Ail/Light Yes/Yes/Yes/no
Hinge Type Nylon hinges on all control surfaces
Material EPO Foam
