AL37 Airliner from Freewing Model

Details

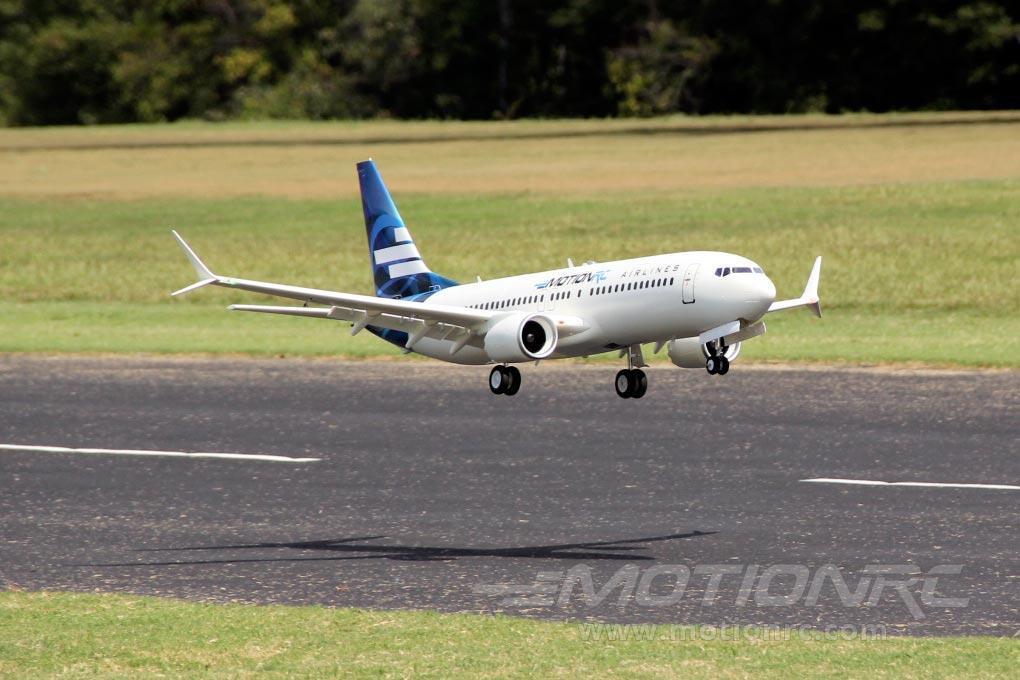

Introducing the twin 70mm Freewing AL37 Airliner. With a length of 2000mm (78.75") and a wingspan of 1830mm (72"), it's the largest EDF produced by Freewing to date. This model uses EPO foam with integrated aluminum carbon to strengthen the airframe while limiting the weight of the model to the greatest possible extent. Except for the foam fuselage, all the other components require only screws to complete an easy assembly.

A control board with ribbon wire is used to simplify the wires between the main wing and the fuselage for easy assembly and disassembly for transport. The built-in wiring channel of the main wing is easy to use and retains the overall scale appearance of this gorgeous airliner. Add to it 11 pre-installed LED lights throughout the aircraft and you will love taking leisure flights at dawn and dusk with this AL37 airliner.

The Freewing AL37 Airliner uses two 3048-2150KV brushless outrunners housed in 70mm EDF casing with 12-blade fans. Those are powered by two 60A brushless ESC and need just one 6S LiPo to limit weight and allow this airliner to cruise comfortably at less than half throttle. In the case of a 6S 5000mAh battery, the maximum flight time can stretch to potentially 10 minutes with the proper throttle usage.

The front and rear landing gears are made of aluminum alloy and have shock absorption function and will make scale landings on the mains an enjoyable experience with each and every flight. Also, the larger size of the wheels (Nose wheel diameter: 45mm, Main wheel diameter: 70mm) make take-offs and landings a breeze in most grassland environments. This model has a beautiful air posture, and good stability in high and low speed. It is very suitable for an immersive flight like FPV and is an excellent leisurely flyer that every EDF jet pilot can enjoy.

Features

  • Beautiful, scale outline both static and in the skies
  • Giant scale, yet lightweight with docile flying characteristics
  • Attractive, Motion RC-centric blue decals
  • 11 LED light system throughout the airframe
  • 4 screw wing assembly makes for easier transport
  • Removable winglets with MWS slotting system
  • Scale aluminum suspension struts
  • Nacelles easily removed with 3 screws
  • Scale flap system

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1830mm (72 in)
Length: 2000mm (78.7 in)

Weight: 3350 g (7.4 lbs)
Model Scale 1/19 Scale
Wingspan 1830mm / 72.04in
Length 2000mm /78.74in
Weight 3350g / 118.16oz
CG (Center of Gravity) 185mm from the leading edge of the wing root
Power System 2x 6S 3048-2150kV Outrunner Motors (included)
Electronic Speed Control 2x 60A with 8A UBEC (included)
Propeller / EDF 2x 70mm 12-Blade EDF (included)
Servos 6x 9g Digital Metal Gear Standard Servos 4x 9g Hybrid Digital Metal Gear Standard Servos
Landing Gear Electronic retractable (included)
Required Battery 6S 22.2V 4000-6000mAh LiPo with EC5 Connector (required)
Required Radio 6+ Channel (required)
