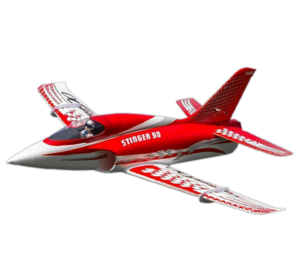

Stinger 90 from Freewing Model

Details

If you are a RC Pilot seeking the highest performance EDF jet available, look no further than the Freewing Stinger 90 Extreme Performance Jet. Developed from the ground up for speed, realism, and performance, the Stinger 90 combines all the latest RC plane technology into sleek sport jet airframe. The new 12-blade EDF with metal housing powered by a massive 3748-1450KV Outrunner Motor produces over 7 pounds of thrust for extreme speeds and intense aerobatics. The sound produced from the 12 blade EDF will simply blow you away. While 5 and 6 blade EDF produce a high pitched whining sound, the 12 blade EDF with metal housing produces the "whoosh" and air crushing sound similar to a gas turbine jet.

Freewing spared no expense with electronics in this plane, they are using a 130A Hobbywing ESC and 17gram metal gear servos. The nose and main landing gear are all metal and include shock absorbing struts to protect the gear during hard landings. Other premium features include super bright LED landing lights, sequenced landing gear doors, and detailed cockpit. Motion RC requested a "top of the line" performance EDF jet and Freewing Model delivered with the Stinger 90 Extreme Performance Jet.

Features:

  • 12 Blade factory balanced EDF with metal housing combined with 3748-1450KV brushless outrunner motor produces realistic jet turbine sound and an incredible 7 lbs of thrust
  • Composite fan blades combined with metal EDF housing make the Stinger 90 AMA compliant (the fan blades themselves are NOT metal, so there are no flying restrictions)
  • 130 Amp Hobbywing ESC with 8A UBEC
  • Flight surfaces are controlled with 17g metal gear servos for precise movement, strength and long life
  • Ultra-bright LED landing lights for enhanced realism and dawn/dusk maneuvers
  • All metal electronic retractable landing gear with shock absorbing struts
  • Upgraded pushrod clevis and metal ball head buckle provide a robust connection between servo and control surface and eliminate "play"
  • Full function flaps allow shorter take-off distances and slow, scale landings
  • Carbon spars and EPO foam construction provide the perfect balance between strength and flexibility
  • Nylon hinges on all control surfaces (superior to foam hinges)
  • High visibility graphics package make the Stinger 90 easy to see even at high speeds
  • Outrunner motor, servos, ESC and EDF come pre-installed for your convenience.

Pictures and Description from Motion RC

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Stinger 90 in particular but at least we know they do distribute Freewing Model.

Where to buy

Netherlands
Motion RC B.V.
check web site
Ship to: Europe
USA
Motion RC LLC
check web site
Ship to: USA
France
Turbines RC
check web site
Ship to: Worldwide
France
miniplanes
check web site
Ship to: France
Hong-Kong
RC-Castle
check web site
Ship to: Worldwide

Wingspan: 1130mm (44.5 in)
Length: 1325mm (52.2 in)

Weight: 2800 g (6.2 lbs)
Wingspan 1130mm / 44.5in
Length 1325mm / 52.2in
Flying Weight 2800g / 98.77oz
Power System 3748-1450Kv
Speed Control 130A ESC, 8A UBEC, EC5 Connector
Propeller / EDF 90mm Metal EDF with 12 Blade Fan
Servos 9g hybrid gear reverse with 300mm lead : nose gear door, nose gear steering
17g metal gear standard with 550mm lead : left aileron, right aileron, left flap
17g metal gear reverse with 100mm lead : right elevator
17g metal gear standard with 100mm lead : left elevator
17g metal gear standard with 300mm lead : rudder
17g metal gear reverse with 550mm lead : right flap
Landing Gear Full metal retractable main and steerable nose gear with shock absorbing struts
Required Battery 6S 22.2V 5000mAh 35C LiPo

Variants

FJ3051
Stinger 90 (Red White)
