Vulcan 70 from Freewing Model

Details

This version of the Freewing 70mm Vulcan arrives with a 2849-2550Kv outrunner brushless motor and 12-blade EDF for 4S power, instead of the 6s power of the Vulcan Pro version. The decal set as shown is included in the box, but un-applied. Customers may choose to apply this decal set, or to customize their aircraft with paint or another decal set as they see fit.

Introducing Freewing's latest sport jet, the Vulcan 70! Envisioned as a multi-role aircraft for both novice and expert pilots alike, the Vulcan 70 is optimized to deliver excellent all-around performance in an economical and everyday flier. Fine tune every maneuver in the book with the Vulcan 70's precise handling, an efficient 4S outrunner powerplant up to the task, and lightweight steel wire retracts.

Features:

  • 2849-2550Kv outrunner brushless motor and 12-blade EDF for 4S power
  • Optimized ducting that eliminates the need for a cheater hole
  • Pre-installed electric retracts with steel wire struts
  • Removable wings with quick disconnect wiring plug
  • 1050mm wingspan and 1180mm length
  • Magnetic removable nose cone with plastic cap for improved durability
  • Decals included in the box that you can either choose to apply or add your own custom scheme

Description and Pictures from Motion RC

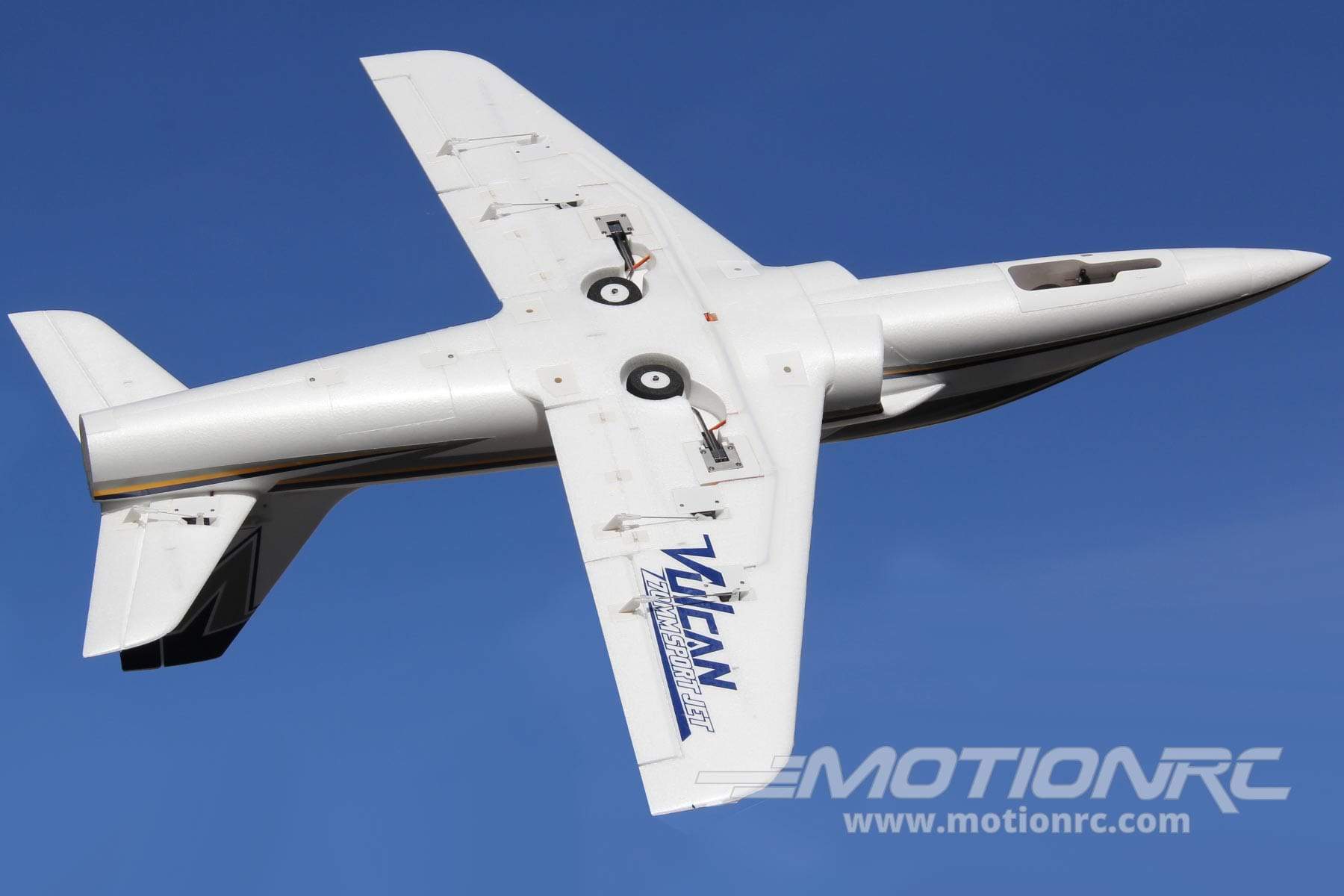

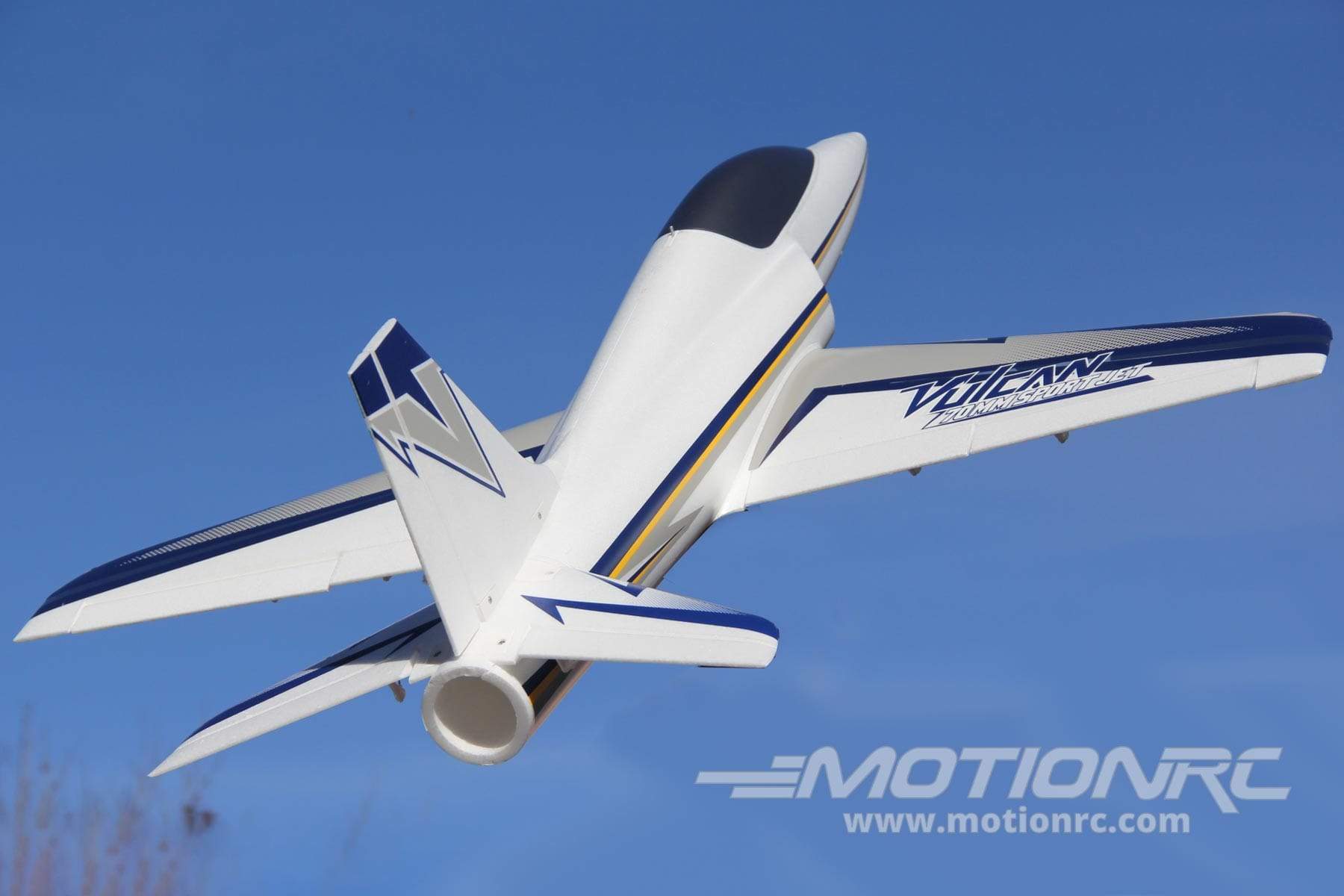

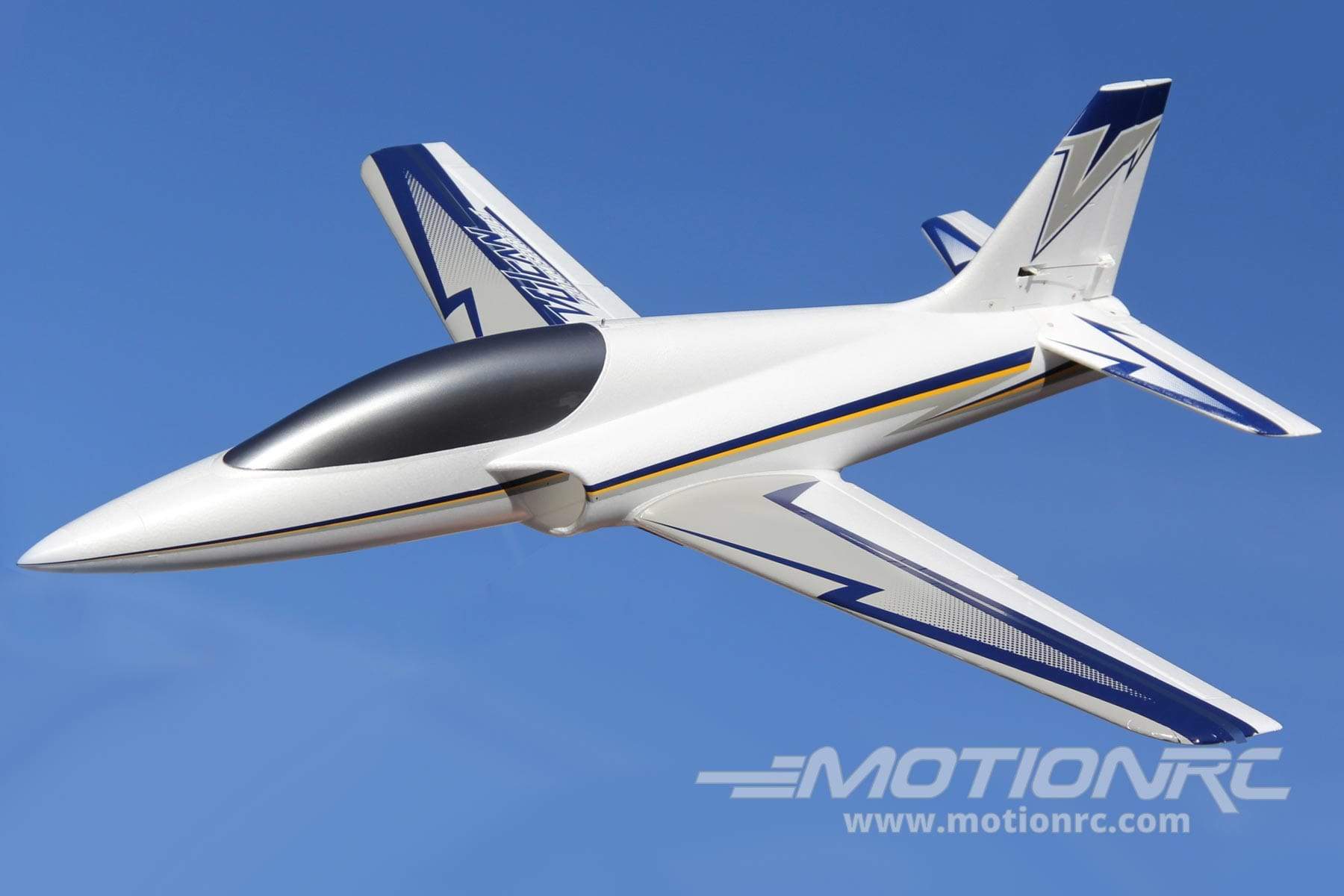

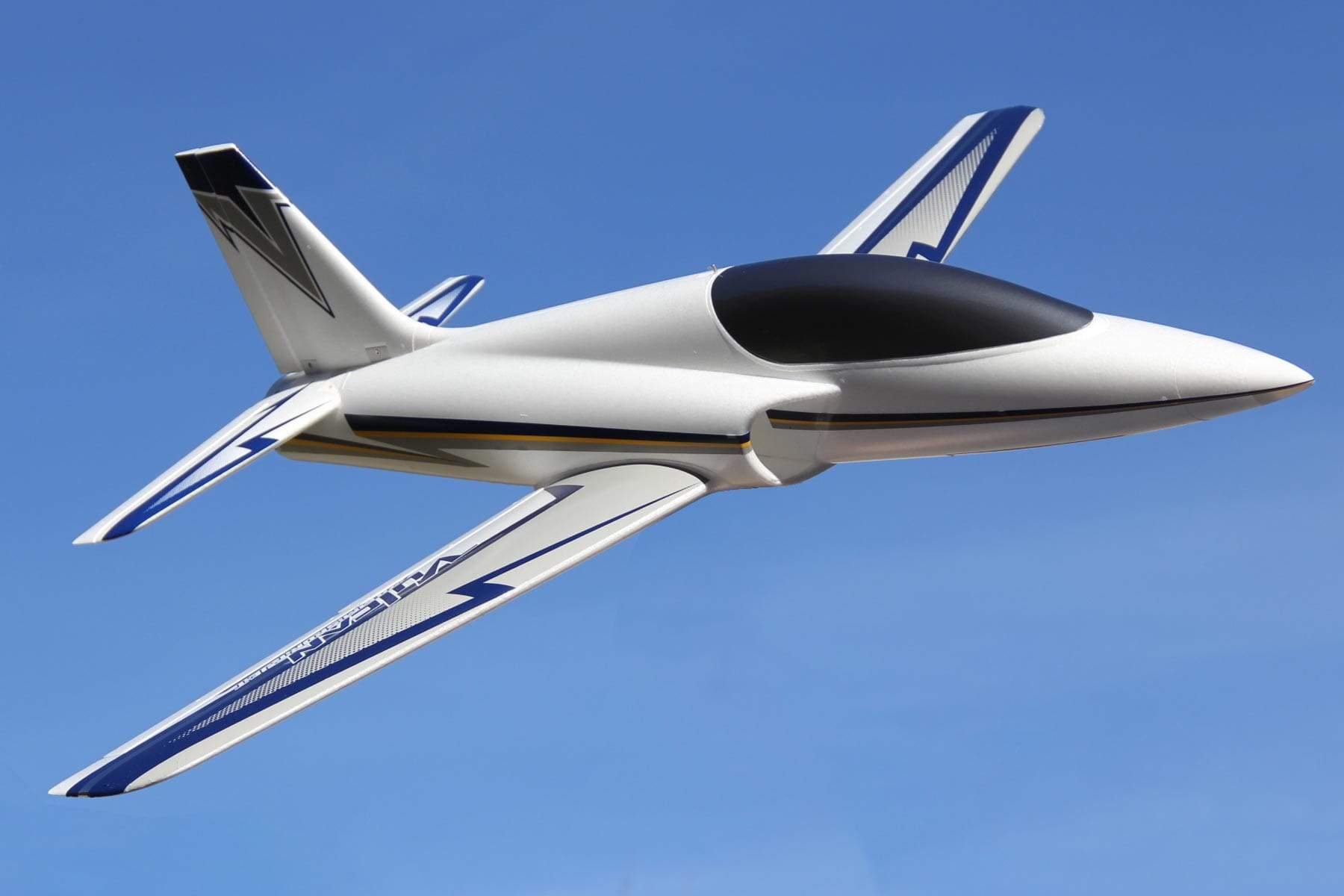

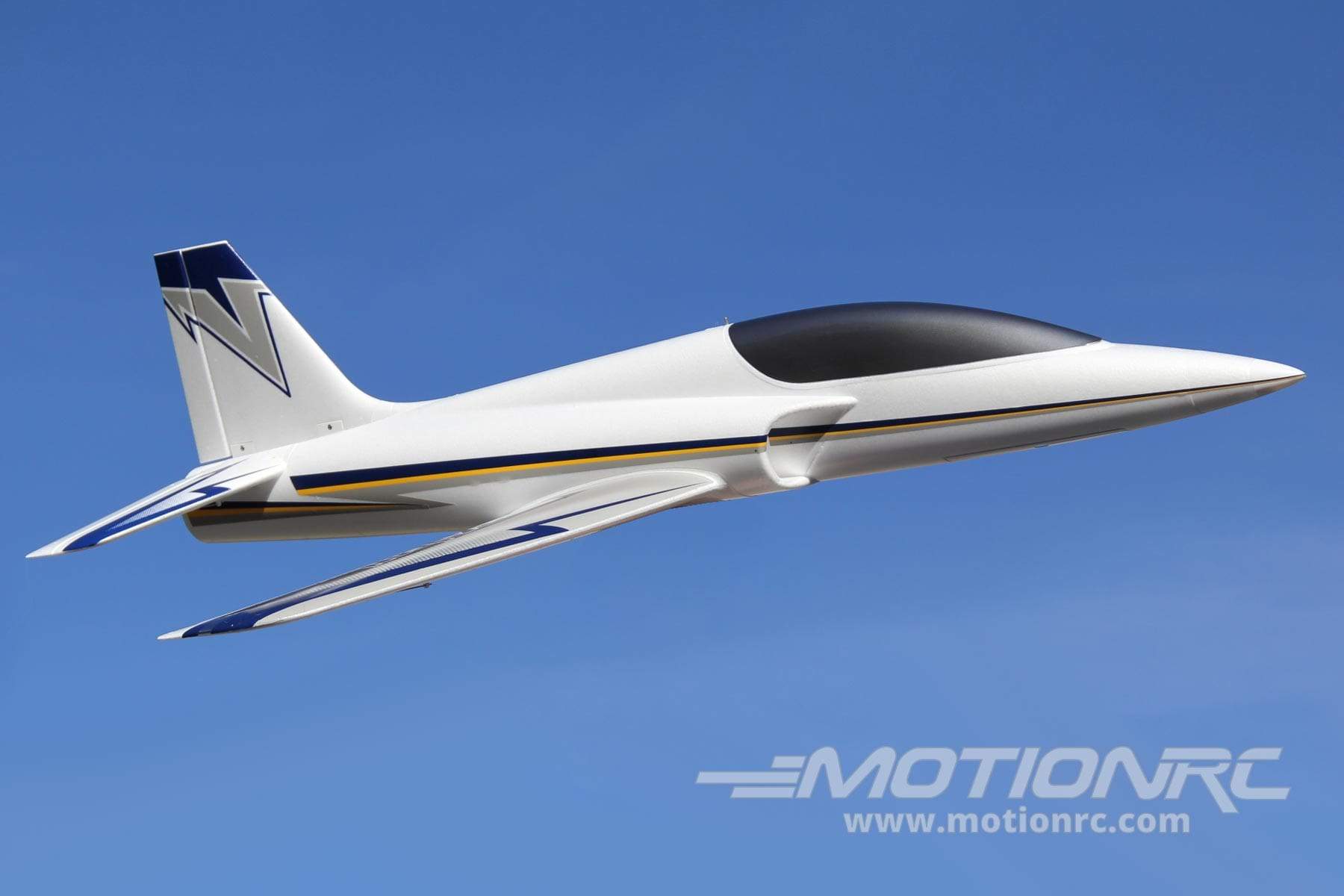

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Vulcan 70 in particular but at least we know they do distribute Freewing Model.

Where to buy

Netherlands
Motion RC B.V.
check web site
Ship to: Europe
USA
Motion RC LLC
check web site
Ship to: USA
France
Turbines RC
check web site
Ship to: Worldwide
France
miniplanes
check web site
Ship to: France
Hong-Kong
RC-Castle
check web site
Ship to: Worldwide

Wingspan: 1050mm (41.3 in)
Length: 1180mm (46.5 in)

Weight: 1380 g (3 lbs)
Wingspan 1050mm / 41.3in
Length 1180mm / 46.4in
Empty Weight 1380g / 48.6oz
CG (Center of Gravity) 98mm from the leading edge of the wing's root
Power System 2849-2550Kv brushless outrunner motor (installed)
Electronic Speed Control 60A (installed)
Propeller / EDF 70mm 12-Blade EDF (included)
Servos
  • 9g digital plastic gear standard with 600mm lead: left aileron, right aileron, left flap, right flap, rudder, nose gear steering - MD31091-600
  • 9g digital plastic gear standard with 800mm lead: left elevator - MD31091-800
  • 9g digital plastic gear reverse with 800mm lead: right elevator - MD31091R-800
Landing Gear Electric retractable (included)
Required Battery 4 Cell 14.8V 5000mAh LiPo battery with XT60 Connector (required)

Variants

FJ21921P
Vulcan 70 (White Blue)
