Vertigo from GCM

Details

Several years in development this model has been extensively prototyped and tested in Europe and the USA.
The airfoil is a modified SynergJ section and features a hybrid of the latest construction techniques.
Several iterations of wings, tails, and fuselages were designed prototyped and tested before the final version was put into production.

Construction:
Bladder/Pressure molded carbon fiber 2-piece fuselage
The wing uses a hybrid construction following the latest construction techniques in composite materials. It is delivered in 3 parts: the solid core molded in carbon fiber wing tips (and tails) are very stiff and lightweight reducing mass where it is most important. The Center panel* is also solid core: it has a light weight Rohacell® main panel and harder Rohacell® ailerons and flaps for added durability. The wing airfoils are from the modified SynergJ suite.
* Except Storm version hollow molded Center panel

Quality:
Low production quantity by master craftsmen, top competitors, means a greater level of attention to detail
Extremely durable and accurate CNC aluminum molds. All parts come from CNC aluminum molds that are second to none in quality and finish
Extreme post cure temperature (80°C) and duration on all parts insure surfaces remain smooth and glossy even with prolonged exposure to heat and direct sunlight

Flying Characteristics

  • Very easy to fly with low pilot workload
  • Fantastic penetration even at low flying weights
  • Turns very tightly and predictably in thermals
  • Very mild stall characteristics
  • Wing responds very well to camber changes

Features

  • Unique 2 piece fuselage. Boom is retained by rear wing bolt
  • Quick connect Elevator means rapid field assembly
  • Elevator and Rudder servos mount horizontal on "pad" in boom using servo frames
  • Massive wing joiner dimension are supremely durable and stiff while being very light weight
  • Wiring for center panel
  • Large moving surfaces on wing allow for less overall movement to achieve desired directional and camber changes without huge drag penalties
  • Breaks down into compact package for transport

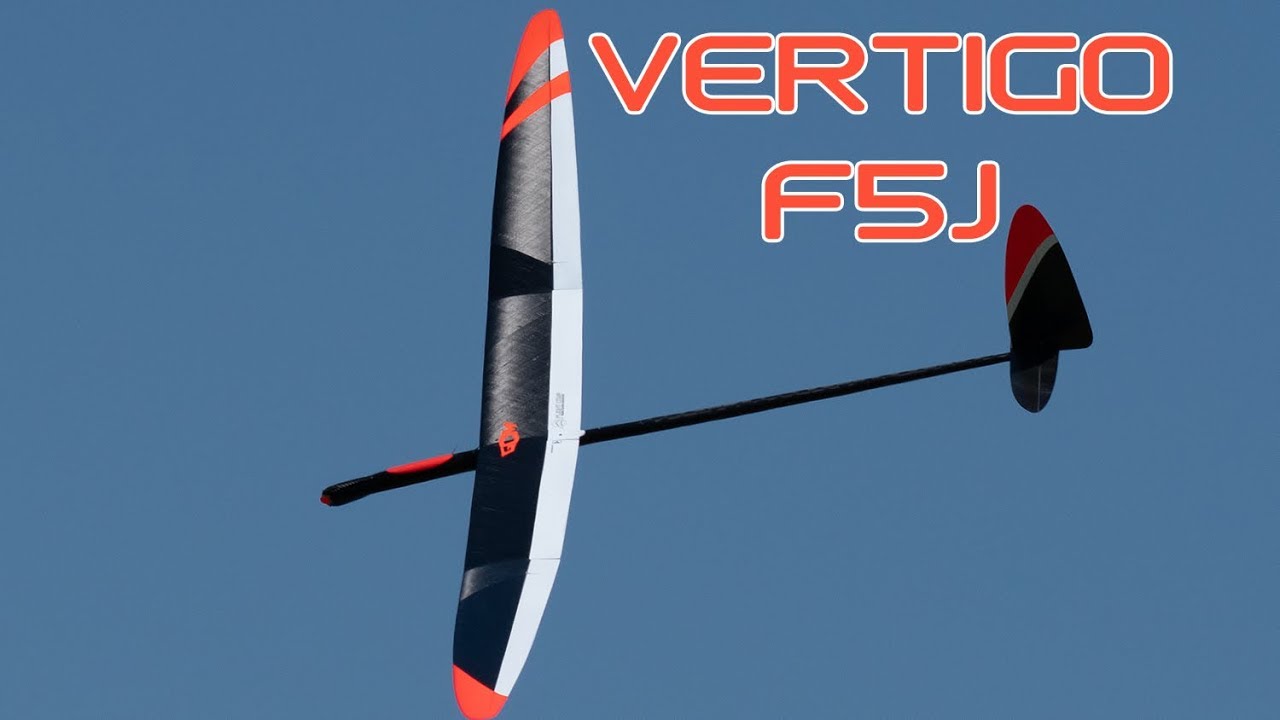

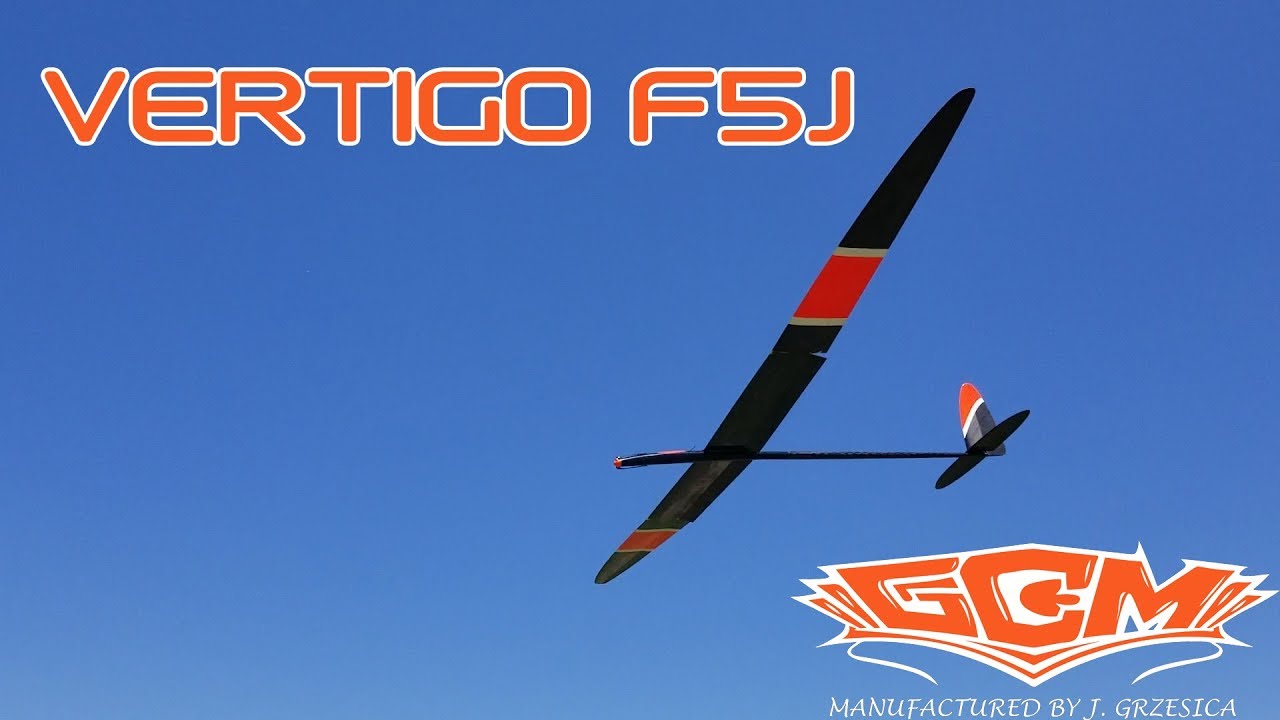

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E

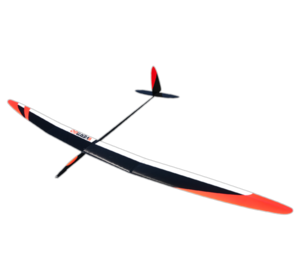

FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Vertigo in particular but at least we know they do distribute GCM.

Where to buy


Wingspan: 3935mm (154.9 in)
Length: unknown

Weight: 1500 g (3.3 lbs)
  • Wingspan: 3935mm
  • Wing area: 78.9dm2
  • Horizontal stab area: 7.5dm2
  • Total area: 86.5dm2
  • Vertical stab area: 5.5dm2
  • Wing aspect ratio: 19.6
  • Super Light version FAI limit 1050gr (+50gr/-0gr and can vary depending on equipment) - ballast up to 165gr
  • Standard version 1300gr (+/- 50gr and can vary depending on equipment) - ballast up to 285gr
  • Windy version 1500gr (+/- 50gr and can vary depending on equipment) - ballast up to 600gr
  • Storm version 1700gr (+/- 50gr and can vary depending on equipment) - ballast up to 1200gr

Recommended Equipments:

  • 70-80 gram motor (light)
  • 90-120 gram motor (strong)
  • 35-40 amp esc (light)
  • 45-60 amp esc (strong)
  • BMS-115/MKS-6110 for elevator, flap (light)
  • KST-X08/X08 plus for rudder, aileron (light)
  • KST-X10mini/MKS-6130 flap (strong)
  • BMS-115/MKS-6110 for elevator, rudder (strong)
  • BMS-115/MKS-6110 for ailerons (strong)
  • 3S 800-900mah flight pack
  • 3S 1100-1200mah flight pack to move CG forward in moderate wind
  • 30-32mm spinner

Settings

  • CG at sea level 110-115mm from LE
  • CG above 900m sea level 105-10 from LE
  • Cruise Camber dead air 2mm (down)
  • Cruise Camber active air 0 (in section)
  • Speed 3-4mm reflex (up)
  • Thermal-1 4mm camber (down)
  • Thermal-2 8mm camber (down)
  • Thermal camber max 9mm camber (down)
  • Camber above 900m seal level, cut aileron camber to half that of flap camber in all modes
  • Max aileron throws (limits) +- 15mm
  • Max flap throws +8mm -max down (80-85degree down travel)

Variants

vertigo-br
Vertigo (Black Red White)
