Goblin 580 Kraken Nitro from Goblin Helicopters

Details

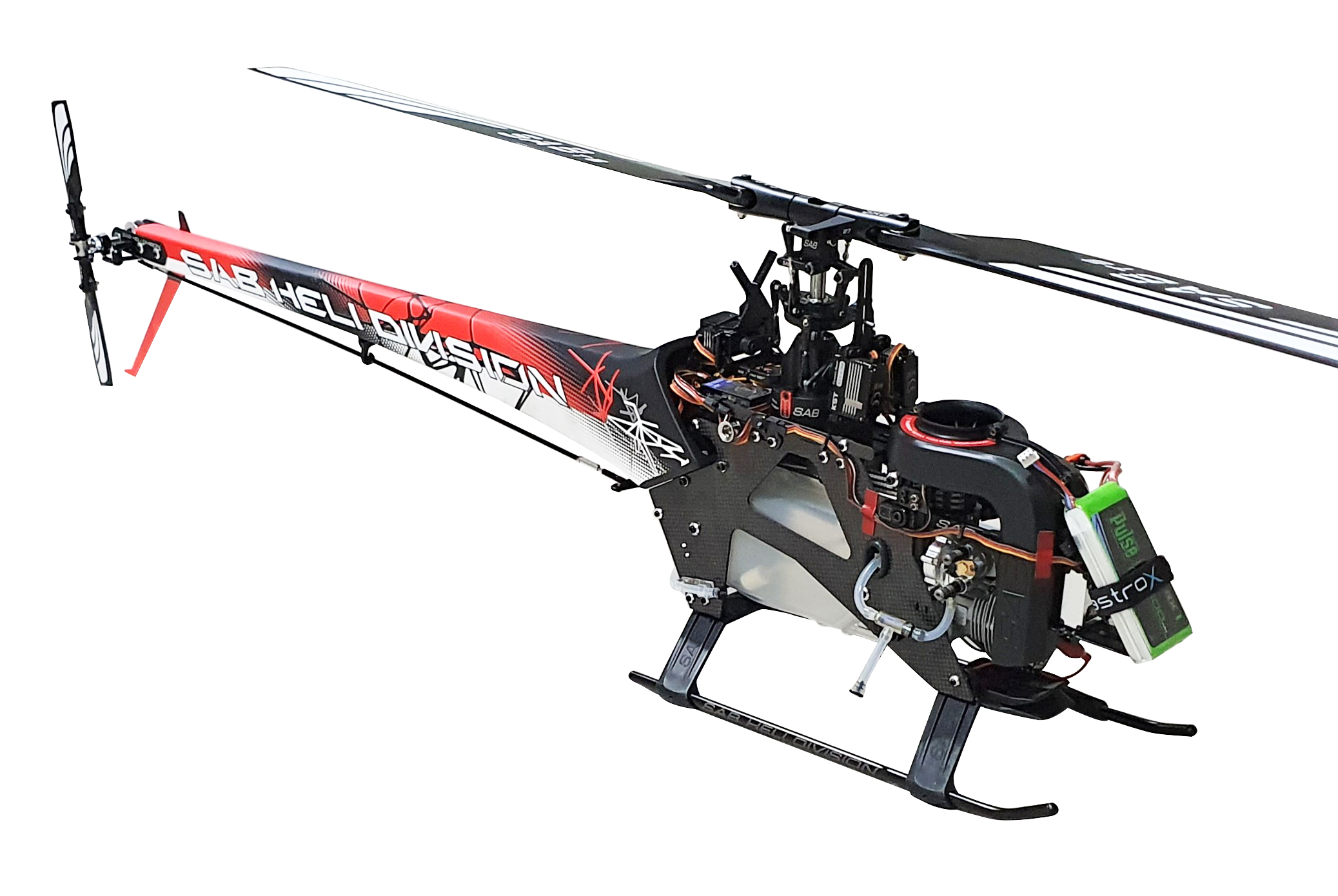

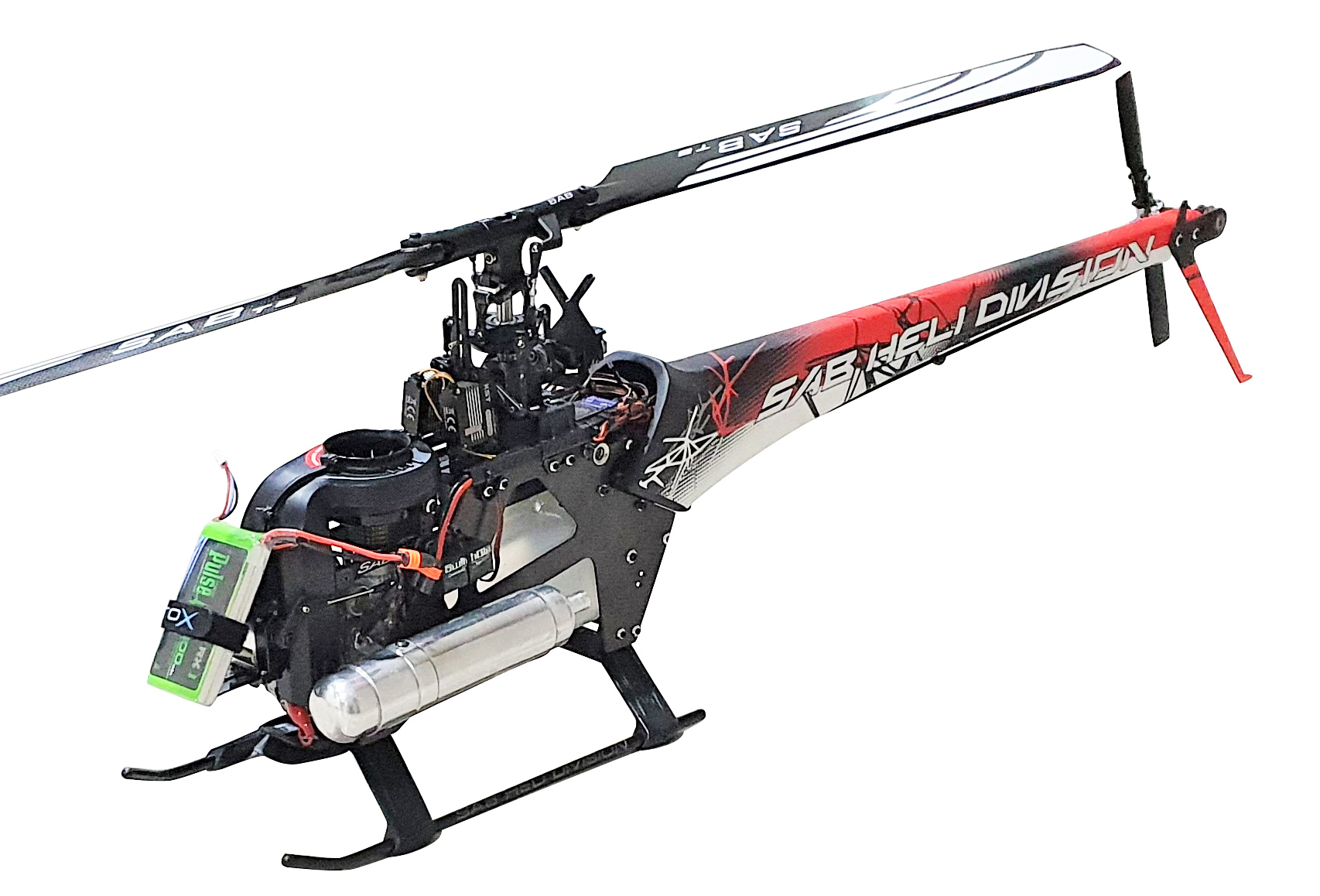

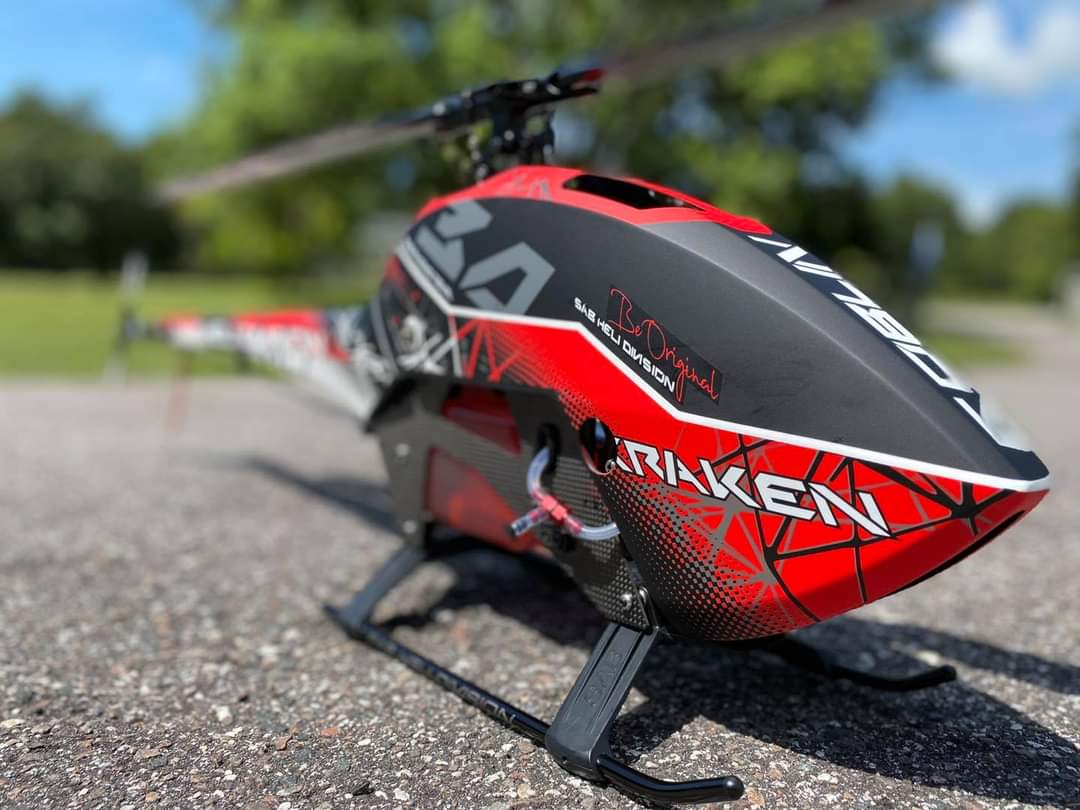

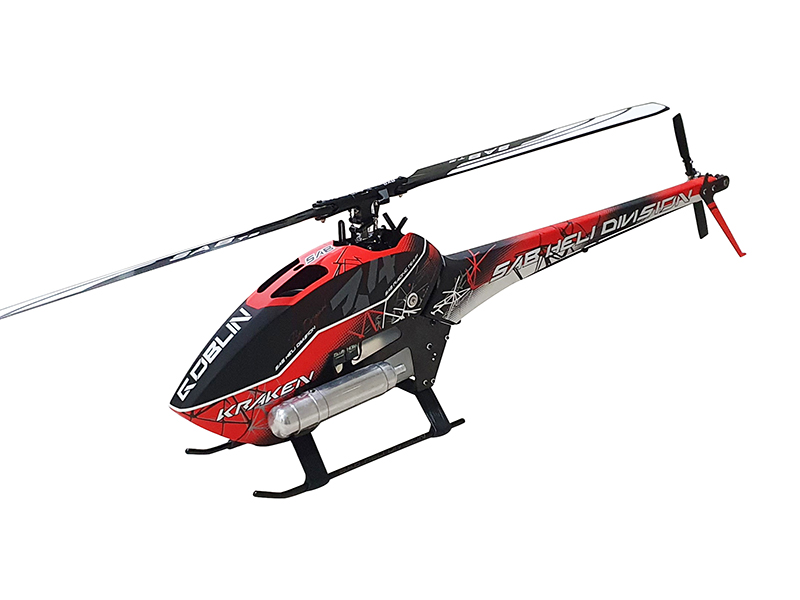

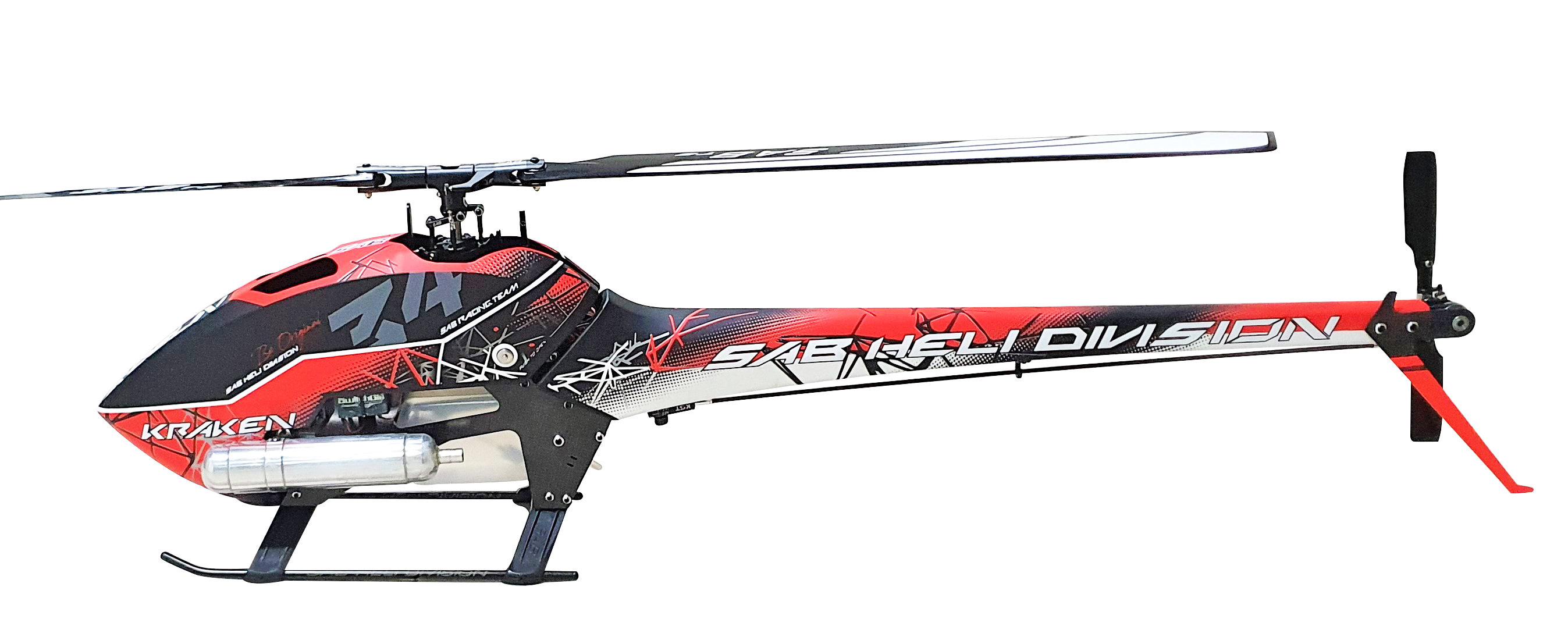

The SAB Goblin 580 Kraken Flybarless Nitro Helicopter Kit is the third helicopter design featuring the latest "separated transmission style" that originally debuted on the Kraken 700 helicopter. Incredible bold styling, and legendary flight characteristics are packed into a smaller design - the Kraken 580!

Features:

  • Accepts 550-600mm Main Blades
  • Accepts 95-105mm Tail Blades
  • Utilizes Mini Cyclic Servos standard; full size servos possible with optional mounts
  • Utilizes Standard size Tail Servo
  • Wide variety of motor gearing with common available pulleys

Pictures

Manual

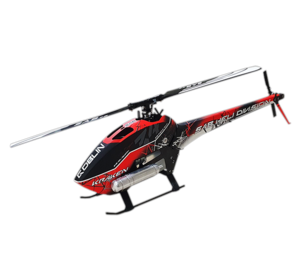

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1270mm (50 in)
Length: 1270mm (50 in)

Weight: 3090 g (6.8 lbs)
  • Main rotor diameter:  1270mm (w/Included 570mm Main Blades)
  • RTF Approx. Weight: 3090 grams (no fuel)
  • Main blade length: 550mm to 600mm (570 mm included)
  • Tail blade length: 95 to 105 mm (95mm included)
  • Cyclic Servos: Mini size 35 mm (Standard size 40mm option)
  • Tail Servo: Standard size 40mm
  • Main Rotor Ratio: 7.98 to 7.4 :1 (26T included: 7.98:1)
  • Tail Rotor Ratio: 5.3-4.9:1 (23T included: 4.9:1)
  • Engine: .50 to .60 Nitro Heli Engine
  • Tank size: 440ml
  • RX battery size: 2S -1800 mAh
