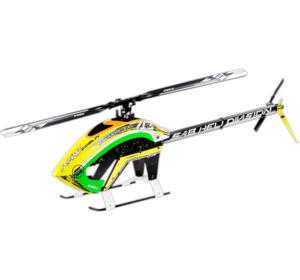

Goblin RAW 580 from Goblin Helicopters

Details

The new RAW 580 use the same module from Kraken 580.

  • Incredible strong Power train enclosed in aluminum case,
  • Ultra light 7075 aluminum alloy highly adjustable rotor head with super simple Tail group,
  • Aluminum Boom 30 mm
  • Easy maintenance
  • Main blades up to 600mm.

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Goblin RAW 580 in particular but at least we know they do distribute Goblin Helicopters.

Where to buy

Austria
Heli Shop
check web site
Ship to: Europe
USA
AMain Hobbies
check web site
Ship to: USA
Australia
Perth RC
check web site
Ship to: Australia
USA
Esprit Tech Model
check web site
Ship to: USA
Ireland
Model Heli Service
check web site
Ship to: Ireland

Wingspan: 1290mm (50.8 in)
Length: 1290mm (50.8 in)

Weight: 2710 g (6 lbs)
  • AIRFRAME weight: 1740gr ( with S580 blades, no battery, no electronics )
  • Main blade length: 550mm to 600mm
  • Tail blade length: 95 to 105 mm
  • Main rotor diameter: 1290 mm (with 580 mm blades included)
  • Tail rotor diameter: 260 mm (with 95 mm tail blades included)
  • Cyclic Servos: mini cyclic servo (torque over 8 Kg-cm). Kit includes servo mounts for mini-servos. Full size servo mounts available separately.
  • Tail Servo: standard size 40mm.
  • Main Rotor ratio : 11.5 to 8.6 :1 ( 22T included: 9.4:1)
  • Tail Rotor ratio : 5.3-4.9:1 ( 23T included: 4.9:1 )
  • Typical motor : 4025 series, 6S 1000-1200 Kv, 12S 500-600 Kv. Minimum motor shaft length is 26mm (We recommend using a 6mm diameter motor shaft)
  • Typical speed controller: 6S 120-140 A, 12S 100-130A
  • Battery size: 6S 5000/5800 mAh, 12S 2600/3200 mAh.

Variants

SG583-YG
Goblin RAW 580 (Yellow Green)
