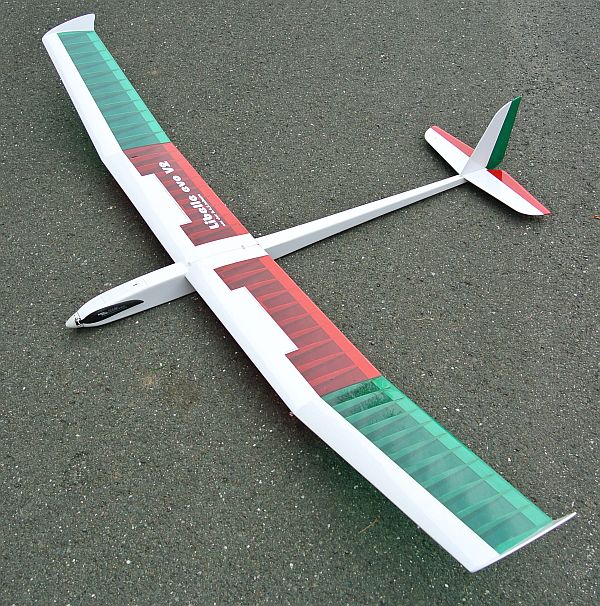

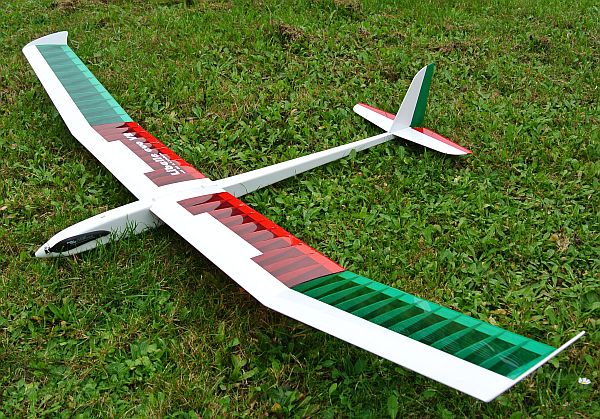

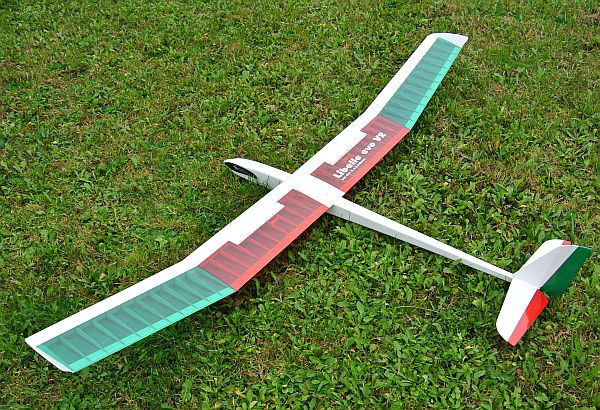

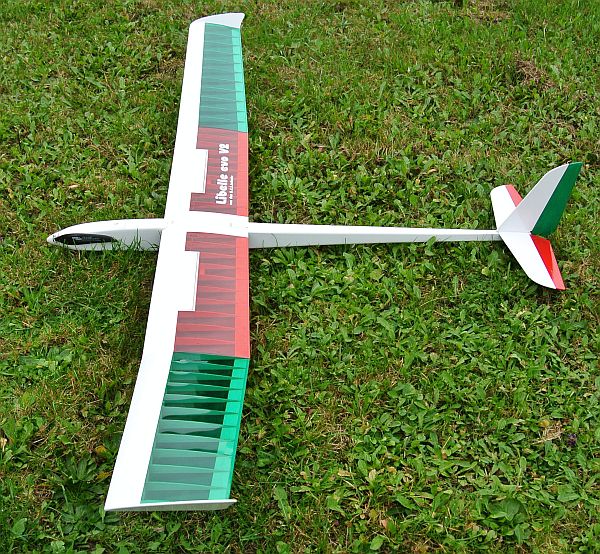

"You'd like to have a new plane, your wife (girlfriend, etc...) impose several conditions to this new model? It shouldn't be too large, so that there still is enough room in the trunk for other things. Further it should have calm flight characteristics, so that YOU can relax during the flight. The plane has to be constructed quickly, so that you don't have to spend that much time in the cellar or hobby room, and, last but not least, it must not endanger the installments for the new kitchen either! Honestly: do you also already have the fifth glider, which needs 200 meters obstacle-free area for the approach and a flat airfield for landing of at least 100 meters? Our Libelle lands in your hand, if you like! You won't be able to avoid being fascinated by the flight characteristics and the quality of the components (lasered)! With light wind you can fly our LIBELLE EVO V2 for a couple of hours...everywhere you like!
Of course MADE IN GERMANY - as usual! You take a lasered rib-set, push the root rib into the rib-set and then into a lasered fuselage side … or the main spar into the precisely lasered recess of the ribs … or the lasercut rudder into the intended fit of the lasercut elevator … and you will share our enthusiasm for the first model of our (at the time) CNC-manufactured model line (original Libelle since 1993!). In April of 2002 the manufacturing of our LIBELLE EVO at LÖSER-CNC was taken over by GRUENER CNC service (those with the CLIMAXX, THERMAL INSTINCT, SOPWITH PUB ...). The construction had been modified carefully (we don't want to impair anything in the end) and optimized. The rudder and the elevator form an interlocking framework with the fuselage, so that construction errors are excluded. The wings consist of shear webbed pine spars, which preset the dihedral. A device for the vertical alignment of the ribs is included. The frames are now interlocked with the fuselage sides. The new construction plan (now multicolored! in the top quality of GRUENER, as usual) and a new, detailed, fully illustrated manual with perspective drawings make the previous equipment complete.

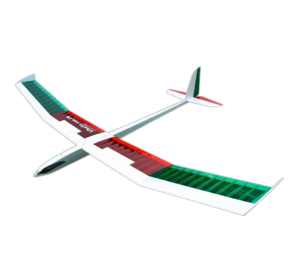

FrSky X20
