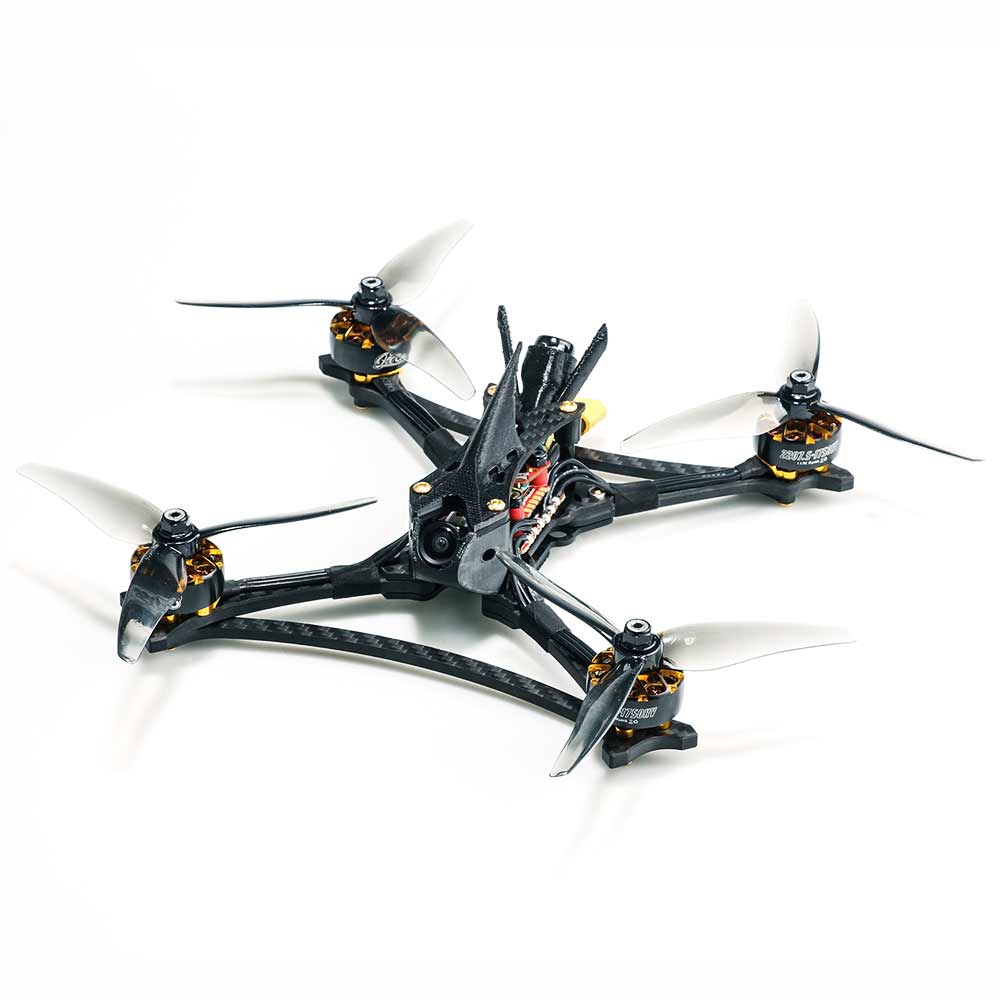

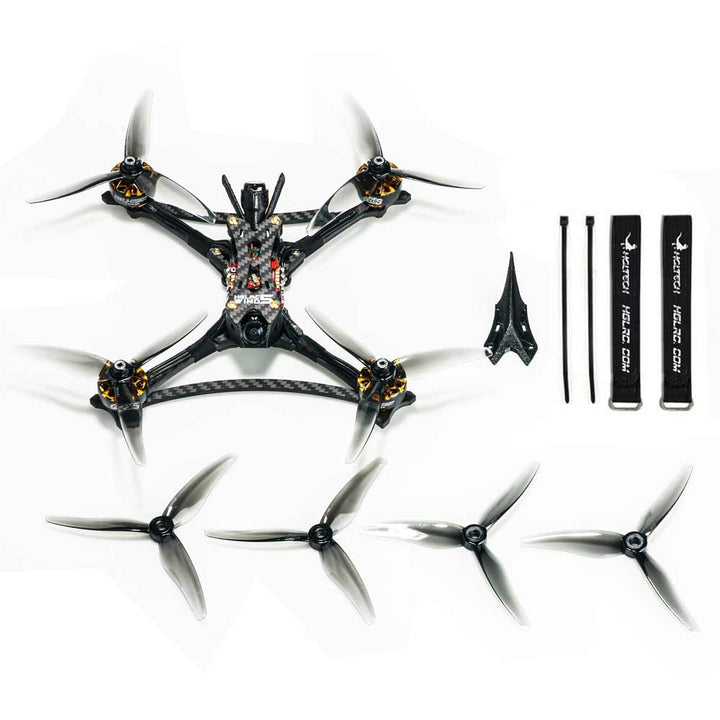

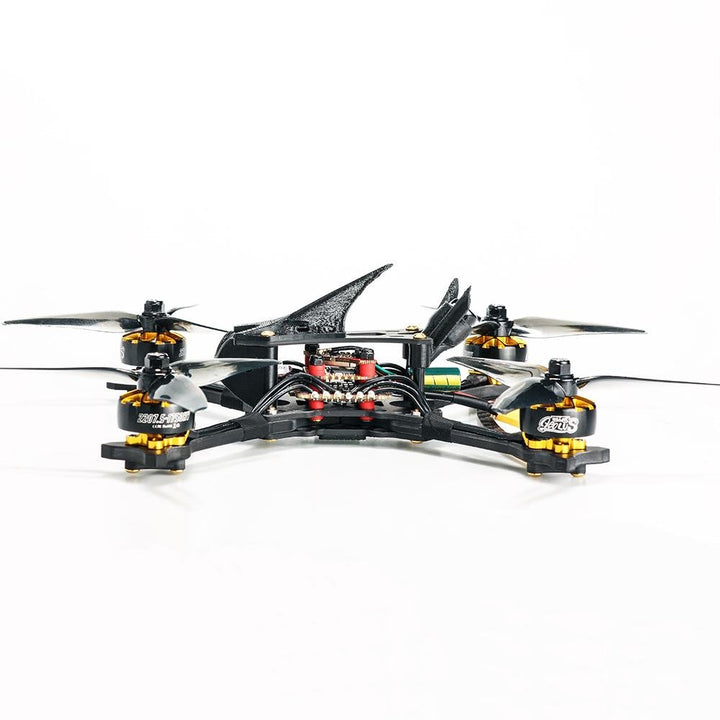

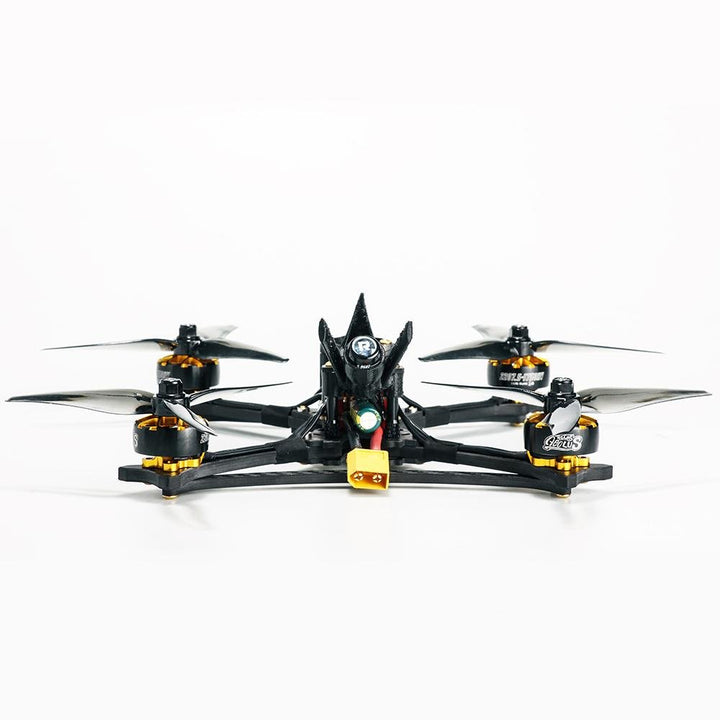

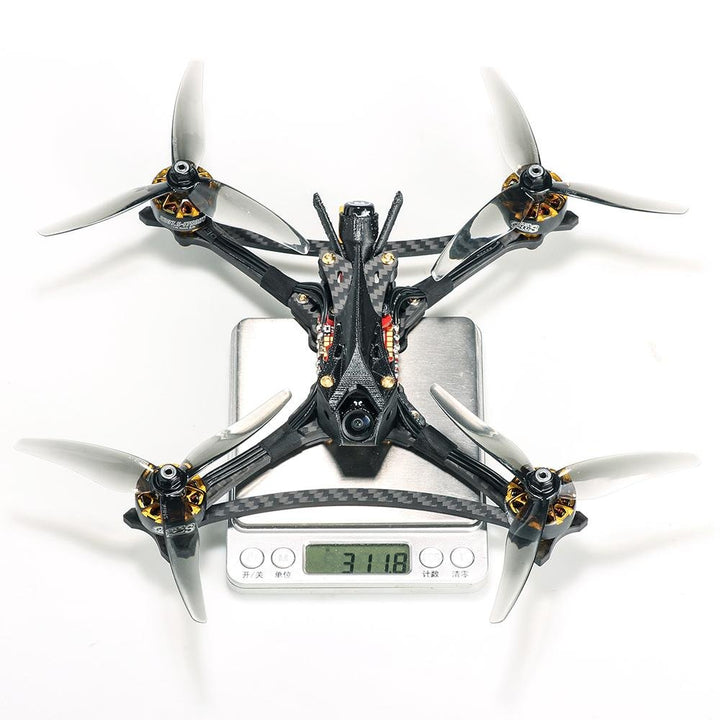

Wind5 lite from HGLRC

Details

Video

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Wind5 lite in particular but at least we know they do distribute HGLRC.

Where to buy


Wingspan: 208mm (8.2 in)
Length: 208mm (8.2 in)

Weight: unknown
  • Wind5 Lite Frame 5 inch
    • Type:5" frame
    • Wheelbase:208mm
    • Support for propellers:up to 5.2 inches
    • Size:148 * 148mm
    • Power plug:XT60
  • Zeus F722 mini Flight Controller
    • MPU: BMI270
    • FC firmware:BF HGLRCF722
    • Input Voltage:3-6S Lipo
    • BEC Output:5V/2A,9V/1A
  • Zeus 45A V2 BL_S 3-6S 4in1 ESC
    • ESC firmware:BL_S (F-H-40)
    • Input Voltage:3-6S Lipo
    • Steady Current:45A
    • Peak Current:55A(10 Sec)
  • Zeus nano 350mW VTX
    • Output power:PIT/25/100/200/350mW
    • Input voltage:DC 5V
  • FOXEER Predator NANO 5 FPV Camera
    • Image Sensor:1/3 1000TVL CMOS
    • Lente:1.7mm
    • Input Power:DC 5V
    • Dimensions:14mm*14mm

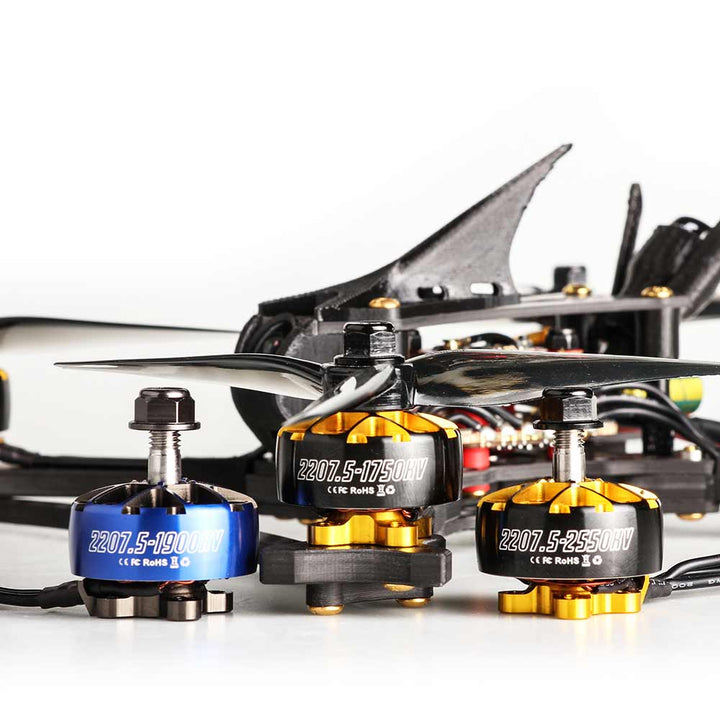

  • AEOLUS 2207.5 Motor
    • Motor:KV1900(6S)/KV2550(4S)
    • Recommended Prop(inch):5Inch


Variants

WIND5L
Wind5 lite (Black)
