Wiki F3L from HPmodel

Details

The WIKI is Tomas Hlavinka's latest fourth generation 2m F3L RES model. It has received great feedback from its test pilots and has already shown excellent competition results in testing.

The model was developed in cooperation and coordination with several top pilots and aerodynamicists. It is the ultimate F3L RES model for the 2021/2022 season, and WIKI draws on the experience of four years of development, production and operation of the first model called KIWI, important customer references and the knowledge of competition and recreational pilots from all over the world.

The fuselage has a minimal cross-section for the lowest possible drag. The wing is of geodesic construction, which allows for maximum stiffness. This contributes, among other things, to better high take-off altitudes and neutral behavior in turbulent and high-temperature air. The optimized edge bow reduces the induced drag.

The model can be built lighter with the same strength/stiffness. New airfoils inspired by the latest airfoils of the F5J category, manufactured with FullCore technology and then modified for the F3L RES regulations/allowed construction. The focus was on improving penetration, which inevitably led to a reduction in airfoil thickness and depth.

The resulting airfoil generates less lift, so the airframe weight had to be reduced. With the potential of conventional construction now fully realized, the decision was made to use a unique and previously unused geodesic rib design. This process increases the required wing stiffness by an order of magnitude. The result is a lighter airframe with greater stiffness, a thinner wing profile for high penetration, and a shallower wing depth for lower drag.
La distribution des profils le long de l'aile garantiit une capacité de glisse maximale même avec un poids et une stabilité de vol très faibles lors de la circulation sans interventions de commande majeure.

The first comparisons already showed that the new model can keep up with the KIWI in dead air thanks to its lower weight and despite its smaller surface area. In active air, however, the WIKI is even better and more versatile thanks to its greater penetration. The two separate spoilers do not affect the model's flight characteristics when landing, even at low speeds. Spot landing is thus precise and no wild elevator

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Wiki F3L in particular but at least we know they do distribute HPmodel.

Where to buy

Austria
Zeller Modellbau
check web site
Ship to: Europe

Wingspan: 2000mm (78.7 in)
Length: 1120mm (44.1 in)

Weight: 420 g (14.8 oz)
  • Wingspan: 2000 mm
  • Length: 1120 mm
  • Weight: 370 to 420 g
  • Wing Surface: 38 dm²

Variants

WIKIF3L

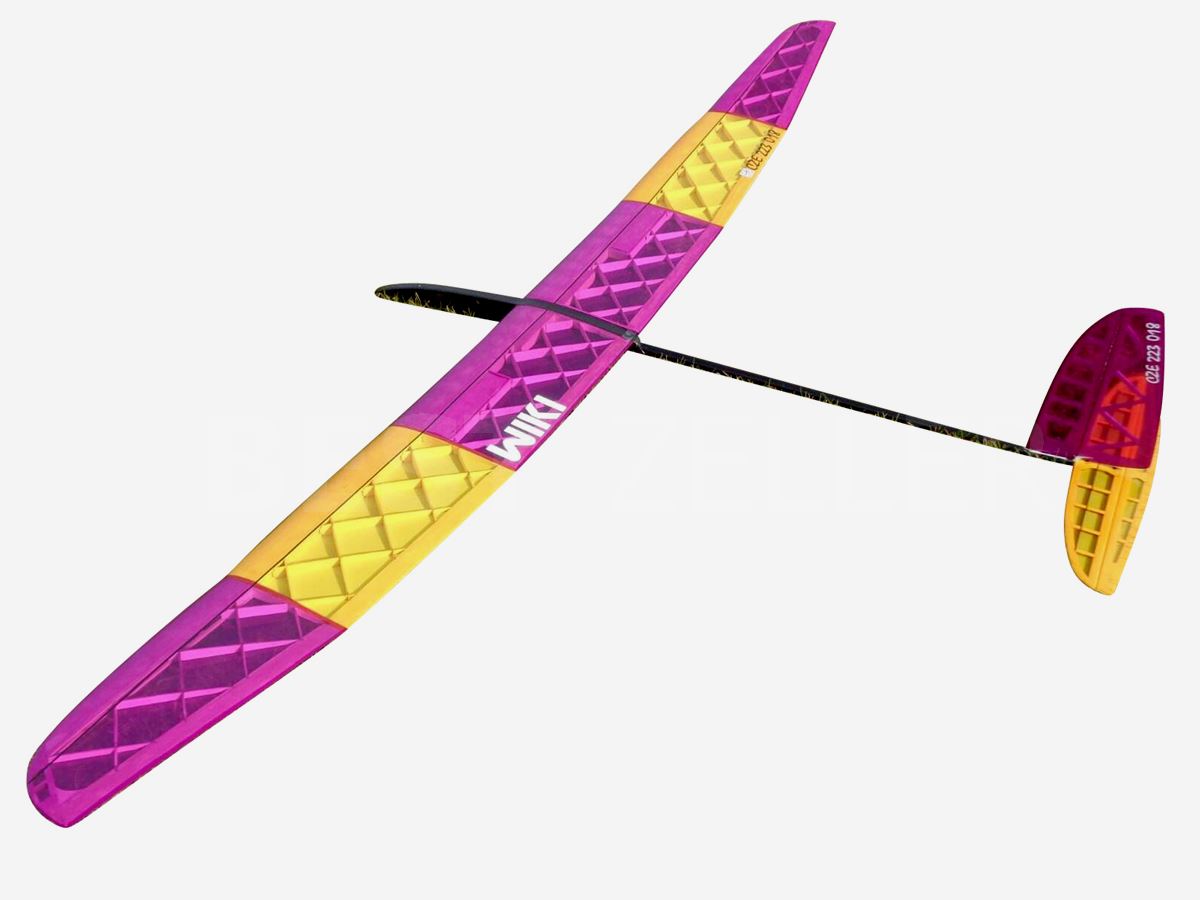

Wiki F3L (Yellow Pink)
