Monsun from Tomahawk Aviation

Details

The airplane is designed with an HQ/W-2.5/9 profile. The aircraft is both very agile but also very friendly in theraml consitions. The flight performance is being supported by a total weight under 3kg. The construction of the wing is very robust around a foam core with abachi planking and reinforced wing joines. This allows you to fly high speed maneuvres under high load without any problem.

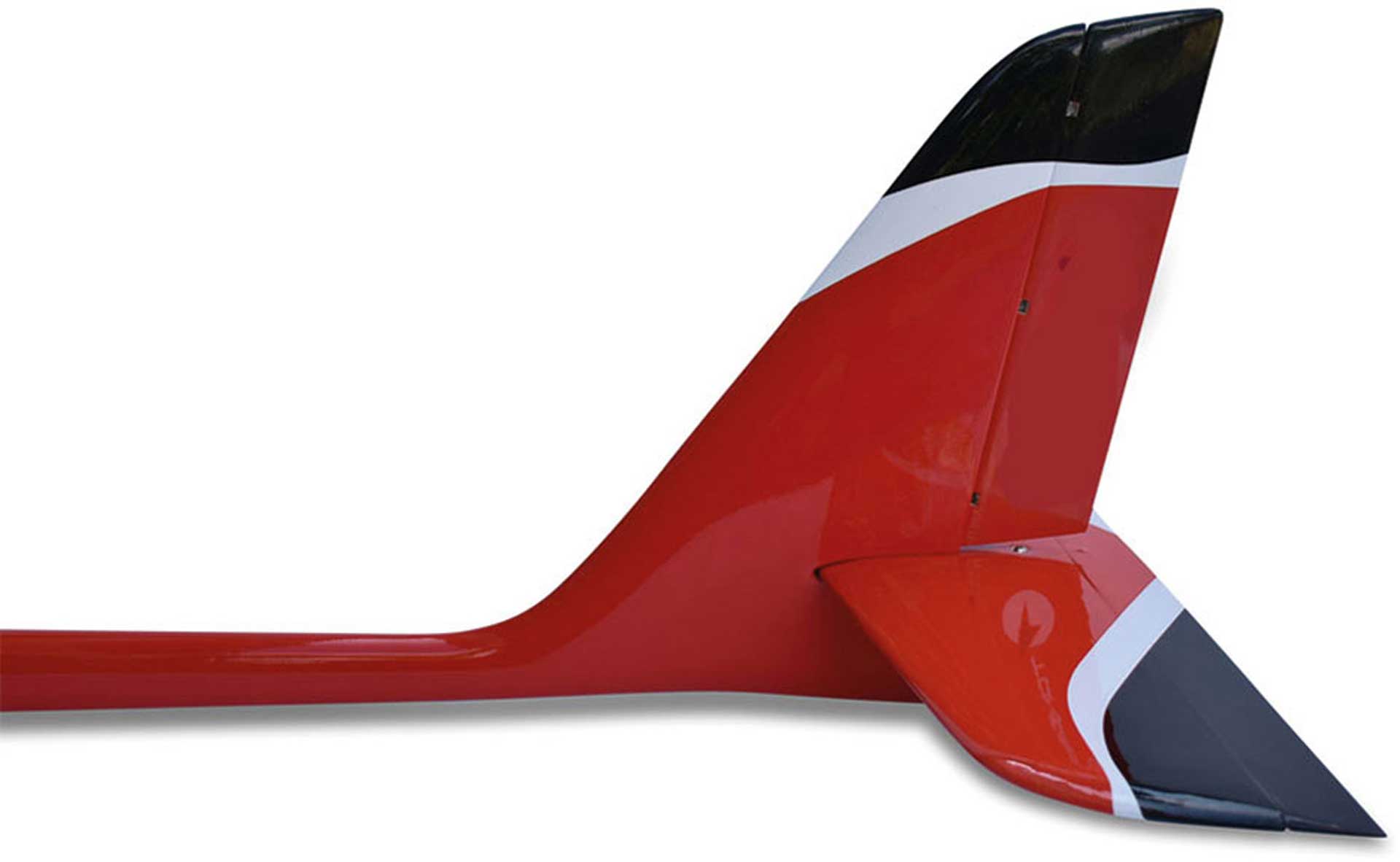

The enlarged vertical stabilizer and rudder as also a well dimensioned vertical stab and rudder are responsbile for stability in fast flight but also agility in small thermals. The control and potential of the aircraft ist phenomenal.

The aircraft is designed for a large envelope of speeds. It can go crazy fast but also extremely slow especially when setting the flaps. It is always lots of fun to come in for a low and slow landing. The speed range makes this model a perfect fit for the ambitious club level pilot.

The completion level PnP is a real advantage to your budget in time. Nasty and sometimes trick installments are already done by us. Winglocks, servos, motor and wiring are done. All you need to add is an ESC of your choice and your receiver. You can be in the air in less than 2 hours. How great is that? We call it awesome because we enjoy being in the air.

Features:

  • FRP fuselage fully painted and reinforced by carbon fibre
  • two piece wing, reinforced by 80g/sqm fibreglass, carbon fibre reinforcement around the wing joiner
  • one piece main spar in sandwich technology, carbon fibre/wood/carbon fibre
  • all surfaces covered with Oracover
  • modern design and decoration
  • ailerons and flaps connected through covering
  • steel wing joiner
  • fuselage with large canopy and installed vertical reinforcements
  • good thermal perfomance, sporty allrounder

Pictures

Manual

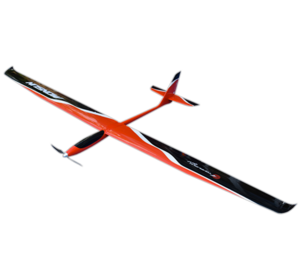

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 2990mm (117.7 in)
Length: 1440mm (56.7 in)

Weight: 2995 g (6.6 lbs)
Wingspan: 2990 mm
Flight weight approx.: 2995 g
Control: H,S,Q,M,WK
Length: 1440 mm
Fuselage: GFK
Wings: Styro/Fiberglass/Abachi
Rec. engine: Ro-Power 3526-870
Rec. Battery: 4S 3200mah
Version: PNP - PLUG N PLAY
