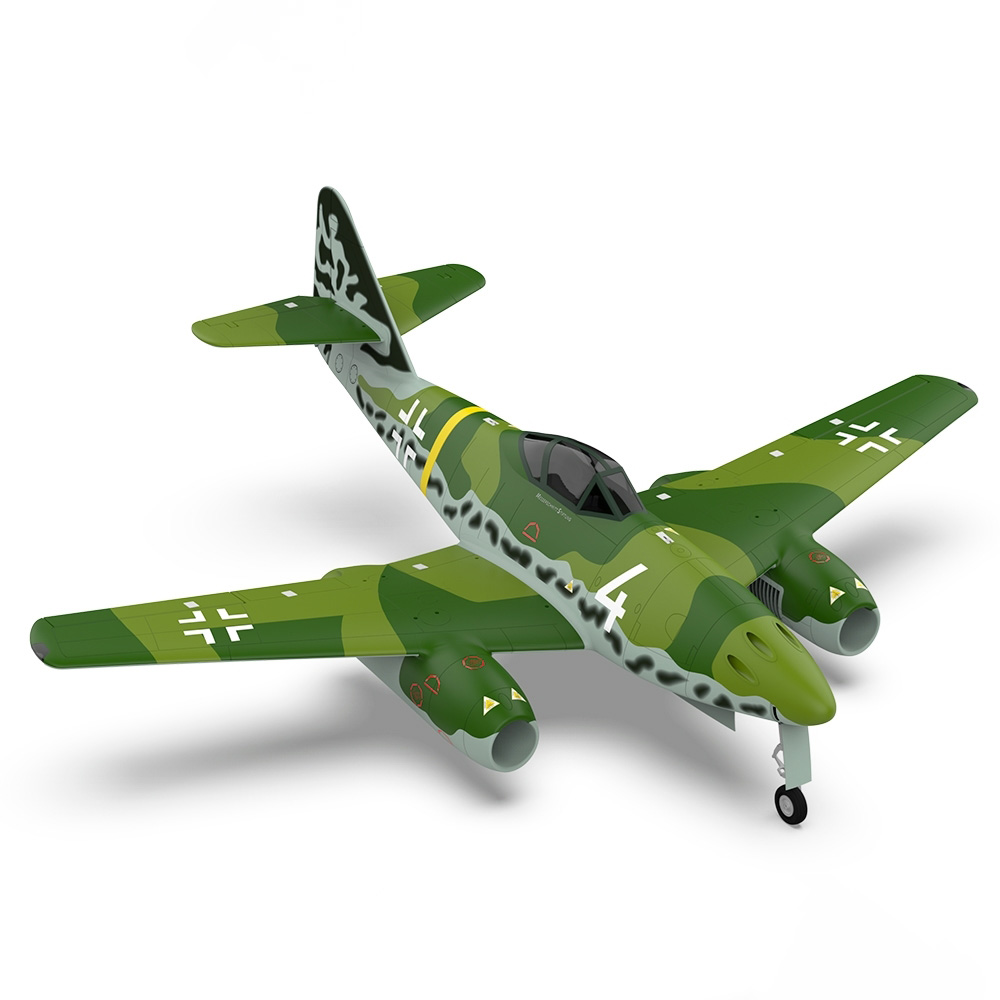

ME-262 from HSDjets

Details

HSDjets has invested in the independent development of an exclusive MFC-2085-DE control system to fully integrate the landing gear, various channel servos, power, lighting and other systems to reduce complicated wiring.

The whole machine is made of 35 times EPO and high-strength engineering plastics, with good crashworthiness.
The integral main wing, with carbon fiber rods and glass fiber rib frame embedded in the main wing, can significantly improve the strength and torque resistance.
The main wing, horizontal tail, vertical tail and fuselage are connected by high-precision integrated forming plug which is quick to assemble and reliable to connect.

The main wing navigation light adopts the international standard of left red and right green, and there are many kinds of flashing modes, such as fast flashing, slow flashing and constant lighting, which makes flying in the night more realistic and charming.

Referring to the angle of the real machine, the front landing gear is designed with 105 degree simulation, and the rear landing gear adopts 11mm diameter landing gear legs which are directly locked in the electric slot, so that the landing gear legs can withstand the impact of stronger force and not easy to bend.

CNC machining metal high simulation hydraulic shock absorber landing gear, higher strength, better damping effect.
The wheel is equipped with bearing and electromagnetic brake system, which makes the rotation more smooth and the brake more sensitive.

All servo angles are made of metal with high strength and zero virtual position.

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the ME-262 in particular but at least we know they do distribute HSDjets.

Where to buy

USA
Banana Hobby
check web site
Ship to: Worldwide
USA
RC Jet Werx
check web site
Ship to: USA
France
miniplanes
check web site
Ship to: France
Germany
FINAL-Modellbau
check web site
Ship to: Worldwide
France
Turbines RC
check web site
Ship to: Worldwide

Wingspan: 1890mm (74.4 in)
Length: 1626mm (64 in)

Weight: 7000 g (15.4 lbs)
Wingspan 1890 mm (74.4 in)
Length 1626 mm (64 in)
Flying Weight 7kg (15.4 lb)
Flying time About 5 mins
Wing area 52.3 dm2
Wing load 133.8 g/dm2
Radio System 7 channel (required & not included)
Control System MFC-2085-DR
Motor 3560-1550KV(Outer rotor)×2 pcs
EDF S-EDF 90mm 12 Blade×2 pcs
ESC 100A×2 pcs
Servos

25g×2 Metal gear with 480mm lead (left & right ailerons forward)
25g×2 Metal gear with 330mm lead (left & right outer flap forward)
25g×1 Metal gear with 230mm lead (Vertical tail forward)
25g×4 Metal gear with 80mm lead (Elevator×2 & L/R inner flap forward)
7.4V 12g×1 Metal gear with 320mm lead with protection function (Nose wheel steering forward)
7.4V 12g×1 Metal gear with 320mm lead with protection function (Front wheel cover plate forward)
7.4V 12g×2 Metal gear with 80mm lead with protection function (Rear wheel cover plate forward)

Recommended Power Battery 6S,22.2V,5000~6000mAh,45C×2,LiPo with AS150 type plug(required & not included)
Recommended Receiver Battery 2S,7.4V,1800~2000mAh×2,LiPo with XT60 type plug(required & not included)
CG (Center of Gravity) 145~150mm from the leading edge of the Main Wing
Landing Gears All metal hydraulic simulation electric retractable landing gear×3

Variants

A64-01-02-00

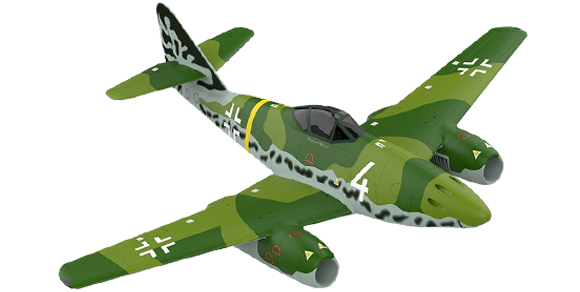

ME-262 (Camo)
