Extra 300 from hangar 9

Details

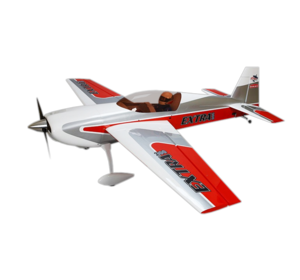

Hangar 9 is proud to introduce the next giant-scale gem, the Extra 300 35%. In this next generation Extra, the Extra 300 boasts a re-engineered structure, consisting of lightweight balsa and plywood with a carbon fiber wing tube and double spar wing design, for better performance and durability. Featuring a built-in tuned pipe and canister tunnel for a variety of exhaust options, and a mount to simply bolt on a DA-100 or DA-120cc engine, the Extra 300 35% is easily assembled for less time building and more time flying. Out on the field, this gem screams class, elegance and excitement with its flush-mounted cowl and hidden screws, fiberglass canopy hatch and Hangar 9 UltraCote® covering in a red, white and silver with decals for the best finish.

Features:

  • Double spar box wing construction for incredible strength
  • Mike McConville design - purposefully designed for top aerobatic flight performance
  • Carbon fiber wing tube provides very strong and lightweight construction
  • Built-in tuned pipe and canister tunnel ready to accept a variety of exhaust options
  • Flush mounted cowl with hidden screws for a clean and professional look
  • Fiberglass canopy hatch delivers a smooth painted finish
  • Ready to mount for the DA-100 or DA-120 engine - no drilling necessary, simply bolt on.
  • Top quality Hangar 9 UltraCote covering for the best finish

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Extra 300 in particular but at least we know they do distribute hangar 9.

Wingspan: 2650mm (104.3 in)
Length: 2489mm (98 in)

Weight: 13600 g (30 lbs)
Airfoil Shape: SD 8020 Symmetrical
Approximate Assembly Time: 20+ Hours
CG (Center of Gravity): 3-3/4" back from LE at tip
Engine Size: 100cc-120cc
Flaps: No
Flying Weight: 27.0 - 30.0 lb (12200 to 13600g)
Length: 98 in (2489mm)
Minimum Required Radio: 4 channel
Propeller Size: 27-29"
Recommended Fuel: Gasoline
Retracts: No
Servos: 9
Trimscheme Colors: White (U870), True Red (U866), Silver (U881)
Wing Area: 2003 sq in (129.2 sq dm)
Wing Loading: 31.1 oz.sq ft
Wingspan: 105 in (2650mm)
