P-47D-40 Thunderbolt from hangar 9

Details

The P-47D-40 Thunderbolt 30cc from Hangar 9 features a true to scale outline that fans of WWII warbirds will love with a ton of optional details to increase the level of realism. With its wide stance, this bird offers great ground handling capabilities for a WWII airplane, and delivers the performance and handling in the air that customers have come to expect from Hangar 9.

The P-47D-40 comes with several scale features out of the box, such as a fiberglass cowl, flaps, scale looking wing guns, a dummy engine, a top access hatch with hidden switches and three different sets of decals for a customized, clean look. Designed to use Robart retracts, the P-47’s scale details can be further enhanced with options like the full depth cockpit tub and retractable tail wheel assembly. The P-47D-40 30cc is EP (electric power) capable with separately available parts, should the customer want to run with an electric powerplant.

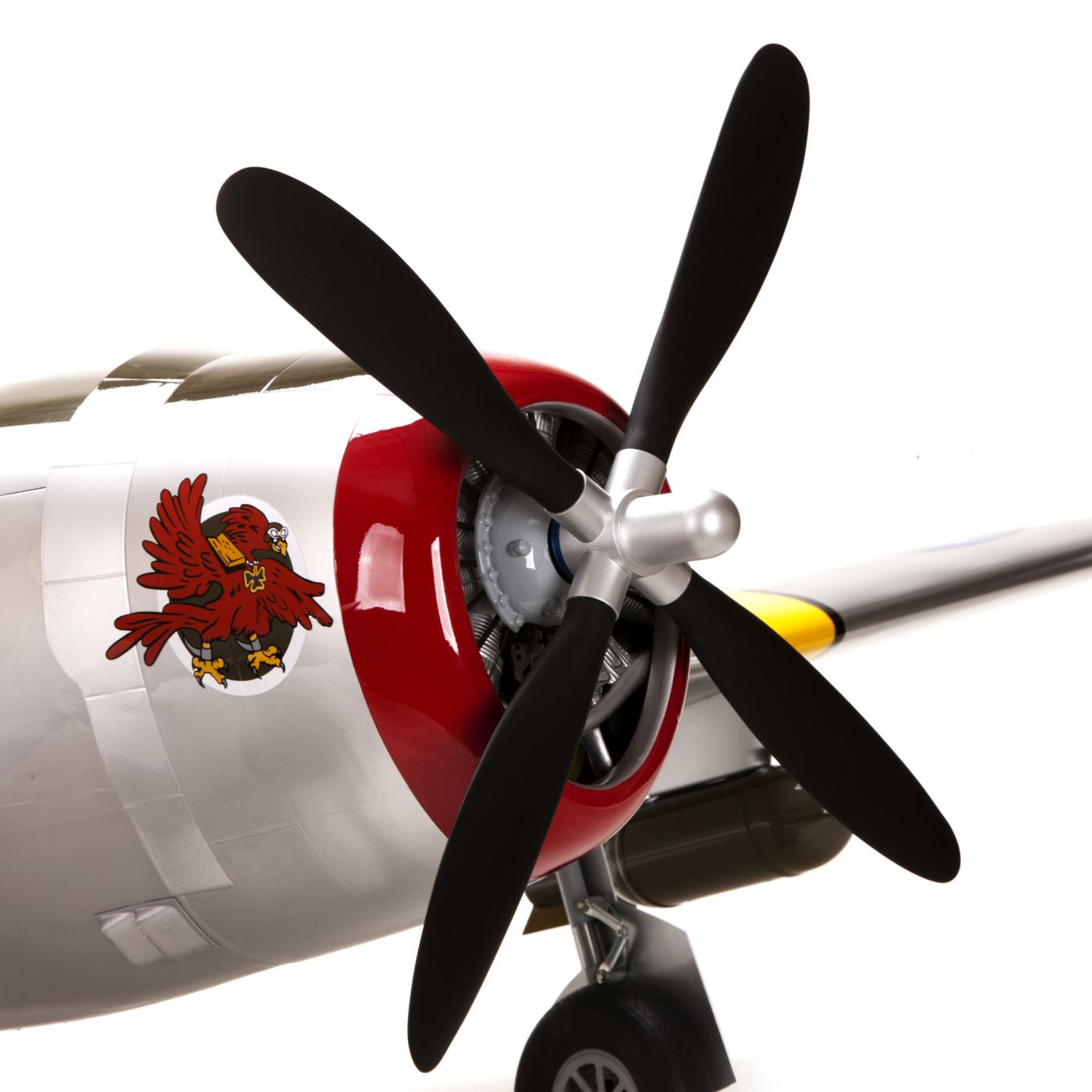

Note: The scale propeller is shown in the photos. Do not attempt to fly the aircraft with this propeller as it is for display only.

Features:

  • Accurate scale outline makes it appealing to scale enthusiasts
  • Two piece plug in wings
  • Full function flaps for enhanced flight characteristics and realism
  • Wing guns, dummy engine, and scale historical trim scheme
  • Optional full depth cockpit tub
  • Fiberglass cowl with hidden cowl screws maintain the scale fidelity and look
  • Compatible with a variety of powerplant options, allowing the consumer to choose glow, gas or EP

Pictures

Manual

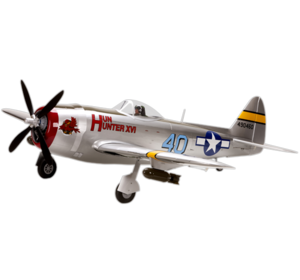

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the P-47D-40 Thunderbolt in particular but at least we know they do distribute hangar 9.

Wingspan: 2100mm (82.7 in)
Length: 1800mm (70.9 in)

Weight: 8600 g (19 lbs)
Approximate Assembly Time: 20+ Hours
Control Throw (Ailerons): Low: 14mm up/11mm down, 20% expo; High: 19mm up/14mm down, 30% expo
Control Throw (Elevator): Low: 19mm up/down, 20% expo; High: 29mm up/down, 40% expo
Control Throw (Flaps): Mid (takeoff): 38mm; Full (landing): 86mm
Control Throw (Rudder): Low: 19mm right/left, 20% expo; High: 29mm right/left, 25% expo
Flaps: Yes
Flying Weight: 16.0 to 19.0 lb (7300 to 8600 g)
Recommended Fuel: Gasoline
Recommended Motor Battery: (2) 5000mAh 5S 18.5V 30C LiPo
Recommended Receiver Battery: 2700mAh 6.0V NiMH Receiver Pack
Retracts: Optional
Speed Control: ICE 80-HV (80A Minimum)
Spinner Size: 1-1/2 inch P-47 style
Stabilizer Tube Length: 13 inch
Stabilizer Tube OD: 1/2 inch
Wing Loading: 31.7-37.6 oz/sq ft
Wing Tube Length: 29-3/8 inch
Wing Tube OD: 1-1/4 inch
Length 71 in (1800mm)
Wingspan: 81.25 in (2100mm)
