P3 Revolution from hangar 9

Details

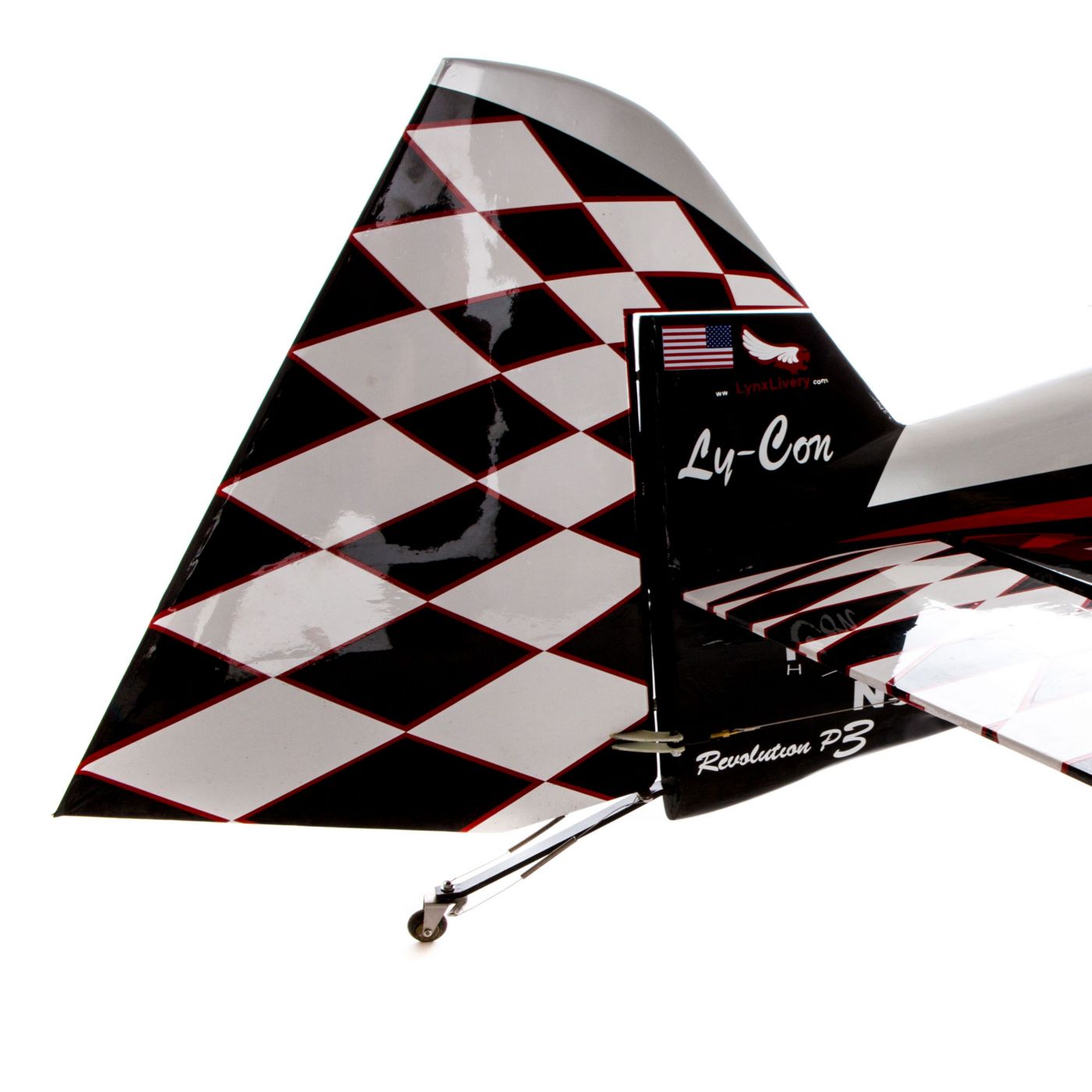

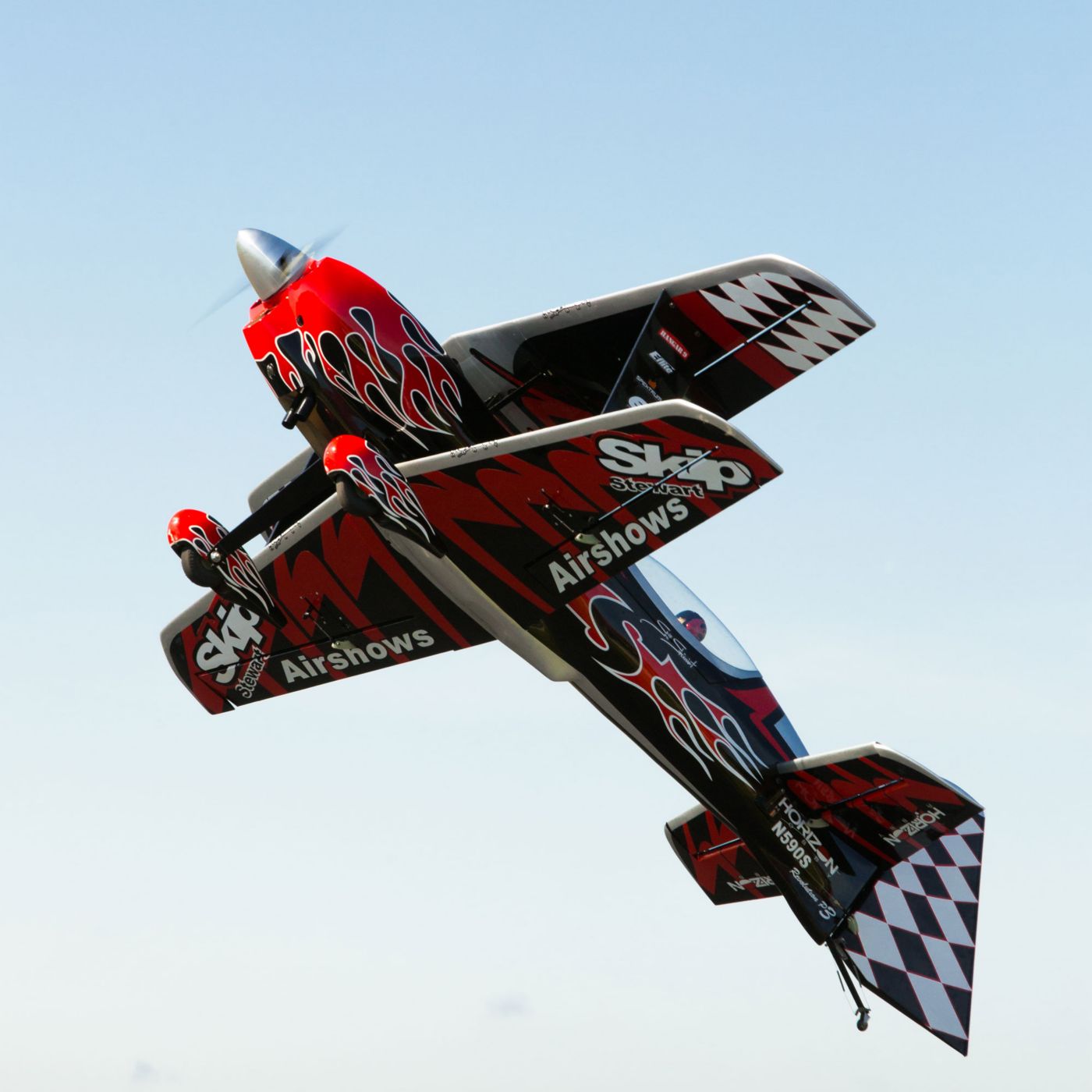

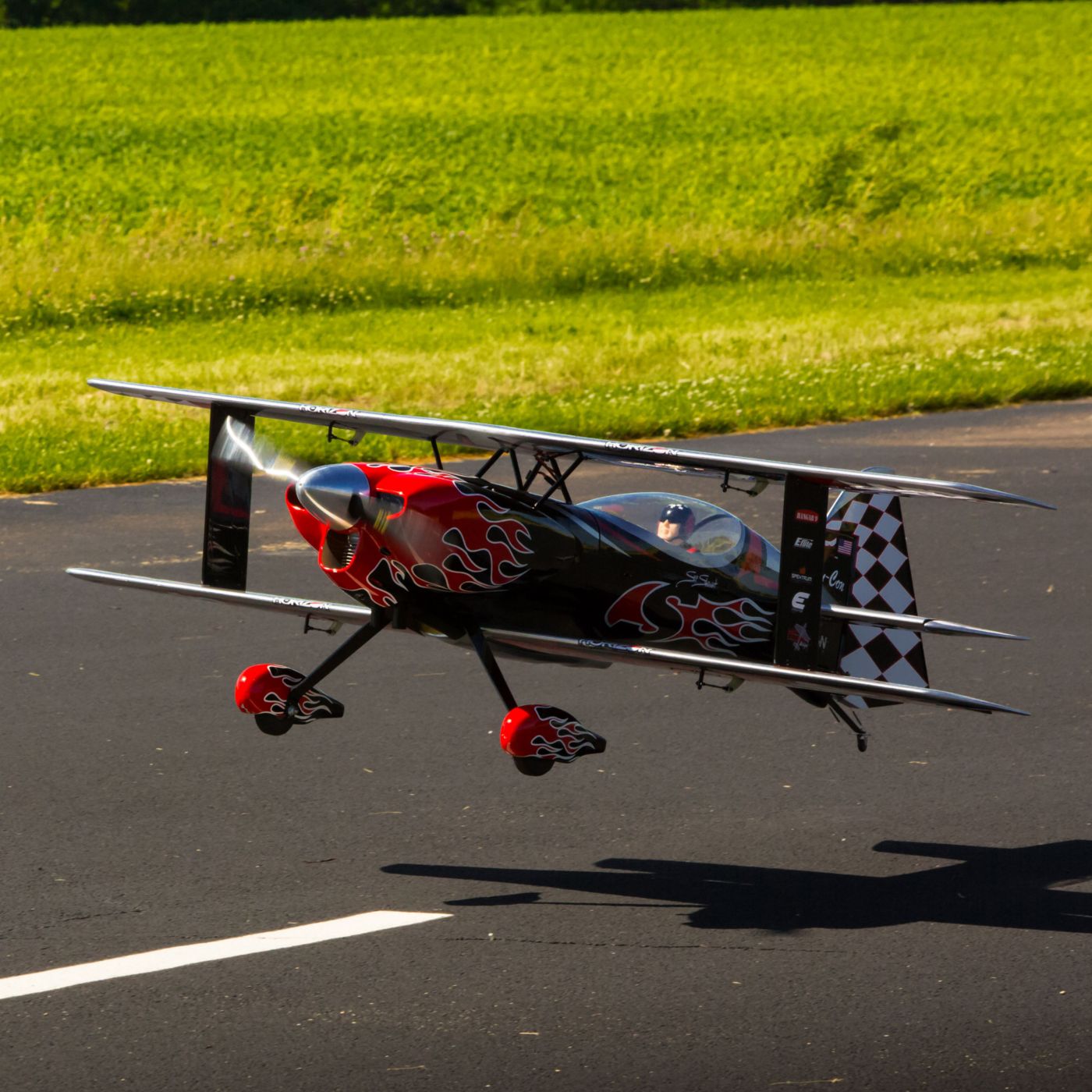

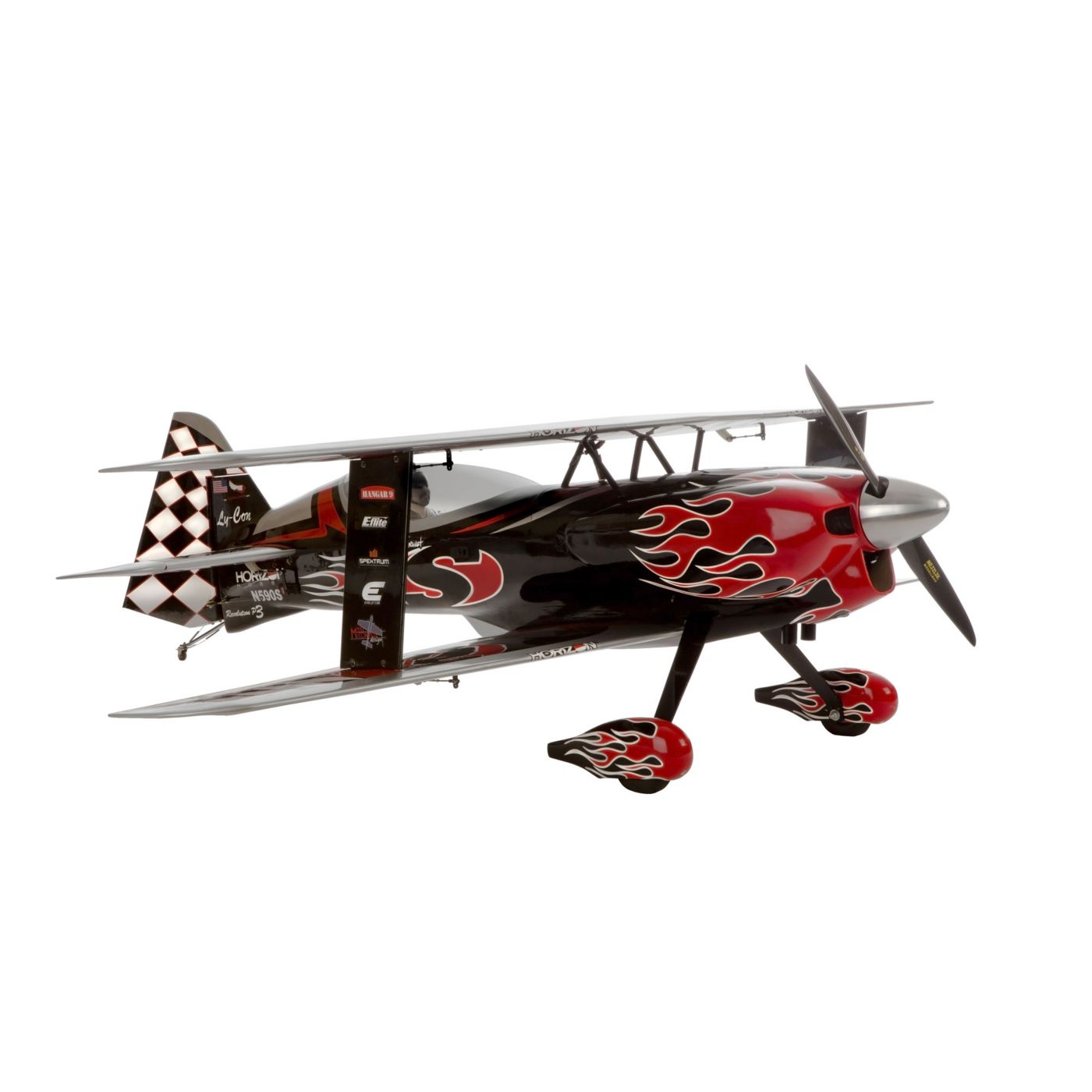

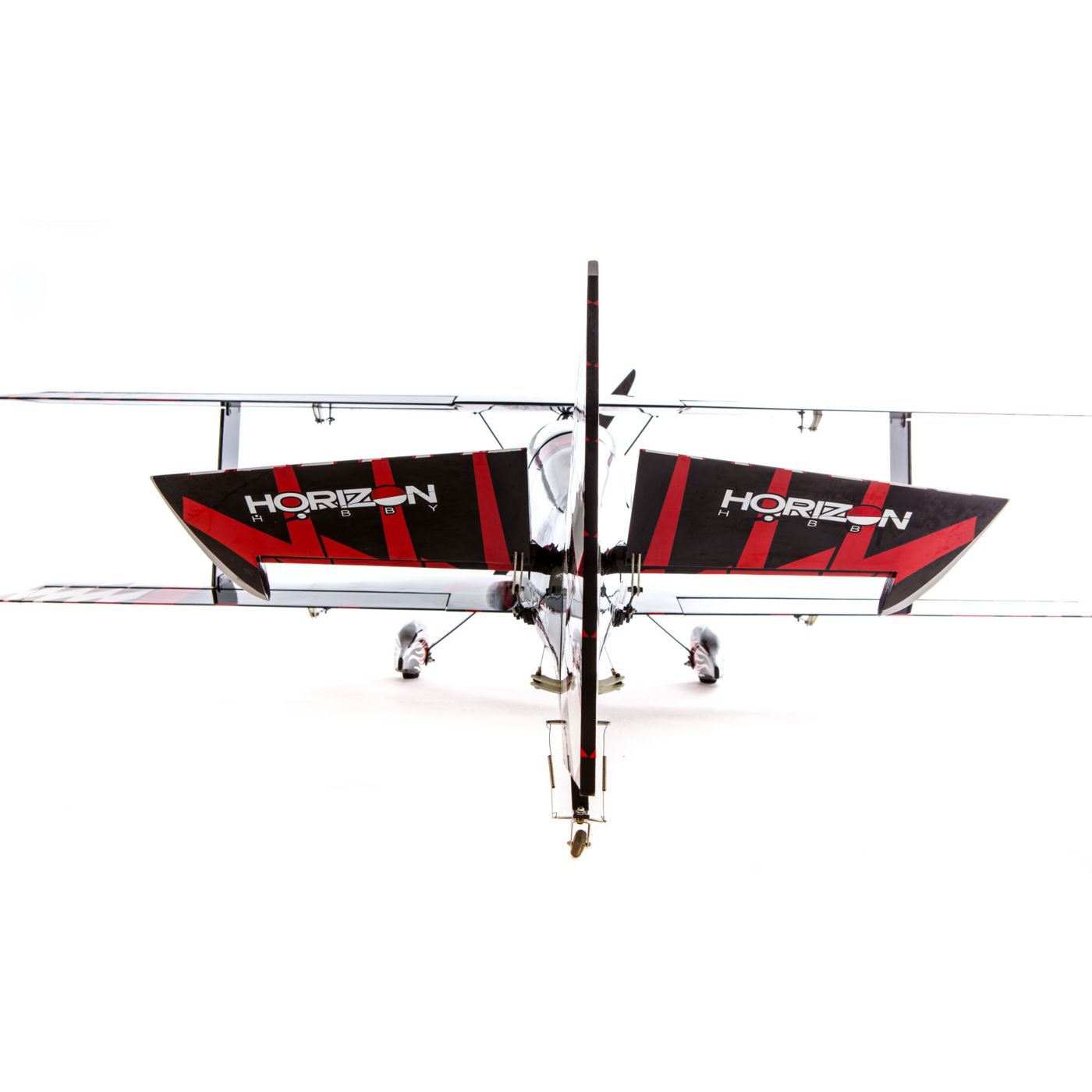

The Hangar 9® P3 Revolution 60cc giant scale biplane is an exclusively licensed model of the radical new aircraft design for Skip Stewart Airshows. Like the full-size, the outline of the P3 Revolution 60cc is unconventional in practically every aspect. The actual aircraft Skip Stewart will fly in the very near future gets its lightweight specifications from advanced composite construction. World-class RC pilot, Mike McConville, has engineered this model using lightweight all-wood construction. It’s a level of durability that’s critical to hardcore 3D performance in this size class, plus it allows genuine UltraCote® film to deliver a finish that’s resilient as it is beautiful.

One look at the enormous double-beveled control surfaces and it’s easy to tell this airplane was purpose built for outrageous 3D maneuverability. In contrast, the stretched fuselage and high-aspect ratio of its tapered wings suggests precision aerobatics is within the performance envelope. When matched with the recommended Spektrum electronics and 60cc-size gas engine, you can tune this unique biplane any way you like. You’ll get vertical pull to yank this big bipe out of a hover, and the precision to wail through crank-shaft rollers and hard snap in ways that would red-eye any pilot in the full-scale world.

Convenience features like plug-in wings and stabilizers mean that getting the P3 Revolution to the field is no problem. Completed features like factory-hinged ailerons and elevators, a pre-drilled firewall, and a complete high-quality hardware package mean you won’t be at the work bench very long. Even a pilot figure with the likeness of Skip Stewart is included so you can experience the future of airshow aerobatics right at your home field.

Features:

  • Designed by world class RC pilot, Mike McConville
  • Exclusive, officially licensed P3 Revolution model
  • Engineered to deliver 3D performance in a precision biplane platform
  • Two-piece, plug-in wings with carbon-fiber joiner tube
  • Two-piece, plug-in horizontal stabilizers with carbon-fiber joiner tube
  • Laser-cut, all-wood construction that’s lightweight
  • Pre-drilled hinge locations for all control surfaces
  • Genuine UltraCote® film finish with complex graphics applied
  • Pre-drilled firewall that’s ready to mount your 60cc-size gas/petrol engine
  • Color-matching fiberglass cowl and wheel pants
  • Painted, high-strength aluminum landing gear
  • Complete, high-quality hardware pack, plus fuel tank included
  • Ball-link connectors and dual-plate fiberglass control horns
  • Painted pilot figure included

Pictures

Manual

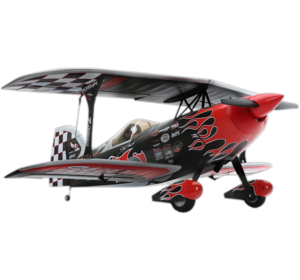

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the P3 Revolution in particular but at least we know they do distribute hangar 9.

Wingspan: 1982mm (78 in)
Length: 2000mm (78.7 in)

Weight: 8600 g (19 lbs)
Airfoil Shape: Symmetrical
Approximate Assembly Time: 20+ Hours
CG (Center of Gravity): 5.875-6.25 in (149-159mm) behind the leading edge of the top wing at the center
Completion Level: Almost Ready-To-Fly
Engine Size: 62cc Gas
Flying Weight: 19 lbs (8600g)
Length: 78.7 in (2000mm)
Material: Balsa
Minimum Required Radio: 6 channel
Recommended Fuel: Gasoline
Recommended Receiver Battery: 3 x 2000mAh LiPo
Servos: 7 high torque and 2 standard required
Spinner Size: 4.5 in (114mm)
Trimscheme Colors: Black, Silver, True Red
Wing Area: 1817 sq in (117.2 sq dm)
Wingspan: 78 in (1982mm)
