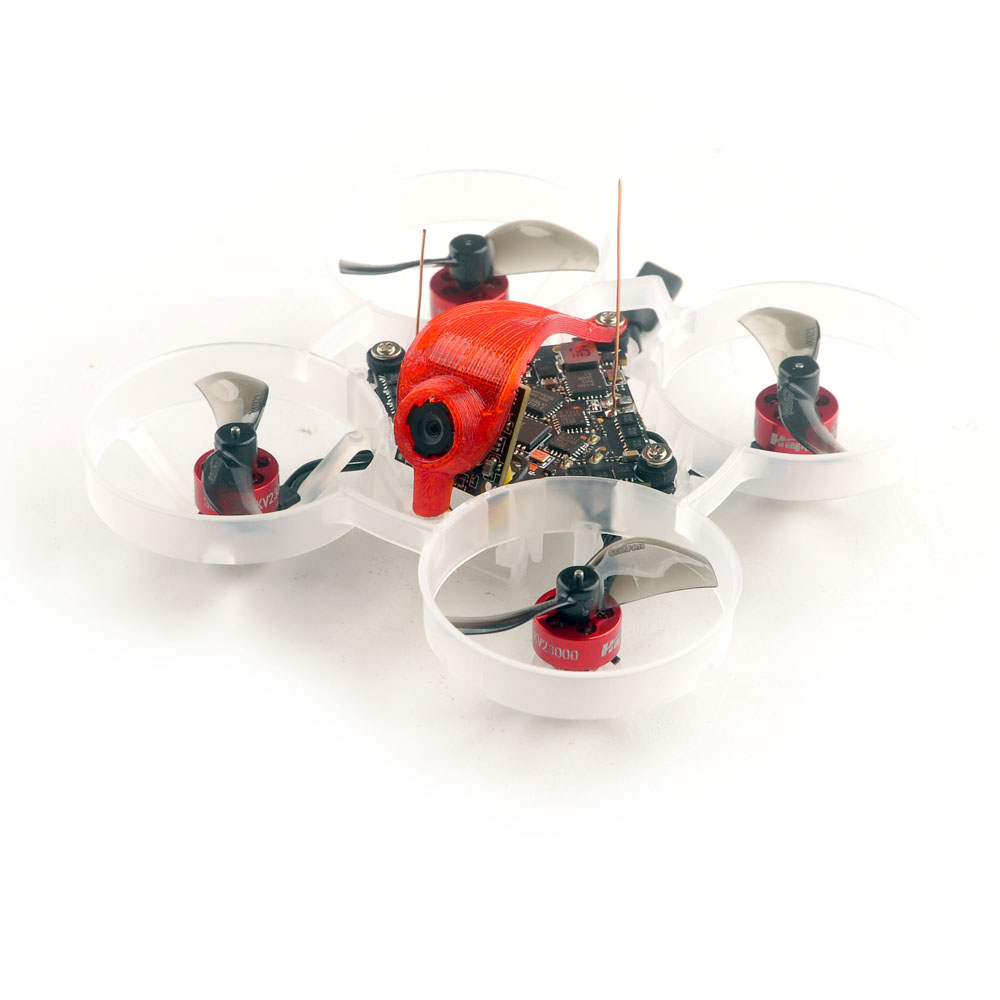

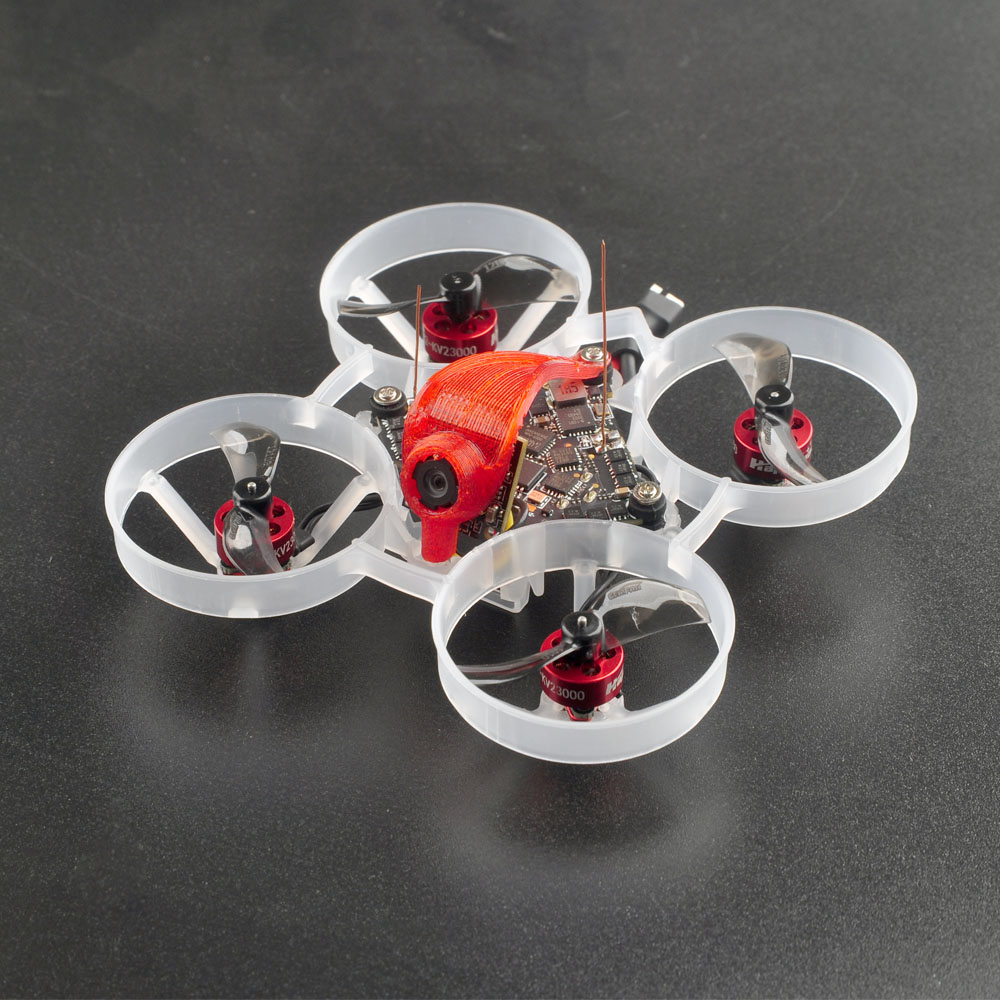

Mobeetle6 from Happymodel

Details

The new Mobeetle6 BNF would be the lightest 65mm mass production whoop in the world, hope you will enjoy it . The DiamondF4 Flight controller and 0702 motors were inspired from Angry Don FPV, we really appreciated for his help to Happymodel and to this hobby. We also very expecting to the performance of this BNF with the new Diamond F4 ELRS flight controller.

Features:

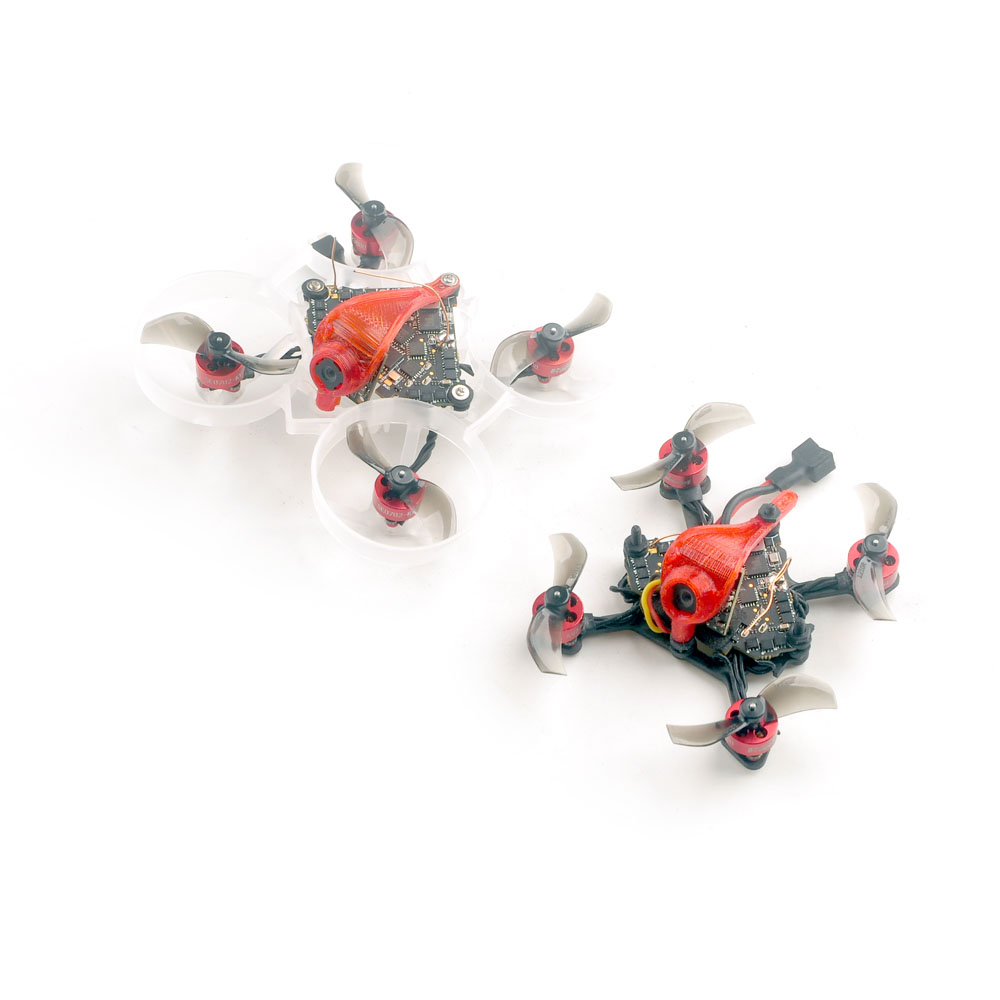

  • The lightest 1S Whoop and Toothpick 2-IN-1 fpv drone

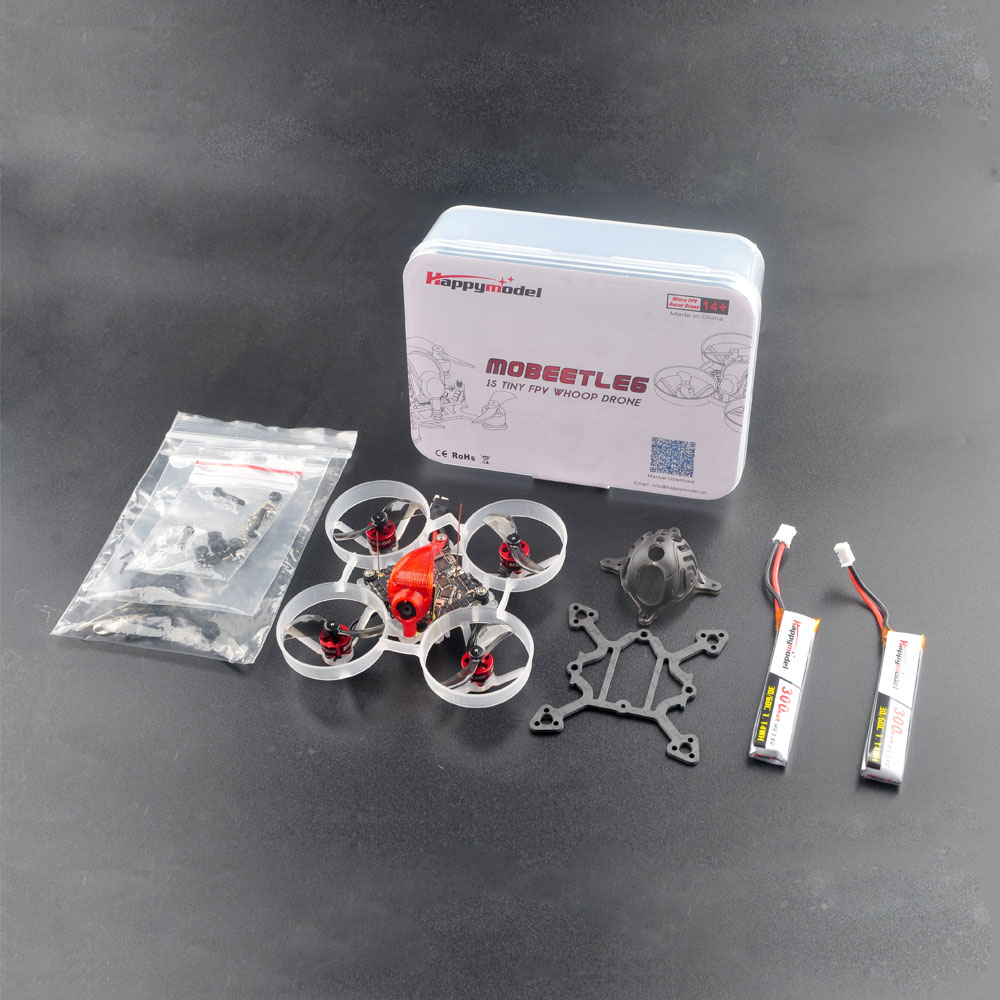

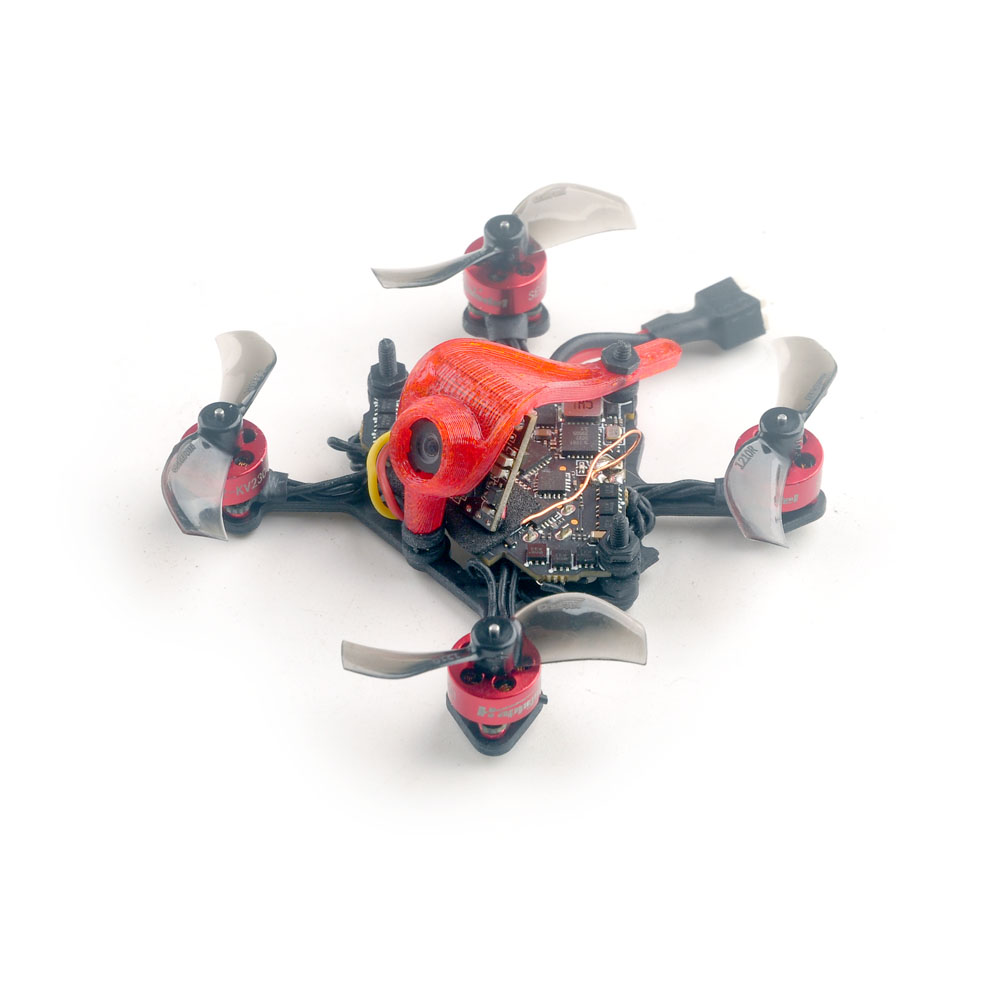

  • Comes with tooth pick frame for convert
  • Powerful and efficiency
  • The lightest 1s AIO 5IN1 F4 flight controller
  • New Unibell SE0702 brushless motors with pcb wire board
  • Built-in OPENVTX up to 400mw
  • Low profile Canopy design

Pictures

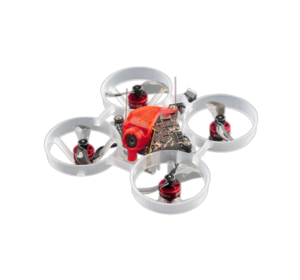

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Mobeetle6 in particular but at least we know they do distribute Happymodel.

Wingspan: 80mm (3.1 in)
Length: 80mm (3.1 in)

Weight: 18 g (0.6 oz)
  • Wheelbase: 65mm
  • Size: 80mm*80mm*30mm
  • Weight: 17.5g (without battery)

Spare parts specifications:



Spare parts specifications:

Motor Mode:SE0702 KV23000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
Weight(g):1.5g
No.of Cells(Lipo):1S only
Propeller Weight:0.19g
Material:PC
Pitch:1 inchProps Dia:30mm
Center Hole Dia:1mm
Flight controller (ELRS SPI RX version)DiamondF4 ELRS FC Firmware target: CrazybeeF4SX1280
(Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OPEN VTX
Built-in SPI ELRS V2.0/Frsky receiver
Built-in 5V 1A BEC
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_50_REV16_8.HEX
Default protocol: DSHOT600
Onboard SPI ExpressLRS 2.4GHz Receiver Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : Enameled copper wire antenna
Telemetry output Power: <12dBm
Receiver protocol:  SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware
Onboard Frsky SPI D8 receiver Version SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 modelChannels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m
Onboard 5.8g OPENVTX Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Runcam Nano3 Model: RunCam Nano 3
Image Sensor: 1/3″ CMOS
Horizontal Resolution: 800TVL
Lens : 2.3mm(M6.5) FOV 140°
Signal System: NTSC
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: [email protected]
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V [email protected]
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm
Lipo Battery Capacity:300mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 7.5gConnector: PH2.0
