Sky Shadow S800 from HobbyKing

Details

The H-King Sky Shadow S800 is built for extreme FPV flying. The plane is constructed from almost indestructible grey EPP foam with six carbon fiber spars to provide strength and rigidity for excellent performance.

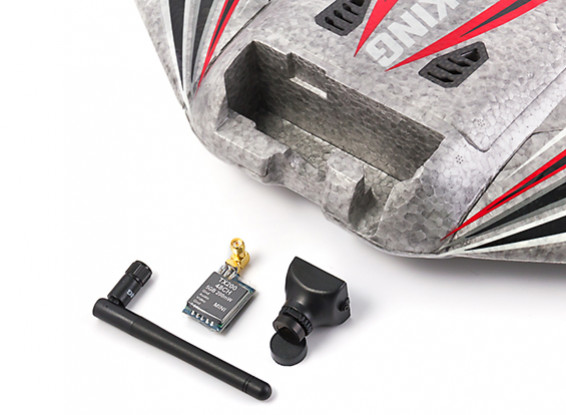

The aerodynamic wing gives stable flight throughout the entire flight envelope, from low speed passes to high-speed turns. The model has been well thought-out with ample room in the nose for an FPV camera and action cam, behind the camera is a large covered hatch for your battery and avionics allowing them to be neatly tucked away. In addition, there is also a compartment in each wing for the video transmitter and radio receiver.

The H-King Sky Shadow S800 flying wing Kit allows you to install the hardware of your choosing, all you need is some build time and a clear sky

Features:
• High quality, lightweight EPP foam construction
• Aerodynamic design for high speed, low wind resistance and stable flight
• New design 5V/3A and 9V/3A Dual output powerboard for clean power for your video camera

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Sky Shadow S800 in particular but at least we know they do distribute HobbyKing.

Wingspan: 820mm (32.3 in)
Length: 405mm (15.9 in)

Weight: 170 g (6 oz)

Material: EPP
Wingspan: 820mm
Overall Length: 405mm
Weight: 170g (without electronics)

Requires:
2 x 9g Servos
1 x 2204~2205 2300KV Brushless Motor
1 x 30A ESC
1 x 6045 Propeller
1 x FPV Camera and VTx
1 x 1800mAh 3S LiPoly Battery
1 x 4~6CH Radio and Receiver (with elevon Mixing)
1 x 3-Axis Flight Controller
1 x FPV Goggles or Monitor
1 x Action Camera (if required)
