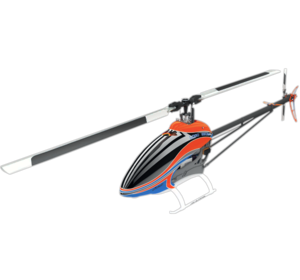

Logo 690 SX from Mikado

Details

The LOGO 690 SX from Mikado is a cross-over model, combining the best of 600 and 700 size helicopters. This makes for extraordinary flight performance.

LOGO 690 SX—a 700 size heli with a weight of just 4.8 kg (12S-5,000)
light und durable chassis fiberglass reinforced frame with battery quick release system
for 12S Lipo battery, 4,000 mAh to 5,000 mAh
aluminum swashplate with new geometry for quicker cyclic response
robust tail drive via HTD-belt with aluminum drive pulleys
stronger blade grips with Ø 5 mm blade grip bolt
stronger free wheel for higher torque
additional aluminum/carbon battery tray
reinforced clamp ring for main rotor shaft
herringbone main gear makes for smooth sound
extra-stiff carbon tail boom brace
new airbrushed chassis cover lets you identify the flight attitude of the heli more easily
glass-fiber airbrushed canopy with new look

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Logo 690 SX in particular but at least we know they do distribute Mikado.

Where to buy

Germany
Schweighofer GE
check web site
Ship to: Germany

Austria
Schweighofer AT
check web site
Ship to: International

USA
AMain Hobbies
check web site
Ship to: USA

Wingspan: 1550mm (61 in)
	Length: 1340mm (52.8 in)
Weight: 4800 g (10.6 lbs)

See more Details

Rotor diameter	1,550 mm
Rotor blades	690 mm
RTF weight	4.8 kg
recommended batterie	12S Lipo (4.000-5.000 mAh)
Main gear ratio	1:7.06
Tail gear ratio	1:4,76
Main Gear size	106 Module 1
batterie slot	58 x 55 x 330 mm
Length	1,340 mm
Hight	390 mm
Width	330 mm
