T-34C Turbo Mentor 61.4" from NEXA

Details

The Beechcraft T-34 Mentor is an American propeller-driven, single-engined, military trainer aircraft derived from the Beechcraft Model 35 Bonanza. The earlier versions of the T-34, dating from around the late 1940s to the 1950s, were piston-engined. These were eventually succeeded by the upgraded T-34C Turbo-Mentor, powered by a turboprop engine. The T-34 remains in service more than six decades after it was first designed.

The Nexa T-34C Turbo Mentor is a .50 size electric or gas option scale series warbird with a 1560mm wingspan, constructed primarily from balsa wood and covered with a fuel-resistant covering. This ARF requires assembly and installation of your choice of servos and power system, and includes flaps, painted pilot and other scale details. The large battery hatch affords ample room for either electric or gas setups. To complete the scale appeal of this T-34C, the model includes electric retracts and scale struts. Impress at your flying field with this iconic stunner!

Features:

  • Complete Balsa and lite-ply construction for rigidity and durability
  • Covered from tip to tail in scale details including weathering, functional flaps, printed simulated panel lines and rivets
  • Fiberglass cowling for strength and durability
  • The hand-painted pilot is ready for your added cockpit details
  • All control surfaces come out of the box pre-hinged and installed for convenience
  • Large battery hatch allows for your chosen electric or gas setup

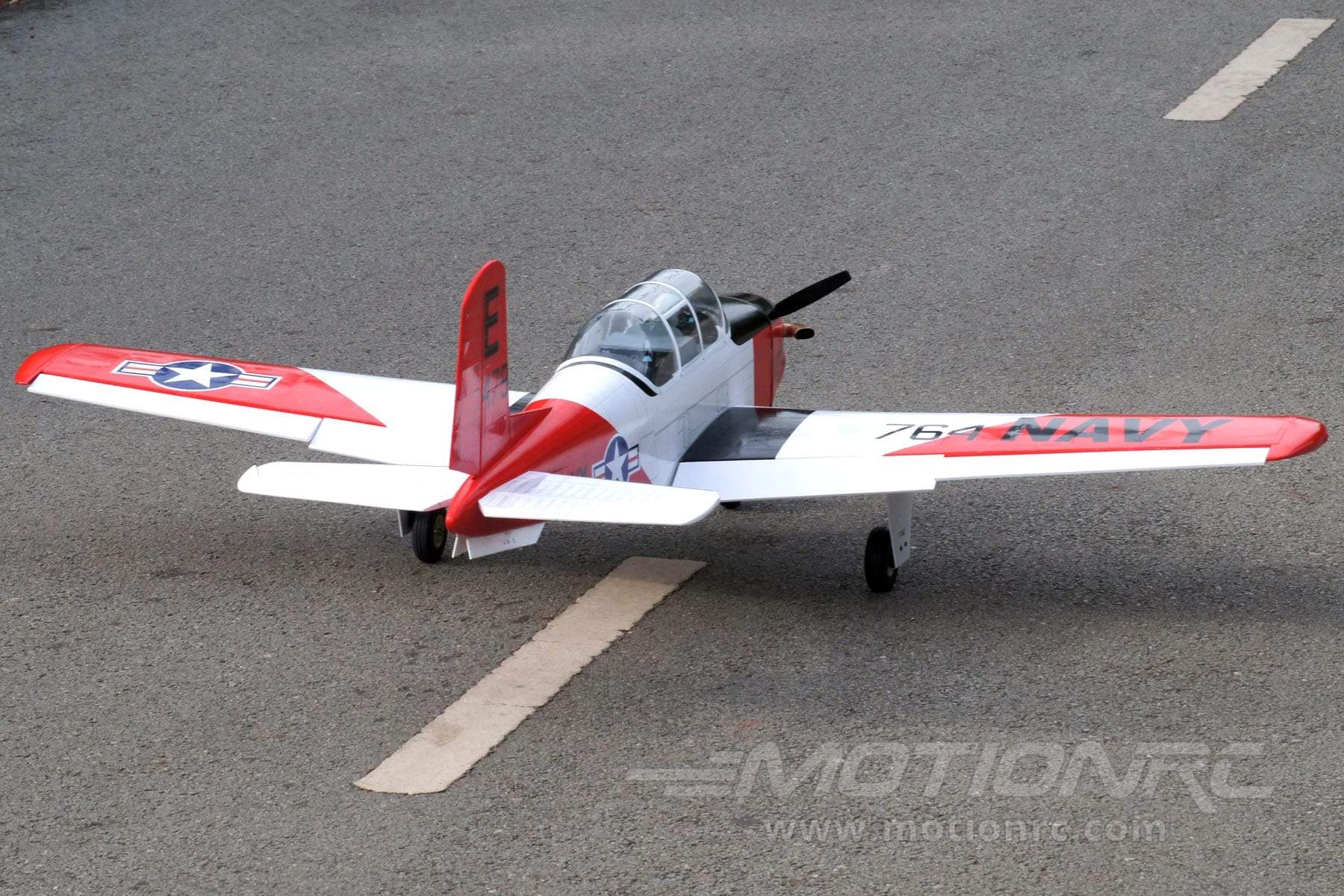

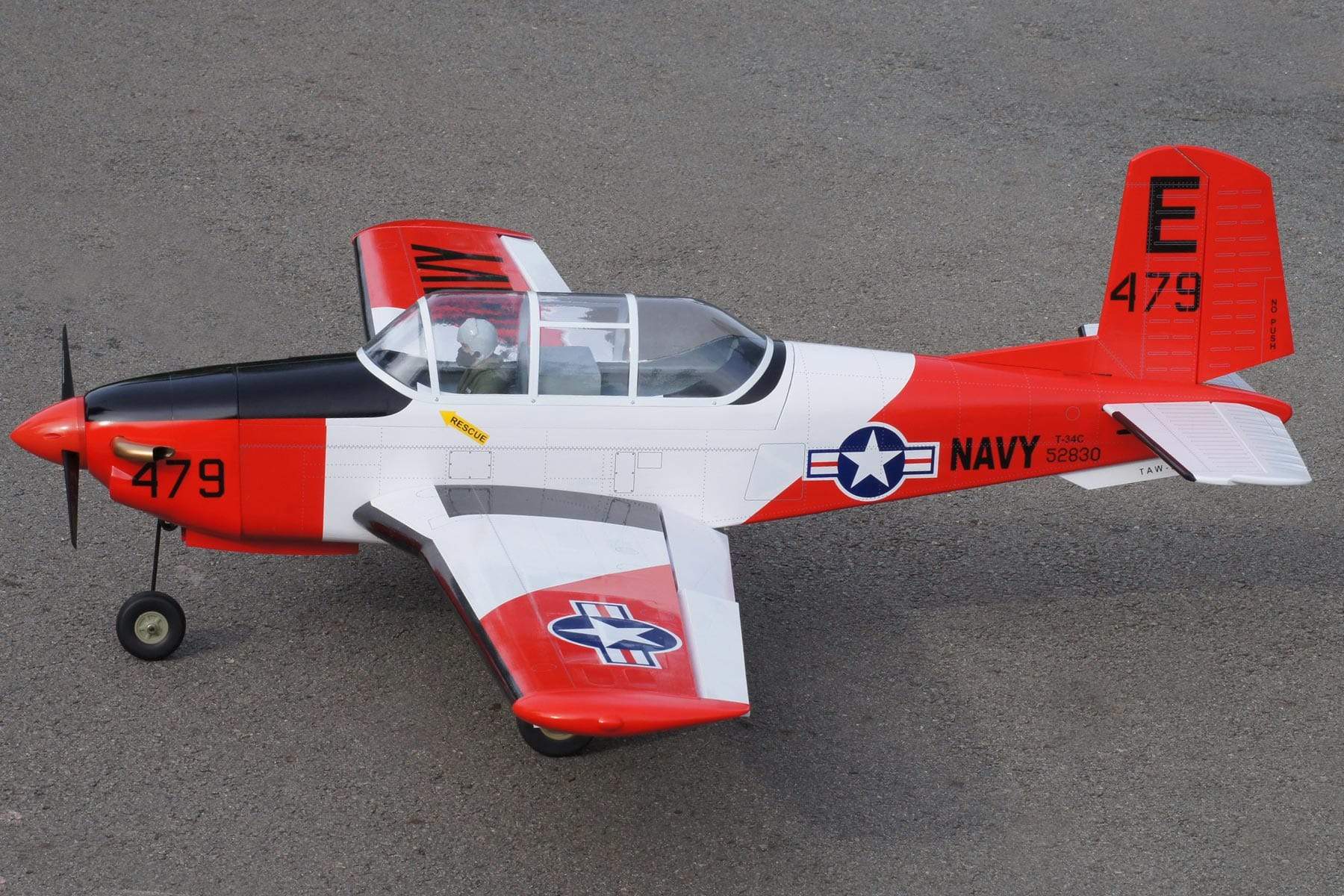

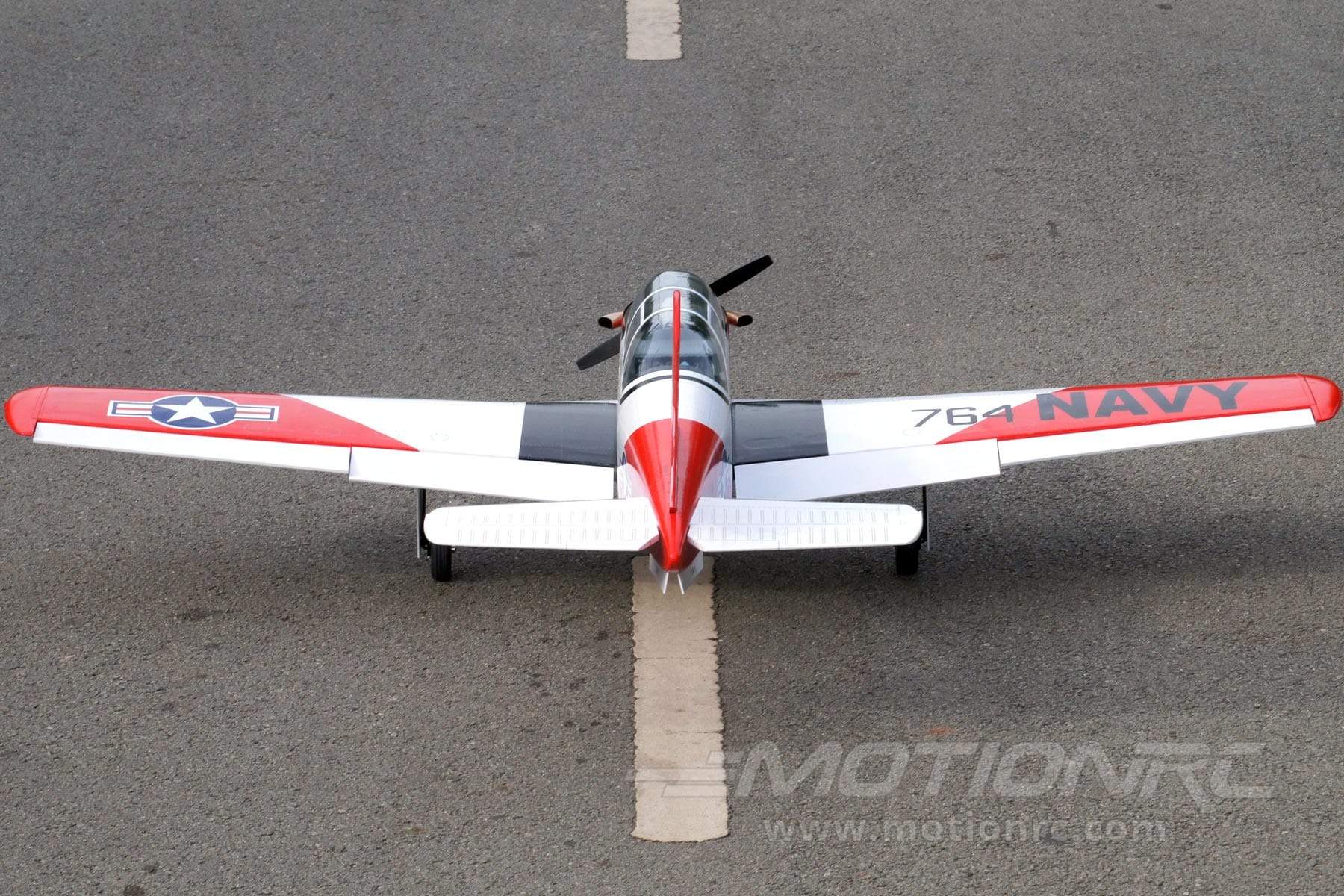

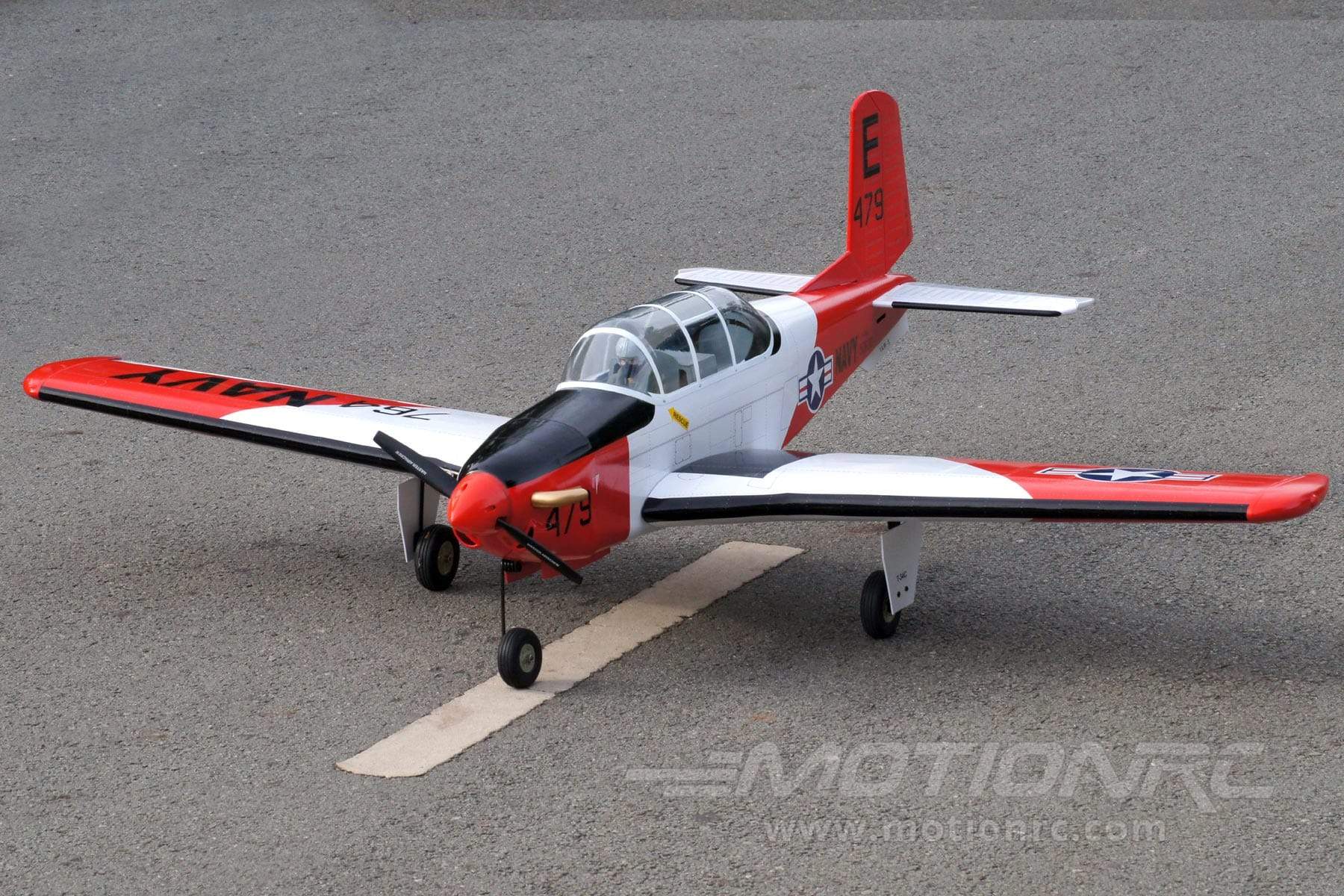

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the T-34C Turbo Mentor 61.4" in particular but at least we know they do distribute NEXA.

Where to buy

USA
Motion RC LLC
check web site
Ship to: USA
Netherlands
Motion RC B.V.
check web site
Ship to: Europe

Wingspan: 1560mm (61.4 in)
Length: 1170mm (46.1 in)

Weight: 3200 g (7.1 lbs)
Model Scale 1/7
Wingspan 1560mm / 61.4in
Length 1170mm / 46in
Weight 3200g / 112.8oz
CG (Center of Gravity) 128mm from the leading edge of the wing's root
Power System 400Kv Brushless outrunner motor for electric or 4-stroke for gas (required)
Electronic Speed Control 65A (required)
Propeller / EDF 15x8 2-blade for electric or 15x8 gas 2-blade for gas (required)
Servos
  • 4x standard servos for ailerons, elevator and rudder - HRC6005-023
  • 2x standard servos for flaps - HRC6005-014
Landing Gear Electric retractable (included)
Required Battery 6 Cell 22.2V 4000 mAh LiPo Battery (required)
Required Radio 7+ Channel (required)
Material Balsa and light plywood

Variants

NXA1020-001
T-34C Turbo Mentor 61.4" (White Red)
